Use dynamic inventories to scale your automation.

The Scenario

In Ansible and the Ansible Automation Platform, as you know, everything starts with an inventory. There are several methods how inventories can be created. Starting from simple static definitions over importing inventory files to dynamic and smart inventories.

In real life it’s very common to deal with external dynamic inventory sources (think cloud, CMDB, containers, …). In this chapter we’ll introduce you to building dynamic inventories using custom inventory scripts. Another great feature of the Ansible Automation Platform to deal with inventories is the Constructed Inventory feature, which you’ll learn more about in the next chapter.

Dynamic Inventories

Automation execution includes built-in support for syncing dynamic inventories from cloud sources such as Amazon AWS, Google Compute Engine, and others.

Inventory plugins are the newer way to generate custom inventories and must be written in Python, but inventory scripts still work.
If the source you want to query is not covered by an existing inventory plugin, you can create your own script or plugin.

In this chapter you’ll get started with custom dynamic inventory scripts. Among all the available programming languages we have chosen one of the most accessible and known: Bash! Yes!

Don’t get this wrong… we’ve chosen to use Bash to make it as simple as possible to show the concepts behind dynamic and custom inventories. Our recommendation in real life remains to use Python to write your dynamic inventory plugins (not scripts!), and profit from libraries, documentation and examples written in the same language. And actually you should even place the inventory plugin in a collection and use it as part of this collection added to an Execution Environment loaded into the automation execution. But this approach would have been too involved for this lab, so here you are: Bash!

The Inventory Source

First you need an inventory source. In real life this would be your cloud provider, your CMDB, or what not. For the sake of this lab we put a simple file into a GitLab repository.

Use curl to query your "external inventory source":

curl https://bastion.MYGUID.sandboxMYSANDBOX.opentlc.com:488/MYUSER/playbooks-adv-controller/raw/branch/main/constructed-inventory/inventory_list

This should give you the following output:

{
    "dyngroup":{
        "hosts":[
            "cloud1.cloud.example.com",
            "cloud2.cloud.example.com",
            "CLOUD3.cloud.example.com"
        ],
        "vars":{
            "var1": true
        }
    },
    "all":{
        "hosts":[
            "cloud4.prod.cloud.example.com",
            "cloud5.prod.cloud.example.com",
            "cloud6.dev.cloud.example.com",
            "cloud7.dev.cloud.example.com"
        ]
    },
    "_meta":{
        "hostvars":{
            "cloud1.cloud.example.com":{
                "type":"web",
                "architecture":"x86_64"
            },
            "cloud2.cloud.example.com":{
                "type":"database",
                "architecture":"arm"
            },
            "cloud3.cloud.example.com":{
                "type":"database",
                "architecture":"x86_64"
            },
            "cloud4.prod.cloud.example.com":{
                "type":"web",
                "architecture":"arm"
            },
            "cloud5.prod.cloud.example.com":{
                "type":"web",
                "architecture":"x86_64"
            },
            "cloud6.dev.cloud.example.com":{
                "type":"web",
                "architecture":"arm"
            },
            "cloud7.dev.cloud.example.com":{
                "type":"web",
                "architecture":"x86_64"
            }
        }
    }
}

Well, this is handy, the output is already presented as JSON, as expected by Ansible… ;-)

Okay, seriously, in real life your plugin would likely get some information from your source system, format it as JSON and return the data to the automation execution.

The Custom Inventory Script

An inventory script (and plugins, too) has to follow some conventions. It must accept the --list and --host <hostname> arguments. When it is called with --list, the script must output JSON-encoded data containing all groups and hosts to be managed. When called with --host <hostname> it must return an JSON-formatted hash or dictionary of host variables (can be empty) for this particular host.

As looping over all hosts and calling the script with --host can be pretty slow, it is possible to return a top level element called _meta with all host variables together with the output of --list in one run. And this is what we’ll do. So this is our custom inventory script:

#!/bin/bash

if [ "$1" == "--list" ] ; then
    curl -sS https://bastion.MYGUID.sandboxMYSANDBOX.opentlc.com:488/MYUSER/playbooks-adv-controller/raw/branch/main/constructed-inventory/inventory_list
elif [ "$1" == "--host" ]; then
    echo '{"_meta": {"hostvars": {}}}'
else
    echo "{ }"
fi

What it basically does is to return the data collected by curl when called with --list and as the data includes _meta information about the host variables Ansible will not call it again with --host. The curl command is of course the place where your plugin would get data by whatever means, format it as proper JSON and return it (-sS makes curl silent, except for error messages).

But before we integrate the custom inventory plugin into our automation execution, it’s a good idea to test it on the command line:

Bring up your VS Code browser tab, refer to the Lab Access page if the tab was closed.
In either the visual editor or in the terminal using your favorite command line editor, create the file /home/MYUSER/dyninv.sh with the content of the Bash script shown above.

Make sure to really create the script in /home/MYUSER/

Make the script executable:
```
chmod +x /home/MYUSER/dyninv.sh
```
Execute it:
```
/home/MYUSER/dyninv.sh --list
```

This should give you the same output as above.

As simple as it gets, right? More information can be found on how to develop dynamic inventories.

So, now you have a source of a (slightly static) dynamic inventory (talk about an oxymoron…) and a script to fetch and pass it to the automation execution.

Integrate into Ansible Automation Platform

In Ansible Tower up to version 3.8, you could create inventory scripts directly in the web UI. Since automation controller 4.0 (aka AAP 2.0) the only way to get inventory scripts into Automation Execution is by putting the script into a source control repository.

For this lab the inventory script was already created in the Git repository you have configured as a Project earlier, so you can use this as-is.

You can directly proceed to adding the dynamic inventory and pointing it to the inventory script.

In the AAP web UI, open Automation Execution ⇒ Infrastructure ⇒ Inventories.
To create a new inventory, click the blue Create inventory drop-down and click on Create inventory.
Fill in the needed data:
- Name: Cloud inventory
- Organization: Default
Click Create inventory
Change to the Sources tab and click the blue Create Source button.
Fill in the needed data:
- Name: Cloud inventory Script
- Source: Sourced from a Project
- Project: Lab Project Repo
- Inventory file: constructed-inventory/inventory-script
- enable Update on launch
- Cache timeout (seconds): 300
Click on Create source
Go back to the Sources tab of the Cloud inventory

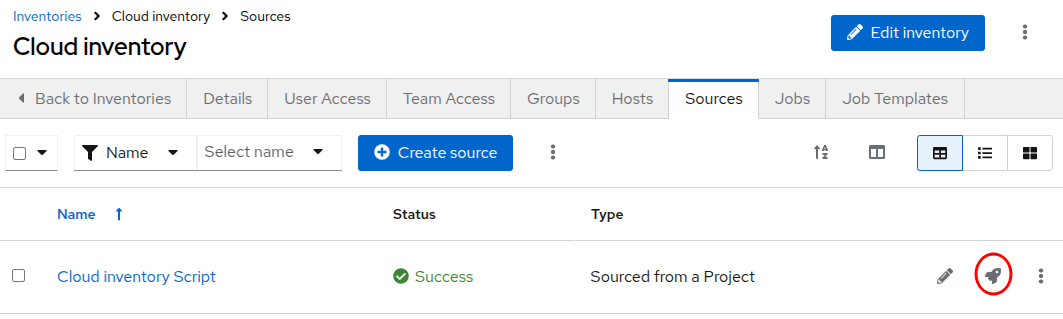

Start the inventory update by clicking the rocket icon

Navigate to Jobs in the Automation Execution section to watch the initial sync, the Type is Inventory Sync.

After the inventory sync has finished check out the new hosts which were added by it to your Cloud inventory, by going to Automation Execution ⇒ Infrastructure ⇒ Hosts. You should find a number of new hosts according to the JSON output above.

What is the take-away?

Using this simple example you have:

Created a script to query an inventory source
Integrated the script into automation execution
Populated an inventory using the custom script
