Enabling Basic Day to Day Operations

Credentials for the OpenShift Console and Ansible Automation Platform

Your OpenShift cluster console is available here.

Your local admin login is available with the following credentials:

User: username
Password: password

You will first see a page that asks you to choose an authenication provider, click on htpasswd_provider.

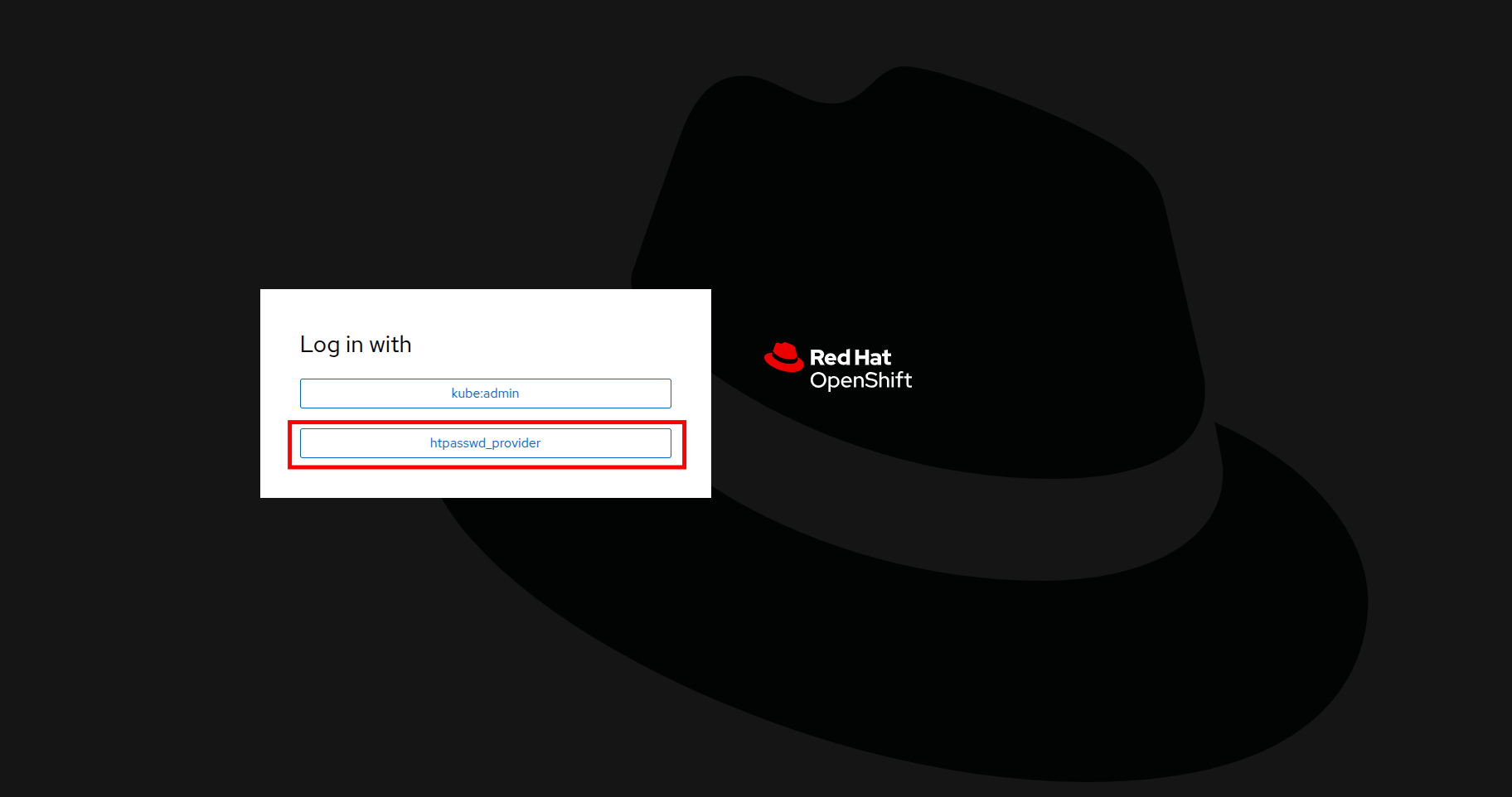

Figure 1. OpenShift Authentication

You will then be presented with a login screen where you can copy/paste your credentials.

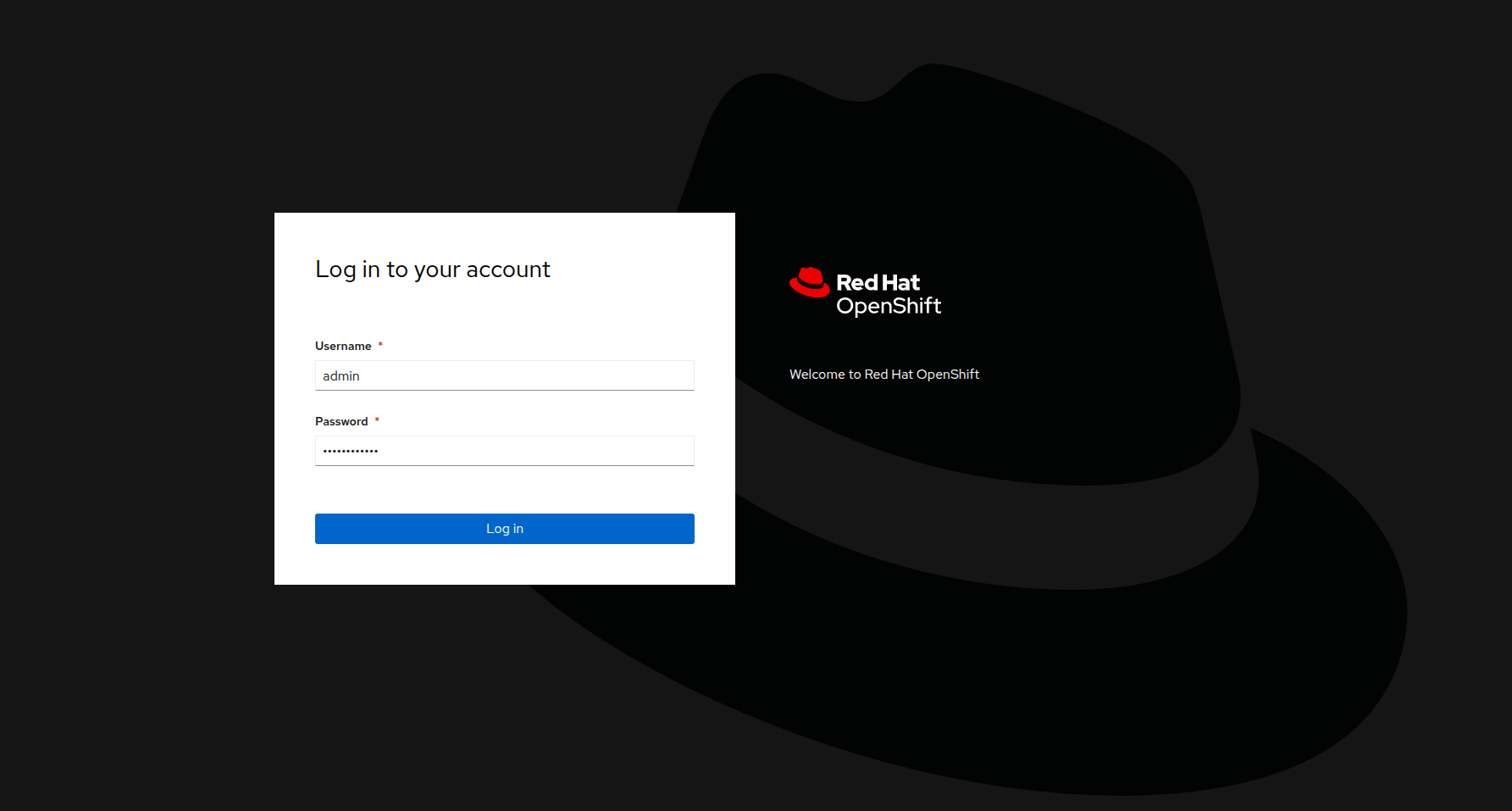

Figure 2. OpenShift Login

Your Ansible Automation Platform console is available here.

Your admin login is available with the following credentials:

User: username
Password password

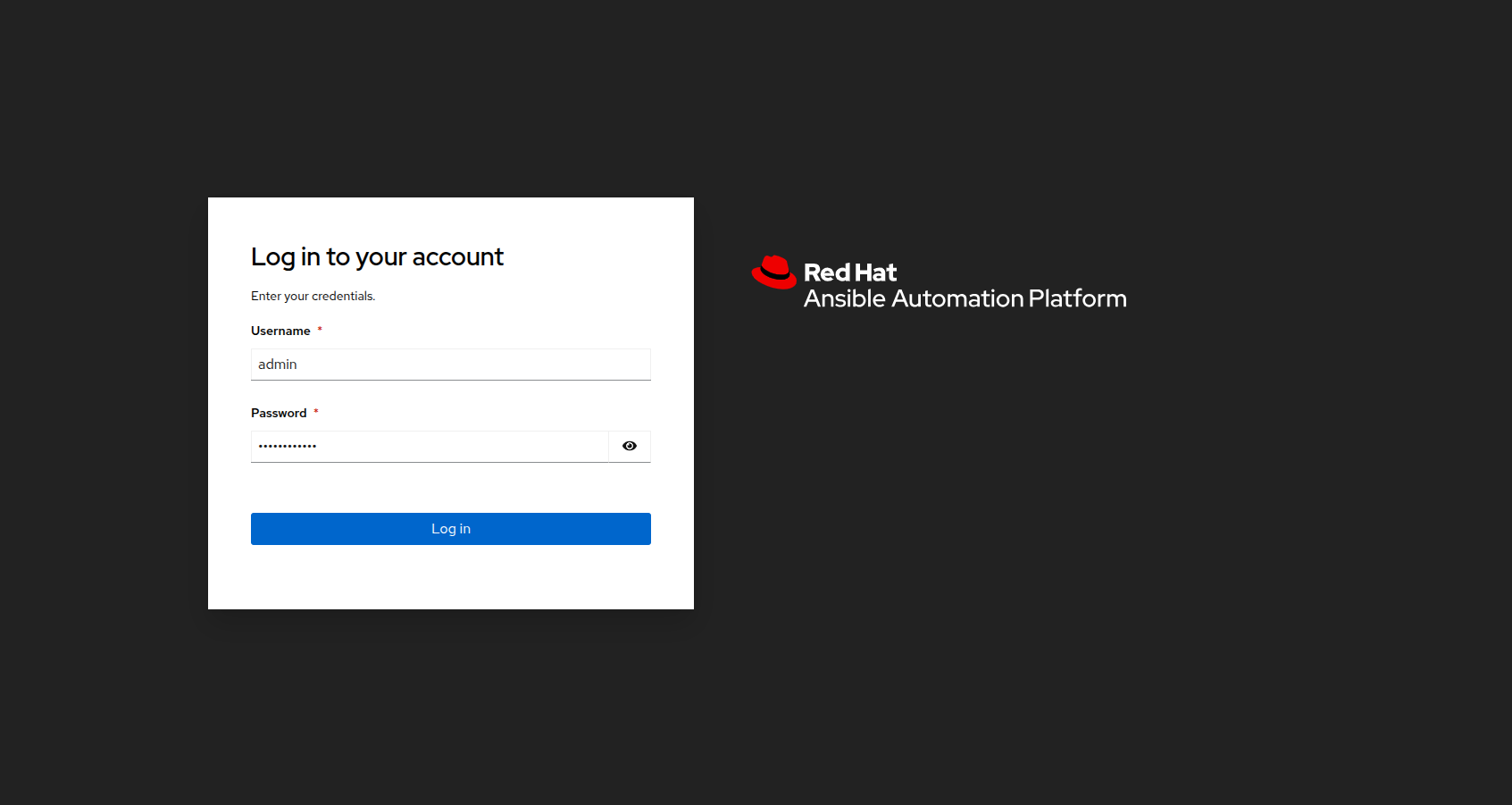

Figure 3. AAP Login

Use this opportunity to open and log into both consoles to prepare for the lab.

Creating a Dynamic Inventory for OpenShift Virtual Machines

OBJECTIVE:

Dynamic inventories allow Ansible Automation Platform (AAP) to automatically fetch and update the inventory of systems from external sources, eliminating the need for manual inventory management.

In this lab, we will configure a dynamic inventory to pull data from OpenShift Virtualization. This will enable AAP to manage OpenShift VMs residing in the vms-aap-day2 namespace of an OCP cluster.

Create an Inventory

In the left-side menu, click to expand the menu for Automation Execution, then click on Infrastructure, followed by Inventories.

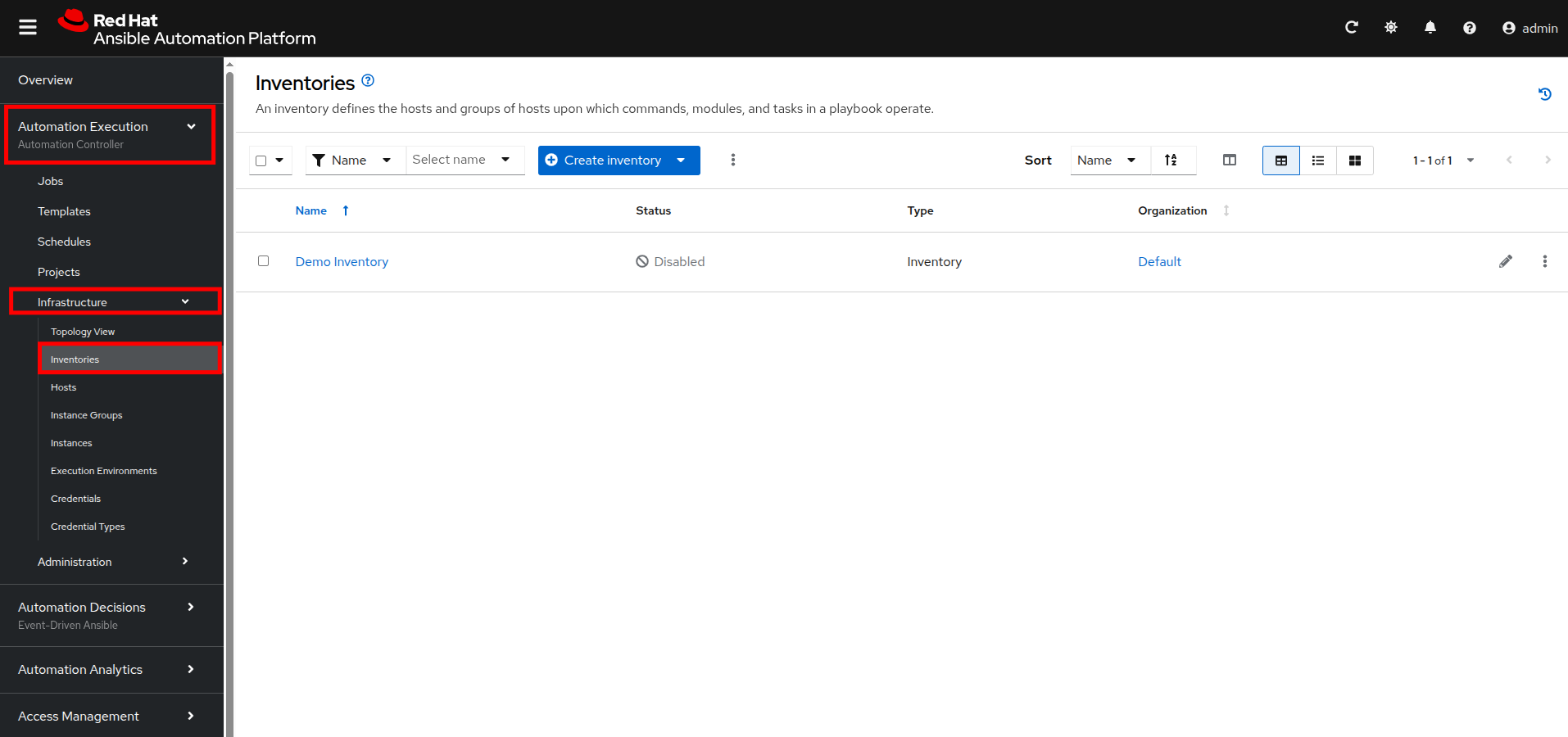

Figure 4. Automation Execution, Infrastucture, Inventories
Click the Create inventory drop-down box and select the Create inventory option.

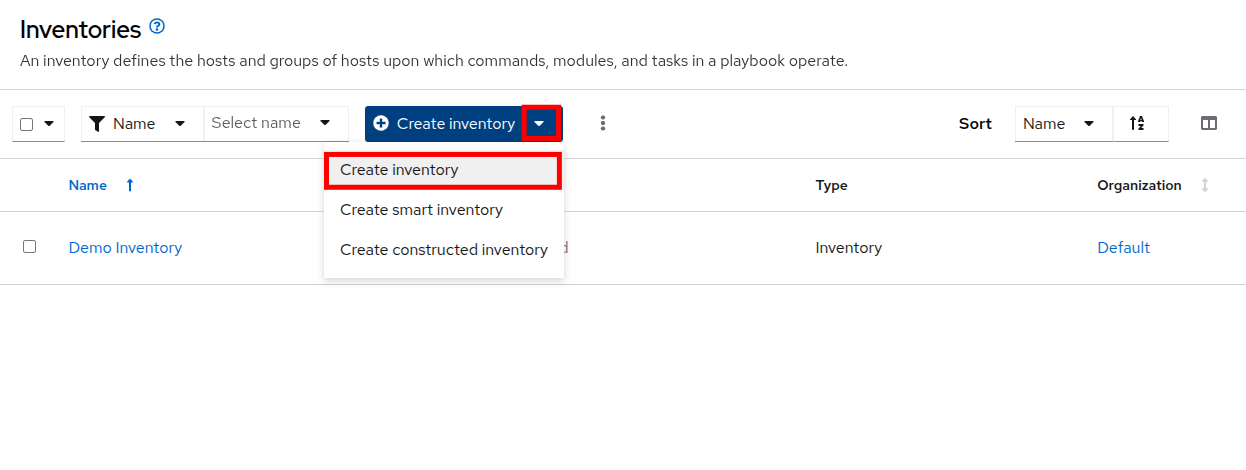

Figure 5. Create Inventory Dropdown
Fill out or select the appropriate value from the drop down menus available for the following fields in the Create Inventory form:
- Name: OpenShift Virtual Machines
- Organization: Default
Click the Create inventory button at the bottom.

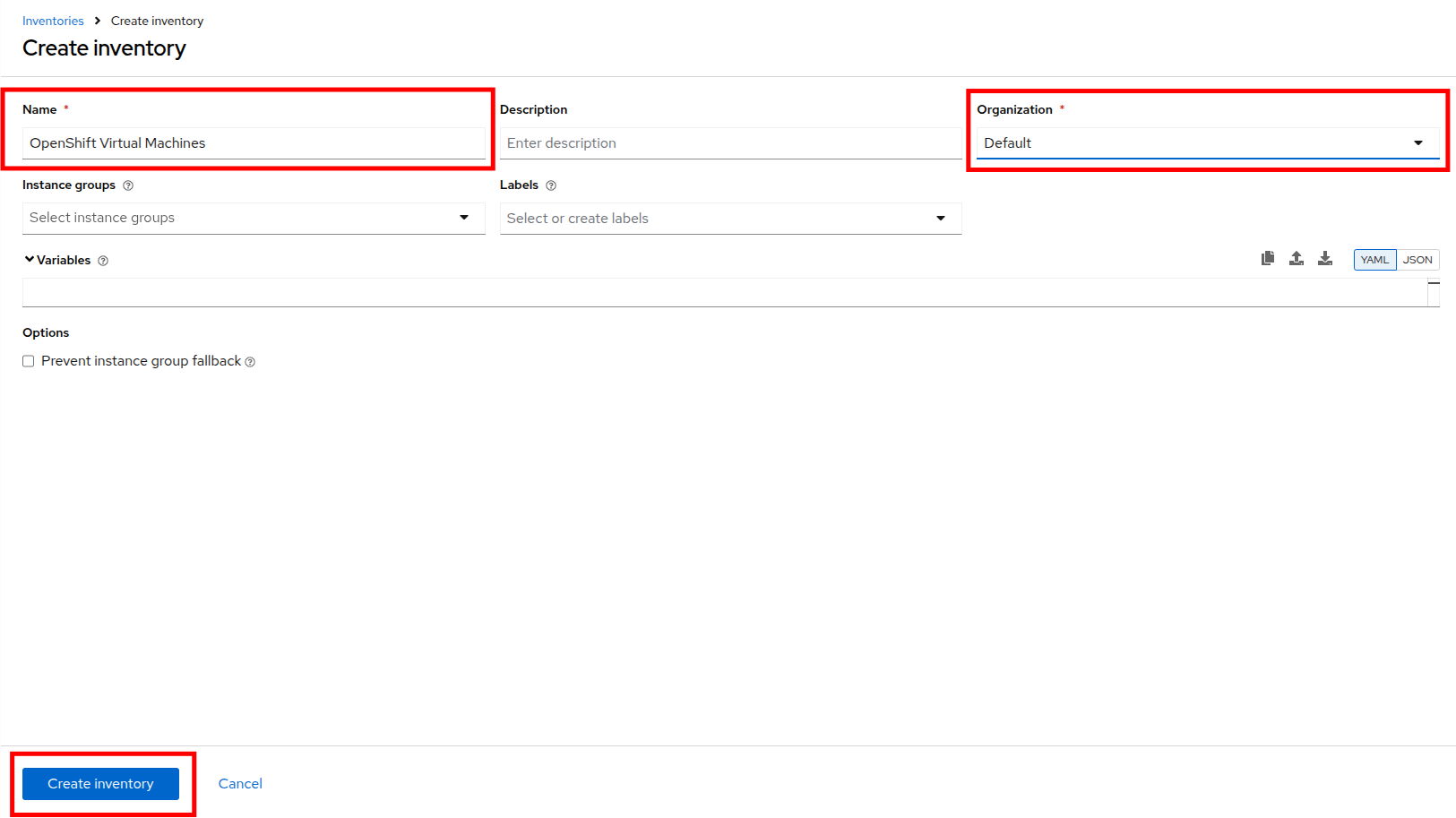

Figure 6. Create Inventory

Add a Source to the Inventory

After creating the inventory, switch to the Sources tab.
Select the Create source button.

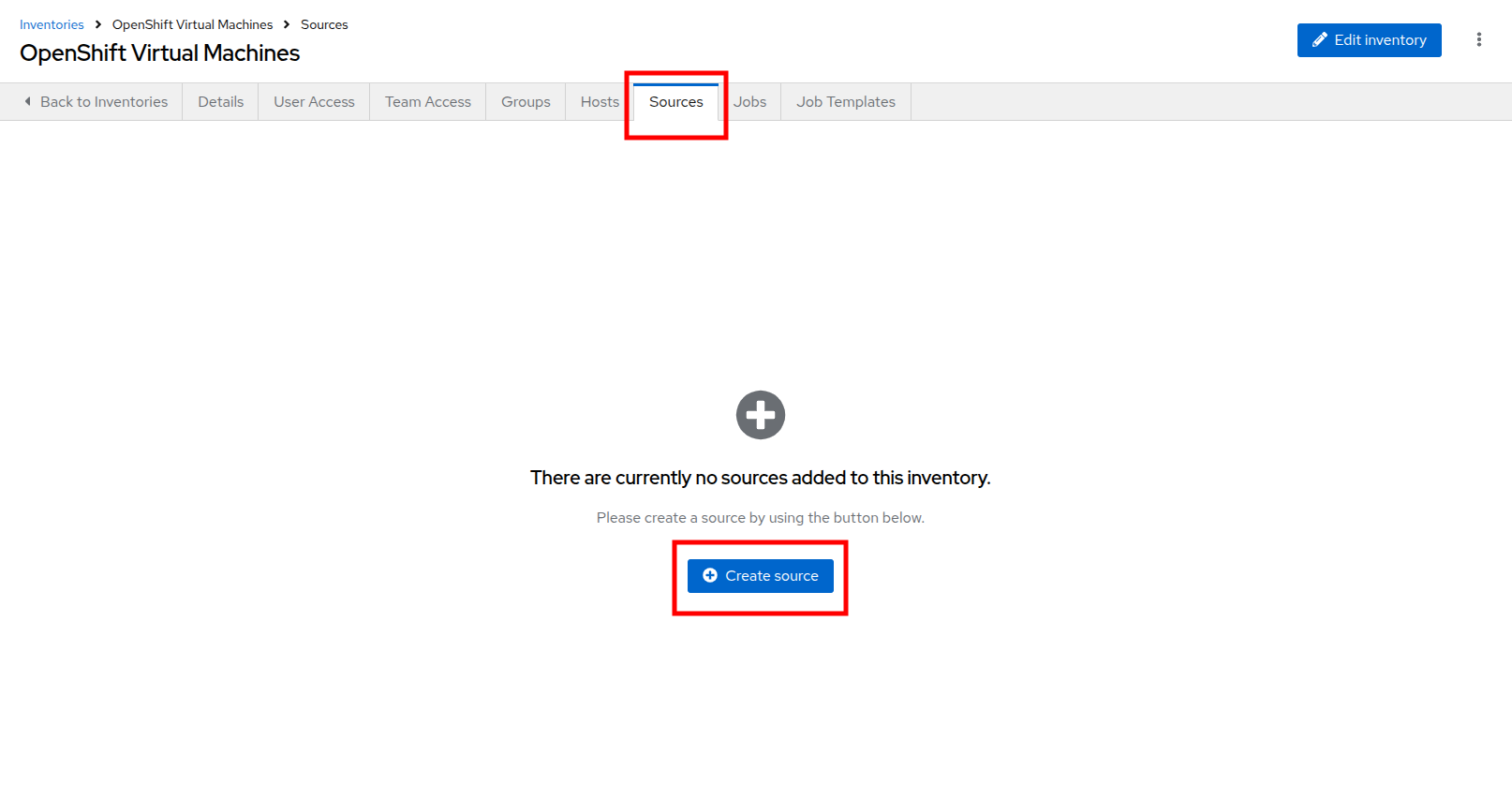

Figure 7. Sources Tab
Fill out or select the appropriate value from the drop down menus available for the following fields in the Create Source form:
- Name: OpenShift Virtual Machines Source
- Execution environment: Day 2 EE
- Source: OpenShift Virtualization
- Credential: OpenShift Credential
- Update on launch Checkbox: Checked
- Cache timeout (seconds): 0
Copy and paste the following YAML snippet into the Source variables field on the form.
```
namespaces:
  - vms-aap-day2
```
Click the Create source button to save the configuration.

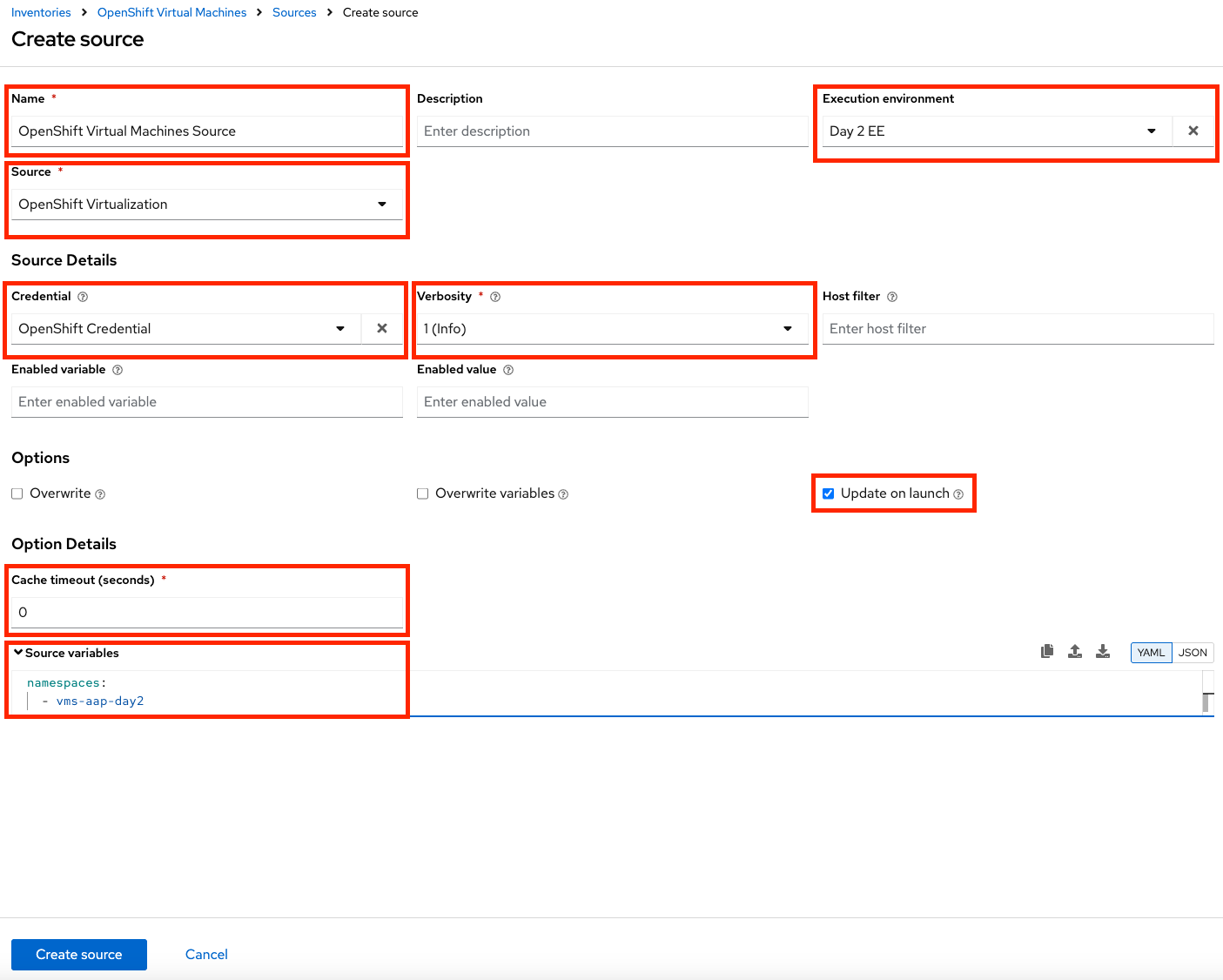

Figure 8. Create Inventory Source

Update the Inventory

Click the Launch Inventory Update button in the top-right corner to start inventory collection.

Figure 9. Update Inventory
Wait for the Last Job Status to show Success.

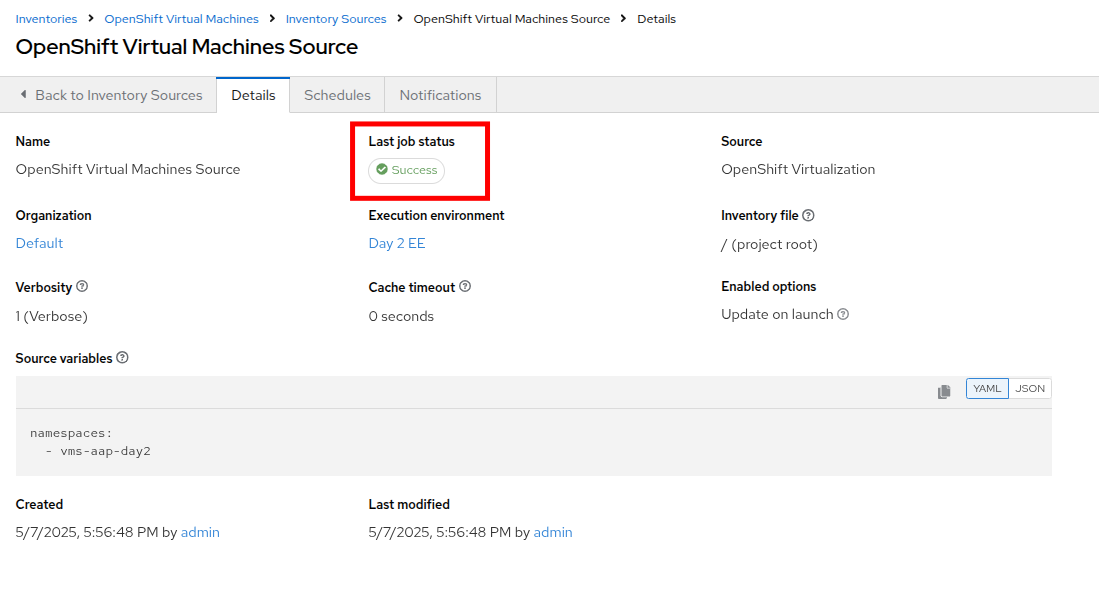

Figure 10. Job Status Success
Click on the tab for Back to Inventory Sources.

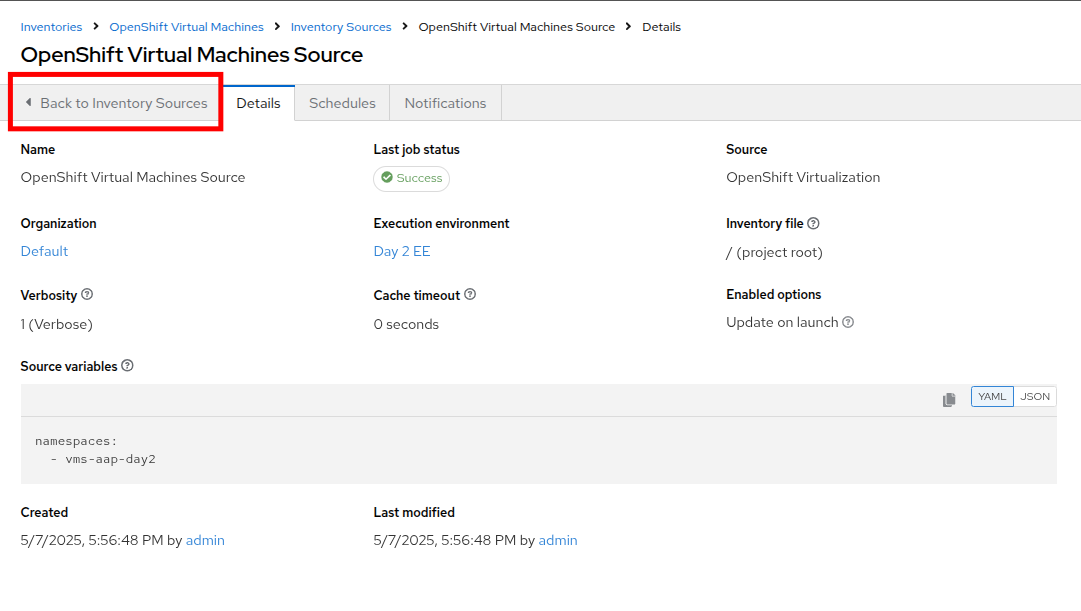

Figure 11. Back to Inventory Sources
Switch to the Hosts tab at the top of the screen.
Confirm that the Virtual Machines from the vms-app-day2 namespace of your OpenShift cluster are listed as inventory hosts.

Figure 12. Verify Hosts
To verify that the machines are alive we can select the three VMs we have discovered and run an automated ping job against them by clicking the Run command button.

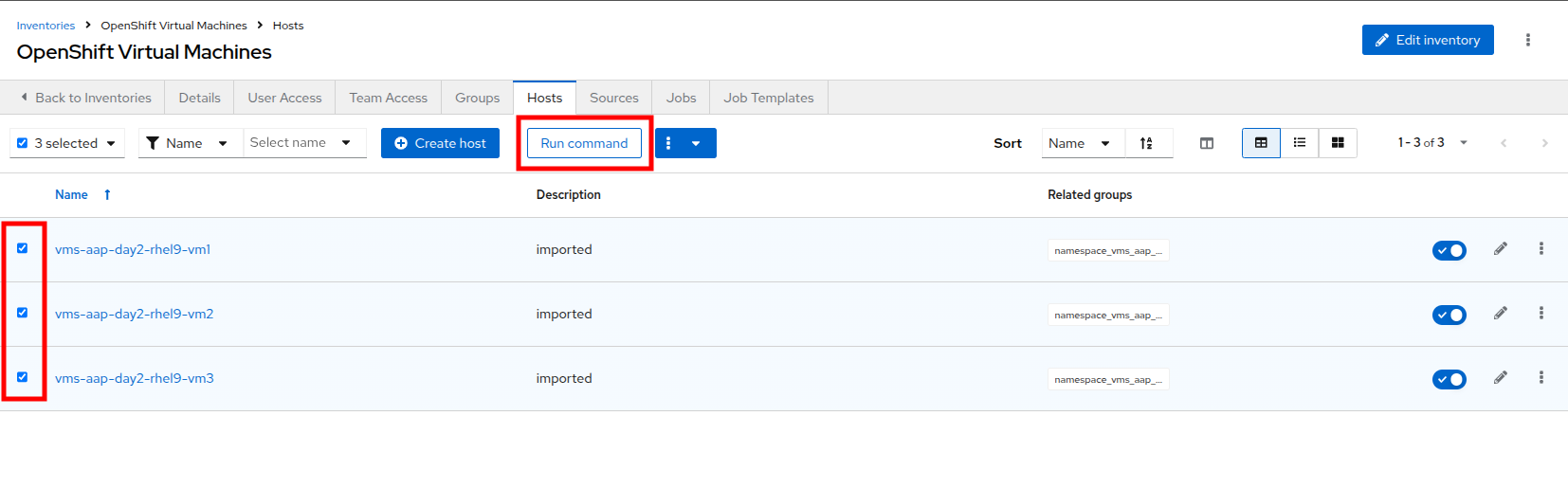

Figure 13. Run Command
You will be presented with the Run command wizard with several pages:
- On the Details page, select ping from the Module dropdown menu, and click Next.
- On the Execution Environment page, select Day2 EE from the Execution Environment dropdown, and click Next.
- On the Credential page, select Workshop Credential from the Credential dropdown, and click Next.
- On the Review page, check over your selected options, and when you are ready click the Finish button.

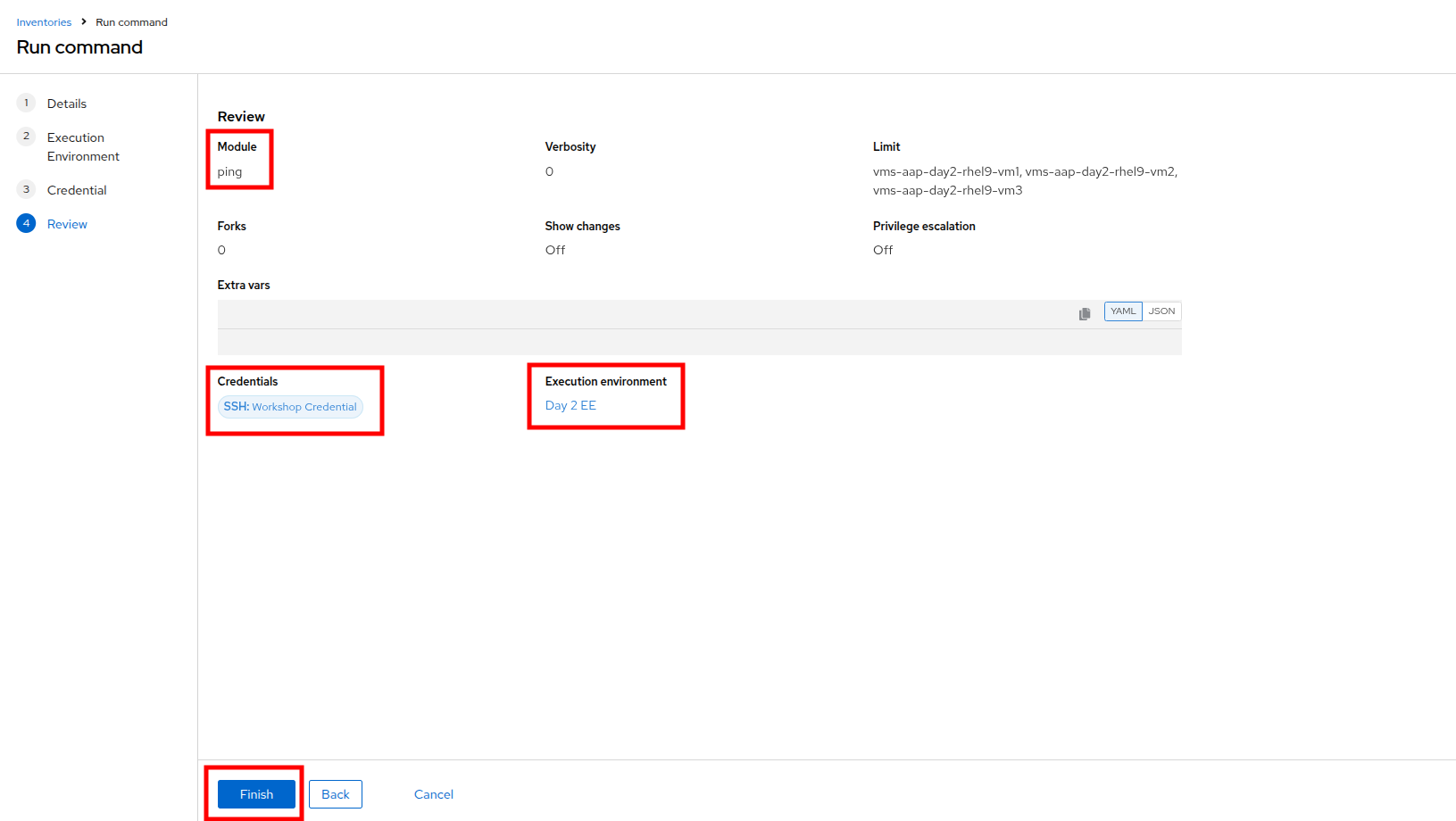

  Figure 14. Review Run Command

The output of running the command should be similar to the output below, including the names of each VM and their status:

vms-aap-day2-rhel9-vm1 | SUCCESS => {
    "ansible_facts": {
        "discovered_interpreter_python": "/usr/bin/python3"
    },
    "changed": false,
    "ping": "pong"
}
vms-aap-day2-rhel9-vm2 | SUCCESS => {
    "ansible_facts": {
        "discovered_interpreter_python": "/usr/bin/python3"
    },
    "changed": false,
    "ping": "pong"
}
vms-aap-day2-rhel9-vm3 | SUCCESS => {
    "ansible_facts": {
        "discovered_interpreter_python": "/usr/bin/python3"
    },
    "changed": false,
    "ping": "pong"
}

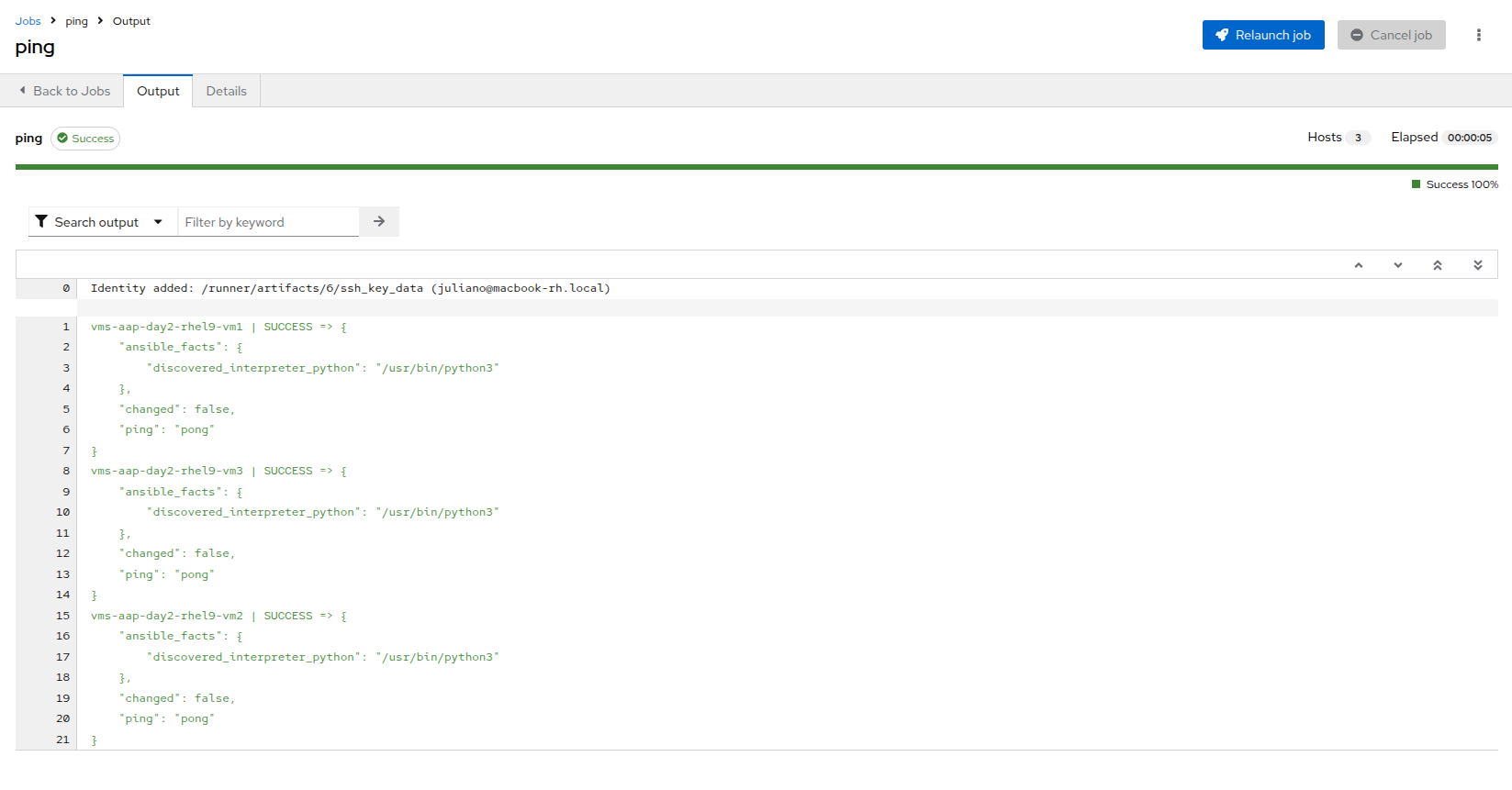

Figure 15. Ping Success

You may also confirm the VMs are running in a manual manner by logging into your OpenShift console, and viewing the virtual machines there manually.

Verifying VM Inventory in the OpenShift Console

Switch to your OpenShift administration console window.
On the left side navigation menu, click on Virtualization and then VirtualMachines.
Highlight the vms-aap-day2 project in the central navigation column.
Confirm that the virtual machines are running.

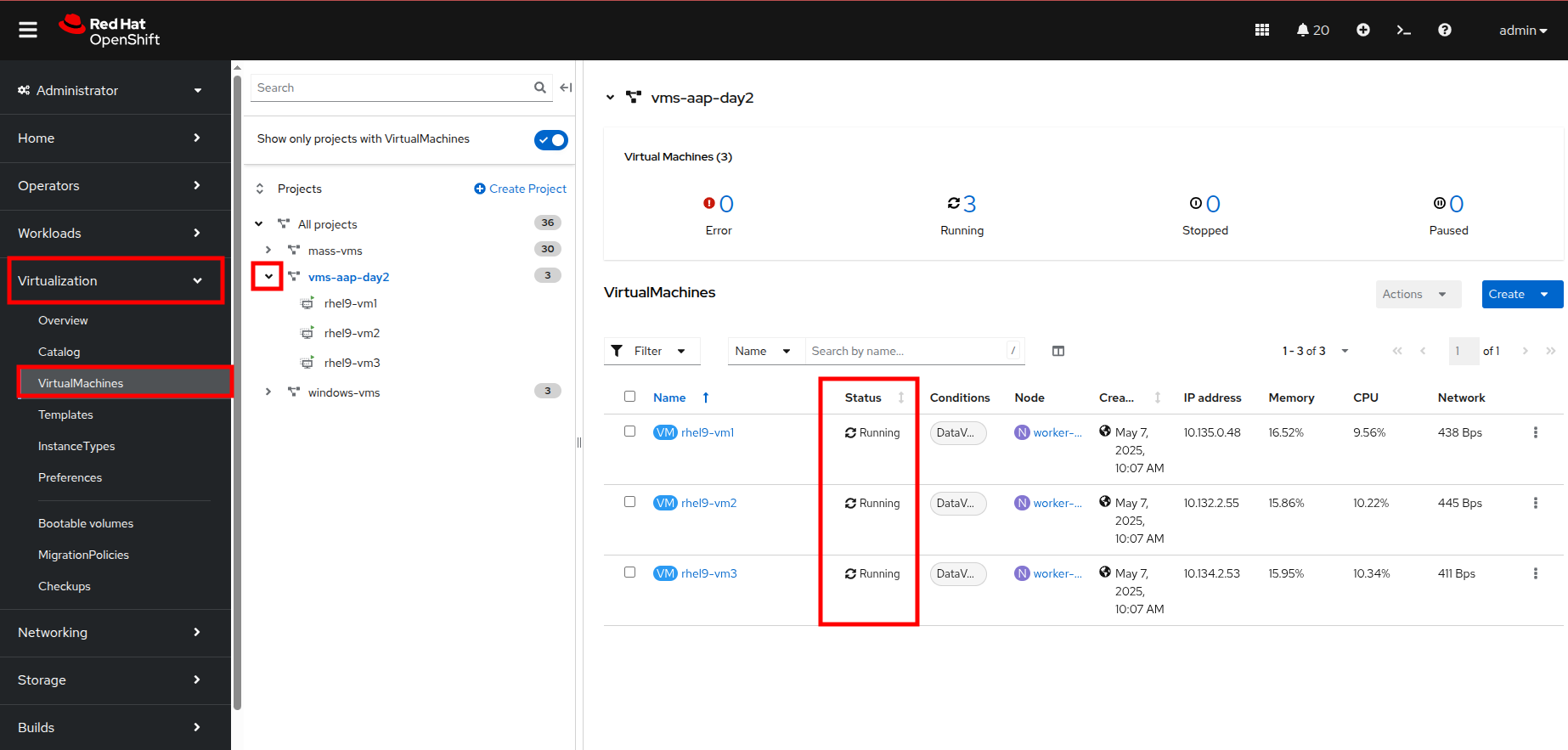

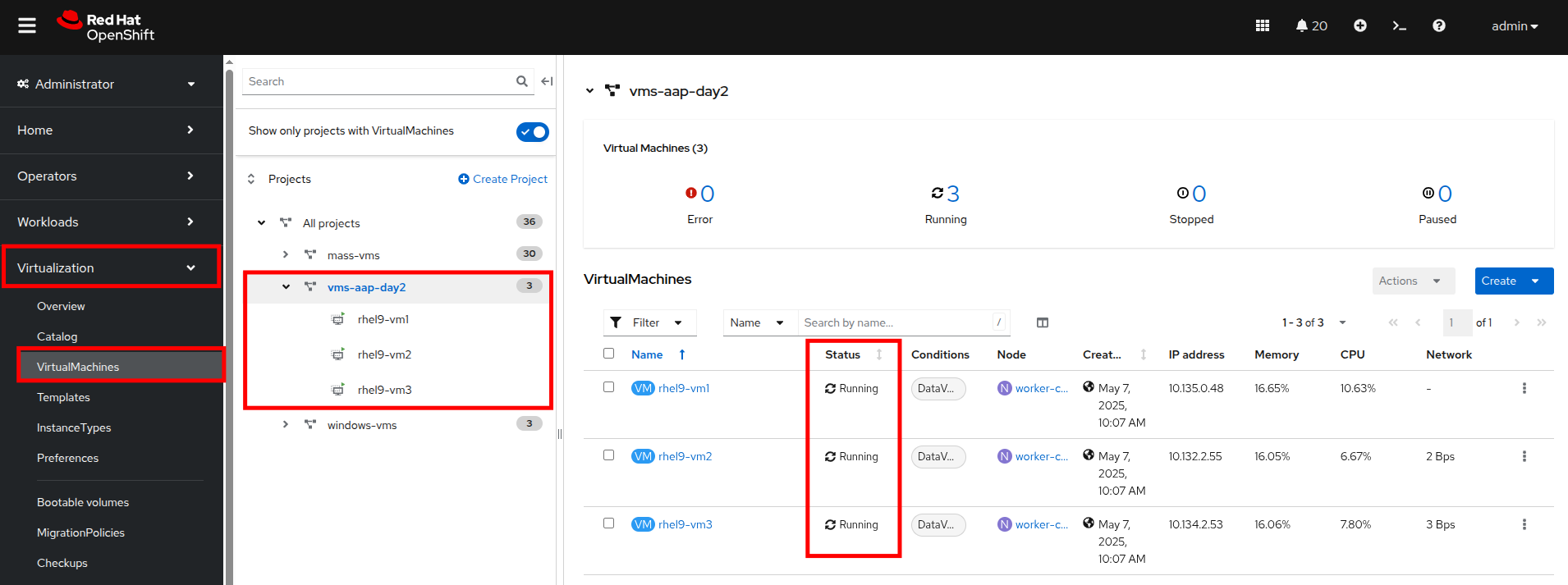

Figure 16. Virtual Machines Running on OpenShift

Security and Compliance Using the OpenShift Compliance Operator

This section of our lab will focus on making use of the OpenShift Compliance Operator to configure security scans in your OpenShift cluster. The compliance operator can help ensure that the hosts in your OpenShift environment meet specific security standards, and are deployed to meet those standards.

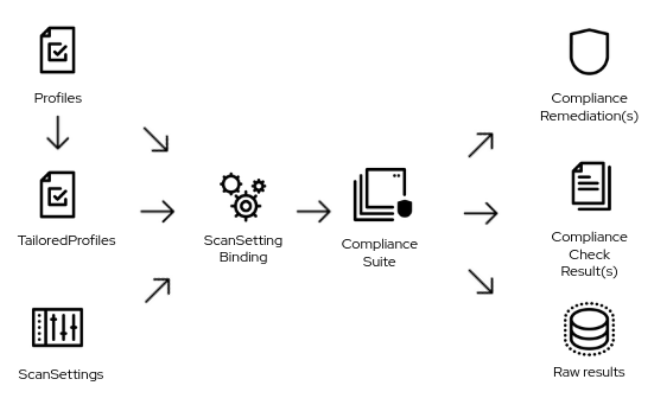

Figure 17. Compliance Overview

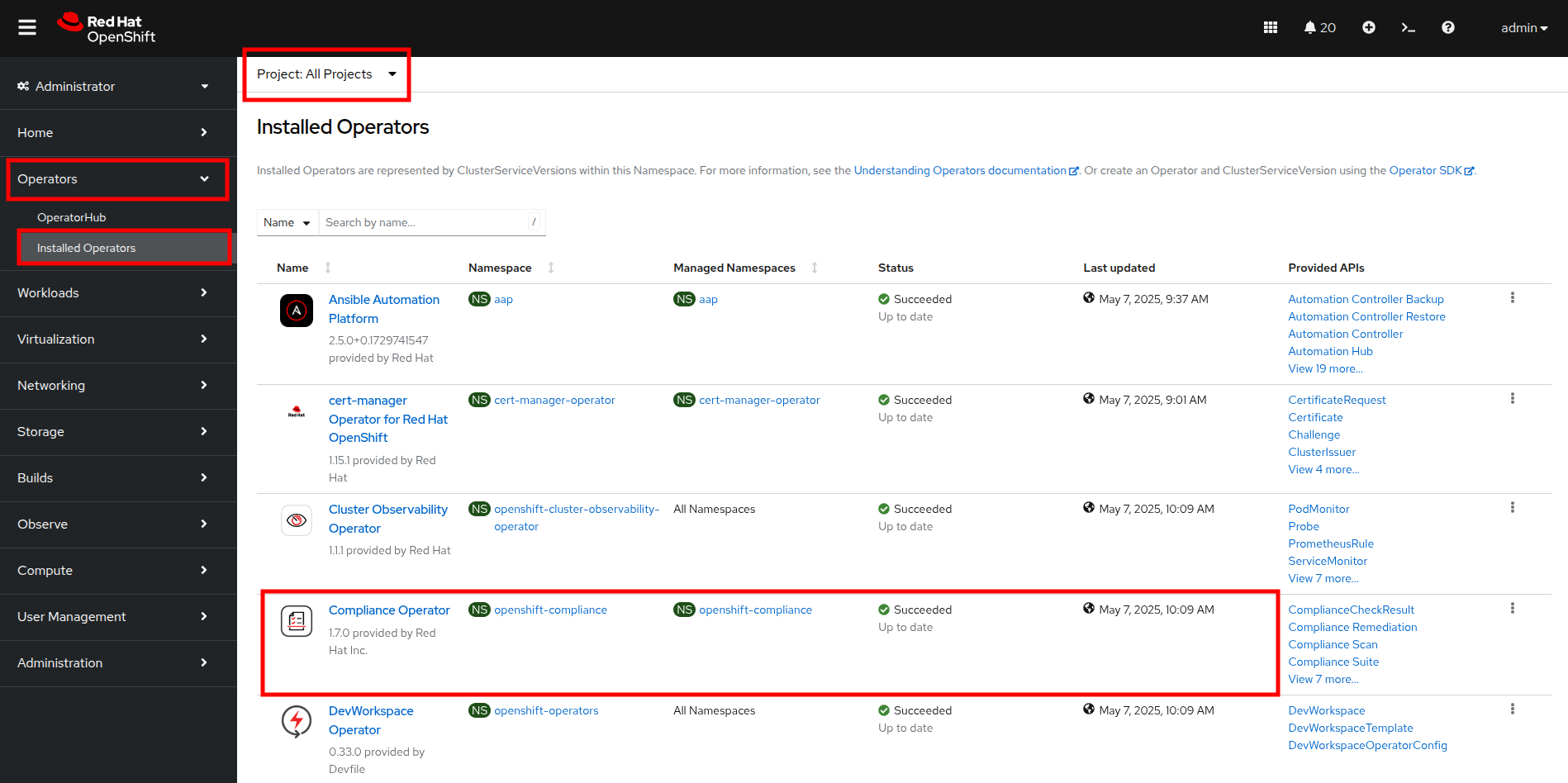

Select Operators and then Installed Operators from the left side navigation menu, confirm that you have selected All Projects and select the Compliance Operator.

Figure 18. Compliance Operator

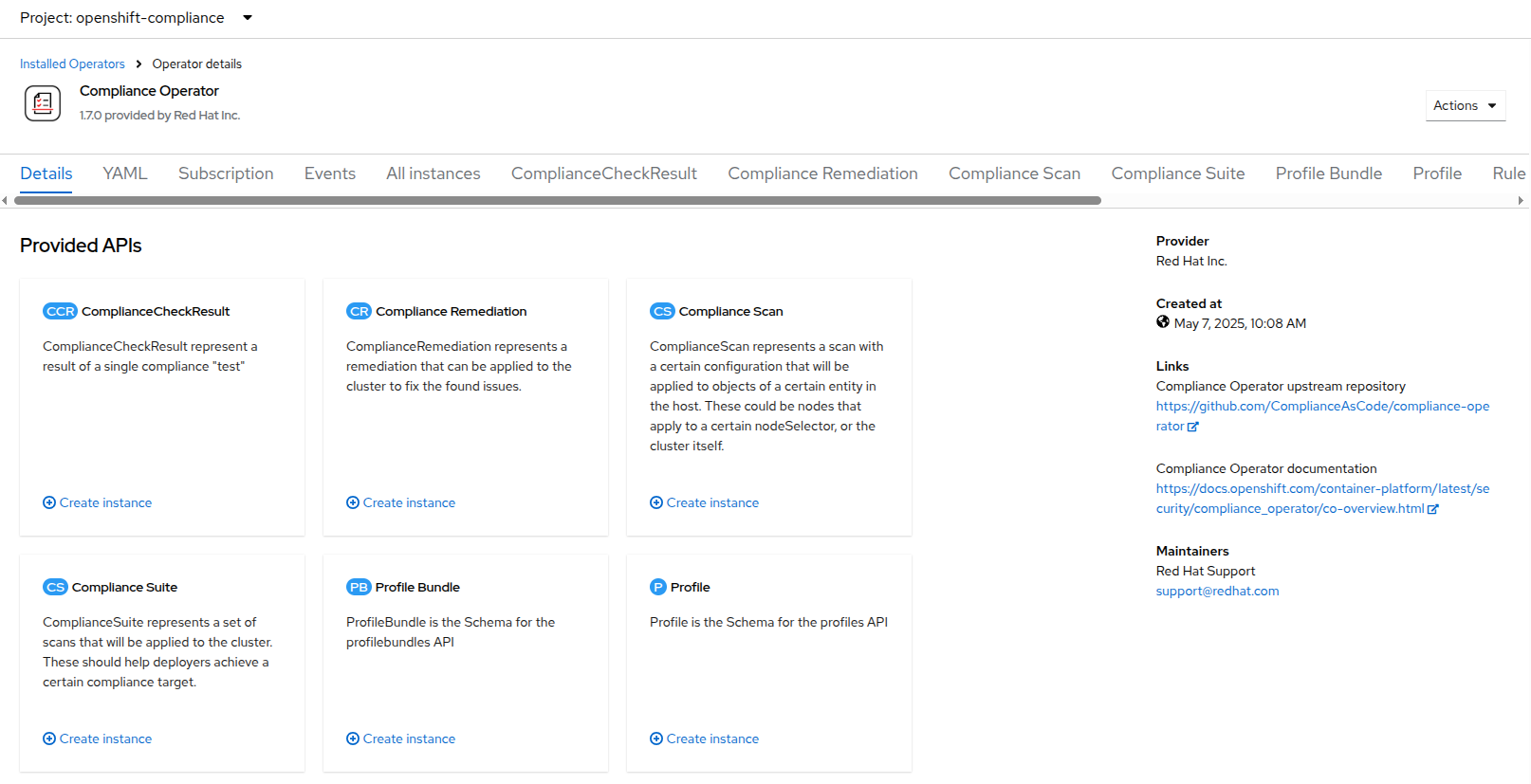

This takes you to the Operator details page, use the horizontal scrollbar to move across and locate the ScanSetting tab.

Figure 19. Compliance Details
Click the Create ScanSetting button.

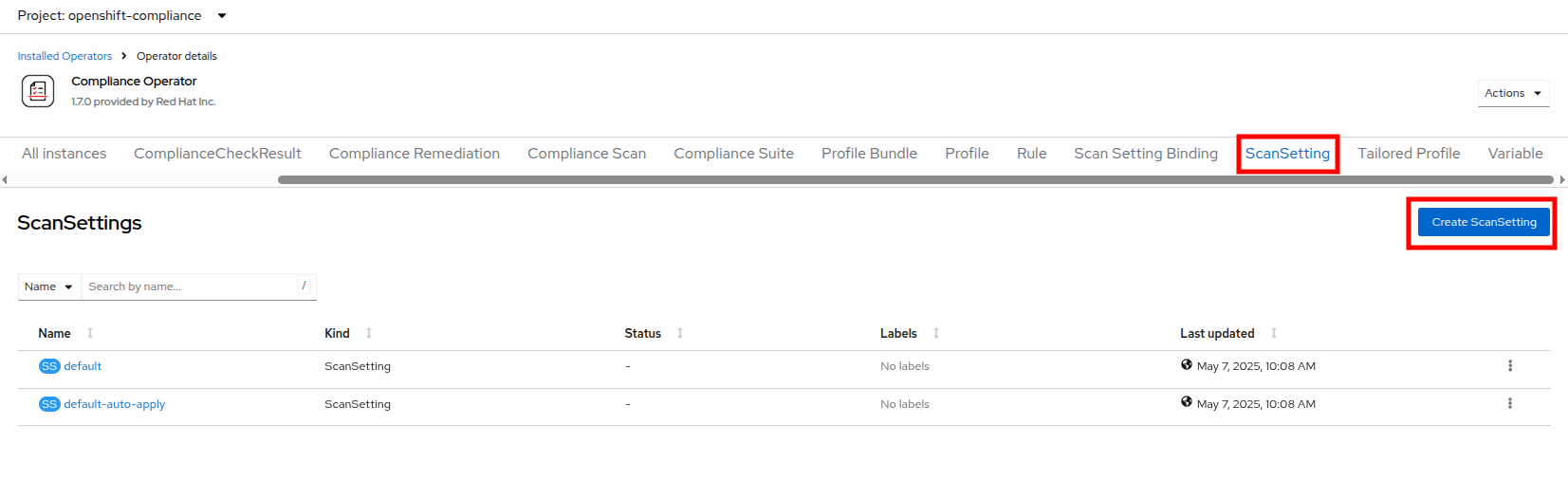

Figure 20. Create ScanSetting Button
On the Create ScanSetting page, set the name of the scan to scan01. Then click the YAML view radio button.

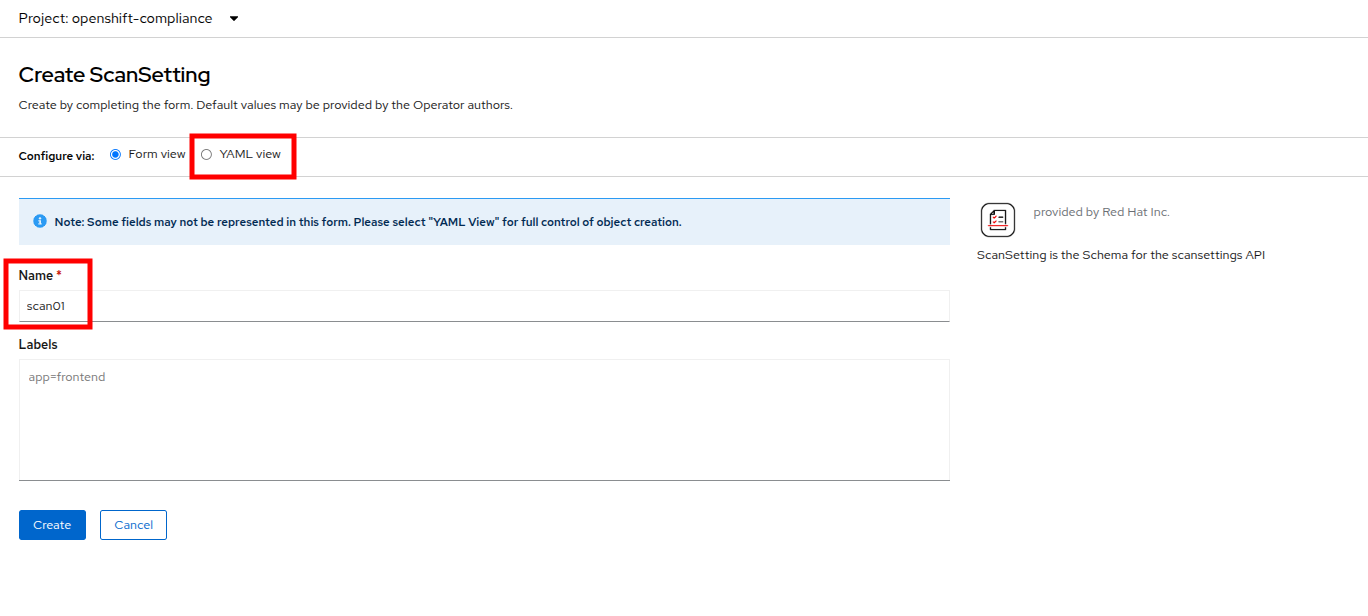

Figure 21. Create Scansetting
In the ScanSetting YAML details, make note of the following values that are set by default:
- The autoApplyRemediations field is set to false.
- The roles to be scanned by default include both worker and master nodes.
- The name field is set to scan01 which you entered on the form view.
Click the Create button to create this simple scansetting definition.

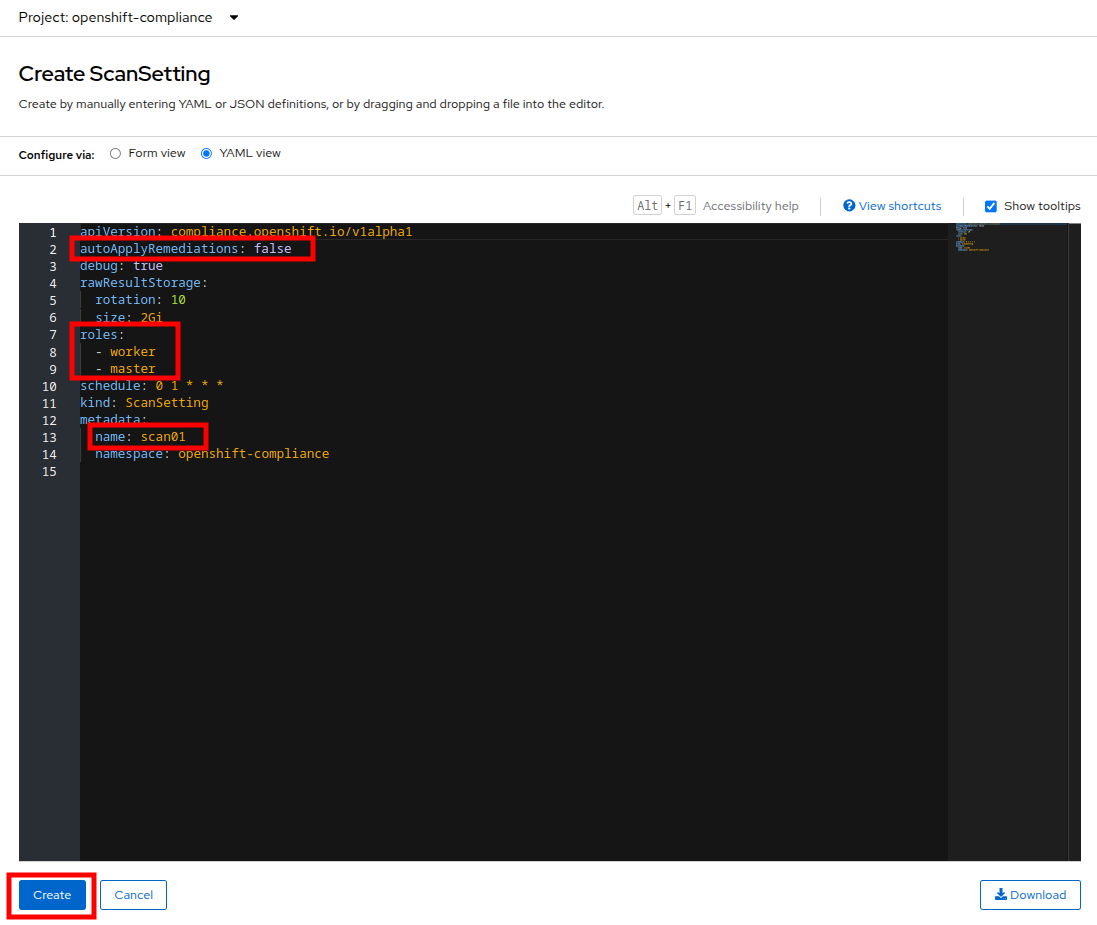

Figure 22. ScanSetting Details
Now click on the Profile tab where there are a number of pre-defined scanning profiles.
In the search box, type rhcos4 and locate the FedRamp moderate profile rhcos4-moderate in the list.

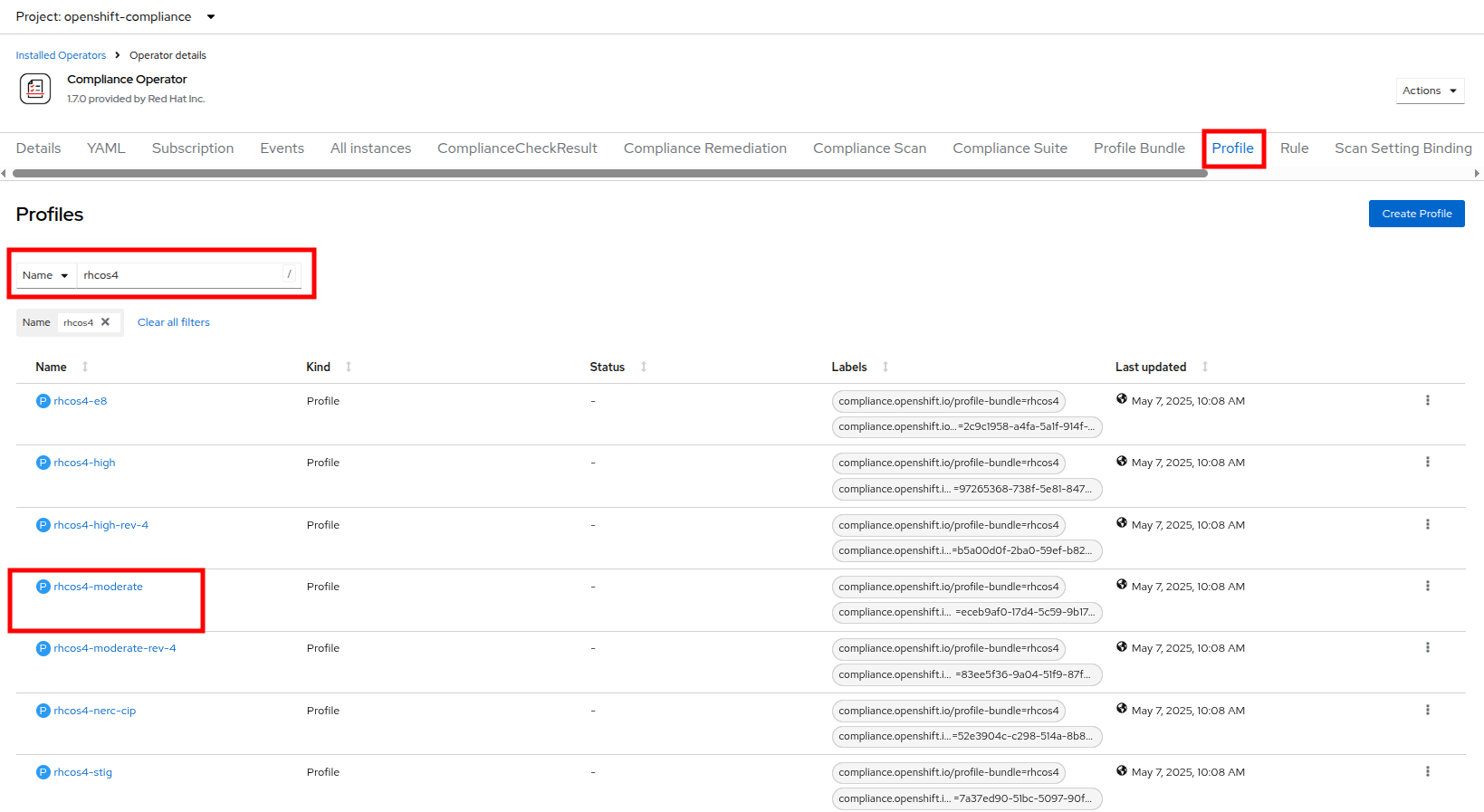

Figure 23. Profiles Detail

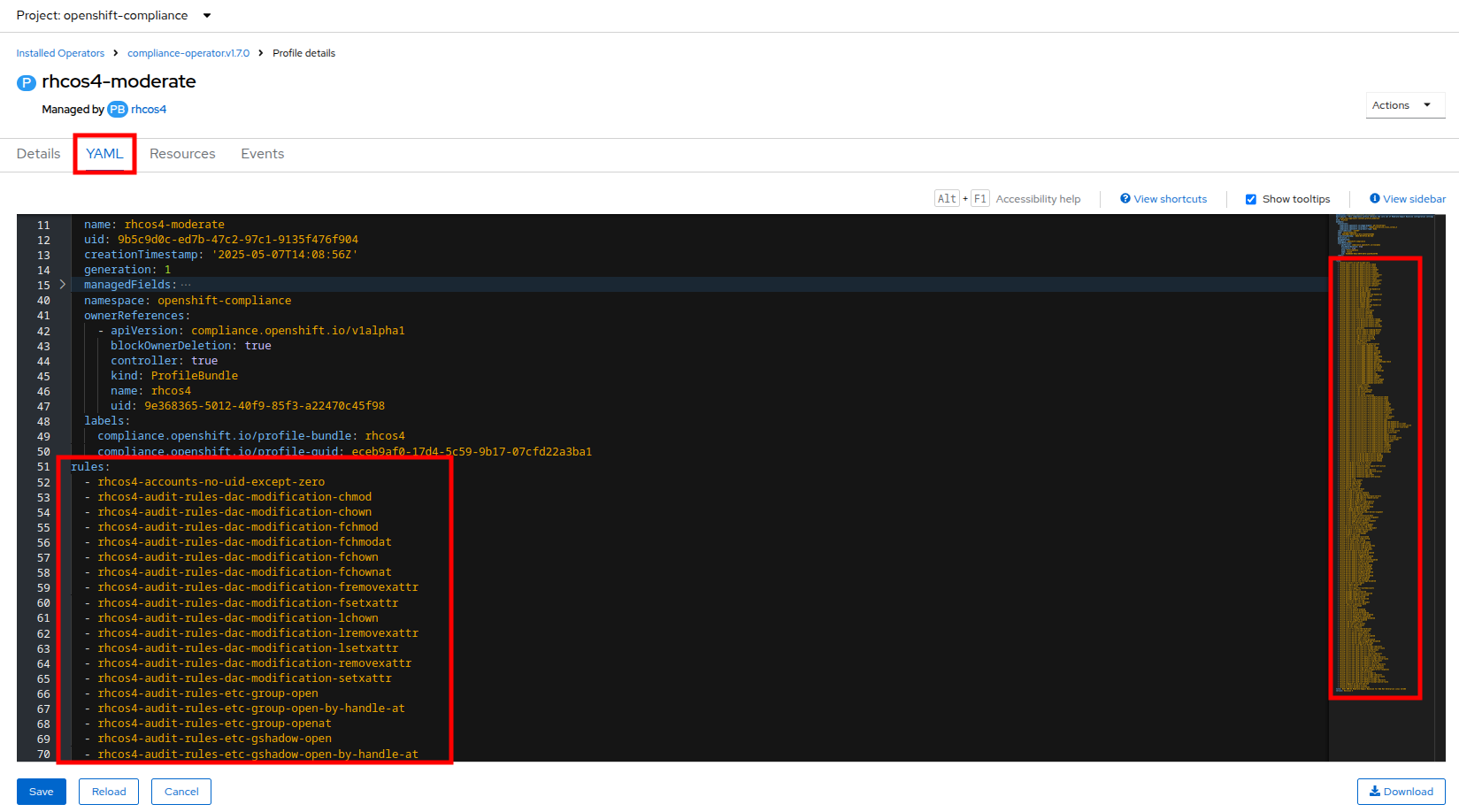

Click on rhcos4-moderate and then on the YAML. Scroll down the output to browse the rules that are enforced as a part of this scan. A quick glimpse at the side panel shows that there are quite a few of them.

Figure 24. RHCOS4-Moderate Rules
When you are done reviewing the rules, return to the Operator details page by clicking your browser’s back button twice.

Additional details on the profiles available can be found here.

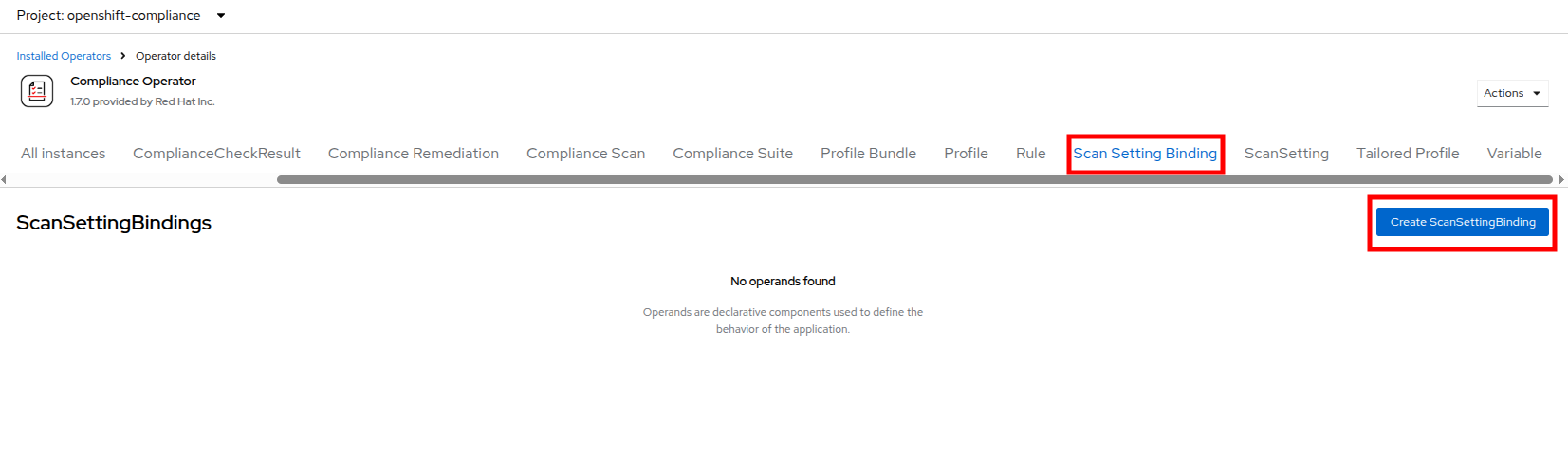

Next we want to create a ScanSettingBinding, pairing a Profile with our ScanSetting definition we created. We do this by navigating to the Scan Setting Binding tab, and clicking the Create ScanSettingBinding button.

Figure 25. Create ScanSettingBinding
In the ScanSettingBinding YAML details, let us make a few changes:
- The metadata/name value should be set to fedramp01
- The settingsRef/name field is set to scan01 which we created earlier.
Click the Create button.

The profile is set to rhcos4-moderate (the fedramp moderate profile) by default.

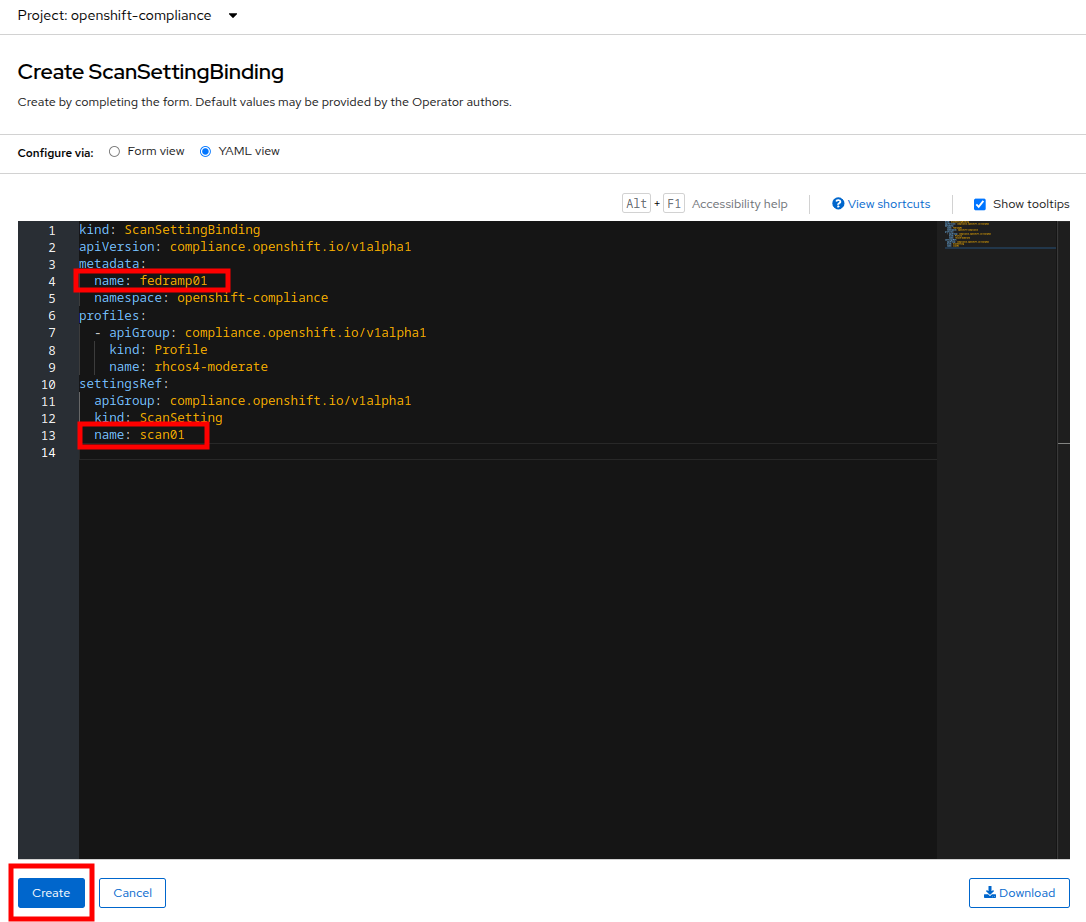

Figure 26. ScanSettingBinding Details
After the ScanSettingBinding is created, the fedramp01 scan will be run automatically. You can view this on the Compliance Suite tab.

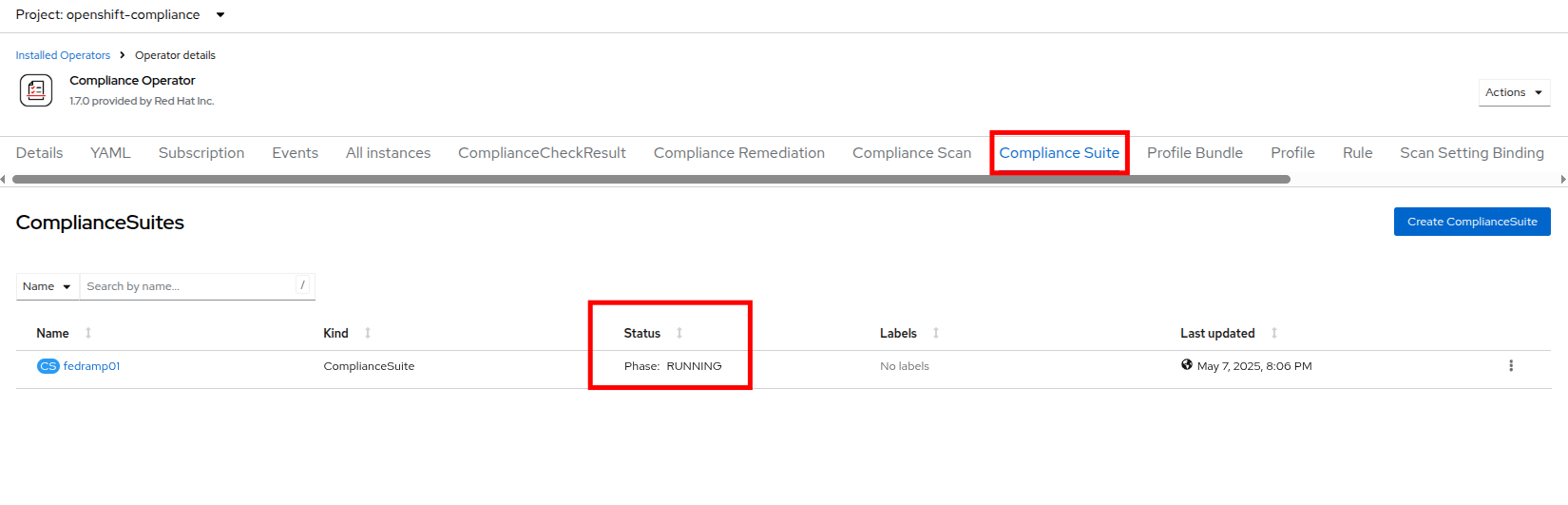

Figure 27. Compliance Suite
This Compliance Suite runs the defined scans against the specified nodes, in our case the masters and the workers defined in scan01.

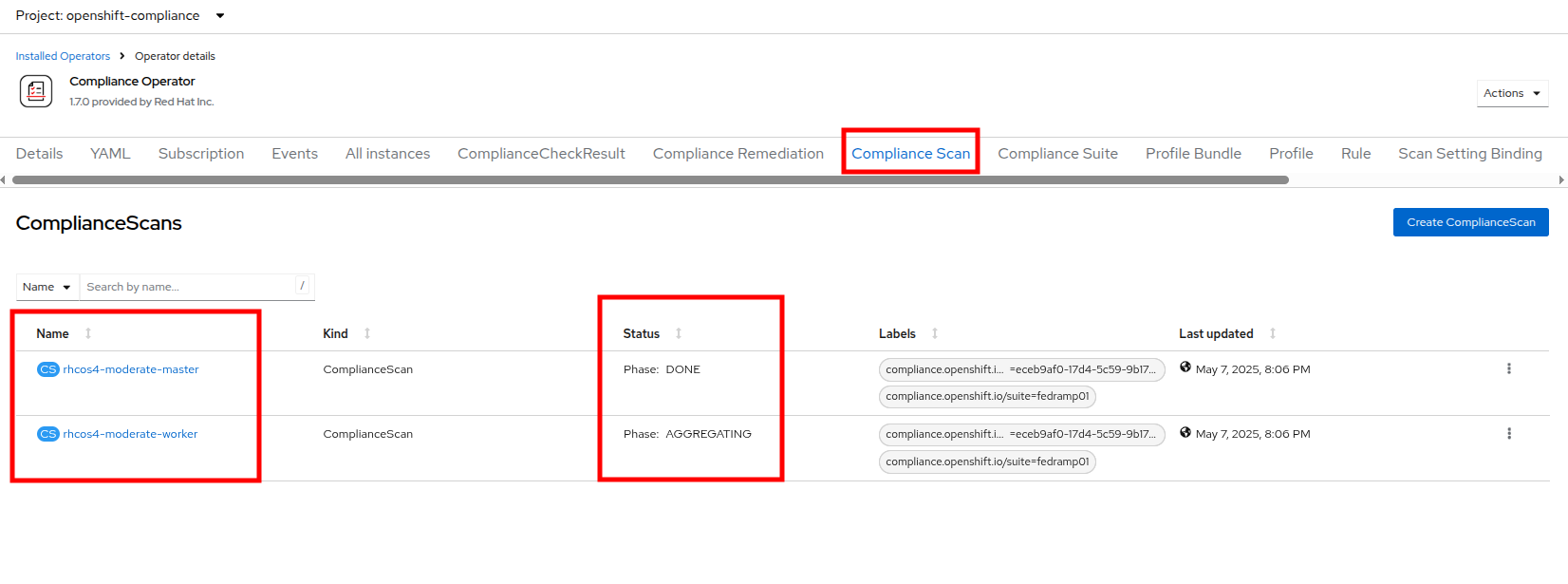

You can watch as the scan proceeds through the steps of RUNNING, AGGREGATING, and DONE by clicking on the Compliance Scan tab.

Figure 28. Compliance Scan
Once the scan completes (3-4 minutes on average) you can check your results by clicking on the ComplianceCheckResult tab.
Change the search bar to Label and apply the following labels:
- compliance.openshift.io/check-status=FAIL
- compliance.openshift.io/check-severity=high

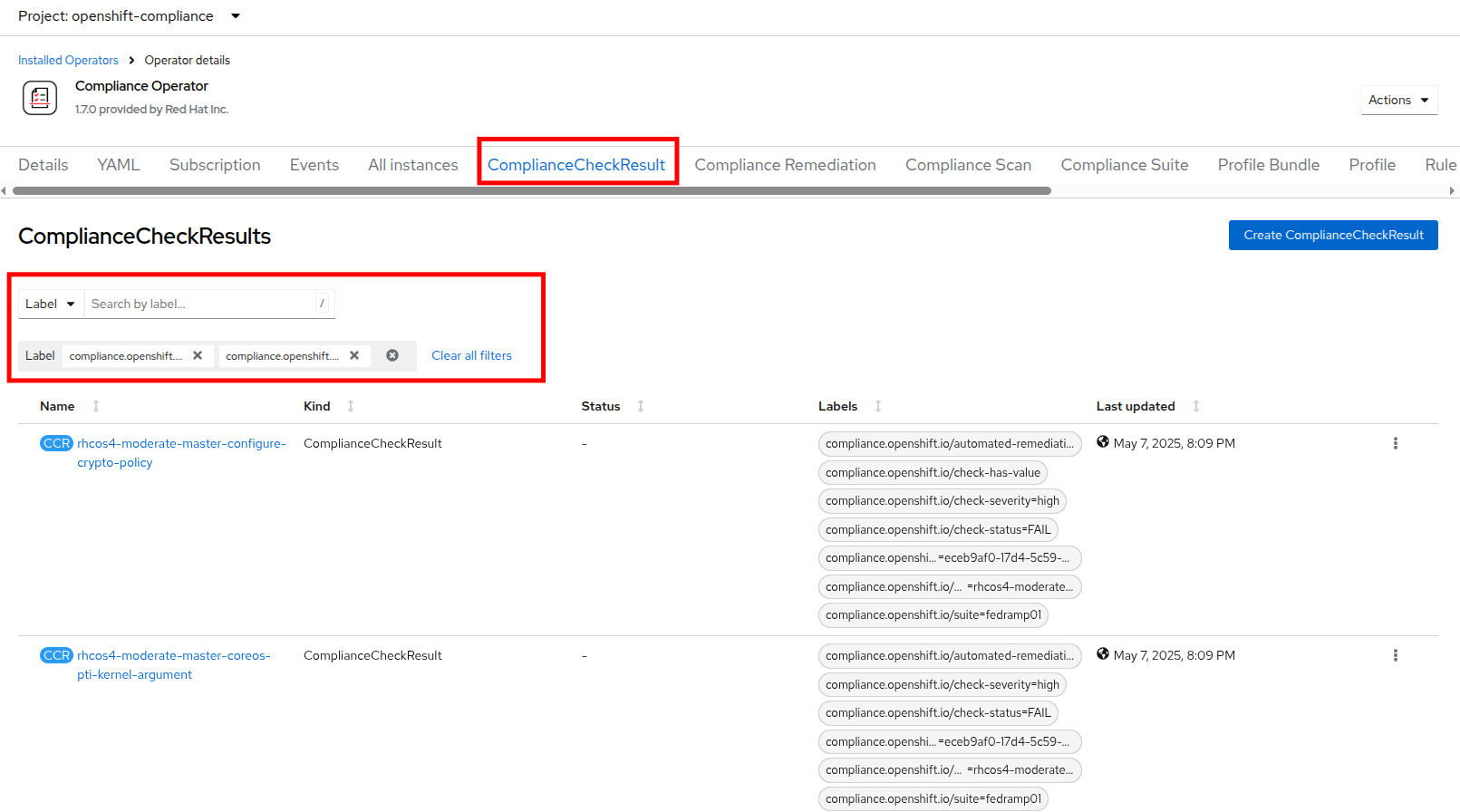

  Figure 29. Compliance Check Results
Twelve high severity checks have a failed status:

ComplianceCheckResult

Check-Severity

Check-Status

rhcos4-moderate-master-configure-crypto-policy

high

FAIL

rhcos4-moderate-master-coreos-pti-kernel-argument

high

FAIL

rhcos4-moderate-master-disable-ctrlaltdel-burstaction

high

FAIL

rhcos4-moderate-master-disable-ctrlaltdel-reboot

high

FAIL

rhcos4-moderate-master-enable-fips-mode

high

FAIL

rhcos4-moderate-master-no-empty-passwords

high

FAIL

rhcos4-moderate-worker-configure-crypto-policy

high

FAIL

rhcos4-moderate-worker-coreos-pti-kernel-argument

high

FAIL

rhcos4-moderate-worker-disable-ctrlaltdel-burstaction

high

FAIL

rhcos4-moderate-worker-disable-ctrlaltdel-reboot

high

FAIL

rhcos4-moderate-worker-enable-fips-mode

high

FAIL

rhcos4-moderate-worker-no-empty-passwords

high

FAIL

You have now completed this section on configuring and running compliance scans against your OpenShift cluster.

Configure Network Policies to Manage VM Traffic

In Red Hat OpenShift administrators can configure Network Policies to further secure their environments, and the virtual guests that run there. In this portion of the lab we are going to configure a virtual machine and then apply a network policy that prevents its egress to the world.

Confirm Network Egress on Virtual Machines

On the left side navigation menu, click on Virtualization then click VirtualMachines, and select the rhel9-vm1 virtual machine under the vms-aap-day2 project in the center column.

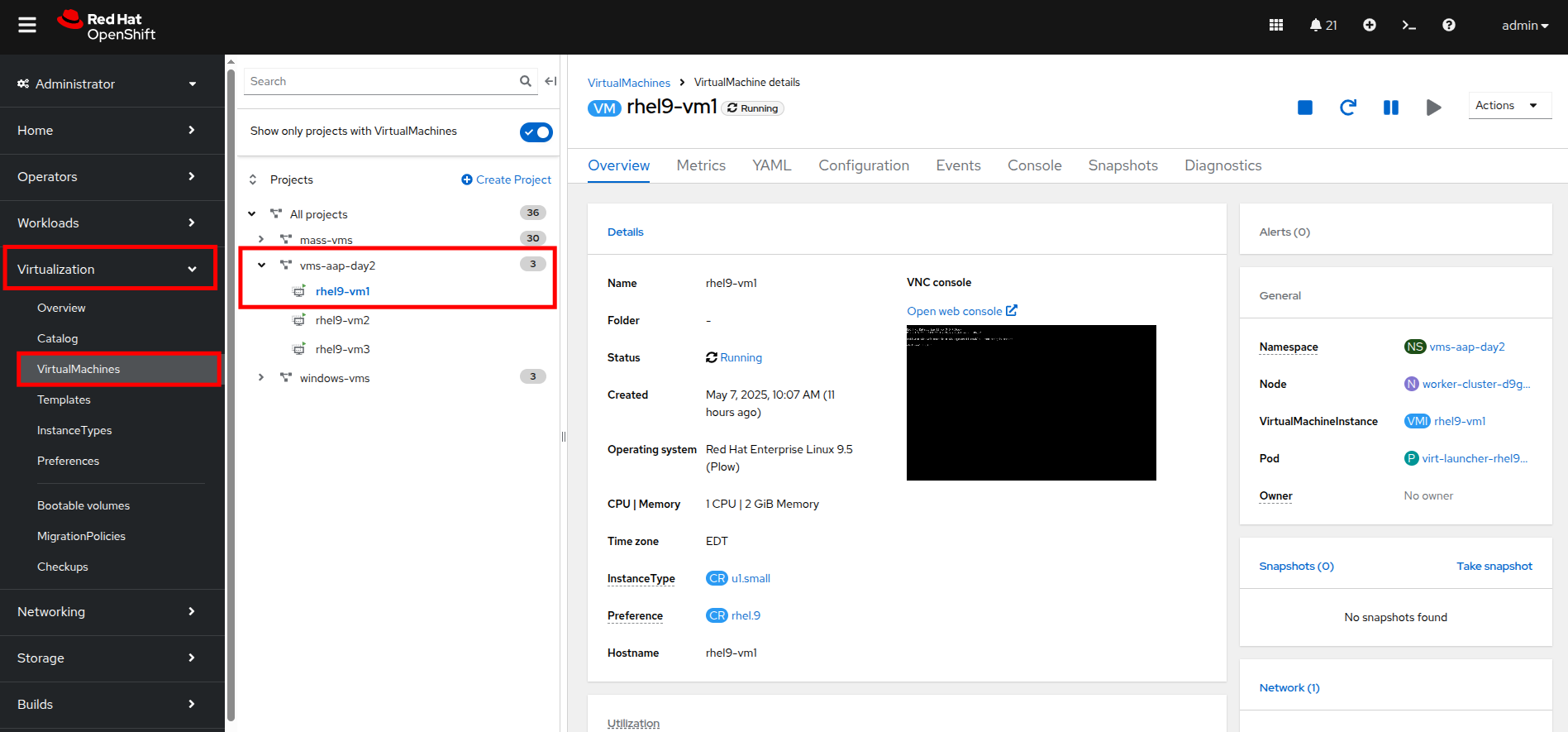

Figure 30. View VM

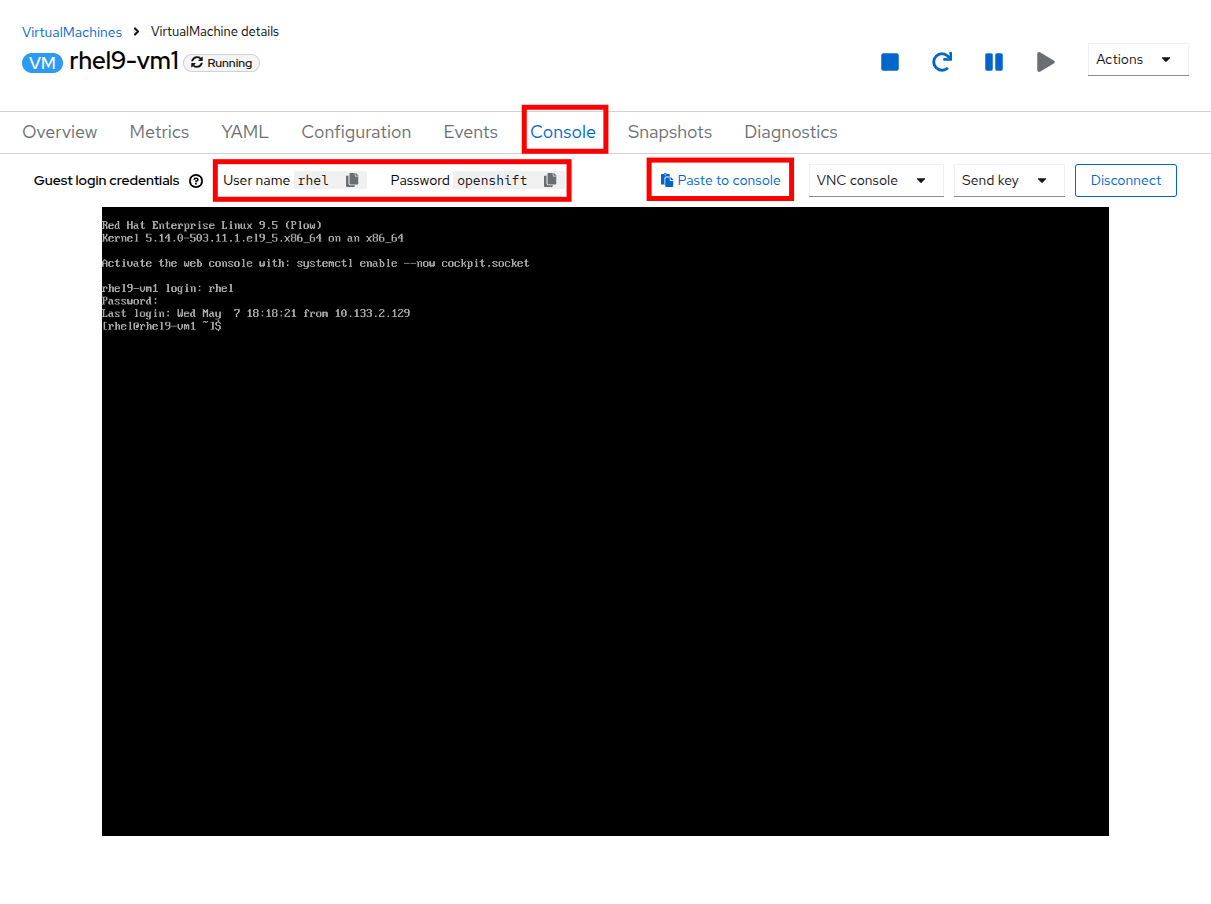

Click on the Console tab and use the provided credentials, and the built in copy/paste functionality to authenticate to the VM.

Figure 31. Login to VM

You may see a popup that asks you to enable the copy/paste functionality. If prompted click Allow.
Once you are logged in, execute the following command to start an outward bound ping to Google:
```
ping www.google.com
```

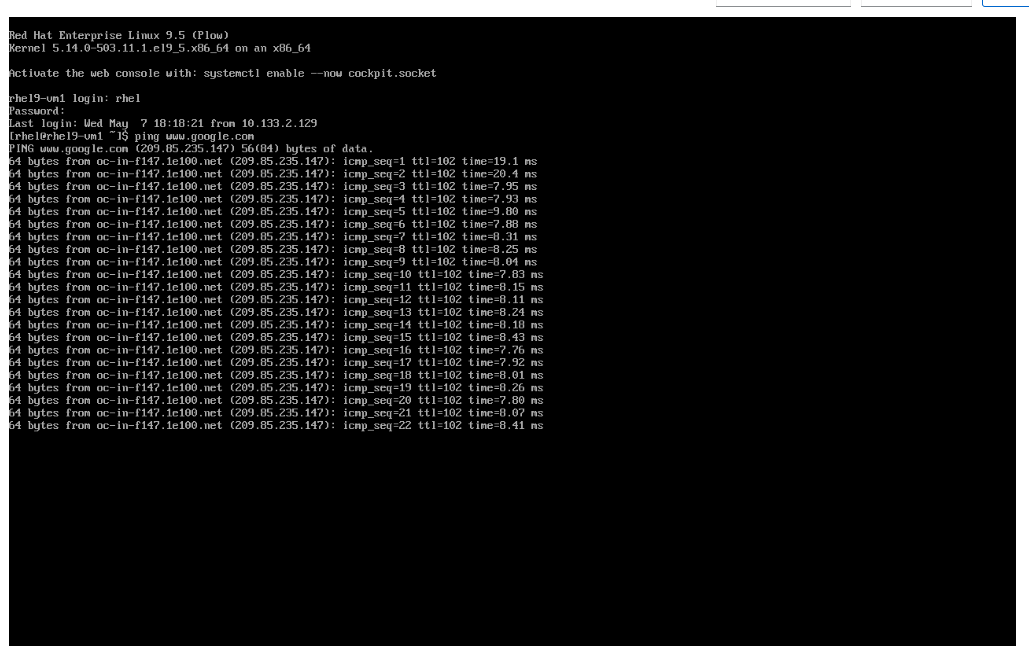

Figure 32. Ping Google
Press Control+C to stop the ping.
From the left side navigation menu, click on Workloads and then Pods, and then click on the virt-launcher pod for the one that represents the VM rhel9-vm1 to view the pod details.

Figure 33. Select Pod

Pod names are randomly generated, so yours will most likely not match the screenshot above.
On the Pod details page, click the Edit option on the Labels section.

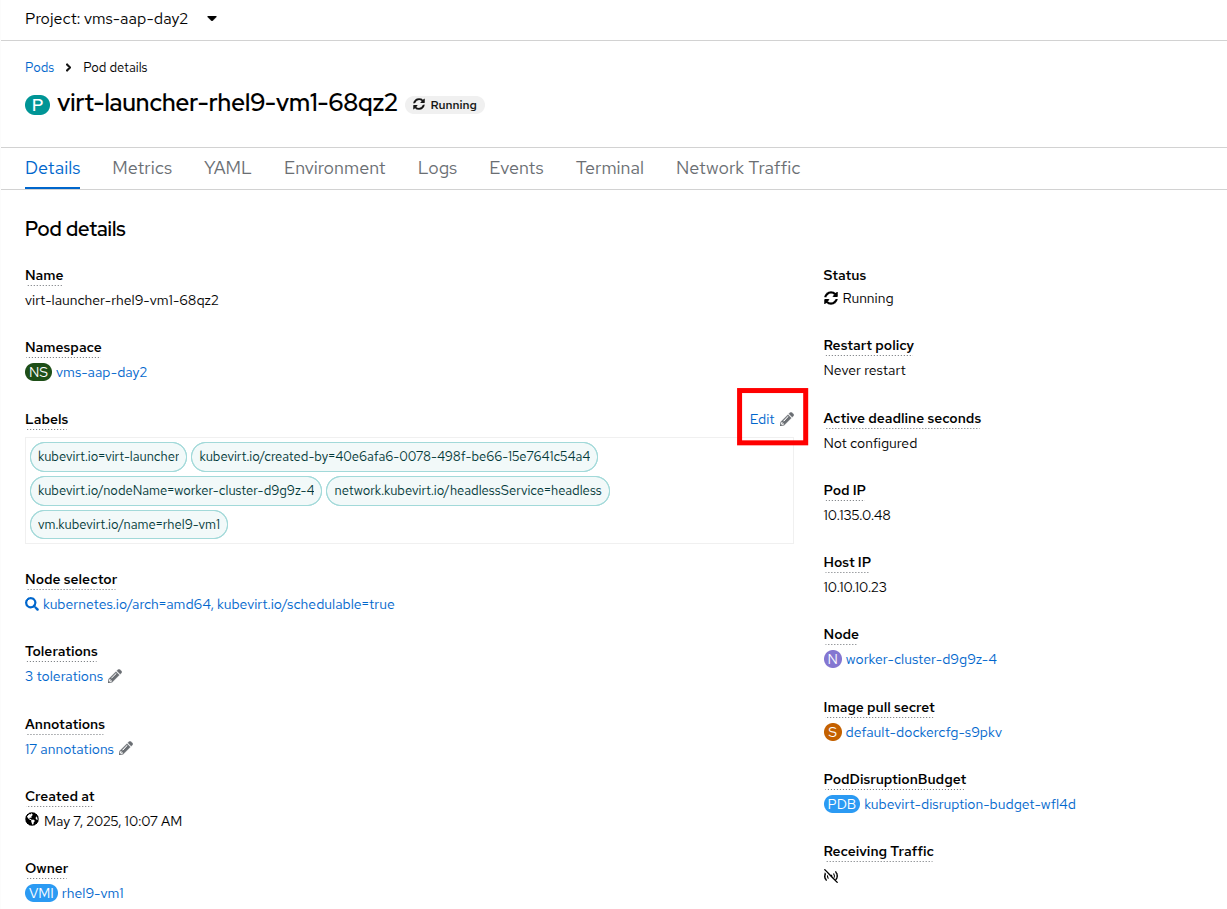

Figure 34. Edit Pod Details
An Edit labels window will appear, you can click into the center box and add a label for app=network-policy-deny, press the Enter key to commit it, and then click the Save button.

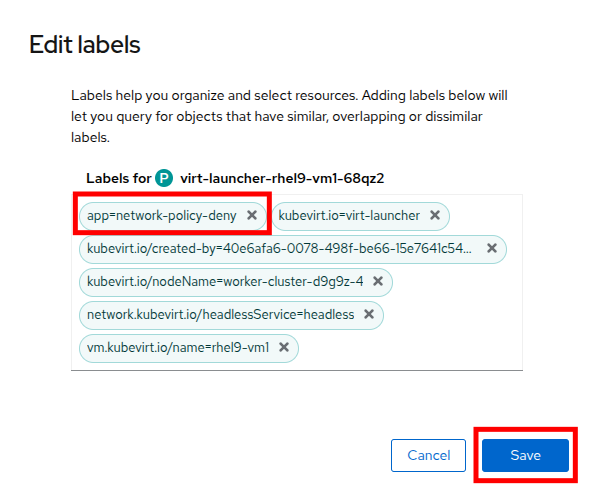

Figure 35. Edit Pod Labels
Repeat the same process for the rhel9-vm2 virtual machine.

Create the Network Policy

From the left side navigation menu, click on Networking and then click on NetworkPolicies, then click on the Create NetworkPolicy button in the center of the screen.

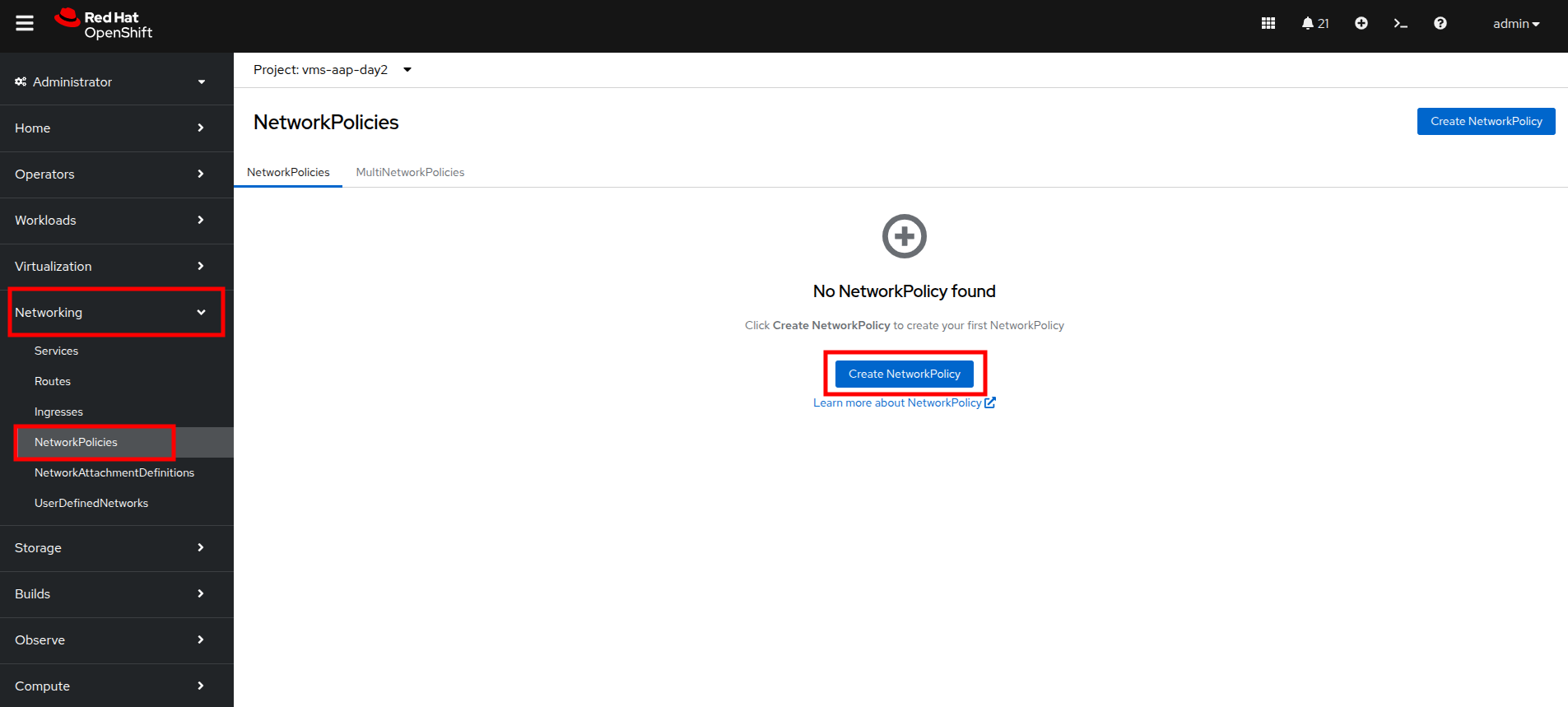

Figure 36. Network Policy

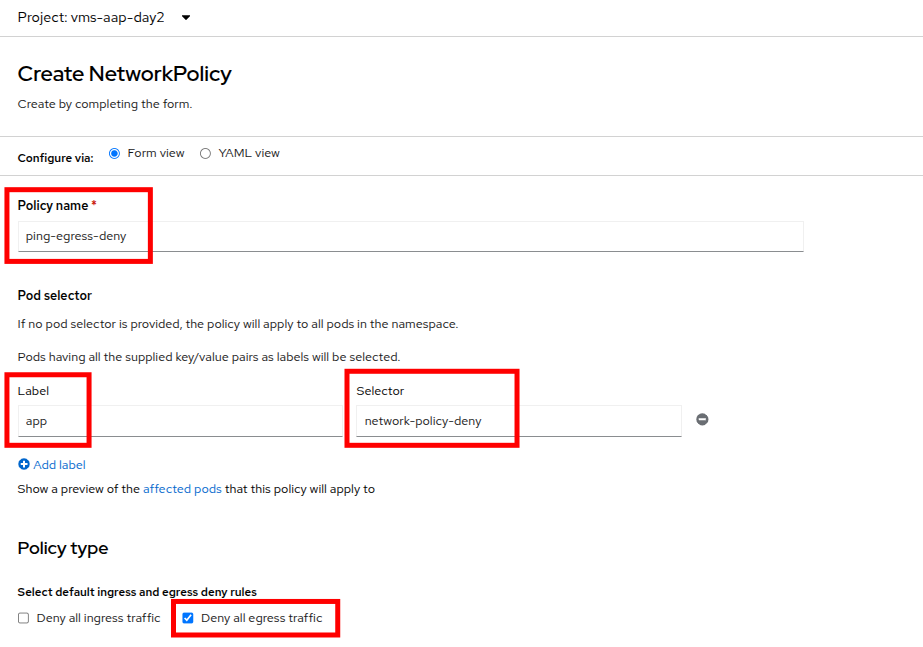

In NetworkPolicies fill out the following fields:
- Policy name: ping-egress-deny
- Key: app
- Value: network-policy-deny
- Deny all egress traffic checkbox: checked

  Figure 37. Configure Network Policy
With the values filled out, you can click the affected pods link under the Pod selector section to show which pods are affected by this policy. Once you are satisfied with your settings you can click the Create button.

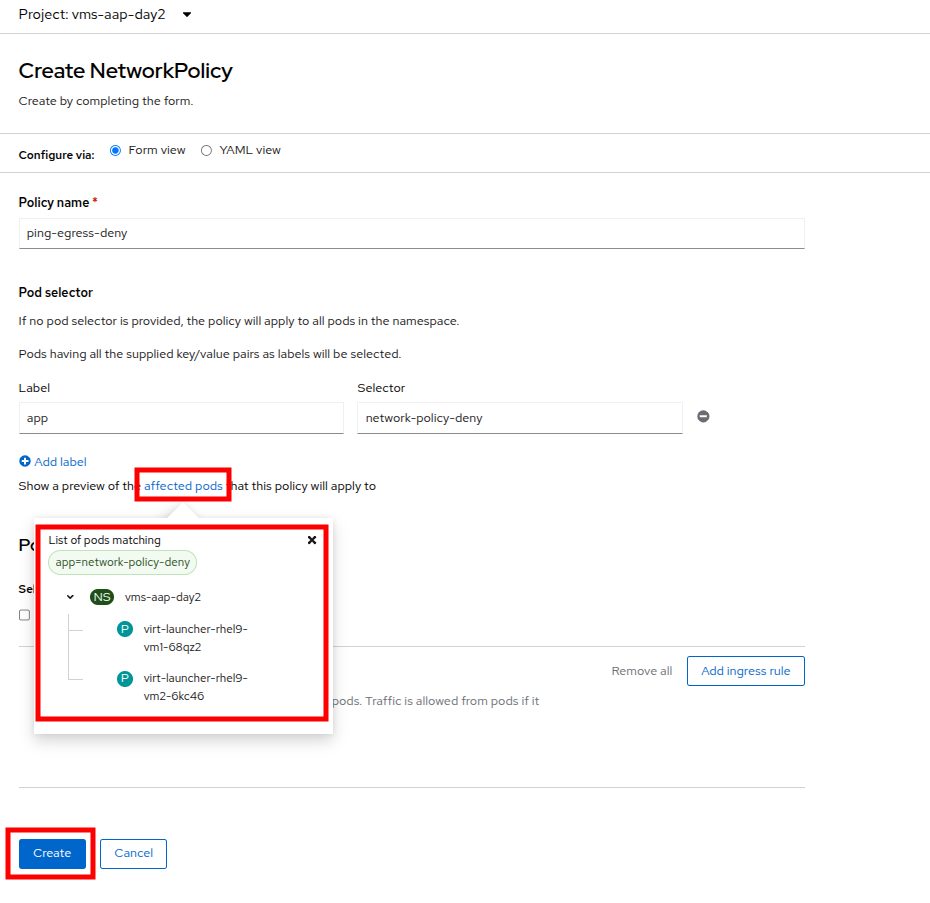

Figure 38. Affected Pods
With the policy created, go test it out.

Confirm the Effects of the Network Policy on the VM.

Return to the console of the rhel9-vm1 virtual machine to test our policy.
Using the left side navigation menu, click on Virtualization, then VirtualMachines, and select rhel9-vm1 from the center column.
Click the Console tab of the VM, you should still be logged in from before.
Copy and paste the following syntax to test out the new Network Policy:
```
ping www.google.com
```

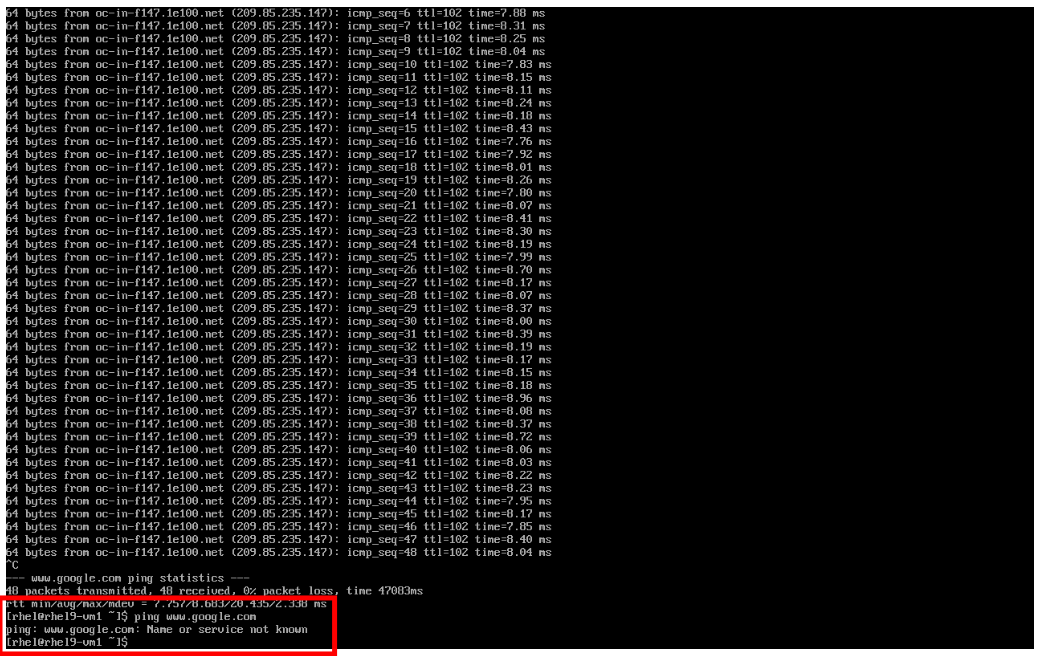

Figure 39. Egress Blocked
Egress from the cluster is completely blocked, including DNS lookups.
Once you have completed this exercise, return to Networking and NetworkPolicies and delete the ping-egress-deny policy using the three-dot menu on the right, and confirming in the popup box.

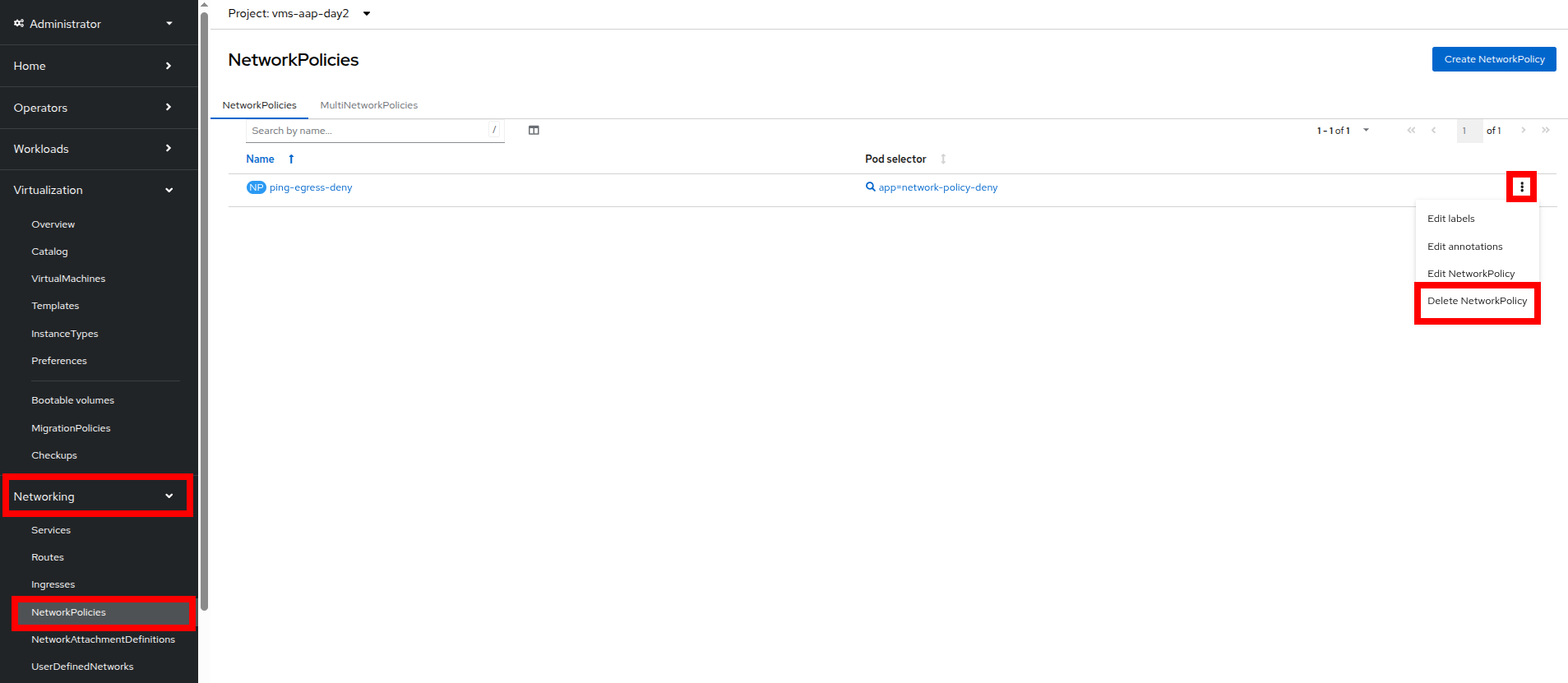

Figure 40. Delete Policy

In this section we learned how to apply a simple network policy to block egress traffic from a virtual machine to a public website. While this is a very simple example and application of this function, network policies are quite feature rich and very tuneable. In an advanced example, they can allow you to implement microsegmentation policies helping to shape the traffic flow both inside and outside of your cluster, between virtual guests in different or even the same OpenShift project.

Enable and Explore Alerts, Graphs, and Logs

Another important task for administrators is often to be able to assess cluster performance. These performance metrics can be gathered from the nodes themselves, or the workloads that are running within the cluster. OpenShift has a number of built-in tools that assist with generating alerts, aggregating logs, and producing graphs that can help an administrator visualize the performance of their cluster.

Node Alerts and Graphs

To begin, lets look at the metrics for the nodes that make up our cluster.

On the left side navigation menut click on Compute, and then click on Nodes.
From the Nodes page, you can se each node in your cluster, their status, role, the number of pods they are currently hosting, and physical attributes like memory and cpu utilization.

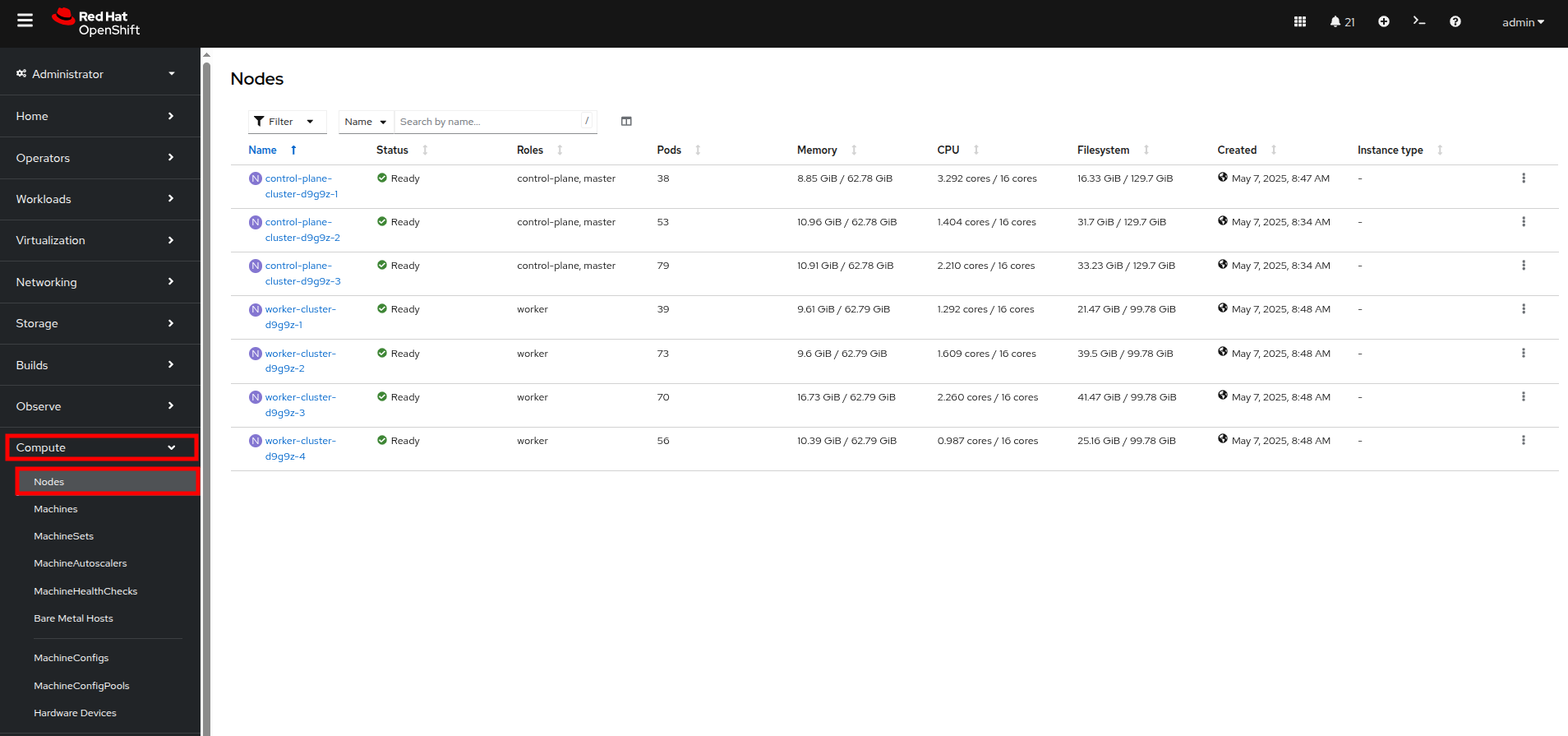

Figure 41. Nodes
Click on your worker node 4 in your cluster. The Node details page comes up where you can see more detailed information about the node.
The page shows alerts that are being generated by the node at the top-center of the screen, and provides graphs to help visualize the utilization of the node by displaying CPU, Memory, Storage, and Network Throughput graphs at the bottom-center of the screen.
You can change the review period for these graphs to periods of 1, 6, or 24 hours by clicking on the dropdown at the top-right of the utilization panel.

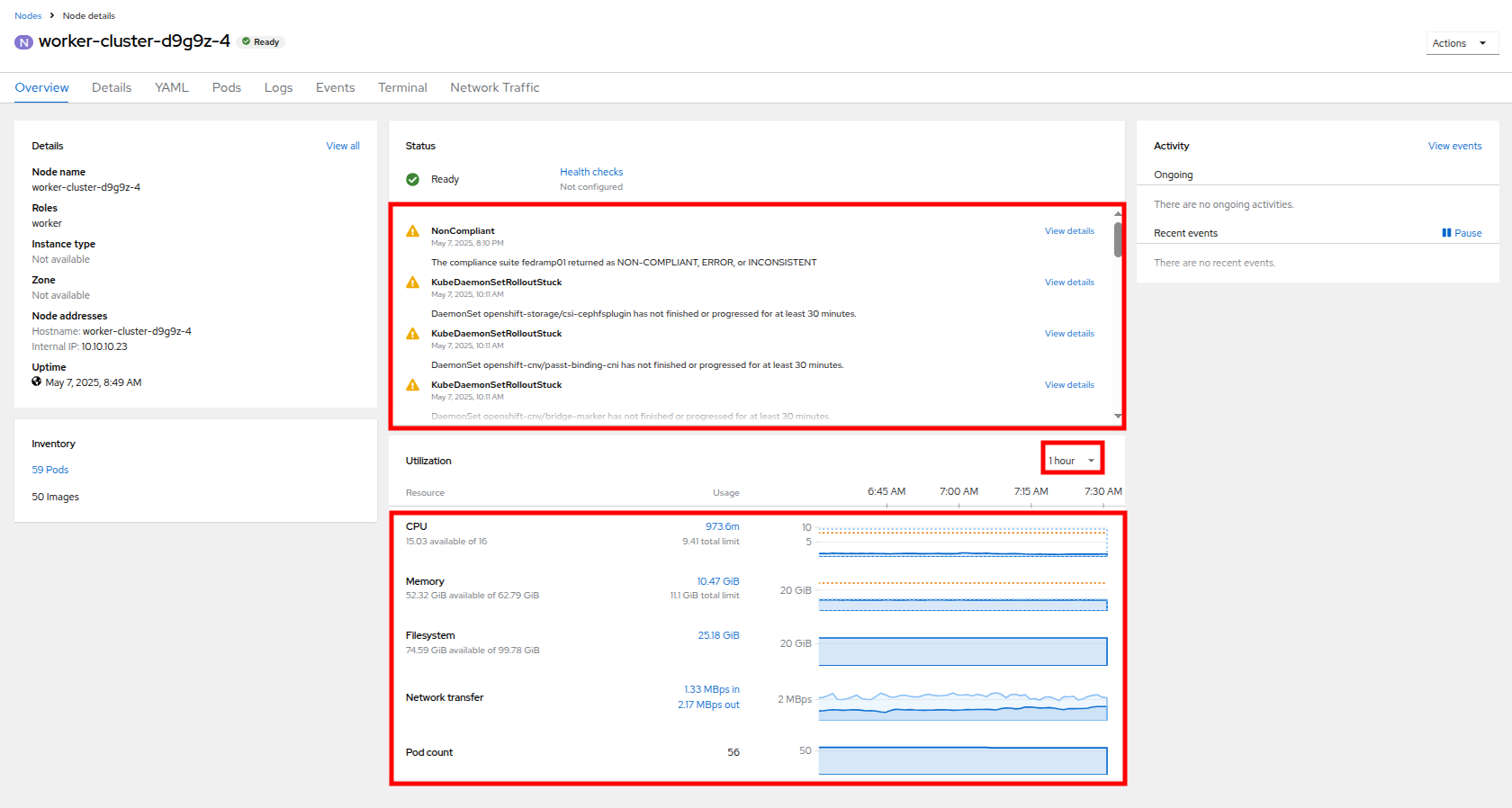

Figure 42. Node Details

Virtual Machine Graphs

Outside of the physical cluster resources, it’s also very important to be able to visualize what’s going on with our applications and workloads like virtual machines. Lets examine the information we can find out about these.

For this part of the lab, we are going to use an application to generate additional load on some of our virtual machines so that we can see how graphs are generated.

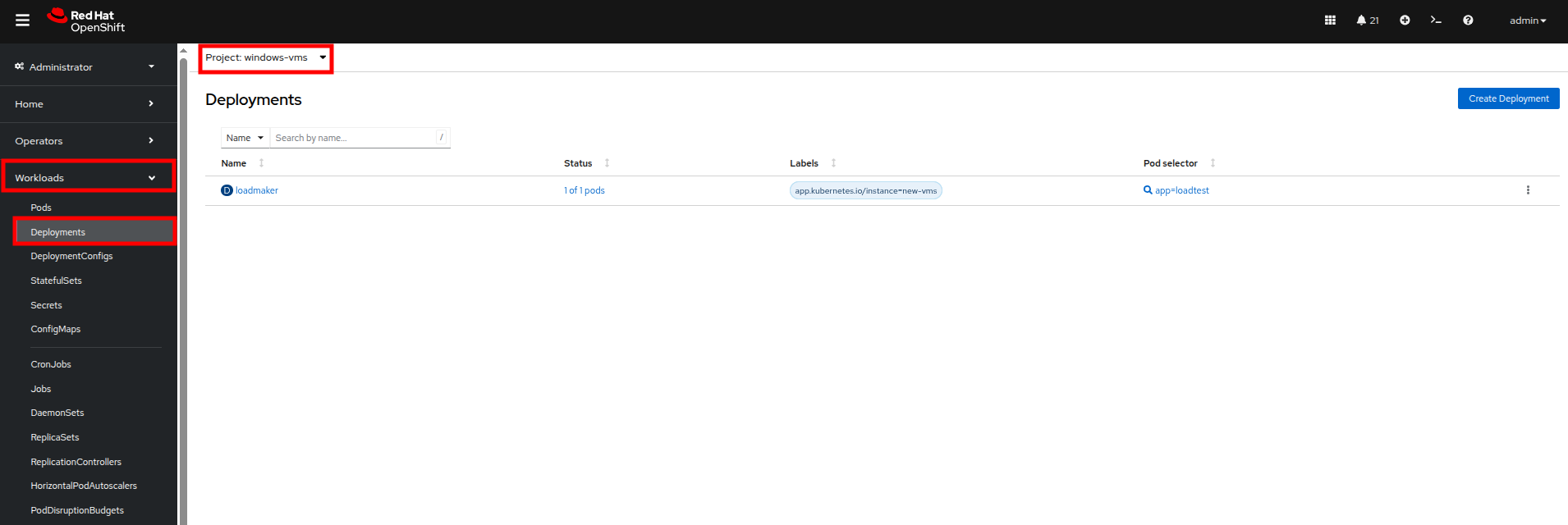

Using the left side navigation menu click on Workloads followed by Deployments.
Make sure to ensure you are in Project: windows-vms.
You should see one pod deployed here called loadmaker.

Figure 43. Loadmaker Deployment
Click on loadmaker and it will bring up the Deployment details page.

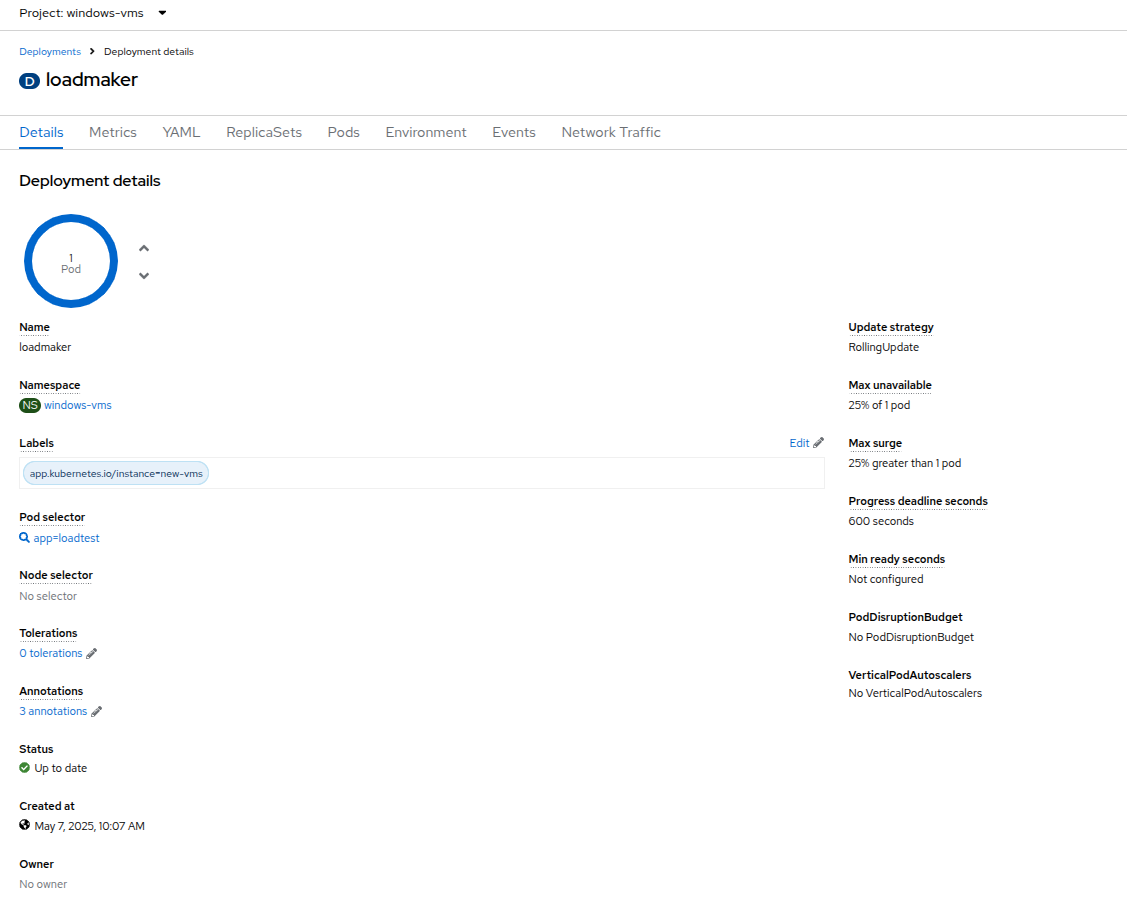

Figure 44. Deployment Details
Click on Environment, you will see a field for REQUESTS_PER_SECOND, change the value in the field to 75 and click the Save button at the bottom.

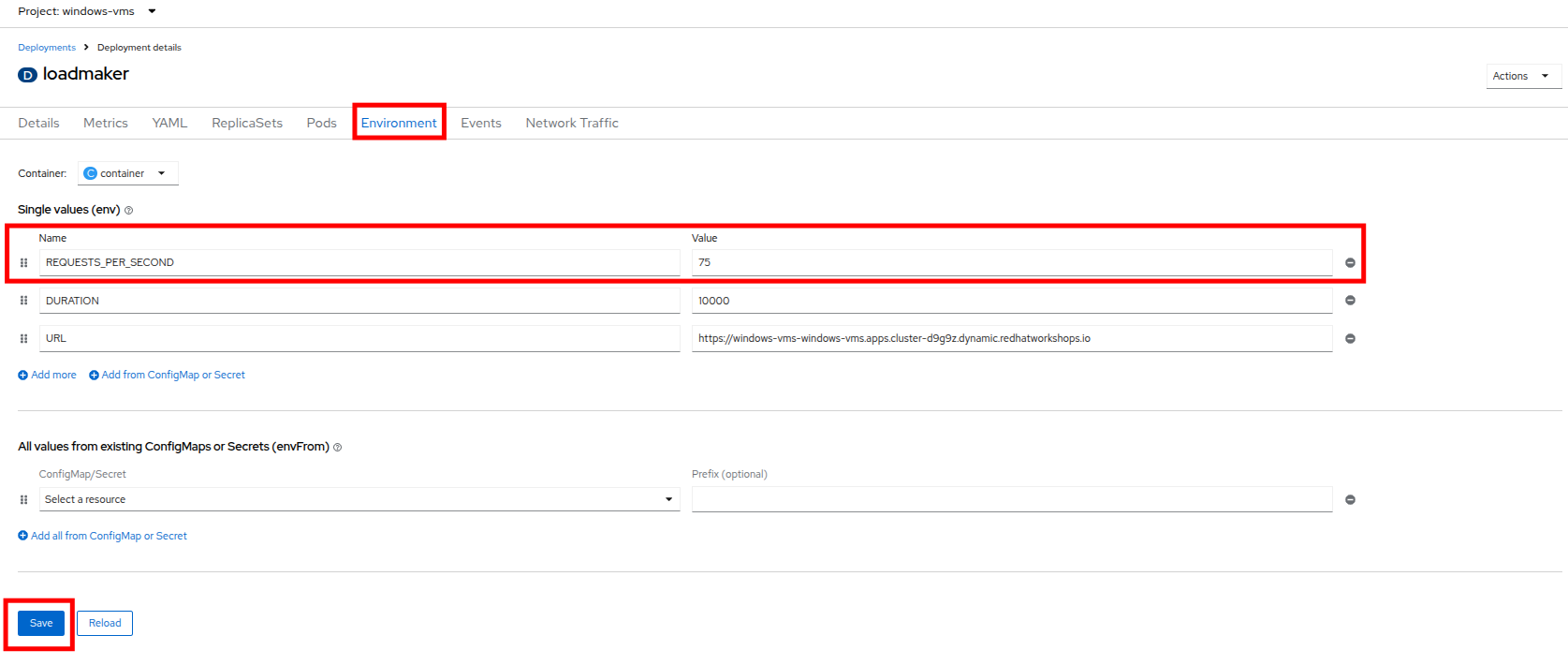

Figure 45. LM Pod Config
Now lets go check on the VM’s that we are generating load against.
On the left side navigation menu click on Virtualization and then VirtualMachines. Select the windows-vms project in the center column. You should see three virtual machines: winweb01, winweb02, and database.

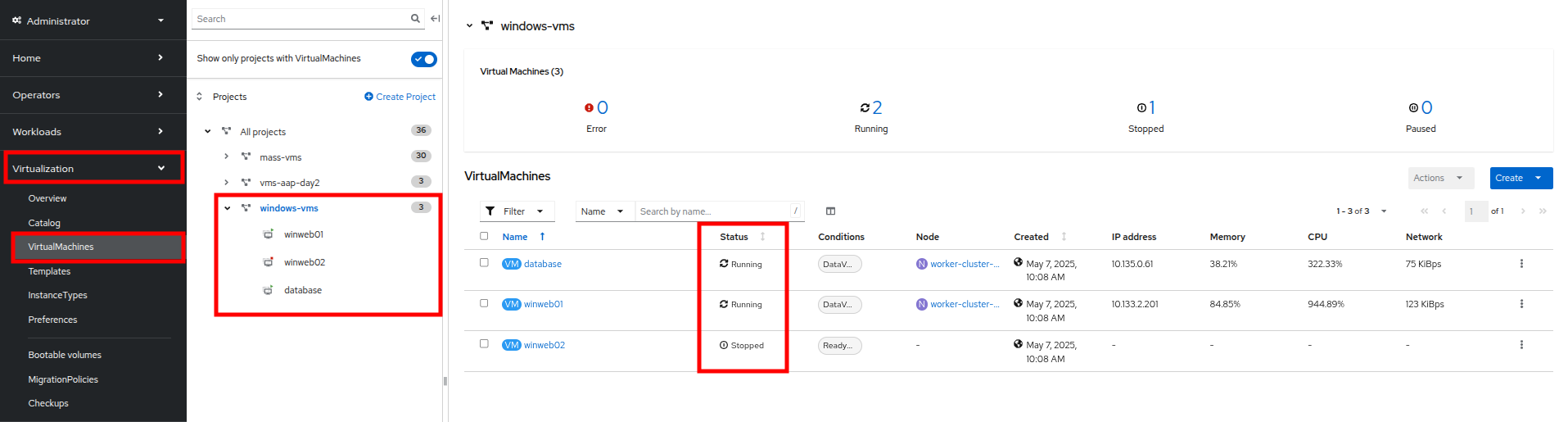

Figure 46. Windows VMs

At this point in the lab only database and winweb01 should be powered on. If they are off, please power them on now. Do not power on winweb02 for the time being.
Once the virtual machines are running, click on winweb01. This will bring you to the VirtualMachine details page.

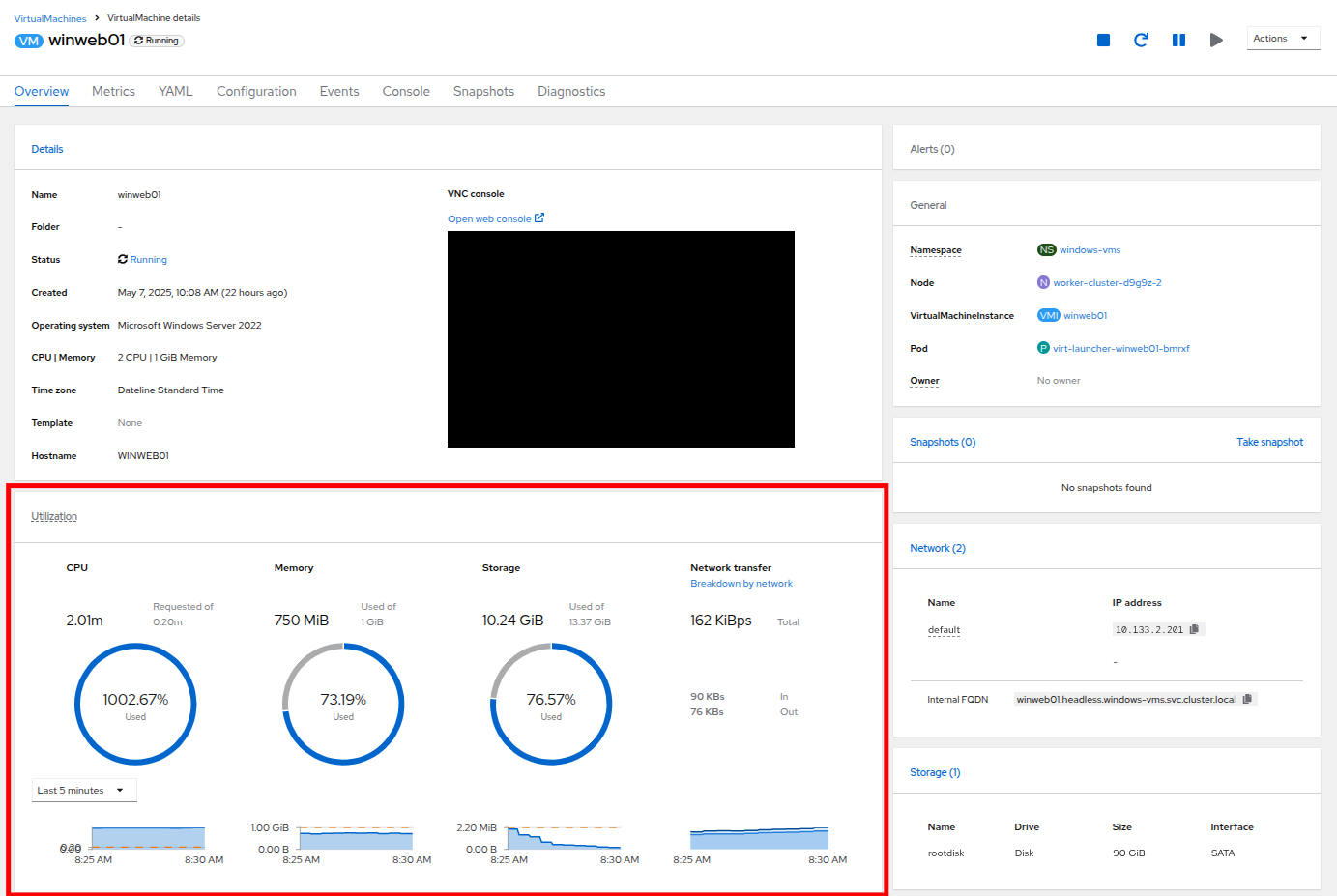

On this page there is a a Utilization section that shows the following information:
- The basic status of the VM resources (cpu, memory, storage, and network transfer) which are updated every 15 seconds.
- A number of small graphs which detail the VM performance over a recent time period, by default this is the last 5 minutes, but we can select a value up to 1 week from the drop down menu.

  Figure 47. VM Details
Taking a closer look at Network Transfer by clicking on Breakdown by network you can see how much network traffic is passing through each network adapter assigned to the virtual machine. In this case, the one default network adapter.

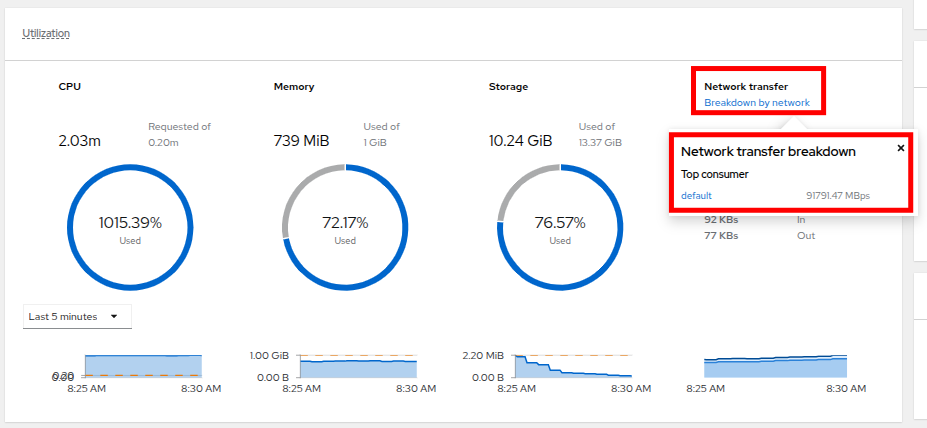

Figure 48. Select Network
When you are done looking at the network adapter, click on the graph showing CPU utilization.

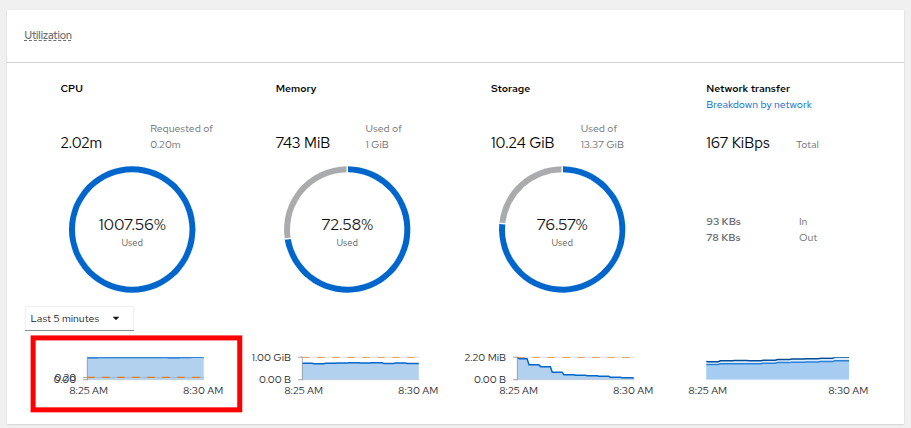

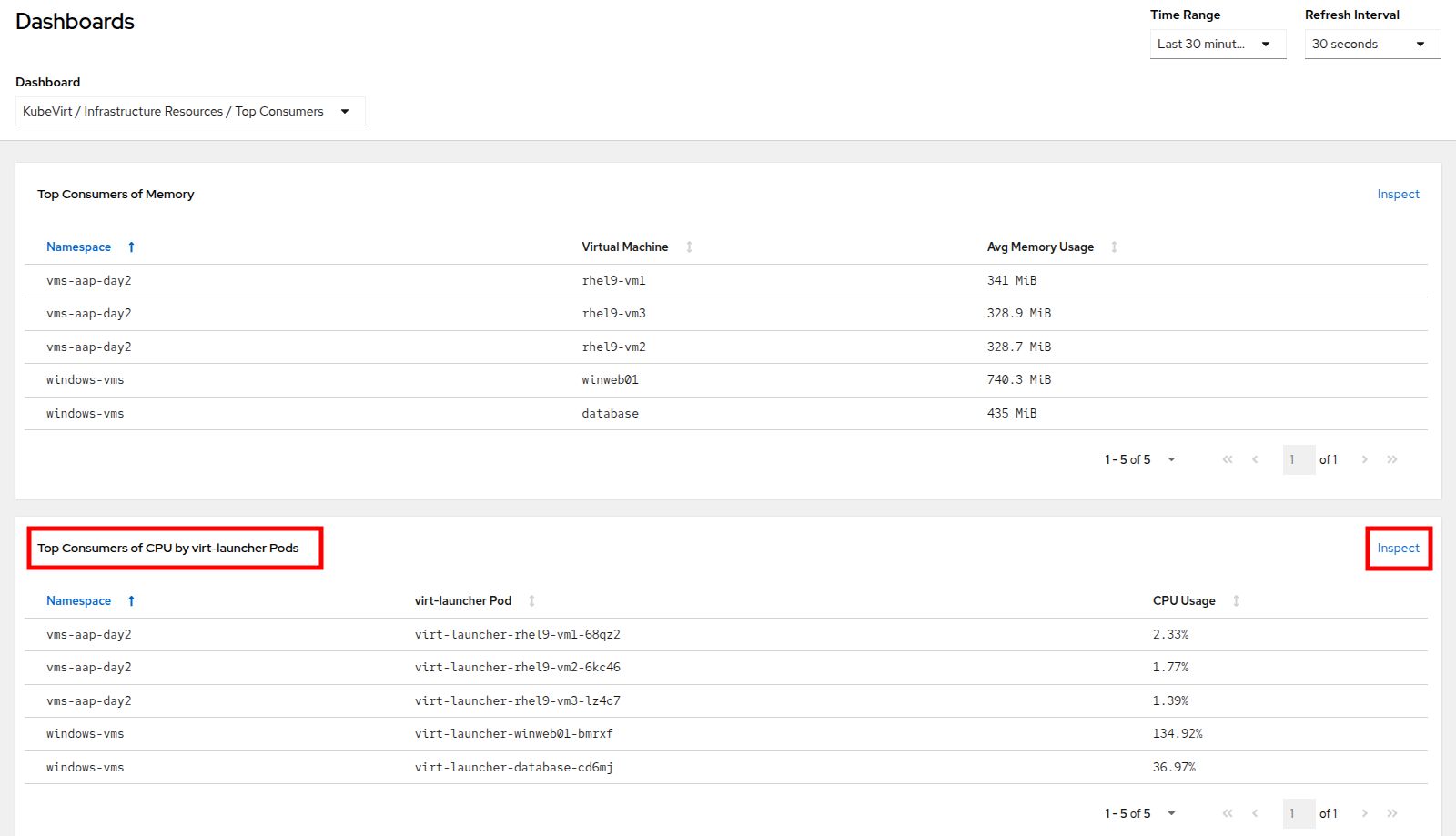

Figure 49. Select CPU

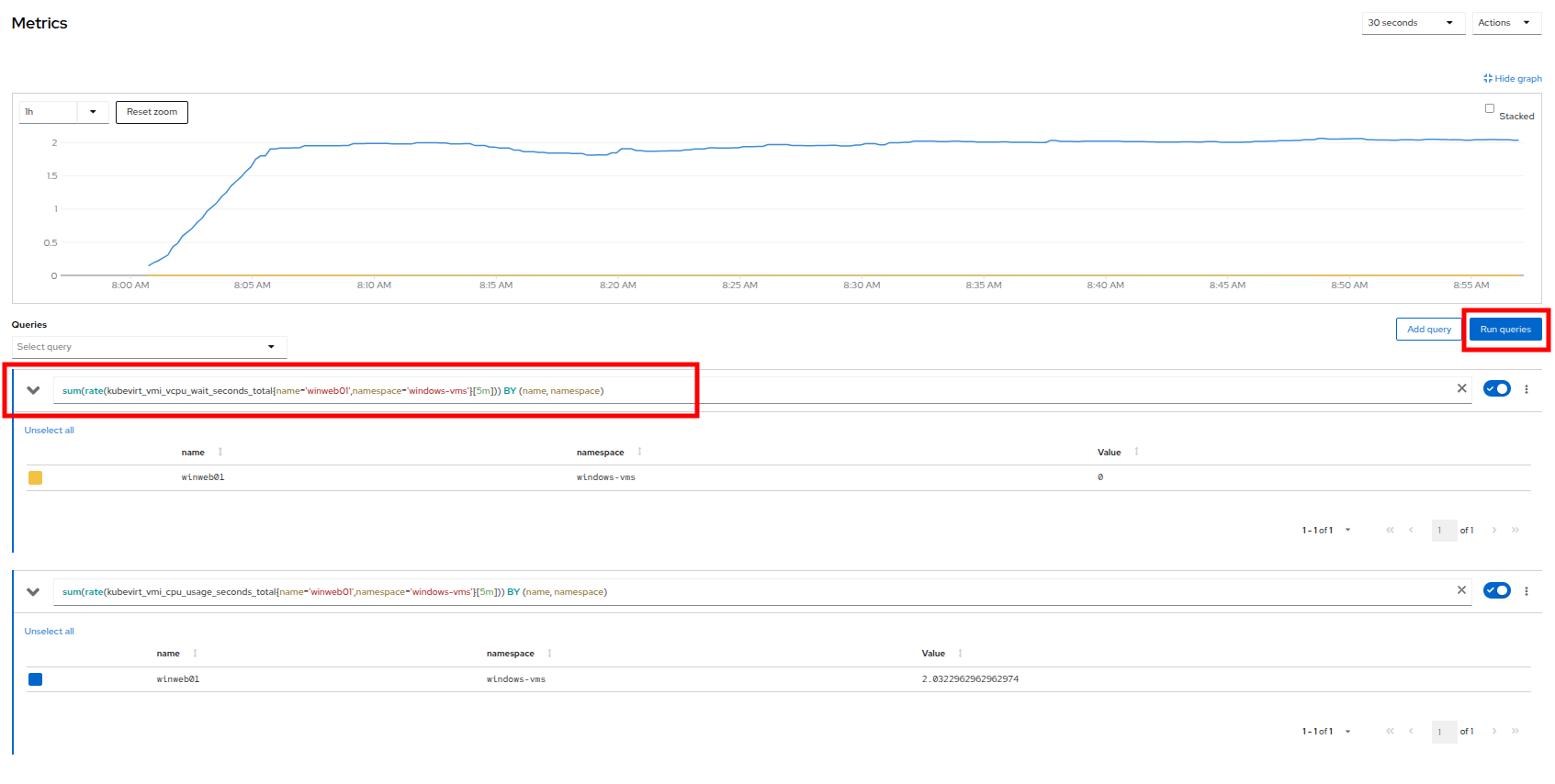

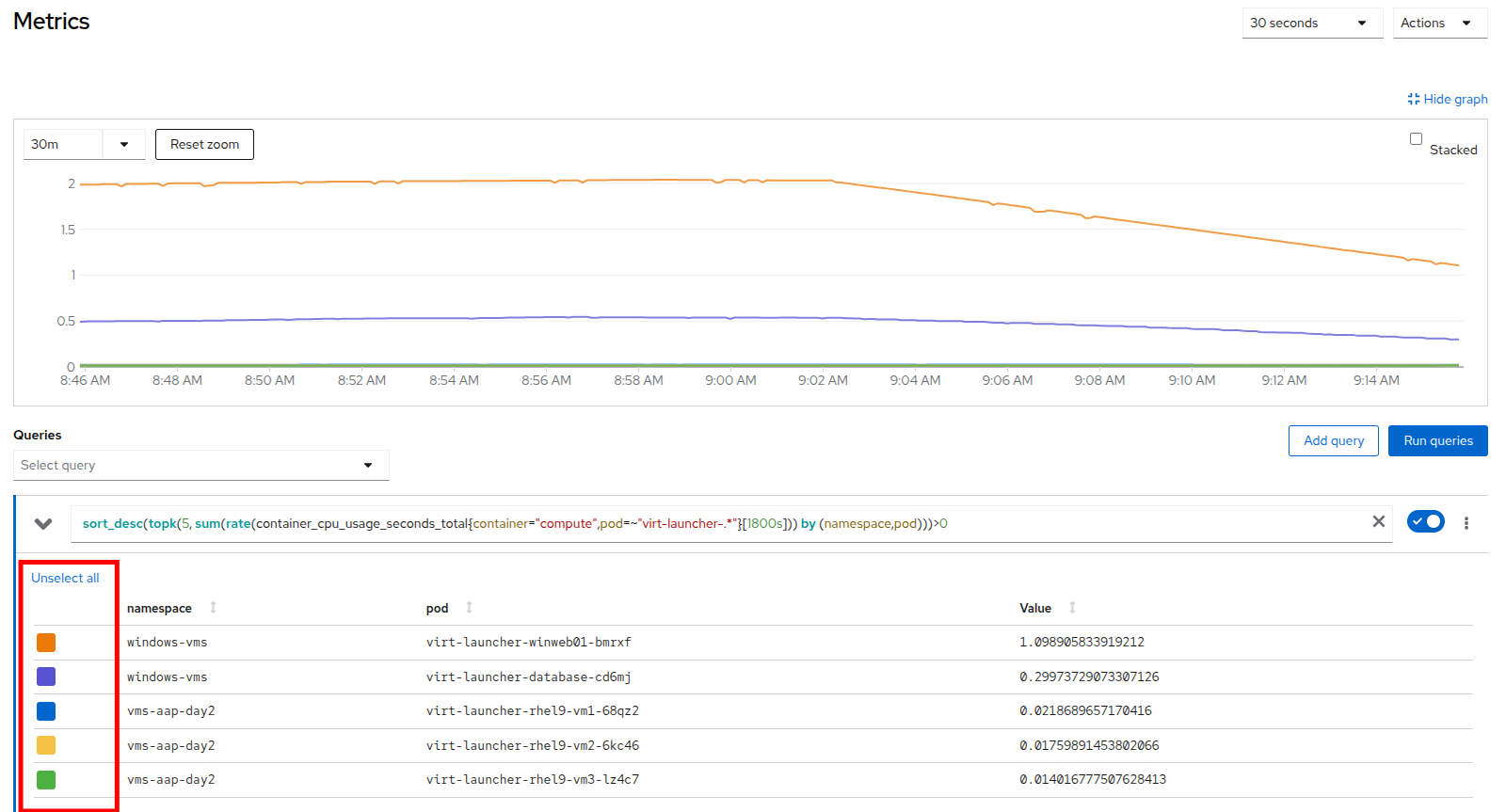

This will launch the Metrics window which will allow you to see more details about the CPU utilization. By default this is set to 30 minutes, but you can click on the drop down and change that to 1 hour to see the spike in the graph once we turned on the load generator.

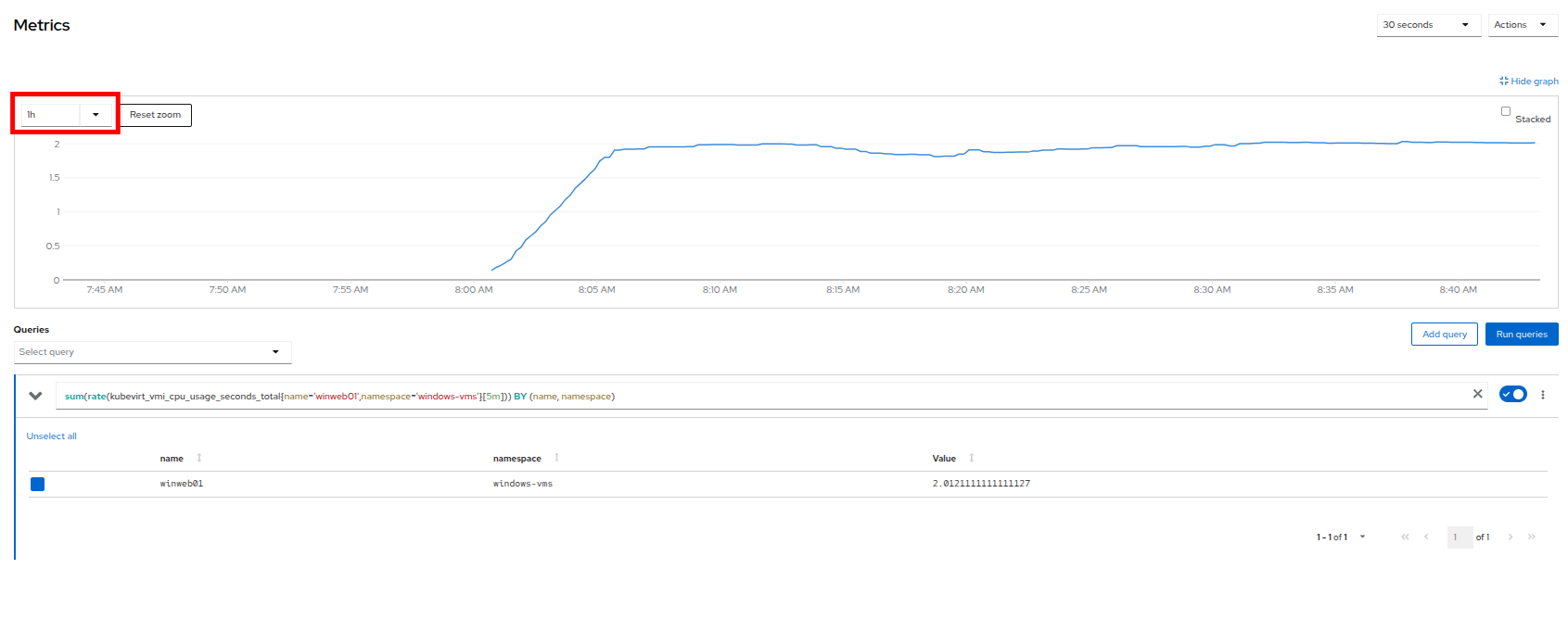

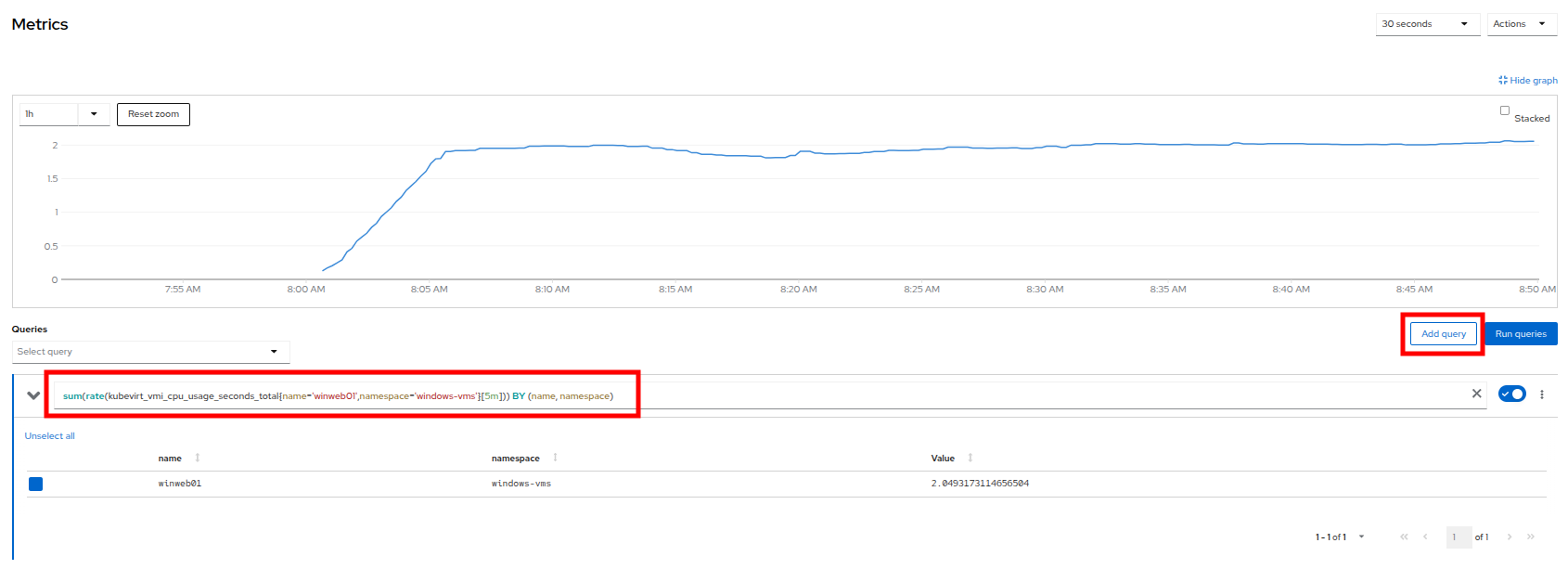

Figure 50. CPU Metrics

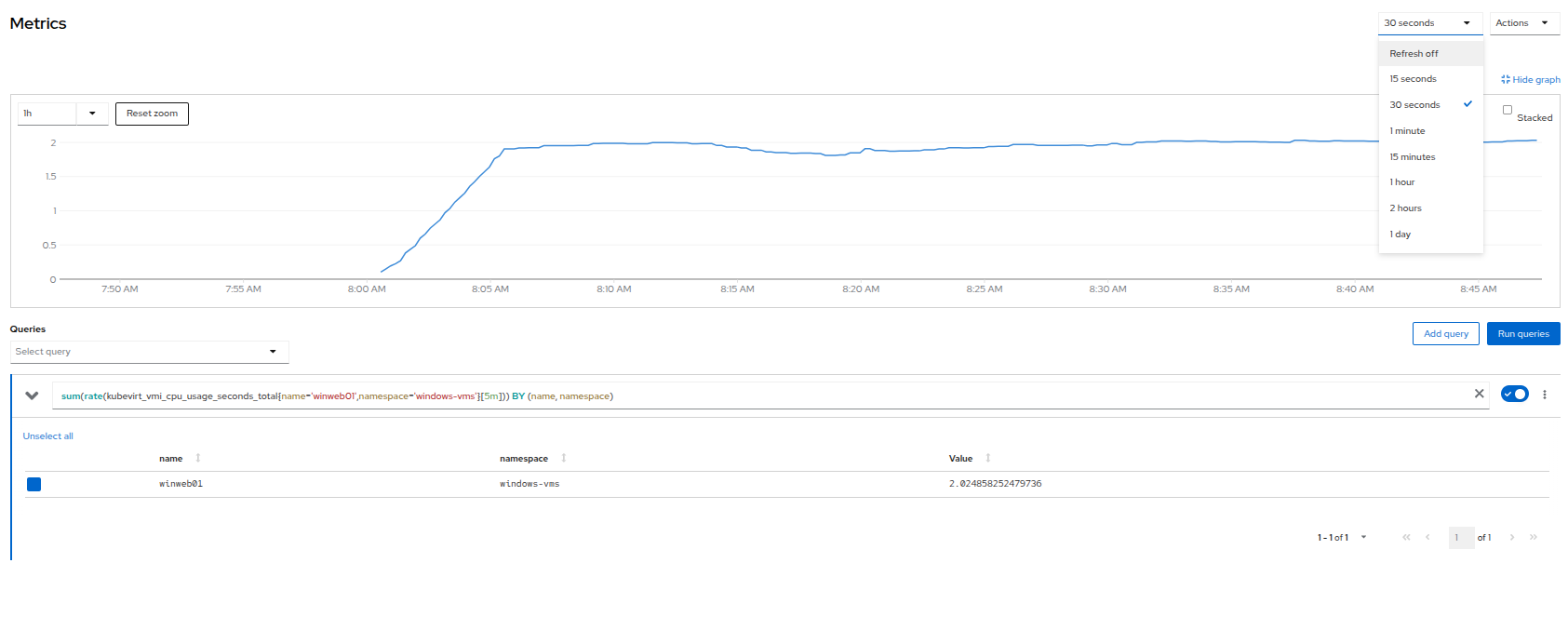

You can also modify the refresh timing in the upper right corner.

Figure 51. Change Refresh Interval
You can also see the query that is being run against the VM in order to generate this graph, and create your own using the Add Query button.

Figure 52. Add_Query
As an exercise, lets add a custom query that will show the amount of vCPU time spent in IO/wait status.

Click the Add Query button, and on the new line that appears, paste the following query:

sum(rate(kubevirt_vmi_vcpu_wait_seconds_total{name='winweb01',namespace='windows-vms'}[5m])) BY (name, namespace)

Click the Run queries button and see how the graph updates. A new line graph will appear showing that the vCPU on the guest is never not under load.

Figure 53. Sample Custom Query

Examining Dashboards

Another powerful feature of OpenShift is being able to use the Cluster Observability Operator to display detailed dashboards of cluster performance. Lets check some of those out now.

From the left side navigation menu, click on Observe, and then Dashboards.

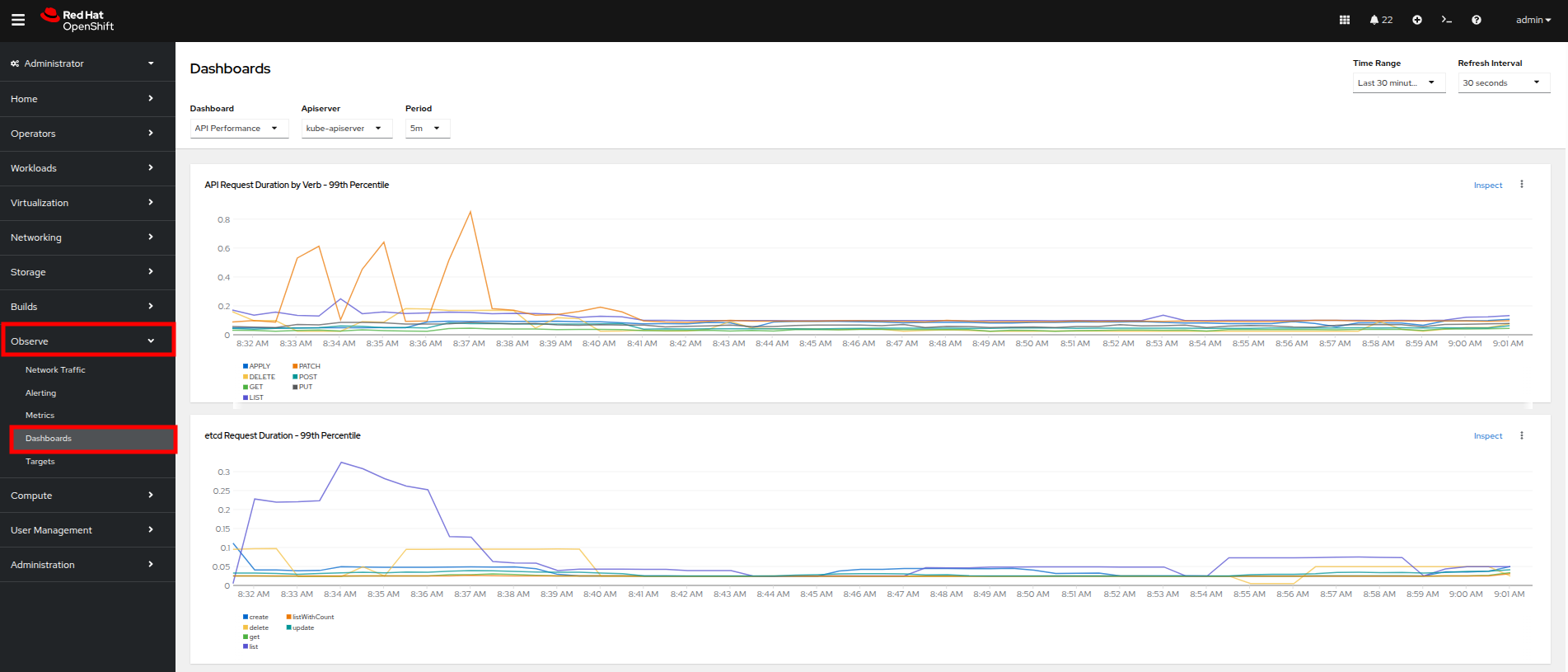

Figure 54. Dashboards
Click on API Performance and search for KubeVirt/Infrastructure Resources/Top Consumers

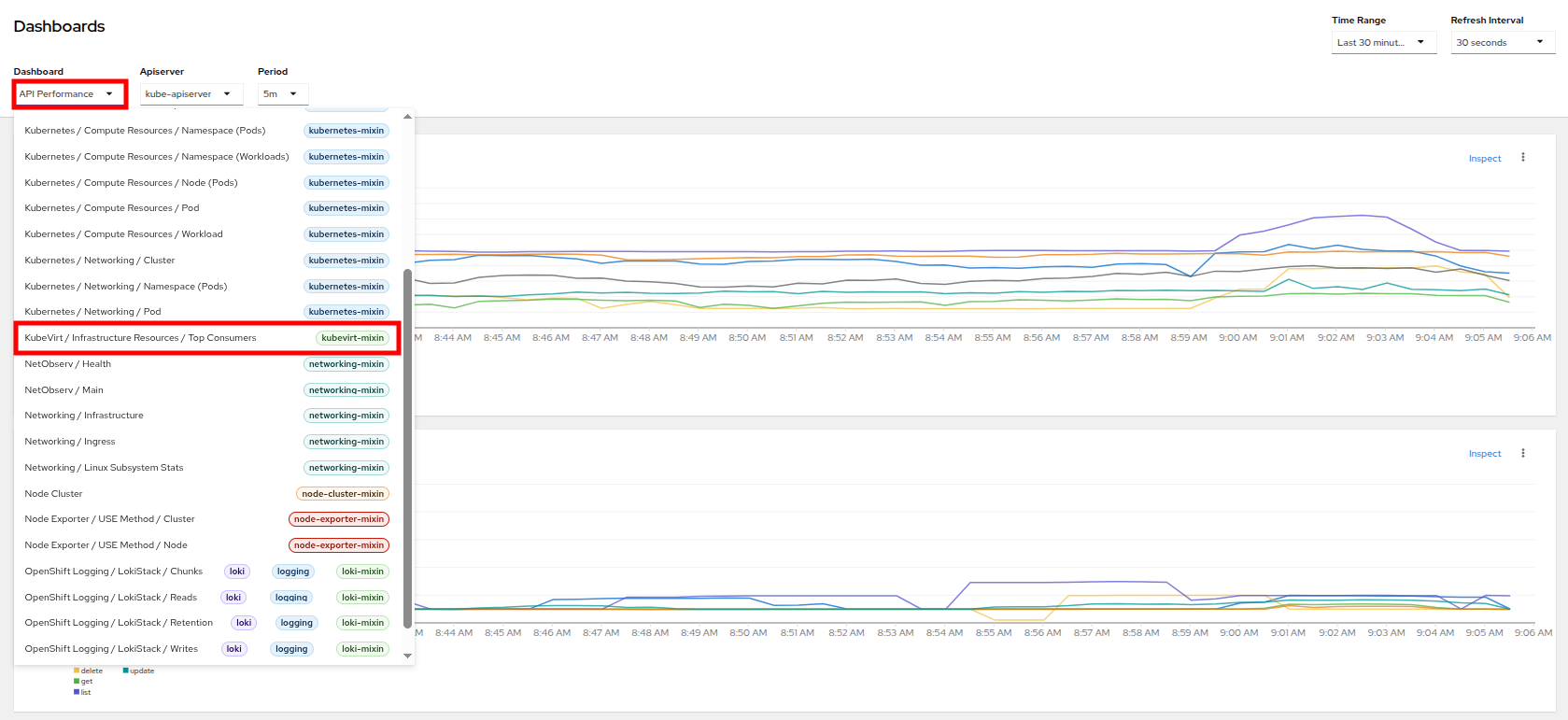

Figure 55. KubeVirt Dashboard
This dashboard will display the top consumers for all of the virtual machines running on your cluster. Look at the Top Consumers of CPU by virt-launcher Pods panel and click the Inspect link in the upper right corner.

Figure 56. CPU Inspect
You can can select the VMs you want to see in the graph by checking the boxes next to each VM displayed.
Try it now by turning some of the lines off. The associated colored line will disappear from the graph when disabled.

Figure 57. Select Metrics

Now that we have completed this section determining how to locate and display alerts, performance metrics, and graphs about our nodes and workloads, we can leverage these skills in the future in order to troubleshoot our own OpenShift Virtualization environments.

Automated VM Management

Stop, Start, Restart Guest VMs

Now that we’ve spent some time working with the OpenShift console, lets see what types of activities we can automate to make our administration jobs easier.

In this section, you’ll learn how to manage the lifecycle of your guest VMs running in Red Hat OpenShift Virtualization using Ansible Automation Platform (AAP).

While much of the groundwork, such as creating playbooks and VM task files, has already been completed for you, this section of the lab will focus on understanding how the pieces work together and how to run the automation via AAP.

To begin, we’ll perform some common VM lifecycle actions such as stopping, starting, and restarting all VMs in a given namespace. These tasks are designed to demonstrate how the automation behind these actions is structured.

The Existing Setup

To assist with your experience, the following content has already been created and configured for you:

The tasks/main.yml file has been pre-populated with dynamic task inclusion logic.
The Ansible playbook (manage_vm_playbook.yml) that calls the appropriate task based on input variables is already in place.
Individual task files for stopping, starting, and restarting VMs (stop_vm.yml, start_vm.yml, and restart_vm.yml) have been pre-written.

Although you don’t need to create or modify these files, it’s important to understand how they work, as you’ll be referencing them when creating job templates in Ansible Automation Platform.

Understanding the Task Files

Each of the task files works by retrieving all virtual machines within a specific namespace (in our case vms-aap-day2), and then performing an action (stop, start, restart) based on their current status. The ansible.builtin.debug task provides insights to understanding the structure of your VM resource vm_info to identify key fields required to create dynamic Ansible tasks.

stop_vm.yml

This task file stops any VMs that are currently running within a given namespace.

---
- name: Get all VirtualMachines in the namespace
  redhat.openshift_virtualization.kubevirt_vm_info:
    namespace: "{{ vm_namespace }}"
  register: vm_info

- name: Debug the vm_info variable
  ansible.builtin.debug:
    var: vm_info

- name: Stop VM using OpenShift API
  ansible.builtin.uri:
    url: "{{ OCP_HOST }}/apis/subresources.kubevirt.io/v1/namespaces/{{ vm_namespace }}/virtualmachines/{{ item.metadata.name }}/stop"
    method: PUT
    headers:
      Authorization: "Bearer {{ OCP_BEARER_TOKEN }}"
    validate_certs: false
    status_code:
      - 202
  loop: "{{ vm_info.resources }}"
  loop_control:
    label: "{{ item.metadata.name }}"
  changed_when: item.status.printableStatus != "Stopped"

start_vm.yml

This task file starts any VMs that are currently stopped within a given namespace.

---
- name: Get all VirtualMachines in the namespace
  redhat.openshift_virtualization.kubevirt_vm_info:
    namespace: "{{ vm_namespace }}"
  register: vm_info

- name: Debug the vm_info variable
  ansible.builtin.debug:
    var: vm_info

- name: Start VM using OpenShift API
  ansible.builtin.uri:
    url: "{{ OCP_HOST }}/apis/subresources.kubevirt.io/v1/namespaces/{{ vm_namespace }}/virtualmachines/{{ item.metadata.name }}/start"
    method: PUT
    headers:
      Authorization: "Bearer {{ OCP_BEARER_TOKEN }}"
    validate_certs: false
    status_code:
      - 202
  loop: "{{ vm_info.resources }}"
  loop_control:
    label: "{{ item.metadata.name }}"
  changed_when: item.status.printableStatus != "Running"

restart_vm.yml

This task file restarts any VMs that are currently running within a given namespace.

---
- name: Get all VirtualMachines in the namespace
  redhat.openshift_virtualization.kubevirt_vm_info:
    namespace: "{{ vm_namespace }}"
  register: vm_info

- name: Debug the vm_info variable
  ansible.builtin.debug:
    var: vm_info

- name: Restart VM using OpenShift API
  ansible.builtin.uri:
    url: "{{ OCP_HOST }}/apis/subresources.kubevirt.io/v1/namespaces/{{ vm_namespace }}/virtualmachines/{{ item.metadata.name }}/restart"
    method: PUT
    headers:
      Authorization: "Bearer {{ OCP_BEARER_TOKEN }}"
    validate_certs: false
    status_code:
      - 202
  loop: "{{ vm_info.resources }}"
  loop_control:
    label: "{{ item.metadata.name }}"
  changed_when: item.status.printableStatus != "Running"

These task files interact with the OpenShift REST API directly using the ansible.builtin.uri module to invoke the appropriate lifecycle action of stopping, starting, or restarting the virtual machine.

In addition, the debug task helps you to visualize the structure of VM data returned by the kubevirt_vm_info module and breaks down as follows:

The kubevirt_vm_info module retrieves all VMs in the namespace.
metadata.name: The name of the VirtualMachine.
metadata.namespace: The namespace the VM belongs to.
The loop_control option sets a label for each task iteration, showing the VM name (item.metadata.name) in the output. This makes the playbook output more readable and easier to debug.
status.printableStatus: The current status of the VM (e.g., Stop, Start,Restart).

A snippet sample of the ansible.builtin.debug module is shown below.

changed: true
result:
  apiVersion: kubevirt.io/v1
  kind: VirtualMachine
  metadata:
    annotations:
      kubectl.kubernetes.io/last-applied-configuration: >
        ...
    ...
    name: rhel9-vm1
    namespace: vms-aap-day2
  spec:
    ...
  status:
    ...
    printableStatus: Stopped
  ...

Creating and Running the VM Job Templates with Ansible Automation Platform

Each VM lifecycle template that you will create takes advantage of the manage_vm_playbook.yml.

In this section, you will make use of the Ansible Automation Platform (AAP) dashboard and create a VM Job Template for each scenario: Start VMs, Stop VMs, and Restart VMs. You will be able to see the effects of your automation jobs by checking back with the OpenShift console.

In the OpenShift console, use the left side navigation menu and click on Virtualization and then VirtualMachines. In the center column, click on the vms-aap-day2 project and verify that all three VMs are currently running.

Figure 58. Running AAP VMs
Return to the tab where you have Ansible Automation Platform open. If your previous login has timed out, or you have accidentally closed the window, the information to login again is here:

Your Ansible Automation Platform console is available here.

Your admin login is available with the following credentials:

User: username

Password password

Within the AAP UI dashboard, use the left side menu to navigate to Automation Execution then click on Templates. On the templates screen, click the Create template button, and chose Create job template from the dropdown menu.

Figure 59. Create Job Template

Fill out the following details on the Create job template page:

Parameter Value

Parameter	Value
Name	`Stop VMs`
Job Type	Run
Inventory	OpenShift Virtual Machines
Project	Workshop Project
Playbook	solutions/manage_vm_playbook.yml
Execution Environment	Day2 EE
Credentials	OpenShift Credential
Extra variables	`vm_namespace: vms-aap-day2` `task_file: stop_vm.yml`

Name

Stop VMs

Job Type

Run

Inventory

OpenShift Virtual Machines

Project

Workshop Project

Playbook

solutions/manage_vm_playbook.yml

Execution Environment

Day2 EE

Credentials

OpenShift Credential

Extra variables

vm_namespace: vms-aap-day2
task_file: stop_vm.yml

Once filled out, click the Create job template button.

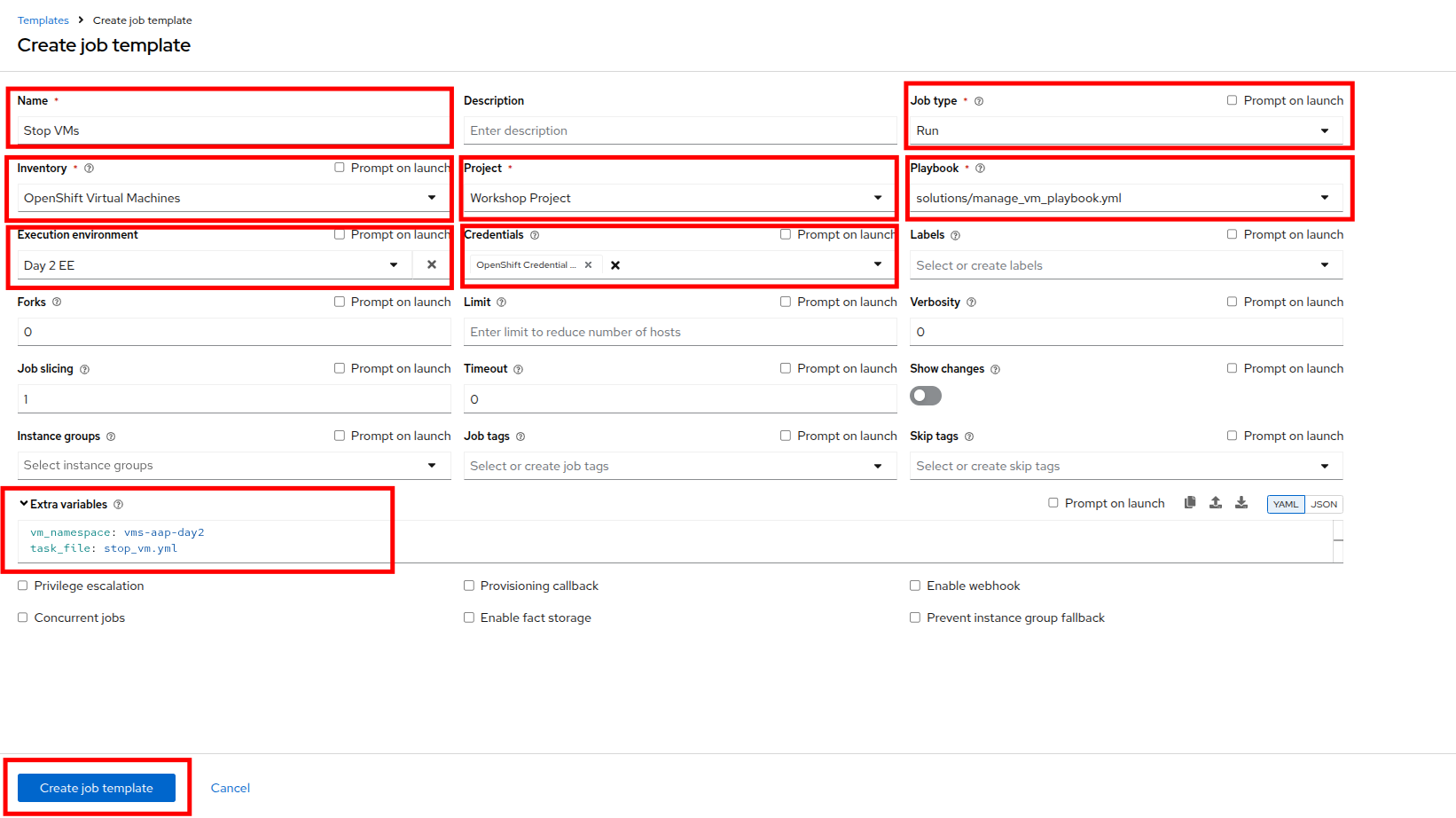

Figure 60. Stop VMs Template
Once the Stop VMs Job Template is created, select the Launch template button on the top right corner to run the job.

Figure 61. Launch Stop VMs Template
The job will start running, and once it is successful you will see changes displayed in yellow.

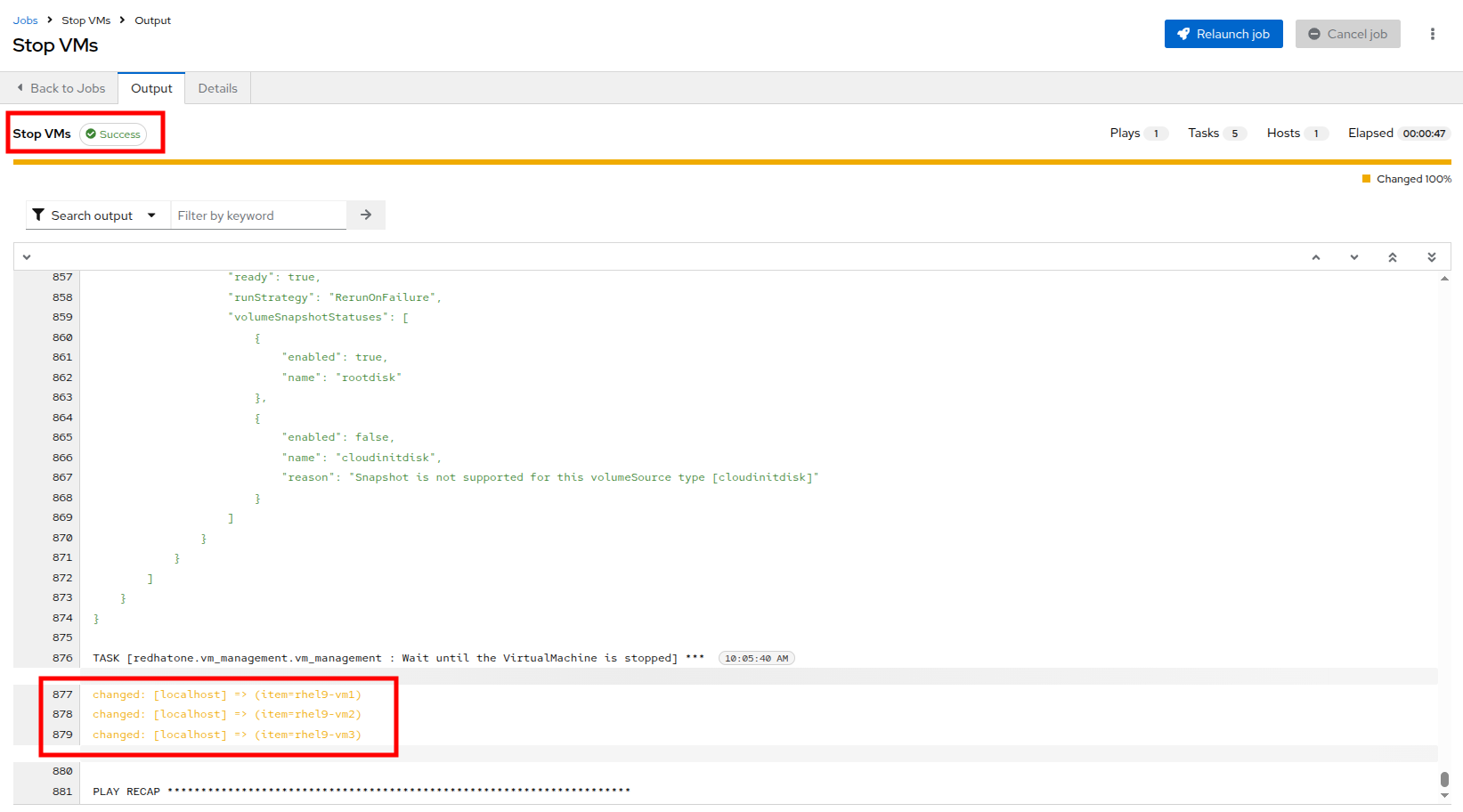

Figure 62. Successful Job
Return to the OpenShift console to see that the virtual machines in the vms-aap-day2 project have all now stopped.

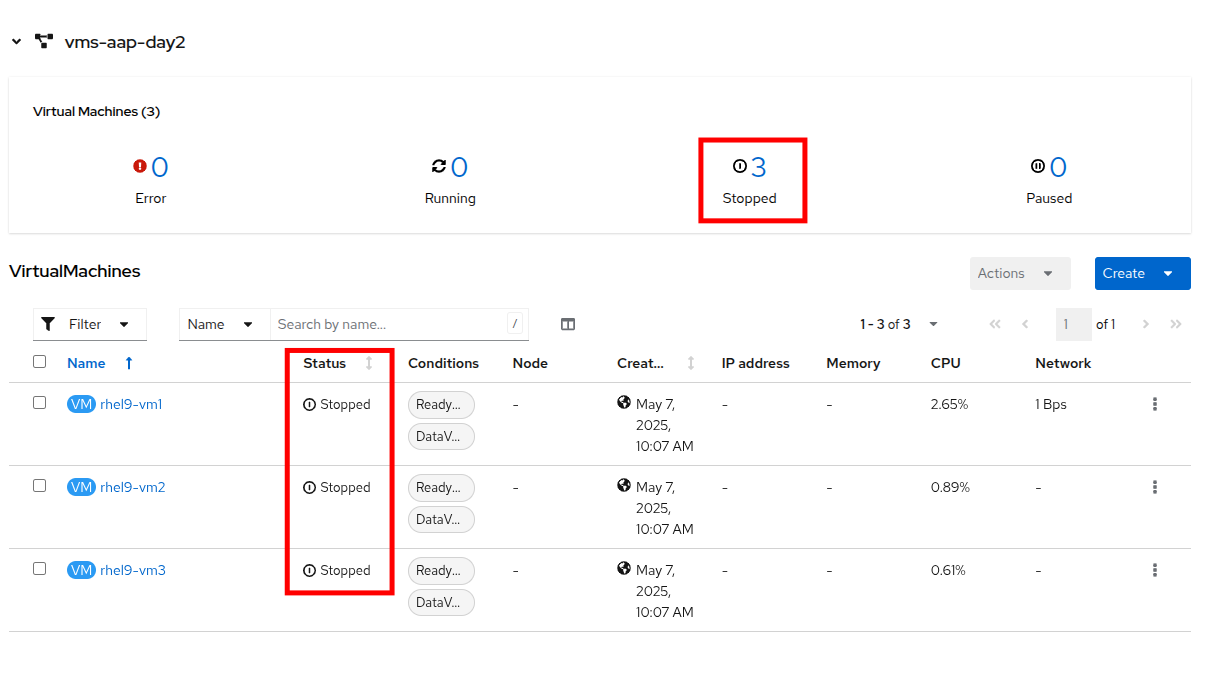

Figure 63. Stopped VMs
Return to the AAP Dashboard, and repeat this process to create the Start VMs and Restart VMs Ansible Job Templates. The details for each is provided below.

For Starting VMs, use the following details to create the job template:

Parameter Value

Parameter	Value
Name	`Start VMs`
Job Type	Run
Inventory	OpenShift Virtual Machines
Project	Workshop Project
Playbook	solutions/manage_vm_playbook.yml
Execution Environment	Day2 EE
Credentials	OpenShift Credential
Extra variables	`vm_namespace: vms-aap-day2` `task_file: start_vm.yml`

Name

Start VMs

Job Type

Run

Inventory

OpenShift Virtual Machines

Project

Workshop Project

Playbook

solutions/manage_vm_playbook.yml

Execution Environment

Day2 EE

Credentials

OpenShift Credential

Extra variables

vm_namespace: vms-aap-day2
task_file: start_vm.yml

For Restarting VMs, use the following details to create the job template:

Parameter Value

Parameter	Value
Name	`Restart VMs`
Job Type	Run
Inventory	OpenShift Virtual Machines
Project	Workshop Project
Playbook	solutions/manage_vm_playbook.yml
Execution Environment	Day2 EE
Credentials	OpenShift Credential
Extra variables	`vm_namespace: vms-aap-day2` `task_file: restart_vm.yml`

Name

Restart VMs

Job Type

Run

Inventory

OpenShift Virtual Machines

Project

Workshop Project

Playbook

solutions/manage_vm_playbook.yml

Execution Environment

Day2 EE

Credentials

OpenShift Credential

Extra variables

vm_namespace: vms-aap-day2
task_file: restart_vm.yml

Once you have created these Job templates select the Launch template button on the top right corner to run the job and notice the changes of these VMs within the OpenShift console. Each VM should start back up after executing the Start VMs template, and then each machine should reboot after executing the Restrat VMs template.

Patching your VMs

In this exercise, you’ll automate the patching of RHEL virtual machines by applying only security-related updates using Ansible Automation Platform.

The virtual machines you’ll target are already part of the dynamic inventory that was set up in a previous step — specifically, the OpenShift Virtual Machines inventory.

Rather than writing playbooks or tasks from scratch, you’ll be working with provided automation content, which includes:

A task file that performs security updates using the dnf module.
A playbook that executes roles that are responsible for system registration and patching.

Your goal is to understand what this content does and then create a Job Template to execute the automation using Ansible Automation Platform’s web UI.

This lab uses Vault Credentials to securely handle sensitive authentication data and a subscription management role to register RHEL systems to Red Hat. This ensures VMs have access to the correct repositories for updates and demonstrates secure automation practices.

Understanding the Provided Task File: update_security_packages.yml

This task file lives inside the tasks/ directory of the redhatone.vm_management.vm_management role. It uses the ansible.builtin.dnf module to scan for and install the latest security-related updates on all hosts in the inventory.

- name: Update security-related packages on all hosts
  ansible.builtin.dnf:
    name: "*" (1)
    security: true (2)
    state: latest (3)

1	name: "*" — Targets all available packages.
2	security: true — Filters for only security-related updates.
3	state: latest — Ensures the latest available security updates are installed.

This task is designed to be modular. It is included in your role and can be triggered from any playbook using a variable like task_file, which will be used shortly.

Understanding the Provided Playbook: patch_vm_playbook.yml

This playbook is responsible for executing the logic that handles both system registration and patching. It is already present in your project directory.

- name: Patch Virtual Machines
  hosts: all
  roles:
    - redhatone.vm_management.rhsm_subscription (1)
    - redhatone.vm_management.vm_management (2)

1	redhatone.vm_management.rhsm_subscription: Registers the RHEL VMs to Red Hat using credentials provided via Vault. This step ensures the systems have access to the necessary repositories for receiving updates.
2	redhatone.vm_management.vm_management: Calls the role that includes the security update task (update_security_packages.yml), referenced via the task_file variable.

The playbook ensures that every target host goes through both registration and patching in the correct order.

Creating the Patch VMs Job Template in Ansible Automation Platform

Now lets connect all the pieces through the AAP web interface and run the automation using a Job Template.

Using the left side navigation bar, click on Automation Execution and then Templates.
Click on the Create template button, and then select Create job template from the dropdown menu.

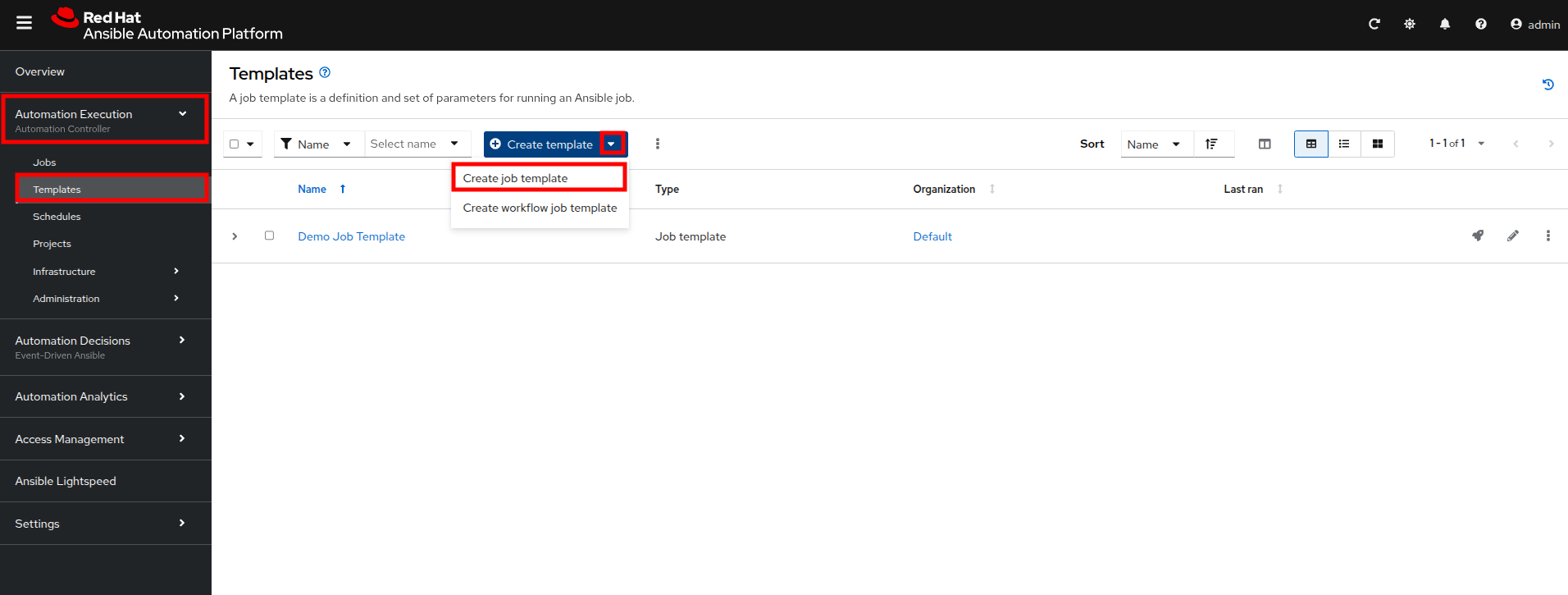

Figure 64. Stop VMs Template

On the Create job template page, fill out the following fields:

Parameter Value

Parameter	Value
Name	`Patch VMs`
Job Type	Run
Inventory	OpenShift Virtual Machines
Project	Workshop Project
Playbook	solutions/patch_playbook.yml
Execution Environment	Day2 EE
Credentials	Workshop Credential, Vault Credential
Extra Variables	`task_file: update_security_packages.yml`
Privilege Escalation	Enabled

Name

Patch VMs

Job Type

Run

Inventory

OpenShift Virtual Machines

Project

Workshop Project

Playbook

solutions/patch_playbook.yml

Execution Environment

Day2 EE

Credentials

Workshop Credential, Vault Credential

Extra Variables

task_file: update_security_packages.yml

Privilege Escalation

Enabled

Notice there are two credentials attached and privilege escalation is enabled.

Once the form is filled out, click the Create job template button.

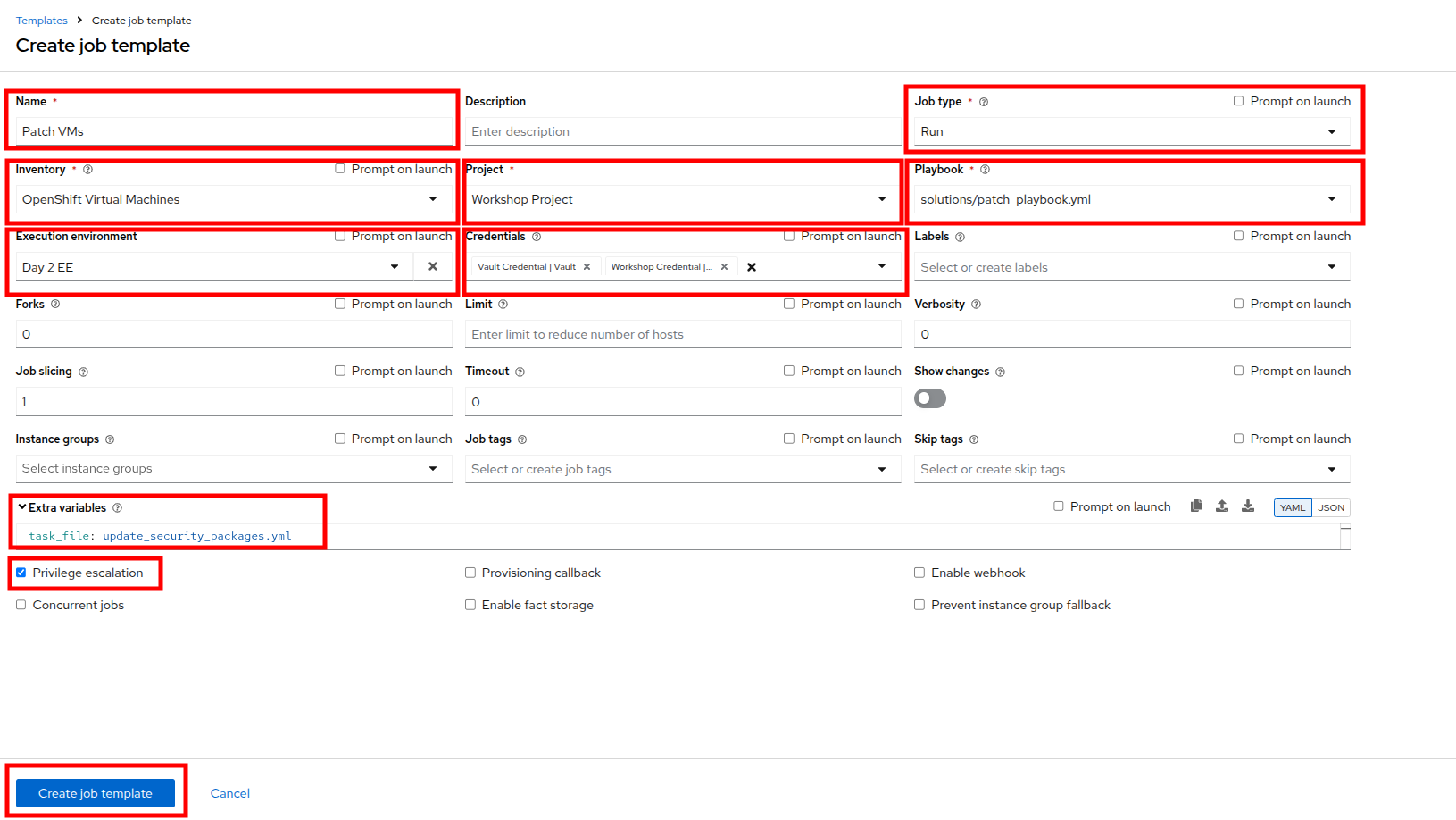

Figure 65. Create Patch Template
Once created, click Launch Template button in the top-right corner to start the job.

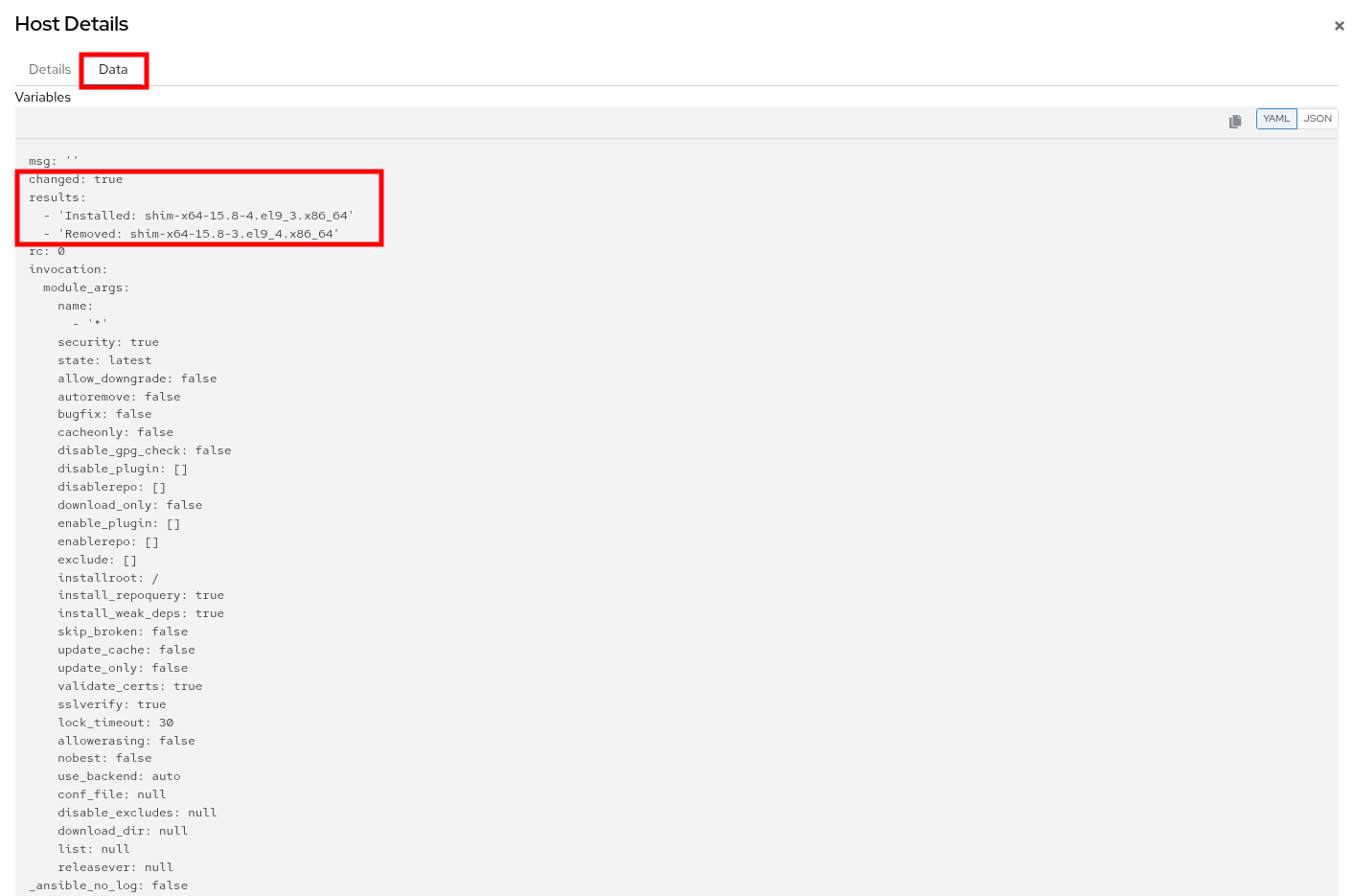

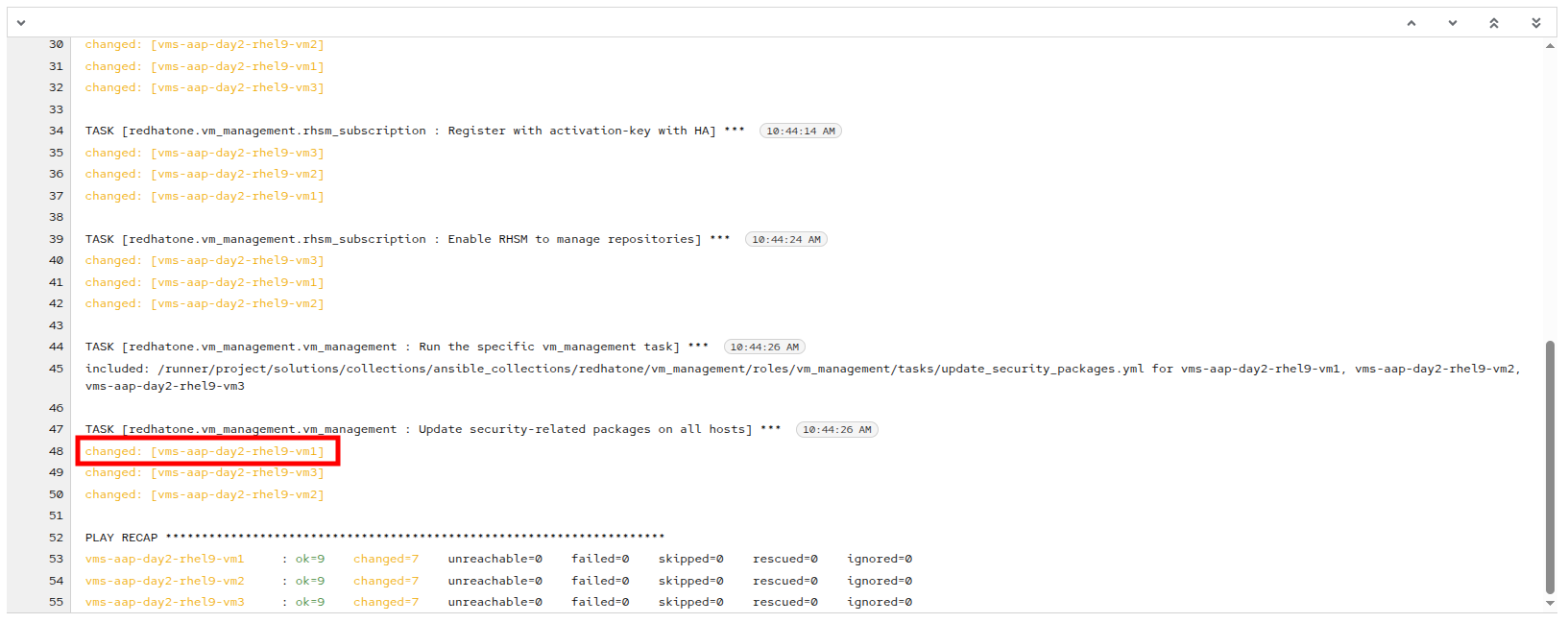

When the Patch VMs job has completed successfully, you should see output similar to:

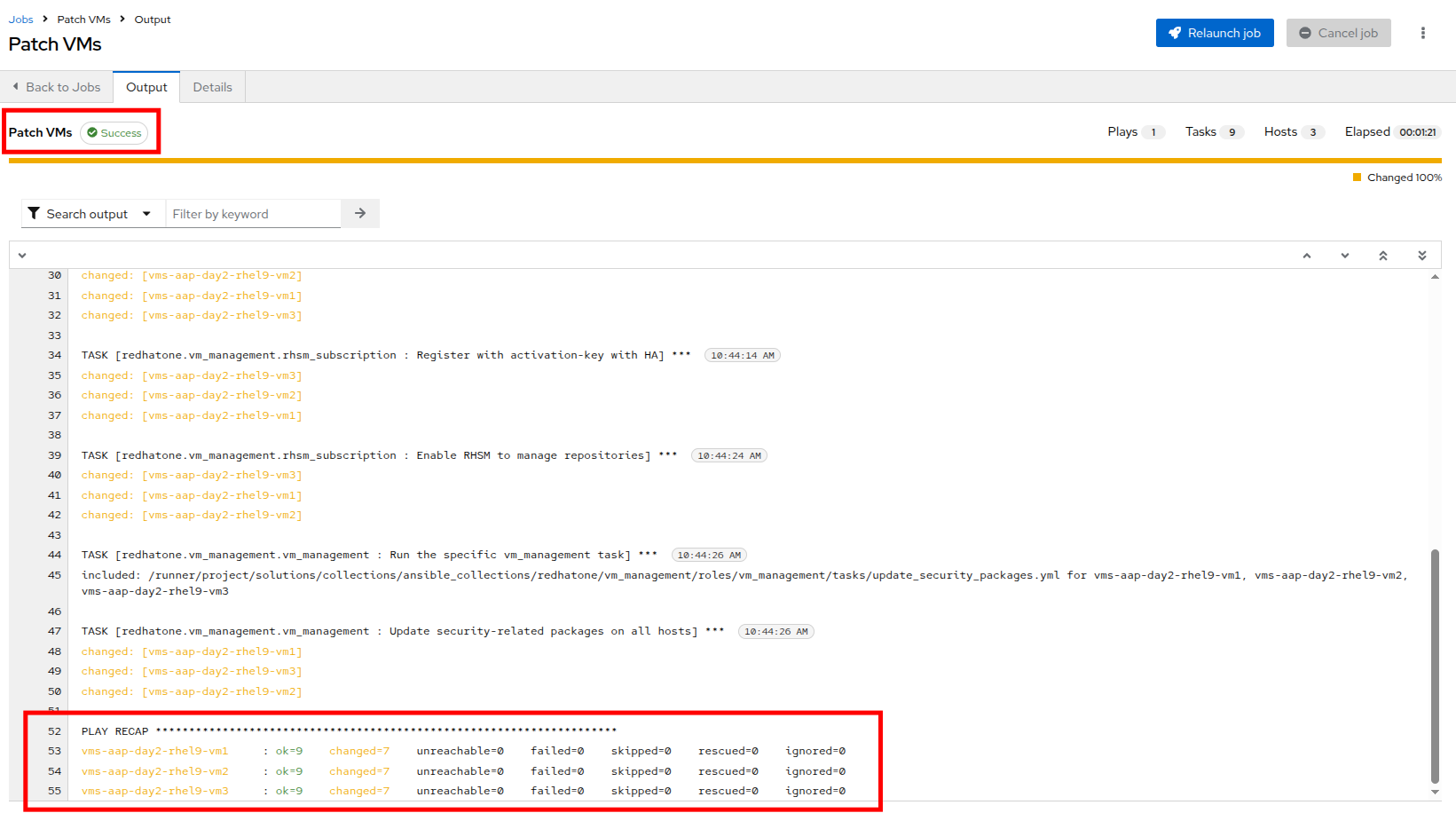

Figure 66. Patch VM

Reviewing the Job Output

After the job runs, you’ll be able to see:

A task-by-task breakdown showing which operations were performed.
Output for the task titled Update security-related packages on all hosts.
Per-host details indicating which security updates were applied.
1. Under the TASK for Update security-related packages on all hosts, click on vms-aap-day2-rhel9-vm1.

  Figure 67. Patching Complete
2. You will be presented with additional Details about the task, and be able to validate that system was indeed patched by our automation job by clicking on the Data tab.

  Figure 68. Patch Details

Hot-Plugging CPU and Memory Resources

One of the great benefits of having virtual workloads is the ability to adjust the resources used by those workloads on the fly to meet workload demands. Compared to the days of having to shut down the server to physically add RAM or upgrade the processor, the ability to scale VM resources dynamically by hot-plugging additional resources is a fantastic timesaver. Also, being able to automate the scaling up and down of these requests using Ansible Automation Platform based on metrics gathered from the guests ensures efficiency in both resource consumption and physical administrative time.

In this section, you will learn how to hot-plug CPU and memory resources into a running Virtual Machine (VM) using Ansible Automation Platform and the redhat.openshift_virtualization collection.

Hot-plugging is the ability to add or remove hardware resources, such as CPU or memory, to a running VM without requiring a reboot. This capability is critical for dynamic workloads, allowing you to scale resources based on demand while minimizing downtime.

This exercise focuses on using instance types, which are reusable objects in OpenShift Virtualization that define the resources and characteristics for VMs. Instance types simplify resource management by enabling consistent configurations across VMs.

What Are Instance Types?

An instance type is a reusable configuration object where you define resources (like CPU and memory) and characteristics for new VMs. OpenShift Virtualization provides two types of instance types:

VirtualMachineInstancetype: A namespaced object for instance types limited to a specific namespace.
VirtualMachineClusterInstancetype: A cluster-wide object for instance types available across all namespaces.

Both types share the same VirtualMachineInstancetypeSpec, which allows you to define custom configurations or use the variety of instance types included by default when OpenShift Virtualization is installed.

By using instance types, you can simplify VM configuration management and ensure consistency throughout all your deployments, making them the recommended approach for hot-plugging resources.

In this lab, you will primarily focus on using the instance type method while also learning about the classic approach of directly modifying the VM specification for context.

The classic method only works when creating VMs that do not use an instance type.

How to Identify if a VM Uses Instance Types or Not?

To determine whether a VM is created with an instance type or not, follow these steps:

Navigate to the Overview tab of the rhel9-vm1 in the OpenShift Virtualization console.
In the Details section, look for the following:
- Instance Type: If the VM uses an instance type, this field will display the name of the instance type applied to the VM (e.g., u1.small).
- Template: If no instance type is used, this field will display either None or the name of the template used to create the VM.

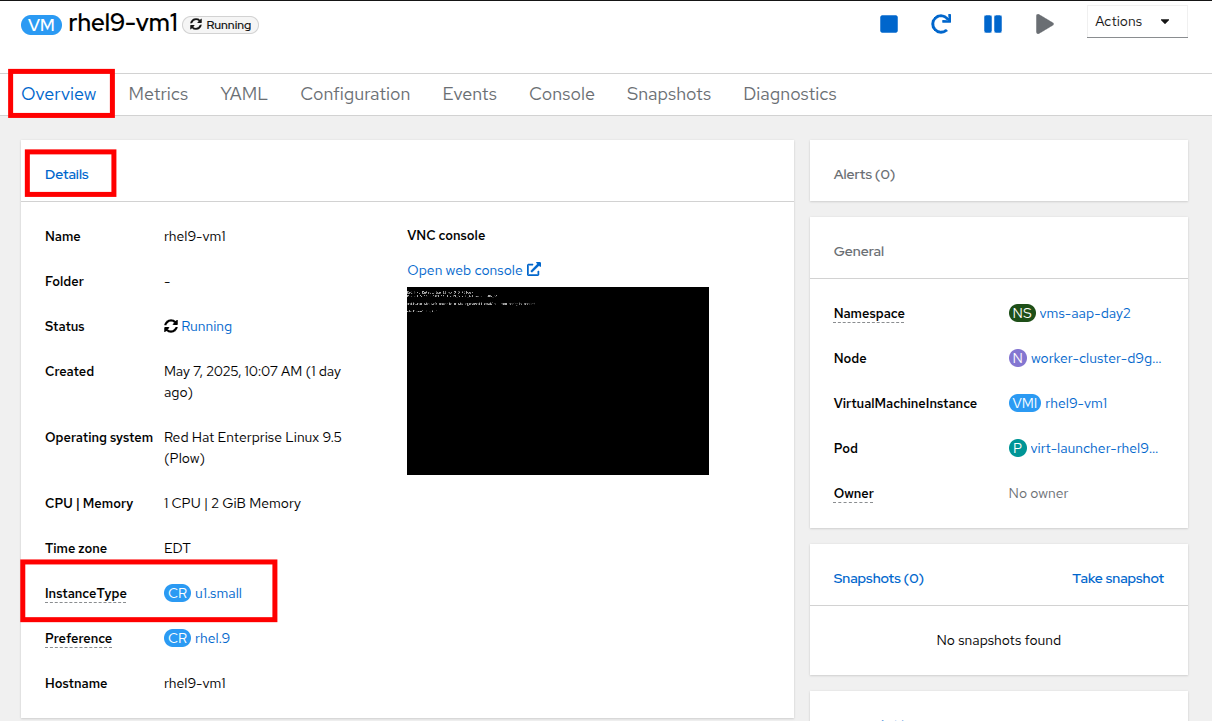

  Figure 69. VM Details

The instance_type method is the recommended approach for hot-plugging resources into a VM. It ensures consistent and reusable resource configurations across multiple VMs while leveraging the powerful features of OpenShift Virtualization.

Using the Pre-created hot_plug.yml File to Update Resources

The hot_plug.yml file consists of a task that updates a running VM by applying a new instance type. This approach lets you add CPU and memory resources dynamically without needing to recreate or power off the VM.

- name: Swap Instance Type to add more Resources
  redhat.openshift_virtualization.kubevirt_vm: (1)
    name: "rhel9-vm1" (2)
    namespace: "{{ vm_namespace }}" (3)
    state: present (4)
    run_strategy: RestartOnError (5)
    instancetype: (6)
      name: "{{ instance_type }}" (7)
      revisionName: "" (8)

1	redhat.openshift_virtualization.kubevirt_vm: Specifies the module used to manage VMs in OpenShift Virtualization.
2	name: The name of the VM to which the new resources will be applied.
3	namespace: The namespace in which the VM resides.
4	state: Ensures the VM is present and available.
5	run_strategy: Restarts the VM in case of errors, does not start machines stopped manually.
6	instancetype: Defines the instance type for the VM, allowing you to use pre-configured or custom resource settings.
7	instancetype.name: The name of the instance type to be applied.
8	instancetype.revisionName: Optionally specifies the exact revision of the instance type, ensuring compatibility with the VM. It is typically auto-generated, thus left empty.

VMs must be created using Instance Types for this task method to work. Otherwise you must use the Classic method.

Classic Method: Modifying the Spec Directly (Informational Only)

The classic method involves directly modifying the VM’s spec file to update CPU and memory resources. While this approach is flexible, it lacks the reusability and consistency offered by instance types, making it less ideal for managing resources across multiple VMs.

- name: Modify CPU & Memory Resources
  redhat.openshift_virtualization.kubevirt_vm: (1)
    name: "rhel9-vm2" (2)
    namespace: "{{ vm_namespace }}" (3)
    state: present (4)
    spec: (5)
      domain: (6)
        cpu: (7)
          sockets: 2
        memory: (8)
          guest: 4Gi

1	redhat.openshift_virtualization.kubevirt_vm: Specifies the module used to manage VMs in OpenShift Virtualization.
2	name: The name of the VM being modified.
3	namespace: The namespace in which the VM resides.
4	state: Ensures the VM is in the desired state, in this case, present.
5	spec: Directly modifies the VM’s specification.
6	spec.domain: Contains settings related to the VM’s virtualized environment.
7	spec.domain.cpu: Specifies the number of CPU sockets for the VM (e.g., 2).
8	spec.domain.memory: Defines the memory allocated to the VM, (e.g., 4Gi).

Classic VMs are not a part of this lab exercise, and the Classic Method is for informational purposes only.

Create and Run the Hot-Plug Job Template

Within the AAP UI Dashboard, use the left side menu to navigate to Automation Execution and then click on Templates.
Click Create Template and select Create job template from the dropdown menu that appears.

Figure 70. Create Job Template

Fill in the following details to create a job template:

Parameter Value

Parameter	Value
Name	`Hot Plug VMs`
Job Type	Run
Inventory	OpenShift Virtual Machines
Project	Workshop Project
Playbook	solutions/manage_vm_playbook.yml
Execution Environment	Day 2 EE
Credentials	OpenShift Credential
Extra variables	`vm_namespace: vms-aap-day2` `task_file: hot_plug.yml` `instance_type: u1.2xmedium`

Name

Hot Plug VMs

Job Type

Run

Inventory

OpenShift Virtual Machines

Project

Workshop Project

Playbook

solutions/manage_vm_playbook.yml

Execution Environment

Day 2 EE

Credentials

OpenShift Credential

Extra variables

vm_namespace: vms-aap-day2
task_file: hot_plug.yml
instance_type: u1.2xmedium

When the details are filled out, click Create Job Template.

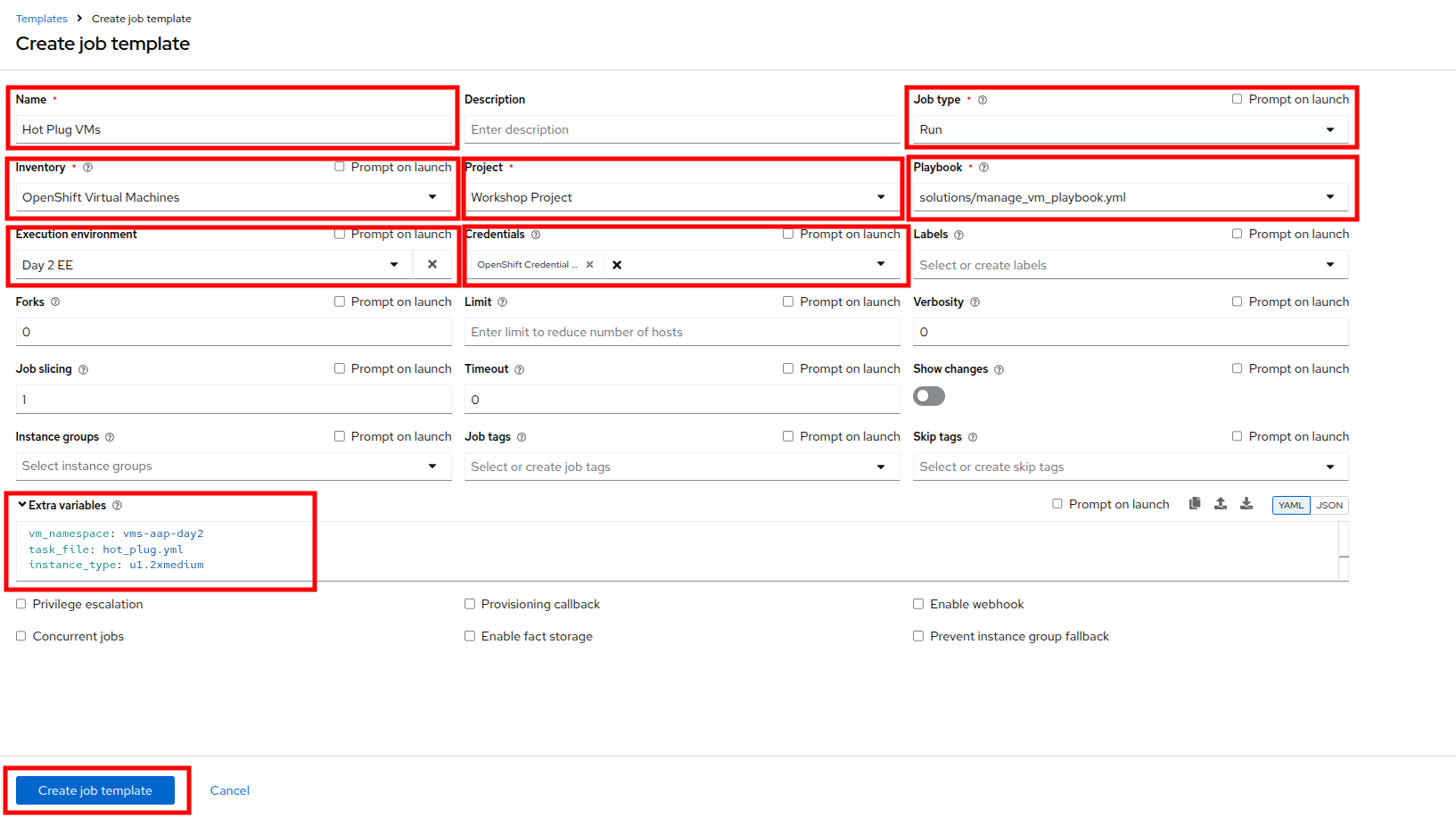

Figure 71. Create HotAdd Template
Launch the job by selecting the Launch Template button from the top-right corner. When the job completes you should see output that shows it was able to modify the virtual machines instance type.

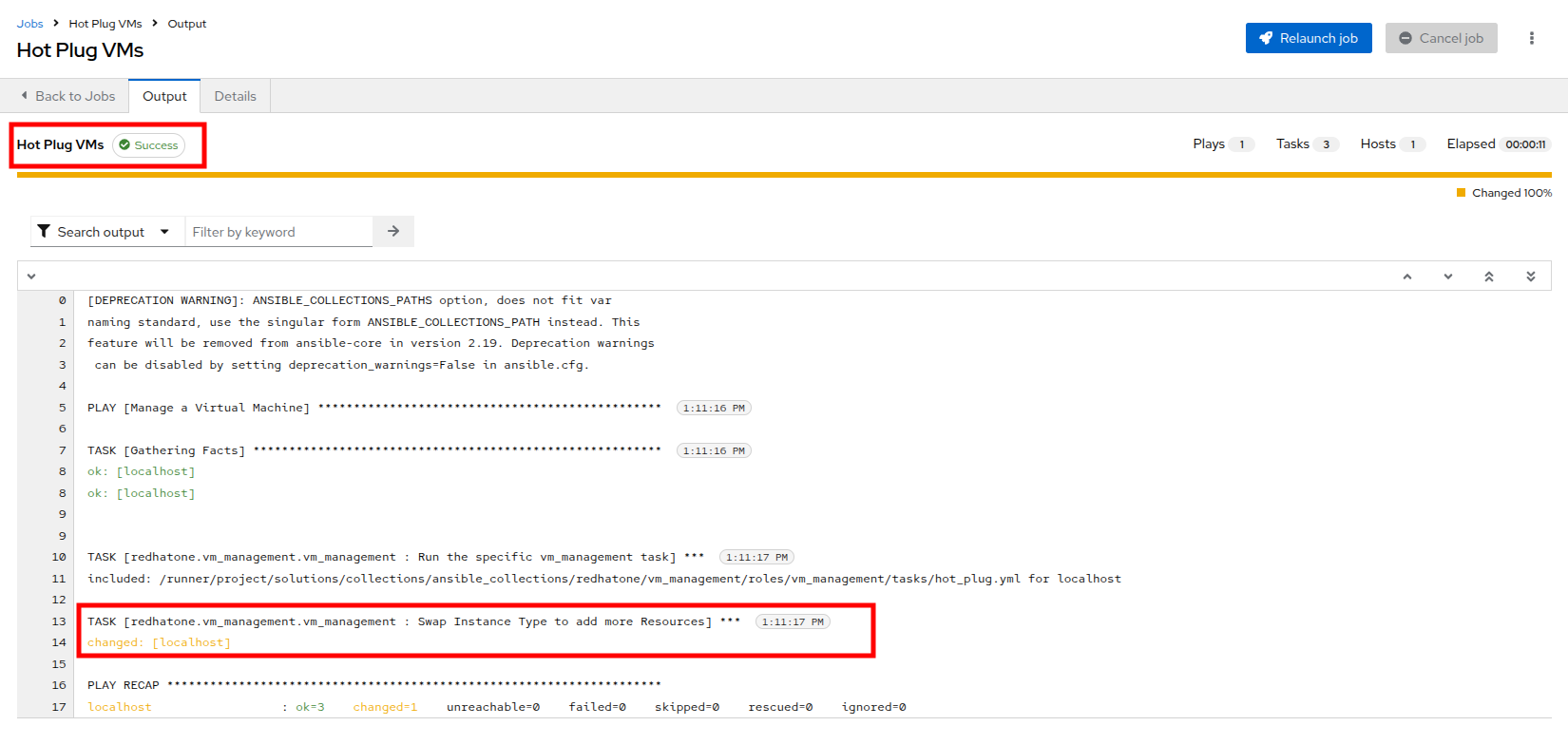

Figure 72. HotAdd Template Success
When the job completes, return to the OpenShift console and view the details of the rhel9-vm1 Virtual Machine once again. You should see that the InstanceType field has changed and is now set to u1.2xmedium.

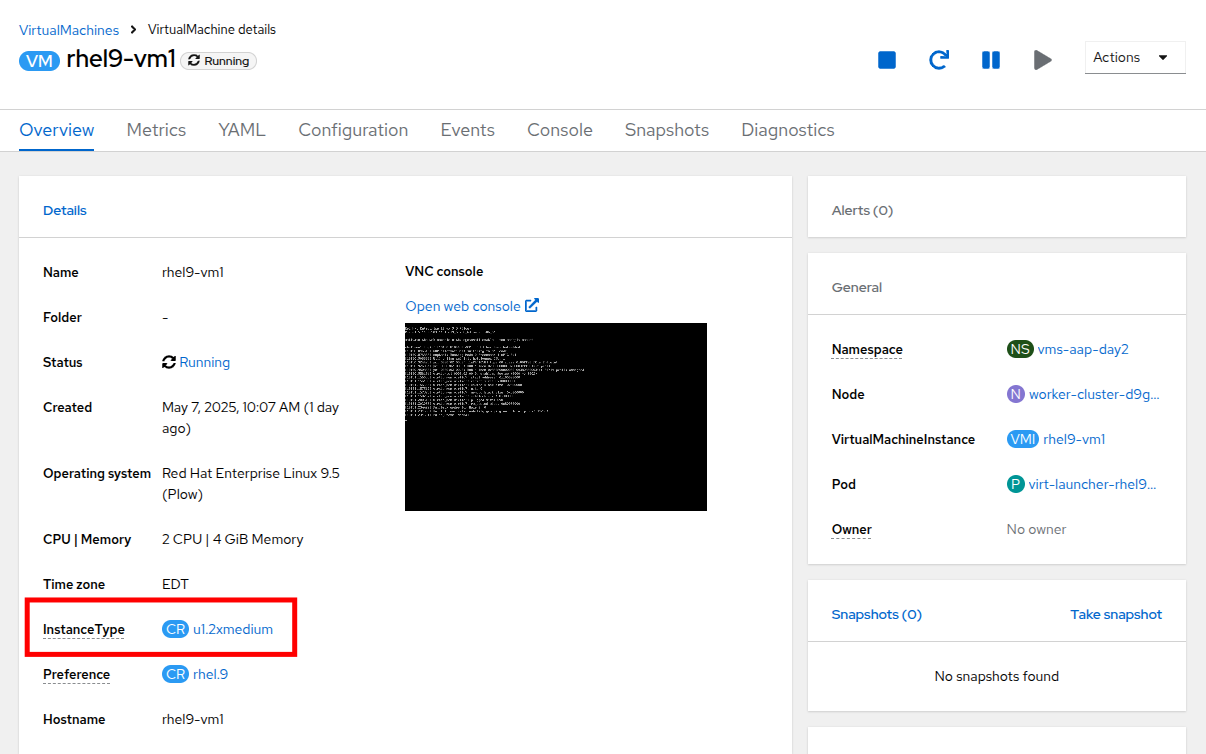

Figure 73. VM InstanceType Modified

Backup and Restore Virtual Machines

One of the most critical aspects of virtual machine administration is ensuring business continuity through reliable backup and restore capabilities. The ability to capture point-in-time snapshots of running VMs and quickly restore them in case of disasters, system failures, or unintended changes can save organizations significant time and resources compared to traditional backup methods.

In this exercise, you’ll automate the backup and restoration of Virtual Machines using VM Snapshots with Ansible Automation Platform. This capability enables you to protect your virtualized workloads at scale while maintaining operational efficiency.

Virtual Machine Snapshots in OpenShift Virtualization capture the complete state and data of a VM at a specific point in time, including all attached Container Storage Interface (CSI) volumes and VM configuration metadata. For running VMs, the QEMU guest agent coordinates I/O operations during snapshot creation, ensuring data consistency by freezing the filesystem, taking the snapshot, and then thawing the filesystem.

Snapshots are managed through three OpenShift APIs:

VirtualMachineSnapshot: Represents a user request to create a snapshot and contains information about the current state of the VM
VirtualMachineSnapshotContent: Represents a provisioned resource on the cluster (the actual snapshot) created by the VM snapshot controller
VirtualMachineRestore: Represents a user request to restore a VM from a snapshot

The Existing Setup

To assist with your experience, the following content has already been created and configured for you:

The snapshot automation tasks (snapshot_vms.yml and _snapshot_vm.yml) have been prewritten to handle the VM snapshots using a loop based approach.
The restoration automation tasks (restore_vm_snapshots.yml and _restore_vm_snapshot.yml) have been precreated to manage the complete restoration workflow including stopping, restoring, and restarting VMs.
The manage_vm_playbook.yml playbook is already configured to execute these tasks based on input variables of whether to take or restore the snapshot of the VMs.

Although you don’t need to create or modify these files, it’s important to understand how they work, as you’ll be referencing them when creating job templates in Ansible Automation Platform.

Understanding the Provided Snapshot Task Files

The snapshot automation uses a two tiered approach where one task file handles multiple snapshots using loops, and an include task file takes the individual VM snapshots.

snapshot_vms.yml

This main task file processes a comma-delimited string of VM names and creates individual snapshot tasks for each VM using Ansible’s loop functionality.

---
- name: Snapshot individual VM
  ansible.builtin.include_tasks:
    file: _snapshot_vm.yml
  loop_control:
    loop_var: vm_to_snapshot
  loop: "{{ vms_to_snapshot.replace(' ','').split(',') }}"
  when: vms_to_snapshot | default('', True) | length > 0

Explanation of the Task:

when: Validates that the vms_to_snapshot variable contains content before proceeding using filters to check variable state
loop: Processes the comma-delimited VM names, removing spaces and creating a list using Jinja2 functions
loop_control/loop_var: Sets the variable name (vm_to_snapshot) for each iteration of the loop
ansible.builtin.include_tasks: Calls the included task file _snapshot_vm.yml for each VM that captures the necessary steps (tasks) to complete the snapshot process.

_snapshot_vm.yml

A task file beginning with an underscore "_" indicates that it is included within another task file. This file handles the actual snapshot creation for a single VM using OpenShift APIs and contains the core snapshot logic.

---
- name: Verify VM to Snapshot Provided
  ansible.builtin.assert:
    that:
      - vm_to_snapshot | default('', True) | length > 0
    quiet: True
    fail_msg: VM to Snapshot not specified

- name: Get VirtualMachine to snapshot
  redhat.openshift_virtualization.kubevirt_vm_info:
    namespace: "{{ vm_namespace }}"
    name: "{{ vm_to_snapshot }}"
  register: vm_info

- name: Create Snapshot
  redhat.openshift.k8s:
    state: present
    definition:
      apiVersion: snapshot.kubevirt.io/v1alpha1
      kind: VirtualMachineSnapshot
      metadata:
        generateName: "{{ vm_info.resources[0].metadata.name }}-"
        namespace: "{{ vm_info.resources[0].metadata.namespace }}"
        ownerReferences:
          - apiVersion: kubevirt.io/v1
            blockOwnerDeletion: false
            kind: VirtualMachine
            name: "{{ vm_info.resources[0].metadata.name }}"
            uid: "{{ vm_info.resources[0].metadata.uid }}"
      spec:
        source:
          apiGroup: kubevirt.io
          kind: VirtualMachine
          name: "{{ vm_info.resources[0].metadata.name }}"
    wait: true
    wait_condition:
      type: Ready
  when: "'resources' in vm_info and vm_info.resources | length == 1"

Explanation of the Tasks:

There are three tasks in this included task file:

Verifies that a variable called vm_to_snapshot has been provided using ansible.builtin.assert
Retrieves the definition of the VirtualMachine resource using kubevirt_vm_info and stores it in vm_info
Creates a new VirtualMachineSnapshot resource using redhat.openshift.k8s module

Key details of the snapshot creation:

generateName: OpenShift capability to generate a unique name when name is not provided
ownerReferences: Creates a relationship between the VirtualMachineSnapshot and the VirtualMachine so that if the VM is deleted, the OpenShift garbage collector will automatically delete the snapshot
wait/wait_condition: Pauses execution until the snapshot completes successfully (condition type Ready set to true)
when: Ensures the snapshot is only created if exactly one VM resource was found

Creating and Running the Snapshot VMs Job Template

Now let’s connect all the pieces through the AAP web interface and run the snapshot automation using a Job Template.

Head to the AAP UI Dashboard, navigate to Automation Execution → Templates.
Click Create Template and select Create job template.

Fill in the following details:

Parameter Value

Parameter	Value
Name	Snapshot VMs
Job Type	Run
Inventory	OpenShift Virtual Machines
Project	Workshop Project
Playbook	solutions/manage_vm_playbook.yml
Execution Environment	Day2 EE
Credentials	OpenShift Credential
Extra variables	`vm_namespace: vms-aap-day2` `task_file: snapshot_vms.yml` `vms_to_snapshot: rhel9-vm1`

Name

Snapshot VMs

Job Type

Run

Inventory

OpenShift Virtual Machines

Project

Workshop Project

Playbook

solutions/manage_vm_playbook.yml

Execution Environment

Day2 EE

Credentials

OpenShift Credential

Extra variables

vm_namespace: vms-aap-day2
task_file: snapshot_vms.yml
vms_to_snapshot: rhel9-vm1

Click Create Job Template.

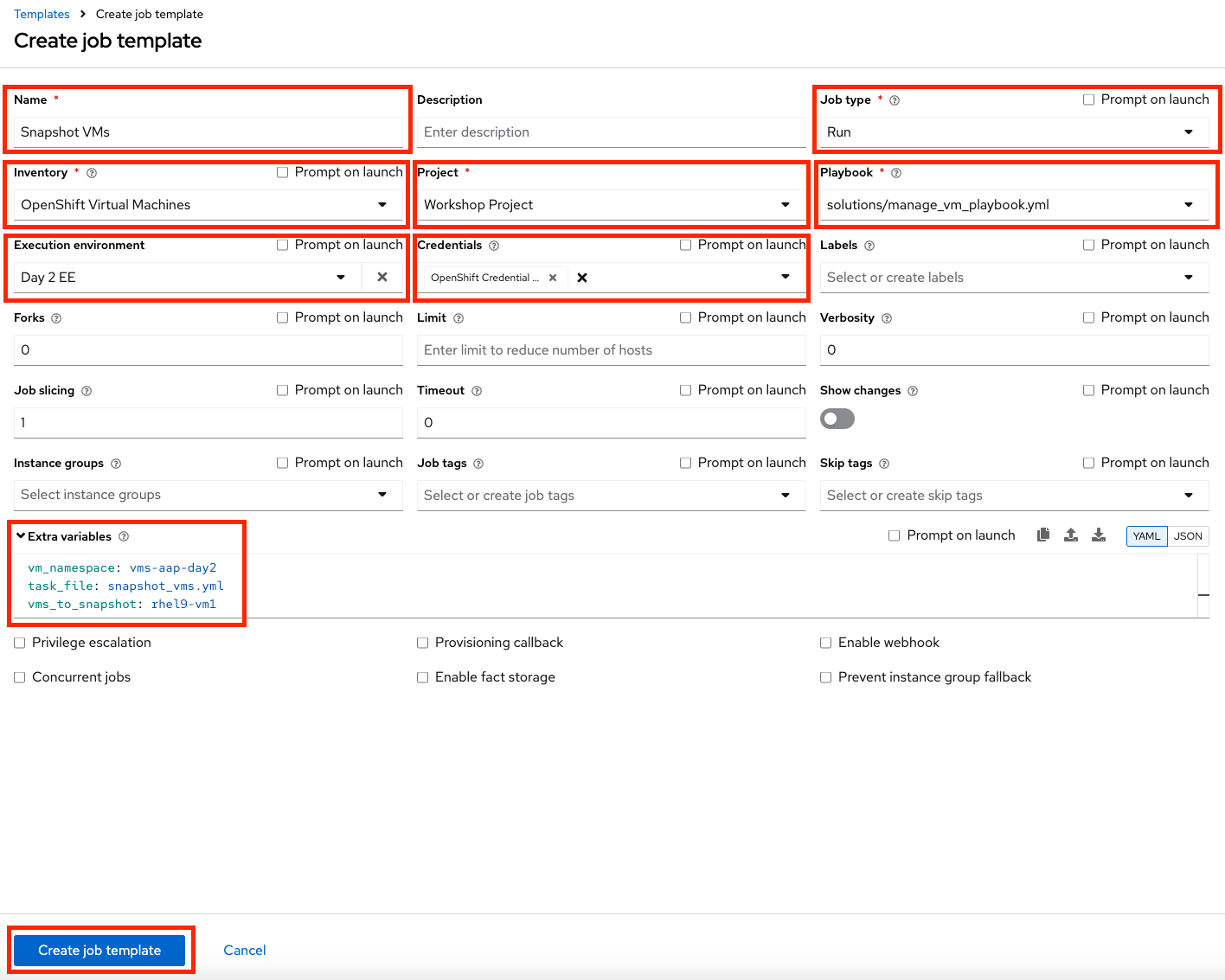

Figure 74. Create Snapshot Template
Launch the job by selecting Launch Template from the top-right corner.

Verifying Snapshot Creation

Once the Job completes successfully, confirm the new Snapshot has been created.

Navigate to the OpenShift console and go to Virtualization → VirtualMachines within the vms-aap-day2 project.
Select the rhel9-vm1 instance and click the Snapshots tab.
Verify that the snapshot appears in the list.

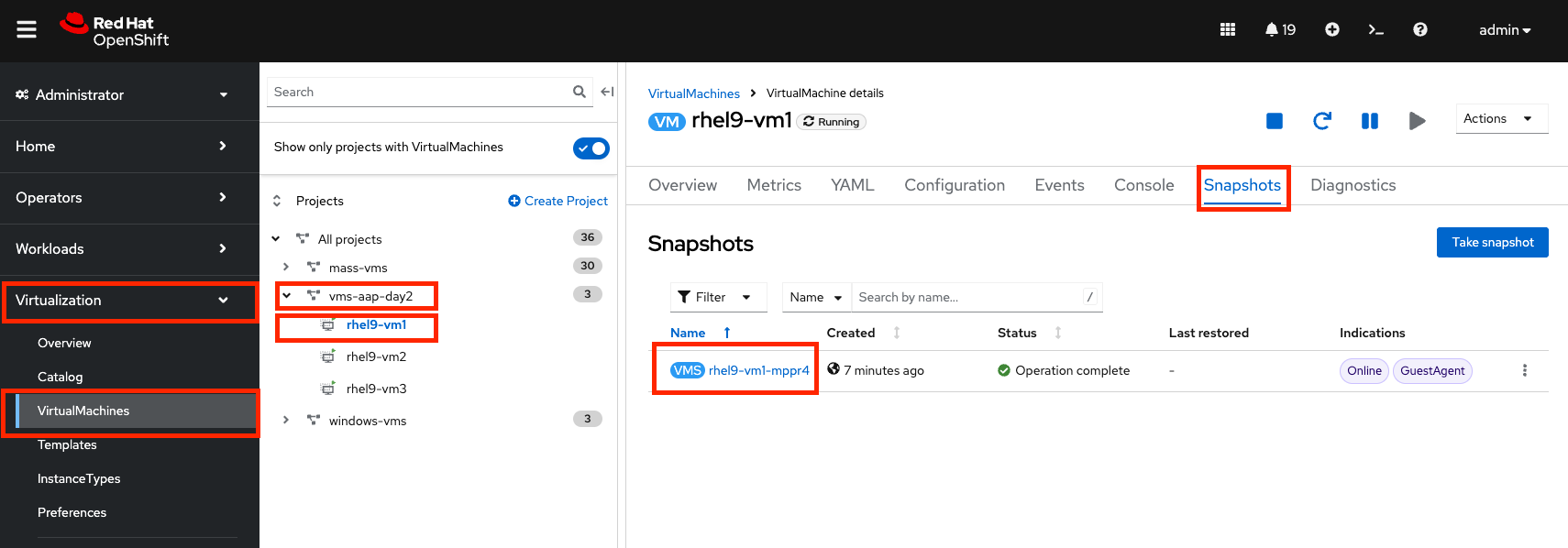

Figure 75. Snapshot Details

Understanding the Provided Restoration Task Files

The restoration automation handles the complete workflow of stopping a VM, restoring from a snapshot, and restarting the VM. Unlike snapshot creation, a Virtual Machine must be powered off prior to initiating a restoration from a snapshot. This automation follows the same two-tiered pattern as the snapshot process.

restore_vm_snapshots.yml

This main task file processes a comma-delimited string of snapshot names and creates individual restoration tasks. The primary difference from the snapshot task is that it references snapshot names rather than VM names.

---
- name: Restore VM Snapshot
  ansible.builtin.include_tasks:
    file: _restore_vm_snapshot.yml
  loop_control:
    loop_var: vm_snapshot
  loop: "{{ vm_snapshots.replace(' ','').split(',') }}"
  when: vm_snapshots | default('', True) | length > 0

This task operates on a variable called vm_snapshots that contains a comma-delimited string of VirtualMachineSnapshot resource names to restore.

_restore_vm_snapshot.yml

This included task file manages the complete restoration workflow following these steps:

Retrieve the VirtualMachineSnapshot based on the snapshot name provided
Stop the Virtual Machine
Create the VirtualMachineRestore resource and wait until restoration completes
Start the Virtual Machine

---
- name: Verify VM Snapshot Provided
  ansible.builtin.assert:
    that:
      - vm_snapshot | default('', True) | length > 0
    quiet: True
    fail_msg: VM Snapshot not specified

- name: Get VirtualMachine Snapshot
  kubernetes.core.k8s_info:
    api_version: snapshot.kubevirt.io/v1alpha1
    kind: VirtualMachineSnapshot
    namespace: "{{ vm_namespace }}"
    name: "{{ vm_snapshot }}"
  register: vm_snapshot_instance

- name: Create Restore
  block:
    - name: Stop Virtual Machine
      redhat.openshift_virtualization.kubevirt_vm:
        name: "{{ vm_snapshot_instance.resources[0].metadata.ownerReferences[0].name }}"
        namespace: "{{ vm_snapshot_instance.resources[0].metadata.namespace }}"
        run_strategy: Halted
        wait: true

    - name: Create Restore
      redhat.openshift.k8s:
        state: present
        definition:
          apiVersion: snapshot.kubevirt.io/v1alpha1
          kind: VirtualMachineRestore
          metadata:
            generateName: "{{ vm_snapshot_instance.resources[0].metadata.ownerReferences[0].name }}-"
            namespace: "{{ vm_snapshot_instance.resources[0].metadata.namespace }}"
            ownerReferences:
              - apiVersion: kubevirt.io/v1
                blockOwnerDeletion: false
                kind: VirtualMachine
                name: "{{ vm_snapshot_instance.resources[0].metadata.ownerReferences[0].name }}"
                uid: "{{ vm_snapshot_instance.resources[0].metadata.ownerReferences[0].uid }}"
          spec:
            target:
              apiGroup: kubevirt.io
              kind: VirtualMachine
              name: "{{ vm_snapshot_instance.resources[0].metadata.ownerReferences[0].name }}"
            virtualMachineSnapshotName: "{{ vm_snapshot_instance.resources[0].metadata.name }}"
        wait: true
        wait_timeout: 600
        wait_condition:
          type: Ready

    - name: Start Virtual Machine
      redhat.openshift_virtualization.kubevirt_vm:
        name: "{{ vm_snapshot_instance.resources[0].metadata.ownerReferences[0].name }}"
        namespace: "{{ vm_snapshot_instance.resources[0].metadata.namespace }}"
        run_strategy: Always
        wait: true
  when: "'resources' in vm_snapshot_instance and vm_snapshot_instance.resources | length == 1"

Explanation of the Tasks:

kubernetes.core.k8s_info: Retrieves the snapshot details to identify the associated VM (instead of kubevirt_vm_info which is specific to Virtual Machines, this allows retrieval of any OpenShift resource)
block: Groups the restoration steps together with a conditional check at the end
Stop Virtual Machine: Powers off the VM before restoration begins using run_strategy: Halted
Create Restore: Creates the VirtualMachineRestore resource with a wait_timeout of 600 seconds (10 minutes) since restoration may take longer than the default 120 seconds
Start Virtual Machine: Powers the VM back on after restoration completes using run_strategy: Always

Creating and Running the Restore VM Snapshots Job Template

Head to the AAP UI Dashboard, navigate to Automation Execution → Templates.
Click Create Template and select Create job template.

Fill in the following details, making sure to include the name of the snapshot created previously:

Parameter Value

Parameter	Value
Name	Restore VM Snapshots
Job Type	Run
Inventory	OpenShift Virtual Machines
Project	Workshop Project
Playbook	solutions/manage_vm_playbook.yml
Execution Environment	Day2 EE
Credentials	OpenShift Credential
Extra variables	`vm_namespace: vms-aap-day2` `task_file: restore_vm_snapshots.yml` `vm_snapshots: <snapshot_name>`

Name

Restore VM Snapshots

Job Type

Run

Inventory

OpenShift Virtual Machines

Project

Workshop Project

Playbook

solutions/manage_vm_playbook.yml

Execution Environment

Day2 EE

Credentials

OpenShift Credential

Extra variables

vm_namespace: vms-aap-day2
task_file: restore_vm_snapshots.yml
vm_snapshots: <snapshot_name>

Replace <snapshot_name> with the actual name of your snapshot created previously.

Click Create Job Template.

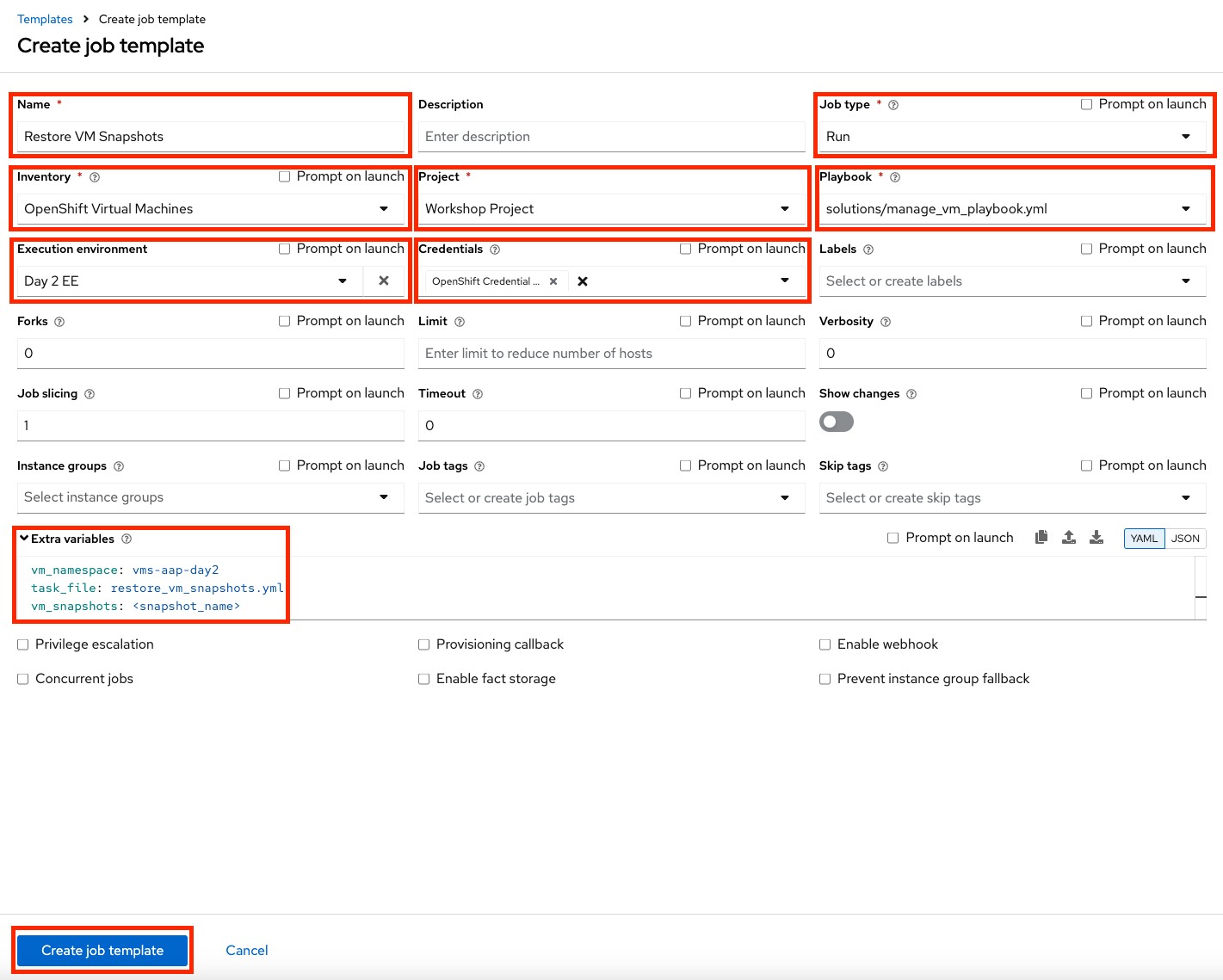

Figure 76. Restore Snapshot Template
Launch the template by clicking Launch Template.

Verifying Snapshot Restoration

Once the Job completes successfully, confirm the restoration was applied.

Navigate to the OpenShift console and go to Virtualization → VirtualMachines within the vms-aap-day2 project.
Select the rhel9-vm1 instance and click the Snapshots tab.
Locate the snapshot you restored and verify the Last restored column shows the recent restoration timestamp.

Figure 77. Restore Snapshot Details

Summary

In this module you have spent a day in the life of an OpenShift Virtualization administrator exploring native performance assessment tools in Red Hat OpenShift, and making use of Ansible Automation Platform to automate a number of tasks that many VM’s experience often on a day-to-day basis.
