Sub-Module 2.4: SELinux Policy CI/CD with Tekton

Sub-Module Overview

Duration: ~8 minutes
Prerequisites: Completion of Sub-Module 2.3 (Security Pipeline) and familiarity with Module 1 SELinux concepts
Learning Objectives:

  • Create a Tekton Task that generates udica SELinux policies from container images

  • Integrate the policy-generation Task into a Shipwright/Tekton pipeline

  • Configure seLinuxOptions in Kubernetes Deployments

  • Understand MachineConfig for cluster-wide policy distribution

  • Implement a GitOps pattern for versioned SELinux policies

Introduction

In Module 1, you generated udica SELinux policies manually on a developer workstation. At platform scale, that approach doesn’t work — you need policies generated automatically as part of CI/CD, versioned in Git, and distributed across cluster nodes.

This sub-module bridges the gap: you’ll create a Tekton Task that generates udica policies alongside image builds, then deploy with seLinuxOptions referencing the generated policy type.

Tekton Task: udica-policy-generate

Step 1: Apply the Tekton Task

This Task runs the built image briefly, captures podman inspect output, and feeds it to udica to produce a CIL policy file:

cat << 'EOF' | oc apply -f -
apiVersion: tekton.dev/v1
kind: Task
metadata:
  name: udica-policy-generate
  namespace: hummingbird-builds-{user}
  labels:
    app.kubernetes.io/part-of: hummingbird-workshop
spec:
  description: >-
    Generate a custom SELinux CIL policy for a container image using udica.
    The task inspects the image configuration and produces a policy scoped
    to the image's actual port, mount, and capability requirements.
  params:
    - name: IMAGE
      type: string
      description: "Fully qualified image reference (registry/repo:tag or @sha256:...)"
    - name: POLICY_NAME
      type: string
      description: "Name for the generated SELinux policy (alphanumeric + underscores)"
    - name: PORTS
      type: string
      description: "Comma-separated list of ports the container exposes"
      default: "8080"
    - name: MOUNTS
      type: string
      description: "Comma-separated host paths the container bind-mounts (empty if none)"
      default: ""
  results:
    - name: POLICY_CIL
      description: "Contents of the generated .cil policy file"
    - name: IMAGE_DIGEST
      description: "Digest of the inspected image"
    - name: POLICY_TYPE
      description: "SELinux type to use in seLinuxOptions (policy_name.process)"
  steps:
    - name: generate-policy
      image: registry.redhat.io/rhel9/toolbox:latest
      securityContext:
        privileged: true
      script: |
        #!/usr/bin/env bash
        set -euo pipefail

        echo "=== Installing udica ==="
        dnf install -y -q udica podman container-selinux

        IMAGE="$(params.IMAGE)"
        POLICY="$(params.POLICY_NAME)"
        PORTS="$(params.PORTS)"
        MOUNTS="$(params.MOUNTS)"

        echo "=== Pulling image: $IMAGE ==="
        podman pull "$IMAGE"

        DIGEST=$(podman inspect "$IMAGE" --format '{{.Digest}}')
        echo -n "$DIGEST" > $(results.IMAGE_DIGEST.path)

        echo "=== Running container for inspection ==="
        RUN_ARGS=("--name" "udica-inspect" "--env" "container=podman")

        # Add port mappings
        IFS=',' read -ra PORT_LIST <<< "$PORTS"
        for p in "${PORT_LIST[@]}"; do
          [ -n "$p" ] && RUN_ARGS+=("-p" "${p}:${p}")
        done

        # Add mount mappings if specified
        if [ -n "$MOUNTS" ]; then
          IFS=',' read -ra MOUNT_LIST <<< "$MOUNTS"
          for m in "${MOUNT_LIST[@]}"; do
            [ -n "$m" ] && mkdir -p "$m" && RUN_ARGS+=("-v" "${m}:${m}:rw,Z")
          done
        fi

        podman run -d "${RUN_ARGS[@]}" "$IMAGE" || true
        sleep 3

        echo "=== Generating udica policy: $POLICY ==="
        podman inspect udica-inspect | udica "$POLICY"

        echo "=== Generated CIL policy ==="
        cat "${POLICY}.cil"

        cp "${POLICY}.cil" /workspace/policy.cil
        cat "${POLICY}.cil" > $(results.POLICY_CIL.path)
        echo -n "${POLICY}.process" > $(results.POLICY_TYPE.path)

        echo ""
        echo "=== Policy type for seLinuxOptions: ${POLICY}.process ==="

        podman stop udica-inspect 2>/dev/null || true
        podman rm udica-inspect 2>/dev/null || true
EOF
Expected output:
task.tekton.dev/udica-policy-generate created

Step 2: Verify the Task

oc get task udica-policy-generate -n hummingbird-builds-{user}
Expected output:
NAME                      AGE
udica-policy-generate     15s

Create the SELinux Policy Pipeline

Step 3: Create the Pipeline

Wrap the Task in a Pipeline so it appears in the OpenShift Pipelines dashboard:

cat << 'EOF' | oc apply -f -
apiVersion: tekton.dev/v1
kind: Pipeline
metadata:
  name: selinux-policy-pipeline
  namespace: hummingbird-builds-{user}
  labels:
    app.kubernetes.io/part-of: hummingbird-workshop
spec:
  params:
    - name: IMAGE
      type: string
      description: "Fully qualified image reference"
    - name: POLICY_NAME
      type: string
      description: "Name for the generated SELinux policy"
    - name: PORTS
      type: string
      description: "Comma-separated list of ports"
      default: "8080"
    - name: MOUNTS
      type: string
      description: "Comma-separated host paths (empty if none)"
      default: ""
  tasks:
    - name: generate-policy
      taskRef:
        name: udica-policy-generate
      params:
        - name: IMAGE
          value: "$(params.IMAGE)"
        - name: POLICY_NAME
          value: "$(params.POLICY_NAME)"
        - name: PORTS
          value: "$(params.PORTS)"
        - name: MOUNTS
          value: "$(params.MOUNTS)"
EOF
Expected output:
pipeline.tekton.dev/selinux-policy-pipeline created

Step 4: Verify the Pipeline

oc get pipeline selinux-policy-pipeline -n hummingbird-builds-{user}

Run the Policy Generation Pipeline

Step 5: Create a PipelineRun

Generate a policy for the Node.js application built in Sub-Module 2.3:

The udica-policy-generate Task runs podman inside the step, which requires the privileged SCC. The workshop bootstrap pre-configures this automatically. If you are running outside the bootstrapped environment, grant it manually:

oc adm policy add-scc-to-user privileged -z pipeline -n hummingbird-builds-{user}
cat << 'EOF' | oc apply -f -
apiVersion: tekton.dev/v1
kind: PipelineRun
metadata:
  name: generate-nodejs-policy
  namespace: hummingbird-builds-{user}
spec:
  pipelineRef:
    name: selinux-policy-pipeline
  params:
    - name: IMAGE
      value: "{quay_hostname}/{quay_user}/secure-nodejs:latest"
    - name: POLICY_NAME
      value: "hummingbird_nodejs"
    - name: PORTS
      value: "8080"
    - name: MOUNTS
      value: ""
EOF

Step 6: Monitor the PipelineRun

oc get pipelinerun generate-nodejs-policy -n hummingbird-builds-{user} -w

Wait until the STATUS shows True (Succeeded), then press Ctrl+C.

You can also watch the PipelineRun in the OpenShift console under Pipelines → PipelineRuns in the hummingbird-builds-{user} namespace:

PipelineRun SELinux

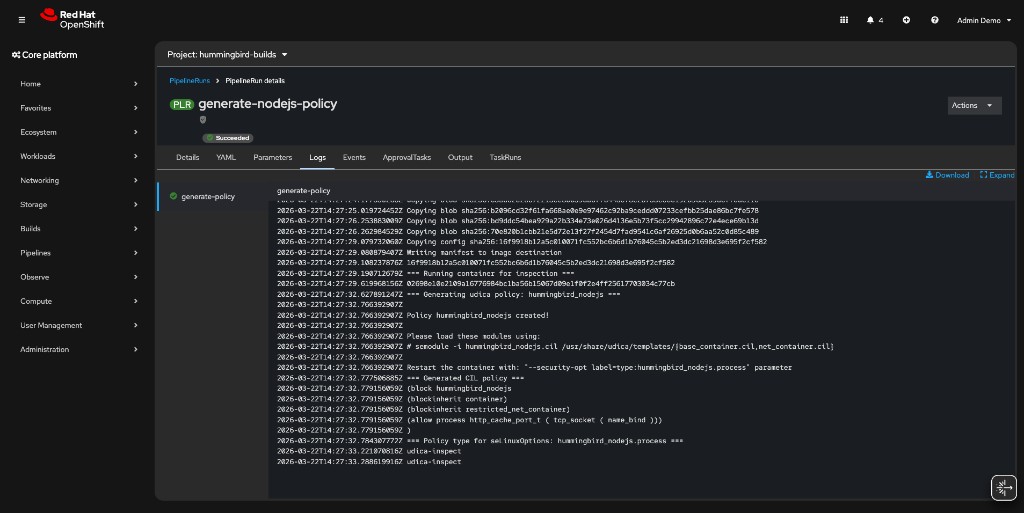

Figure 1. OpenShift console: generate-nodejs-policy PipelineRun succeeded with udica policy generation logs

Step 7: View the Generated Policy

The Task results (CIL policy, digest, policy type) are stored in the TaskRun. Retrieve them:

TASKRUN=$(oc get pipelinerun generate-nodejs-policy -n hummingbird-builds-{user} \
  -o jsonpath='{.status.childReferences[0].name}')
oc get taskrun $TASKRUN -n hummingbird-builds-{user} \
  -o jsonpath='{.status.results}' | python3 -m json.tool

The POLICY_CIL result contains the generated CIL policy. The POLICY_TYPE result gives you the SELinux type name (hummingbird_nodejs.process) to use in your Deployment spec.

View the detailed logs:

oc logs ${TASKRUN}-pod -n hummingbird-builds-{user} -c step-generate-policy

If the pod name above doesn’t match, find it with:

oc get pods -l tekton.dev/pipelineRun=generate-nodejs-policy -n hummingbird-builds-{user}

Pipeline Integration

The udica-policy-generate Task fits naturally into a Shipwright/Tekton pipeline after the image build step. The flow is:

[Git Push] → [Shipwright BuildRun]
  ↓
[Image Built & Pushed to Registry]
  ↓
[udica-policy-generate Task]
  ↓
[CIL Policy in PipelineRun Results]
  ↓
[Commit .cil to Git Repo]  →  [GitOps Sync]
  ↓
[MachineConfig loads policy on nodes]
  ↓
[Deployment with seLinuxOptions]

In a full pipeline, a subsequent Task would:

  1. Read the POLICY_CIL result from the udica Task

  2. Commit it to a Git repository under selinux/<policy>.cil

  3. Trigger a GitOps sync (ArgoCD/OpenShift GitOps) that applies a MachineConfig

Deploying with seLinuxOptions

Step 8: Update the Deployment

Once the CIL policy is loaded on cluster nodes (via MachineConfig or manually), reference it in your Deployment’s pod spec.

The seLinuxOptions.type field requires an SCC that allows custom SELinux types. The default restricted-v2 SCC rejects it. The workshop bootstrap pre-configures the privileged SCC for the default service account automatically. If you are running outside the bootstrapped environment, grant it manually:

oc adm policy add-scc-to-user privileged -z default -n hummingbird-builds-{user}

In production, create a custom SCC that allows only seLinuxOptions without full privileged access.

cat << 'EOF' | oc apply -f -
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nodejs-selinux
  namespace: hummingbird-builds-{user}
  labels:
    app: nodejs-selinux
spec:
  replicas: 2
  selector:
    matchLabels:
      app: nodejs-selinux
  template:
    metadata:
      labels:
        app: nodejs-selinux
    spec:
      containers:
        - name: app
          image: {quay_hostname}/{quay_user}/secure-nodejs:latest
          ports:
            - containerPort: 8080
          resources:
            requests:
              memory: "64Mi"
              cpu: "100m"
            limits:
              memory: "128Mi"
              cpu: "500m"
          securityContext:
            runAsNonRoot: true
            allowPrivilegeEscalation: false
            capabilities:
              drop:
                - ALL
            seLinuxOptions:
              type: hummingbird_nodejs.process
EOF

The seLinuxOptions.type field tells the container runtime to apply the custom SELinux type instead of the default container_t. This only works if the CIL policy has been loaded on the node via semodule.

Step 9: Verify the Deployment

oc get pods -l app=nodejs-selinux -n hummingbird-builds-{user}
Expected output:
NAME                              READY   STATUS                 RESTARTS   AGE
nodejs-selinux-6c8776cf85-xxxxx   0/1     CreateContainerError   0          30s
nodejs-selinux-6c8776cf85-yyyyy   0/1     CreateContainerError   0          30s

The CreateContainerError is expected in a workshop environment.

The pods fail with:

Error: container create failed: write to /proc/self/attr/keycreate: Invalid argument

This means the SELinux type hummingbird_nodejs.process does not exist on the cluster nodes yet. The pipeline successfully generated the CIL policy, but it has not been loaded on the nodes. In production, a MachineConfig (described below) installs the policy on every worker node at boot time, which requires a rolling node reboot.

The key takeaway: the Tekton pipeline automates policy generation; MachineConfig automates policy distribution. Together they complete the SELinux CI/CD workflow.

Clean up the failing deployment:

oc delete deployment nodejs-selinux -n hummingbird-builds-{user}

Cluster-Wide Policy Distribution

In production OpenShift clusters, MachineConfig loads CIL policies on every worker node during provisioning. This ensures the SELinux type is available before any pod requests it.

MachineConfig Template

apiVersion: machineconfiguration.openshift.io/v1
kind: MachineConfig
metadata:
  name: 99-hummingbird-selinux-policy
  labels:
    machineconfiguration.openshift.io/role: worker
spec:
  config:
    ignition:
      version: 3.2.0
    storage:
      files:
        - path: /etc/selinux/hummingbird_nodejs.cil
          mode: 0644
          contents:
            source: data:text/plain;charset=utf-8;base64,<BASE64_ENCODED_CIL>
    systemd:
      units:
        - name: load-hummingbird-selinux.service
          enabled: true
          contents: |
            [Unit]
            Description=Load Hummingbird SELinux policies
            After=selinux-autorelabel.service

            [Service]
            Type=oneshot
            ExecStart=/usr/sbin/semodule -i /etc/selinux/hummingbird_nodejs.cil \
              /usr/share/udica/templates/base_container.cil \
              /usr/share/udica/templates/net_container.cil
            RemainAfterExit=true

            [Install]
            WantedBy=multi-user.target
What this MachineConfig does:
  1. Writes the CIL policy file to /etc/selinux/ on every worker node

  2. Creates a systemd unit that loads the policy via semodule on boot

  3. Ensures the SELinux type is available before pods are scheduled

Applying a MachineConfig triggers a rolling reboot of worker nodes. In production, coordinate this with maintenance windows. The Machine Config Operator handles the rollout automatically.

GitOps Pattern for SELinux Policies

Repository Structure

The recommended structure commits CIL policies alongside application manifests:

application-repo/
├── Containerfile
├── src/
│   └── ...
├── selinux/
│   ├── hummingbird_nodejs.cil        # generated by udica-policy-generate Task
│   └── load-policy.sh                # helper for manual loading
└── k8s/
    ├── deployment.yaml                # references seLinuxOptions.type
    ├── machineconfig.yaml             # distributes .cil to nodes
    └── kustomization.yaml

A working reference implementation of this structure is available at sample-nodejs-hummingbird. It includes the Tekton Task, Pipeline, PipelineRun template, Deployment, MachineConfig, and generated CIL policy from this sub-module.

load-policy.sh Helper

#!/bin/bash
set -euo pipefail

POLICY_DIR="$(dirname "$0")"

for cil in "$POLICY_DIR"/*.cil; do
  POLICY_NAME=$(basename "$cil" .cil)
  echo "Loading policy: $POLICY_NAME"
  sudo semodule -i "$cil" \
    /usr/share/udica/templates/{base_container.cil,net_container.cil}
done

echo "All policies loaded successfully"
sudo semodule -l | grep hummingbird

GitOps Workflow

  1. Build pipeline generates the image and triggers udica-policy-generate

  2. Commit step writes the .cil file to the selinux/ directory in Git

  3. ArgoCD/OpenShift GitOps detects the change and applies the MachineConfig

  4. Machine Config Operator rolls out the policy to worker nodes

  5. Deployment references seLinuxOptions.type and runs under the custom policy

This ensures every image version has a matching, auditable SELinux policy.

Summary

Congratulations! You’ve completed Sub-Module 2.4.

What You’ve Accomplished

✅ Created a Tekton Task for automated udica policy generation
✅ Ran the Task against a built Hummingbird image
✅ Viewed the generated CIL policy in TaskRun results
✅ Deployed with seLinuxOptions referencing the custom policy
✅ Understood MachineConfig for cluster-wide policy distribution
✅ Learned the GitOps pattern for versioned SELinux policies

Key Takeaways

CI/CD Policy Generation: * Generate SELinux policies automatically during image builds * Policy generation is deterministic: same image config produces the same CIL * udica-policy-generate Task captures ports, mounts, and capabilities from the image

Production Distribution: * MachineConfig loads policies on all worker nodes at boot * seLinuxOptions.type in the pod spec activates the policy * GitOps ensures policies are versioned and auditable

End-to-End Security: * Hummingbird minimal image (attack surface reduction) * Shipwright/Tekton automated builds (supply chain integrity) * SBOM + vulnerability scanning (compliance and visibility) * udica SELinux policies (kernel-level access control) * Image signing (provenance verification)

Next: Enforce Zero-CVE with ACS

Continue to the final required exercise:

Prove the zero-CVE posture by deploying a legacy vulnerable image alongside a Hummingbird image, then enforce admission control policies with Red Hat Advanced Cluster Security (~25 min).

Next Steps for Production

Implement GitOps: * Integrate Shipwright with ArgoCD/OpenShift GitOps * Automate deployments and policy distribution on successful builds * Version control all manifests including .cil files

Set Up Webhooks: * Trigger builds automatically on git commits * Use Tekton Triggers for event-driven builds and policy regeneration

Configure Admission Control: * Deploy ACS/Stackrox for policy enforcement * Require signed images for production namespaces * Enforce resource limits and security contexts

Additional Resources

SELinux on Kubernetes: * Kubernetes SELinux Labels * OpenShift SCCs

udica Documentation: * udica GitHub Repository

Reference Implementation: * sample-nodejs-hummingbird — Node.js application with SELinux CI/CD manifests (Tekton, Deployment, MachineConfig, CIL policy)

Troubleshooting

Issue: TaskRun fails with permission errors

oc get taskrun generate-nodejs-policy -o yaml | grep -A5 status

oc adm policy add-scc-to-user privileged -z pipeline -n hummingbird-builds-{user}

Issue: SELinux type not found on node

oc debug node/<node-name> -- chroot /host semodule -l | grep hummingbird

oc get machineconfig 99-hummingbird-selinux-policy
oc get machineconfigpool worker

Issue: MachineConfig not rolling out

oc get machineconfigpool worker -o yaml | grep -A10 status

oc get nodes -o wide

Thank You!

Thank you for completing the Zero CVE Hummingbird Workshop!

You now have the skills to build, secure, harden, and deploy container applications using Project Hummingbird at both local and platform scales.

For questions, feedback, or contributions: * Project Hummingbird: https://www.redhat.com/en/technologies/linux-platforms/enterprise-linux/hummingbird
