Workshop Exercise - Check if the Upgrades Worked

Objectives

  • Review the upgrade playbook job log

  • Verify our servers are running the newer RHEL version

Guide

In the previous exercises, we reviewed pre-upgrade reports and performed some recommended remediations. If you tried the optional exercises, you also learned about custom pre-upgrade checks and installed a sample pet application. After all of that, you finally launched the Ansible playbook jobs to run the RHEL in-place upgrades on your servers.

It’s time to verify the result of the upgrades and let our application teams assess if their pet apps are still good. We are here in our RHEL in-place upgrade automation workflow:

Automation approach workflow diagram with app validation steps highlighted

Let’s get started!

Step 1 - Review the Upgrade Playbook Job Log

The first thing we want to do is see if the job running the upgrade playbooks has finished successfully.

  1. Return to the AAP Web UI tab in your web browser. Navigate to Views > Jobs and then open the "OS / Upgrade" playbook run entry to see the log output from the upgrades.

    Note

    You will also see an entry for the "AUTO / 02 Upgrade" workflow job. Workflow jobs launch a number of playbook runs. To see the playbook log output, we need to open the playbook run entry, not the workflow job entry.

    For example:

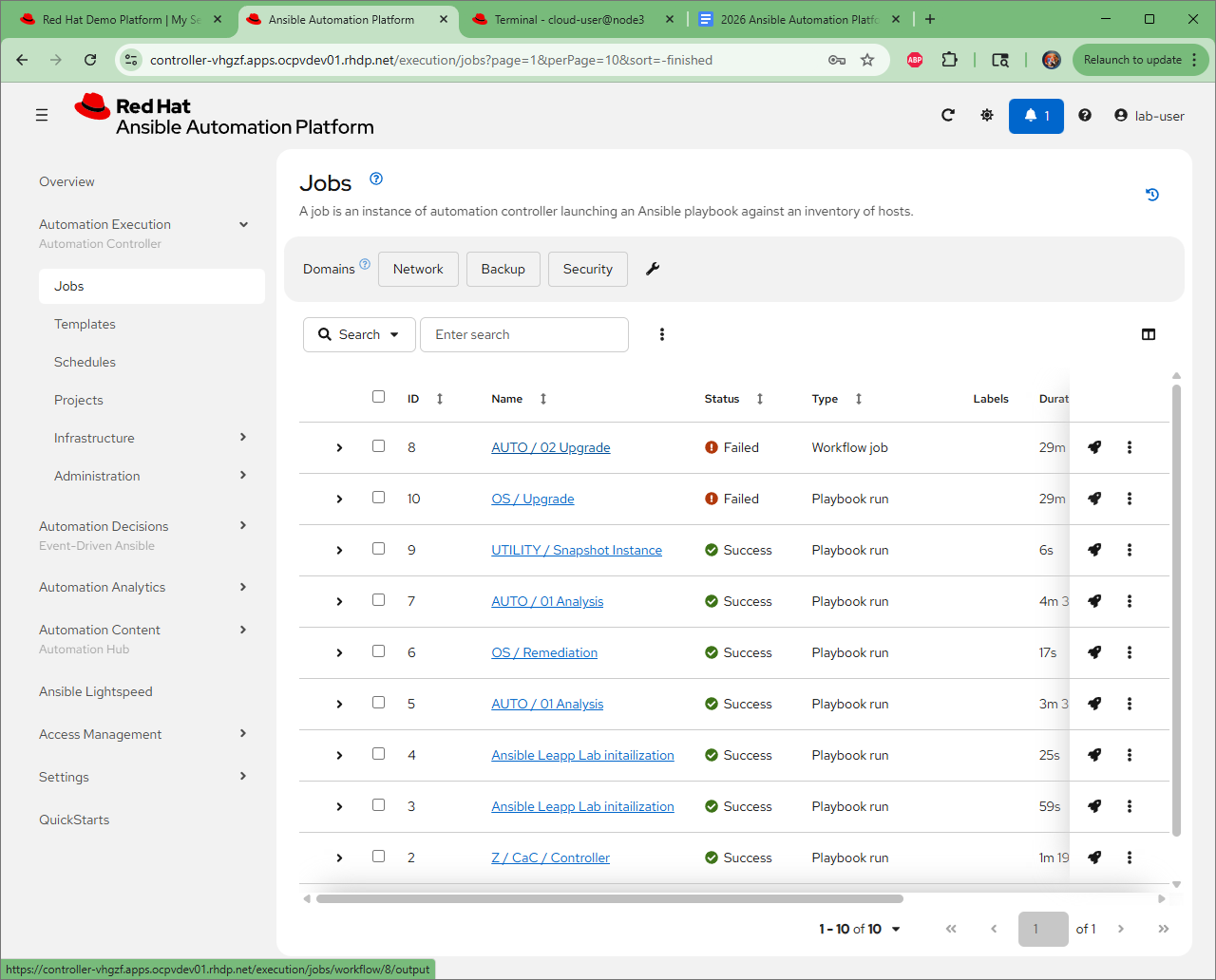

    AAP Web UI listing upgrade job entries

  2. If the playbook run finished without any failed tasks, you should see "Successful" displayed with a green checkmark.

  3. Note that in our lab environment, there’s a chance the upgrade playbook shows failed due to the infrastructure. We will review this in more detail shortly.

    Note

    If you see "Running" with spinning arrows, the playbook is still running. Wait for the playbook run to finish before moving on with this exercise.

    Scroll down to the end of the log output to see the "PLAY RECAP" indicating the success or failure status for the playbook run executed on each host. Here is what you should expect to see:

    AAP Web UI showing successful upgrade playbook run play recap

    If there are no failed runs, the RHEL in-place upgrade is done on all of our pet app servers. However, we do see this occasional failure in our lab environment due to the underlying cloud infrastructure. If you see any failed playbook runs, don’t worry. Let’s review how to handle that situation next.

  4. To find the failure, especially in such a long playbook run, use the search field to find the word "failed". This will highlight any occurrences of the word in the log output.

    Searching for "failed" in the upgrade playbook log output

    As we see, this is a satellite communication, the correct repos did not get enabled after the upgrade. This is a known issue in our lab environment. We will check if the server updated in the next step.

Step 2 - Verify the Hosts are Upgraded to Next RHEL Version

Now let’s make sure our pet app servers are actually upgraded to the next RHEL version.

  1. In Exercise 1.3: Step 2, you used the RHEL Web Console to check the installed RHEL versions on your pet app servers. Let’s repeat those steps to see the RHEL versions reported after our upgrades.

    Return to your RHEL Web Console browser tab and use the remote host menu to navigate to the web consoles of each of your pet app servers. The RHEL Web Console system overview page should now show the upgraded versions.

    Note

    You may need to refresh the browser using Ctrl-R to see the newly reported RHEL version.

    For example, this pet app server that previously had RHEL8 is now reporting RHEL9:

    node2 running Red Hat Enterprise Linux 9.2 (Plow)

    Here is an example of one that was previously RHEL7 now running RHEL8:

    node1 running Red Hat Enterprise Linux Server 8.8 (Oopta)

    And even our RHEL 9 server, which did showed us an error in the upgrade playbook, is now running RHEL 10:

    node3 running Red Hat Enterprise Linux 10.0 (Plow)

  2. You can also check the RHEL and kernel versions from the command line following the steps you used with Exercise 1.1: Step 2.

    At the shell prompt of your pet app servers, use the cat /etc/redhat-release and uname -r commands. Here’s an example showing a pet app server that was upgraded to RHEL10:

    Command line showing RHEL 10.0 and kernel version 6.12.0

Conclusion

In this exercise, we observed that the upgrade playbook runs completed successfully. We then used the RHEL Web Console and the command line to verify the new RHEL versions were installed.

If you deployed a sample pet application in the previous optional exercise, continue here to verify the pet application is still functioning as expected after the RHEL upgrades:

Otherwise, you may skip ahead to the next section of the workshop where we will demonstrate rolling back the RHEL upgrade, starting with these exercises:
