Hands-On AIOps: Building Self-Healing, Observability-Driven Automation with Ansible

1. Background

AIOps stands for artificial intelligence for IT operations. It refers both to a modern approach to managing IT operations and to the software systems that implement it. AIOps uses data science, big data, and machine learning to augment, or even automate, many of the processes traditionally handled manually by IT teams. Its goal is to improve issue detection, root cause analysis, and system resolution by making IT operations more intelligent and efficient. To read more about AIops there is a great article on redhat.com.

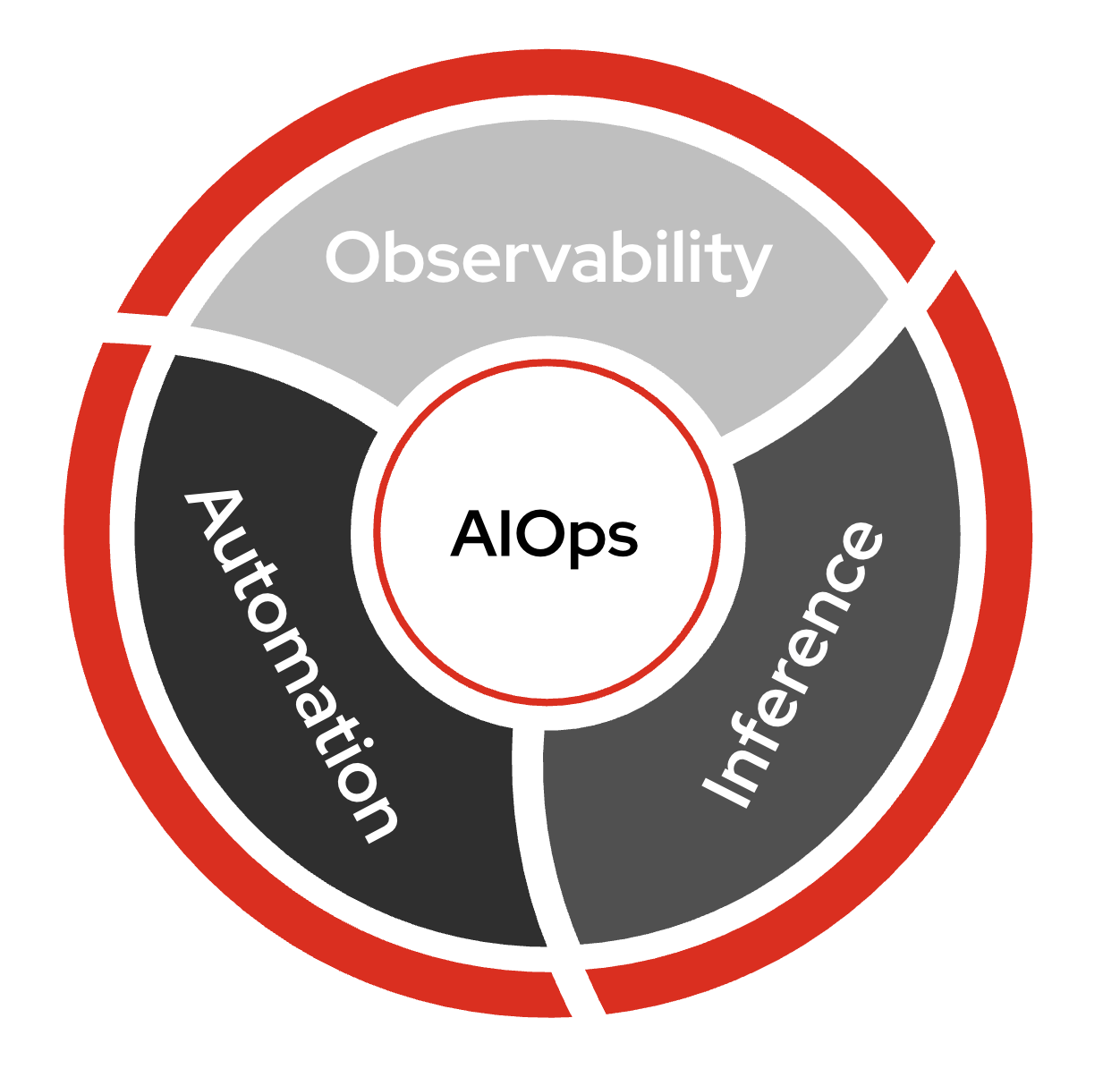

In AIOps there are three major parts:

Observability
Inference
Automation

Observability is the ability to understand the internal state of a system by collecting, analyzing, and visualizing data from logs, metrics, and traces. This can be another AI tool such as IBM Instana Observability. For this lab we are simply relaying logs using Filebeat, a Lightweight shipper for logs. Ansible Automation Platform can integrate with observability tools using Event-Driven Ansible (EDA).
Inference - Inference in AI refers to the process of using a trained model to make predictions or decisions based on new, unseen data. For this AIOps workflow we are using Red Hat AI for understanding service issues like an application outage, and Ansible Lightspeed to create an Ansible Playbook.
Automation is the ability to automatically detect, respond to, and resolve IT issues without human intervention. We are using Ansible Automation Platform to tie observability and inference together directly to create workflows for self-healing infrastructure.

It is important to note that AIOps can be adopted incrementally and it is not all or nothing. You do not need to have fully self-healing infrastructure on day one to start realizing value. At Red Hat we like to say: "Start small, think big!"

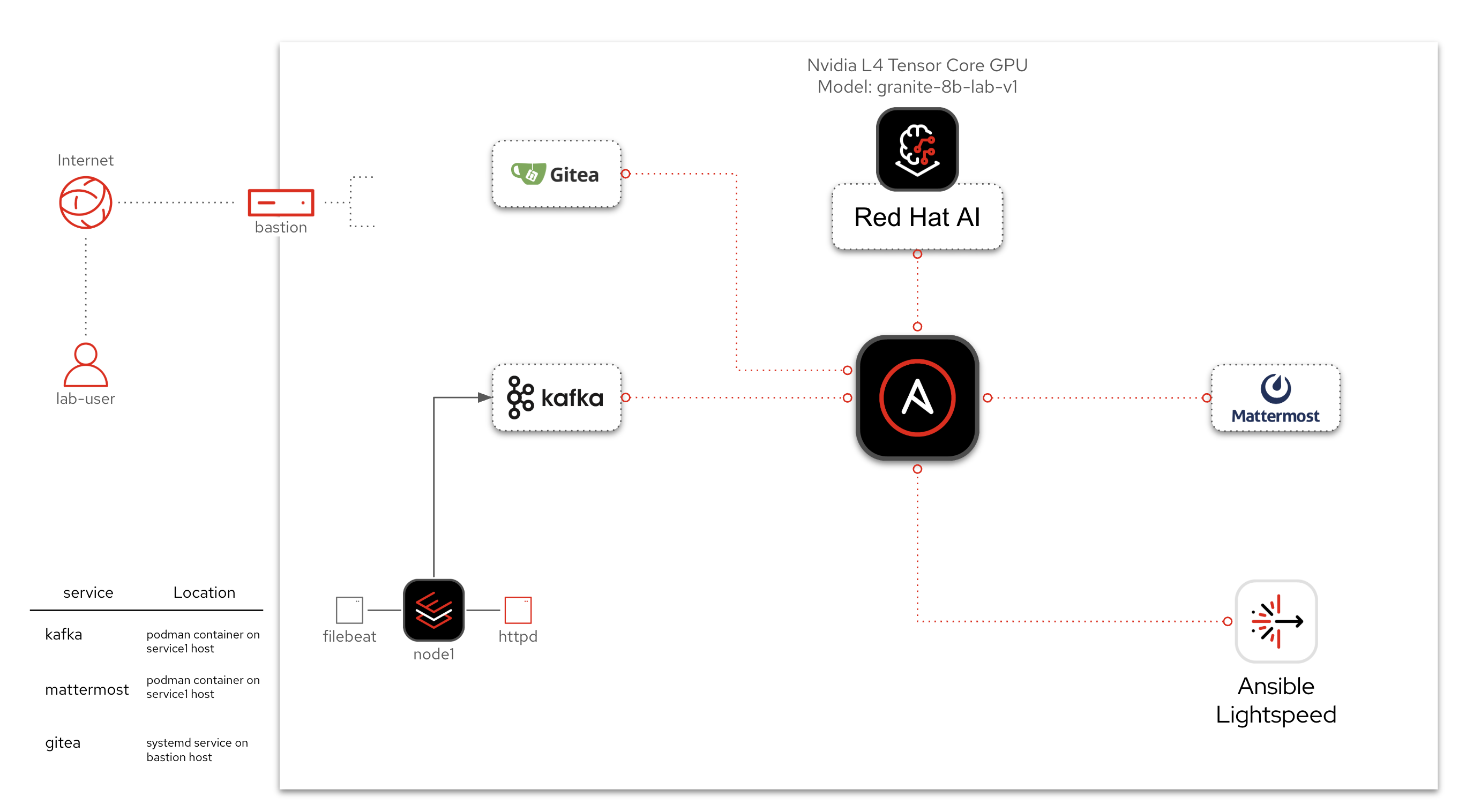

2. Lab Environment

Three RHEL (Red Hat Enterprise Linux) nodes: one with Apache (httpd), and two additional nodes for CVE remediation and system role configuration
Filebeat monitoring Apache logs
Kafka acting as the event transport
Event-Driven Ansible is listening to Kafka and launching workflows based on defined rules
Red Hat AI to infer incident context from logs
Ansible Lightspeed to generate a remediation playbook
Gitea for source control management of Ansible Playbooks
Ansible Automation Platform to run job templates and workflows
Mattermost for message notifications
A Windows Server with Active Directory for Windows event-driven automation
Winlogbeat on Windows forwarding events to Kafka
Red Hat Lightspeed (formerly Insights) for CVE and Advisor remediation playbook generation
code-server (VS Code in the browser) with Claude Code as the AI agent, connected to AAP via the Ansible MCP server
Automation code assistant (formerly Ansible Lightspeed Code Assistant) for AI-powered playbook generation in the IDE
Splunk Universal Forwarder on RHEL for system-level misconfiguration detection
CrewAI agent framework for autonomous AI-driven incident response

EDA (Event-Driven Ansible) is part of Ansible Automation Platform. It is referred to separately sometimes depending on the workflow. EDA uses rulebooks to monitor events, then executes specified job templates or workflows based on the event. Think of it simply as inputs and outputs. EDA is an automatic way for inputs into Ansible Automation Platform, where Automation controller / Automation execution is the output (running a job template or workflow).

3. Access & Credentials

All lab content is preconfigured and ready to run.

3.1. Systems Overview

This lab environment includes a variety of tools working together to demonstrate AI-driven remediation. You’ll interact with the following systems:

Ansible Automation Platform (AAP) - Executes workflows and job templates. Already opened in your lab interface.
Gitea - Git service used to host the Lightspeed-generated playbook.
Mattermost - Used for automated notifications during log enrichment.
RHEL node - The webserver (httpd) that will experience and recover from failure.
Red Hat AI & Lightspeed - AI services that analyze logs and generate remediation content.

3.2. Access Table

System URL Credentials

System	URL	Credentials
Ansible Automation Platform	AAP is preloaded in the lab interface. Click link if you want to open it in full tab: AAP Web UI	Username: `{controller_username}` Password: `{controller_password}`
Gitea	Gitea Web UI	Username: `{gitea_username}` Password: `{gitea_password}`
Mattermost	Mattermost	Username: `{mattermost_username}` Password: `{mattermost_password}`
Splunk	Splunk	Username: `{splunk_username}` Password: `{splunk_password}`
Red Hat Lightspeed (console.redhat.com)	console.redhat.com Used in Section 4 for CVE and Advisor remediation	Username: `{insights_username}` Password: `{insights_password}`

Ansible Automation Platform

AAP is preloaded in the lab interface. Click link if you want to open it in full tab: AAP Web UI

Username: {controller_username} Password: {controller_password}

Gitea

Gitea Web UI

Username: {gitea_username} Password: {gitea_password}

Mattermost

Username: {mattermost_username} Password: {mattermost_password}

Splunk

Username: {splunk_username} Password: {splunk_password}

Red Hat Lightspeed (console.redhat.com)

console.redhat.com Used in Section 4 for CVE and Advisor remediation

Username: {insights_username} Password: {insights_password}

4. EDA Rulebook Activation Management

Read this before starting any section.

This lab uses multiple Event-Driven Ansible (EDA) rulebook activations, and some of them listen on the same ports or respond to overlapping events. Only the activations relevant to your current section should be enabled. Each section that requires an EDA change will include specific instructions, but here is the overall map for reference:

Section

EDA Activation

Notes

Section 1: Apache Remediation

Web App (enabled by default)

Listens on Kafka for httpd service events

Section 2: Network Automation

OSPF Neighbor (enabled by default)

Listens on port 5000 for Splunk webhooks

Section 3: Windows Automation

Windows Events (enabled by default)

Listens on Kafka for Windows event logs

Section 5: Self-Healing RHEL

RHEL Cron AIOps (disabled by default)

Shares port 5000 with OSPF. Disable OSPF Neighbor before enabling this one.

Section 6: AI-Driven Incident Response

AI Agent (disabled by default)

Disable Web App before enabling this one to prevent duplicate responses.

Sections 1, 2, 3 can run concurrently since their activations do not conflict. Sections 5 and 6 require toggling activations as noted. Section 4 (Red Hat Lightspeed) does not use EDA at all.

5. Workshop Sections

This workshop consists of six independent sections that can be completed in any order. Together they cover the full AIOps maturity spectrum, from event-driven remediation with human review to fully autonomous self-healing with AI agents.

Section	Title	Description
Section 1	AIOps with Apache Remediation	A basic introduction to AIOps: build a self-healing workflow for Apache service failures using Red Hat AI and Ansible Lightspeed. (30-40 min)
Section 2	AIOps with Network Automation	Apply the same AIOps patterns to network infrastructure. Troubleshoot OSPF routing issues on Cisco routers using Splunk, Event-Driven Ansible, and Lightspeed-generated playbooks. (30-40 min)
Section 3	AIOps with Windows Automation	Extend the AIOps pattern to Windows Server. Detect Active Directory and Windows Firewall events with Winlogbeat and Kafka, then use Event-Driven Ansible to create AI-enriched tickets automatically. (15-20 min)
Section 4	Red Hat Lightspeed and Agentic IDE Workflow	Use Red Hat Lightspeed to generate CVE and Advisor remediation playbooks, use Automation code assistant to generate an HTTPD fix in code-server, then use Claude Code to interactively discover and remediate issues via the Ansible MCP server. (50-70 min)
Section 5	Autonomous AIOps with Self-Healing RHEL	Experience autonomous self-healing: Splunk detects a RHEL misconfiguration, EDA triggers an AI routing agent that selects and applies the correct fix automatically. (20-30 min)
Section 6	AI-Driven Incident Response with MCP	Use AI agents that interact with Ansible Automation Platform through the Model Context Protocol (MCP). Progress from human-in-the-loop with Claude Code, to autonomous CrewAI agents, to fully operationalized AI-driven incident response with EDA. (30-40 min)

Section

Title

Description

Section 1

AIOps with Apache Remediation

A basic introduction to AIOps: build a self-healing workflow for Apache service failures using Red Hat AI and Ansible Lightspeed. (30-40 min)

Section 2

AIOps with Network Automation

Apply the same AIOps patterns to network infrastructure. Troubleshoot OSPF routing issues on Cisco routers using Splunk, Event-Driven Ansible, and Lightspeed-generated playbooks. (30-40 min)

Section 3

AIOps with Windows Automation

Extend the AIOps pattern to Windows Server. Detect Active Directory and Windows Firewall events with Winlogbeat and Kafka, then use Event-Driven Ansible to create AI-enriched tickets automatically. (15-20 min)

Section 4

Red Hat Lightspeed and Agentic IDE Workflow

Use Red Hat Lightspeed to generate CVE and Advisor remediation playbooks, use Automation code assistant to generate an HTTPD fix in code-server, then use Claude Code to interactively discover and remediate issues via the Ansible MCP server. (50-70 min)

Section 5

Autonomous AIOps with Self-Healing RHEL

Experience autonomous self-healing: Splunk detects a RHEL misconfiguration, EDA triggers an AI routing agent that selects and applies the correct fix automatically. (20-30 min)

Section 6

AI-Driven Incident Response with MCP

Use AI agents that interact with Ansible Automation Platform through the Model Context Protocol (MCP). Progress from human-in-the-loop with Claude Code, to autonomous CrewAI agents, to fully operationalized AI-driven incident response with EDA. (30-40 min)

Total Workshop Time: ~3-4 hours (all sections) or pick individual sections as needed.

5.1. The AIOps Maturity Spectrum

This workshop takes you through the full maturity spectrum:

Sections 1-3: Event-driven with AI content generation and human review checkpoints
Section 4: Human-in-the-loop with an AI agent that asks permission before every action
Section 5: Autonomous, pre-approved automation handles detection and remediation end-to-end
Section 6: AI agents that discover and orchestrate existing automation through MCP, from interactive to fully autonomous

5.2. Workshop Agenda

For Sections 1-3, each section follows a consistent 4-part structure:

Event-Driven Ansible (EDA) Response - Event Driven Ansible will respond to a systemd application outage
Log Enrichment and Prompt Generation Workflow - Ansible Automation Platform (AAP) will retrieve systemd logs, coordinate with Red Hat AI to analyze the incident, notify Mattermost then automatically create a Job Template for us to use in the subsequent workflow.
Remediation Workflow - This workflow will focus on automatically creating an Ansible Playbook to resolve the issue by using Ansible Lightspeed. This workflow will take the prompt created by the previous workflow, request a playbook from Ansible Lightspeed, sync this playbook to Git and then automatically create a Job Template for us to remediate the issue.
Execute a remediation
- For Section 1: Execute HTTPD Remediation - This is the final Job Template that will actually fix the application outage on the RHEL webserver.
- For Section 2: AI Driven Ansible for Network Automation - This section synthesizes the AI skills from the preceding sections of the Hands-On AIOps: Building Self-Healing, Observability-Driven Automation with Ansible into a practical network automation scenario.

Could this all be one workflow? Yes. This is purposely broken up at natural breakpoints where a human user can review what the AIOps workflow is doing and course correct if required. This also allows organizations to incrementally adopt AIOps workflows. Organizations can benefit greatly from any of these individual sections!

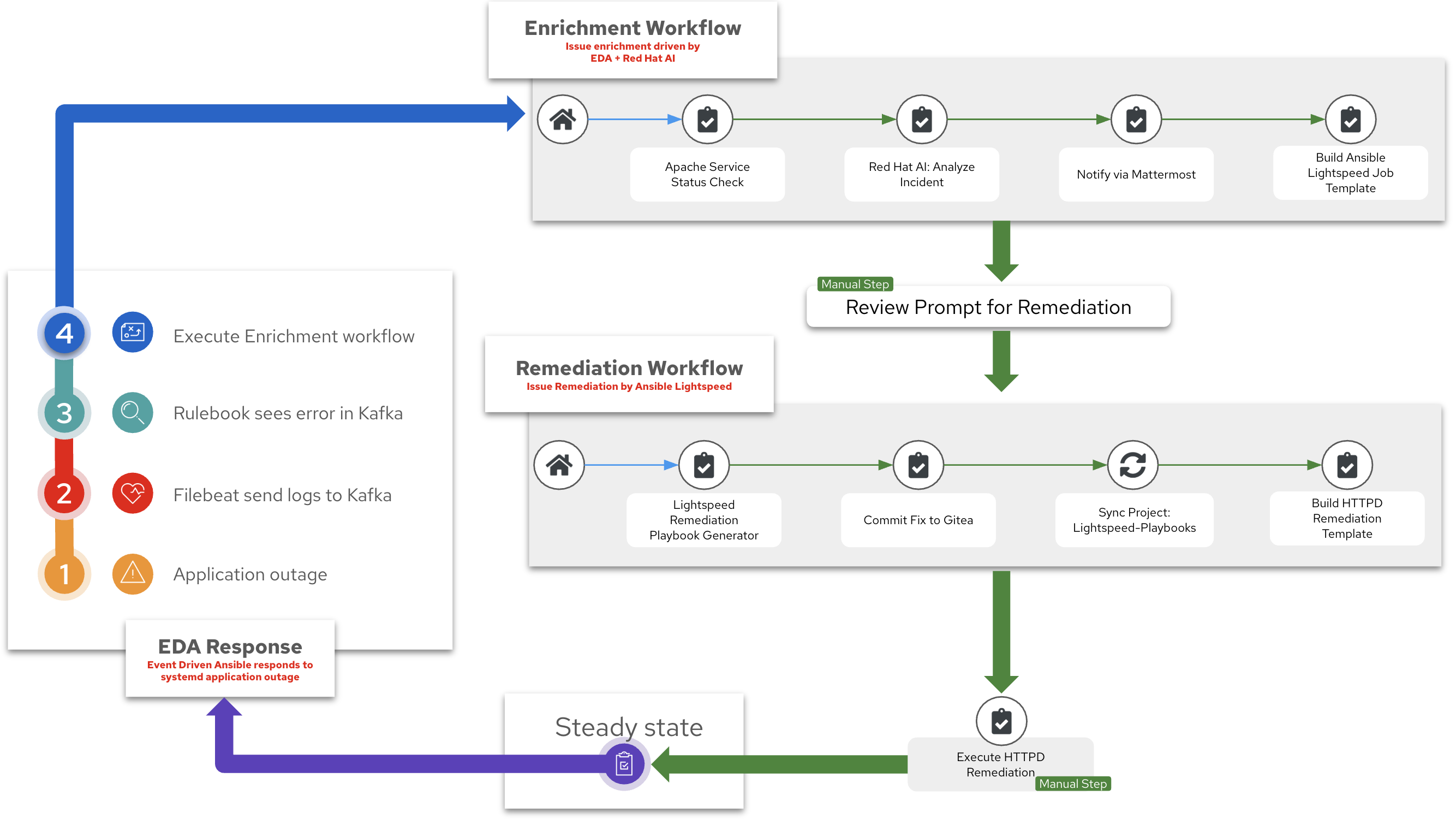

Here is a diagram of the entire workflow:

We will break this up into sections though! As you go through each section we will break down each individual workflow and go step-by-step! Red Hat and Ansible Automation Platform will make AIOps simple for organizations to adopt and scale.

Why Mattermost? Mattermost is an open-source, self-hostable online chat service with file sharing, search, and third party application integrations. It is designed as an internal chat for organisations and companies, and mostly markets itself as an open-source alternative to Slack and Microsoft Teams. It is used in this workshop as an example and can be replaced with any Chat or ITSM (e.g. ServiceNow) of your choice. It is really easy to setup an individual Mattermost container per student in the workshop!

Why Gitea? Gitea is a self-hosted, open-source software development service that provides Git hosting, code review, team collaboration, package registry, and CI/CD, similar to platforms like GitHub, Bitbucket, and GitLab. It could be replaced by Github, Gitlab or any Git service of your choosing. It is a very lightweight solution that works great for workshops.

Why Kafka? Apache Kafka is a distributed streaming platform used for building real-time data pipelines and streaming applications, enabling applications to publish, consume, and process high volumes of data streams. It is all open-source and self hosted and works great for workshops. This could be replaced by any event bus of your choosing. Event-Driven Ansible has numerous plugins including integrations with AWS SQS, AWS CloudTrail, Azure Service Bus, Prometheus, dynatrace, IBM Instana, BigPanda, Zabbix, CyberArk and more.

6. Ready to Begin?

Start Section 1: AIOps with Apache Remediation →

All six sections are independent! You can complete them in any order. New to AIOps? Start with Section 1. Already familiar with the basics? Jump directly to any section from the left navigation.
