Section 5 - Autonomous AIOps: Self-Healing RHEL with Splunk

Objective

Estimated time: 20-30 minutes

In this section, you will build and observe a fully autonomous AIOps workflow where Splunk detects a crond failure on a RHEL server, Event-Driven Ansible triggers a response, and an AI-powered routing agent analyzes the error, selects the correct fix from available job templates, and applies it. All without human intervention (after your initial approval).

After completing this section, you will be able to:

  • Build an end-to-end observability pipeline connecting Splunk alerting to Event-Driven Ansible, reducing mean time to remediation from hours to seconds

  • See how an AI routing agent analyzes syslog messages in real time, selects the correct fix from a catalog of job templates, and applies it — turning reactive firefighting into proactive self-healing infrastructure

  • Evaluate when to use autonomous AI-routed remediation versus human-in-the-loop workflows so you can adopt the right approach for your organization’s risk tolerance and maturity

This is a separate demo from Section 4 (Red Hat Lightspeed & Agentic IDE Workflow). Section 4 demonstrated a human-in-the-loop workflow where an AI agent assists you and asks for permission before acting. This module demonstrates a more autonomous approach where the detection-to-remediation pipeline runs with minimal human intervention using an AI routing agent that selects the correct fix automatically.

How It Works

This module uses the same Splunk infrastructure from Section 2 (Network Automation) but applies it to RHEL system monitoring instead of Cisco router syslog.

RHEL Node (node1)
    --> rsyslog forwards system logs to Splunk (port 1514)
        --> Splunk detects crond error
            --> Splunk alert fires webhook to EDA
                --> EDA triggers Cron-AIOps-Workflow
                    --> AI Router analyzes error with Claude
                        --> Approval Gate (human reviews AI decision)
                            --> Dispatcher launches the correct fix

The key innovation is the AI routing agent. Instead of hard-coding a single fix for every cron alert, the AI analyzes the actual syslog message, queries AAP for available fix templates, and selects the right one. Two different cron failures get two different fixes, automatically.

Components

  • rsyslog on RHEL nodes forwards system logs to Splunk on TCP port 1514

  • Splunk indexes the logs, runs a saved search, and fires an alert when crond errors are detected

  • Event-Driven Ansible receives the Splunk webhook and triggers the Cron-AIOps-Workflow

  • AI Router (Claude Sonnet) analyzes the syslog message, queries the AAP job template catalog, and selects the correct fix

  • Approval Gate pauses the workflow so you can review the AI decision before applying

  • Dispatcher launches the AI-selected fix template against the affected host

Before You Begin: Switch EDA Rulebook Activations

This module uses a different EDA rulebook activation than the OSPF network module (Section 2). Both the OSPF and Cron rulebooks listen for Splunk webhooks on the same port (5000), so only one can be active at a time.

In a production environment, you would combine multiple rules into a single rulebook with different conditions for each alert type. For this lab, we kept the rulebooks separate so each module is self-contained and easier to follow.

  1. Open Ansible Automation Platform

  2. Navigate to Automation Decisions → Rulebook Activations

  3. Disable the OSPF Neighbor activation:

    • Select the checkbox next to OSPF Neighbor

    • Click Disable rulebook activations

    • Confirm and close

  4. Enable the RHEL Cron AIOps activation:

    • Click on RHEL Cron AIOps

    • Toggle it to Enabled

    • Wait for the status to show Running

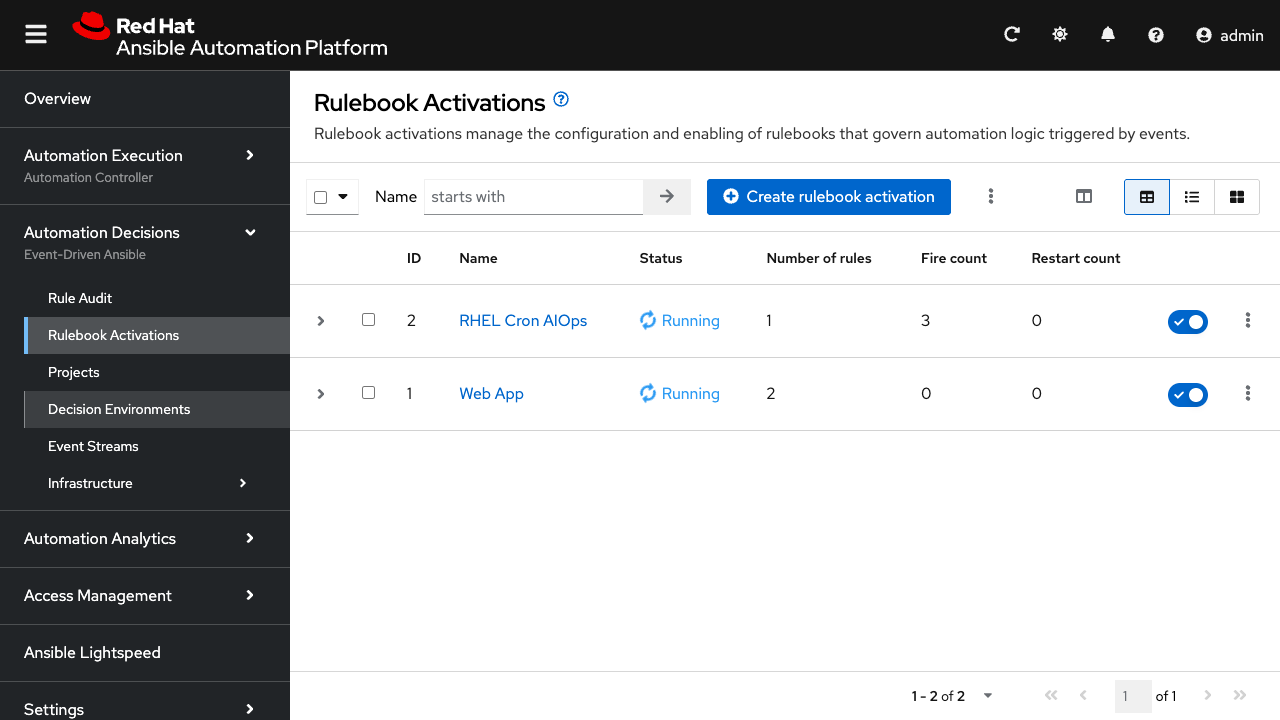

EDA Rulebook Activations showing RHEL Cron AIOps running

The RHEL Cron AIOps activation must show Running before you proceed. If it shows Failed, check that the OSPF Neighbor activation is fully disabled, then try enabling the Cron activation again.

Accessing Splunk

Component Value

Splunk URL

Splunk

Username

{splunk_username}

Password

{splunk_password}

  1. Open Splunk using the above details ( use incognito window if needed )

  2. Login using the credentials provided

Step 1: Verify Splunk Is Receiving RHEL Logs

  1. Once logged in to Splunk

  2. Go to Search & Reporting

    Search & Reporting

  3. Search for:

    sourcetype=syslog

  4. Set the time range to Last 24 hours

    Time range Last 24 hours

  5. You should see syslog messages from node1, node2, and node3 arriving on source = tcp:1514

If you see events, rsyslog forwarding is working. The RHEL nodes are sending system logs to Splunk.

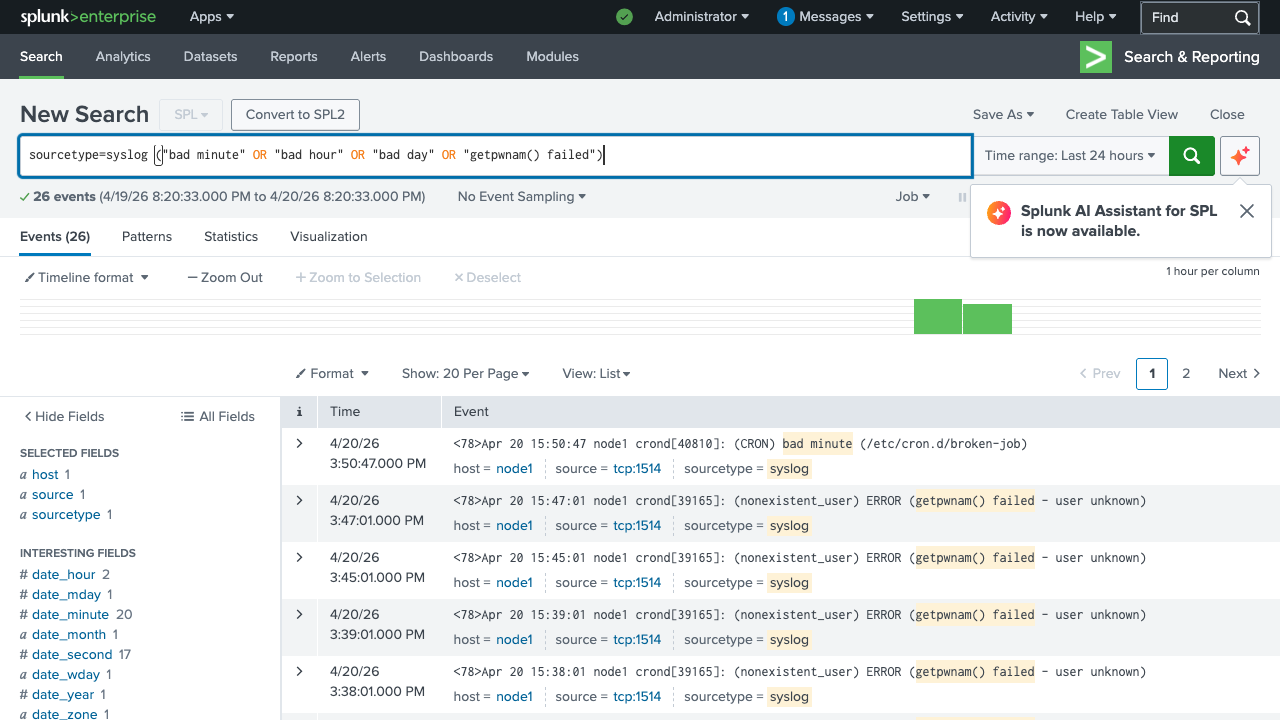

Splunk search results showing cron errors

Step 2: Create the Splunk Alert

You need to create a Splunk saved search that detects crond errors and sends a webhook to Event-Driven Ansible.

Find the right search

First, create the search that will detect cron failures:

sourcetype=syslog ("bad minute" OR "bad hour" OR "bad day" OR "getpwnam() failed")

Run the search now. You should see no results yet — nothing is broken. This is expected. You are creating the search so it can be saved as an alert in the next step.

This search will catch two types of crond errors:

  • Syntax errors: crond reports bad minute, bad hour, or bad day when a crontab file has invalid scheduling syntax

  • Invalid user errors: crond reports getpwnam() failed when a crontab references a user that does not exist on the system

Save as alert

  1. Click Save As → Alert

    Save As Alert

  2. Configure the alert:

    Setting Value

    Title

    rhel-cron-failure

    Permissions

    Shared in App

    Alert type

    Real-time

    Trigger condition

    Per-Result

    Add Actions (first)

    Add to Triggered Alerts

    Add Actions (second)

    Webhook

  3. For the Webhook URL, enter your EDA webhook URL: {eda_webhook_url}

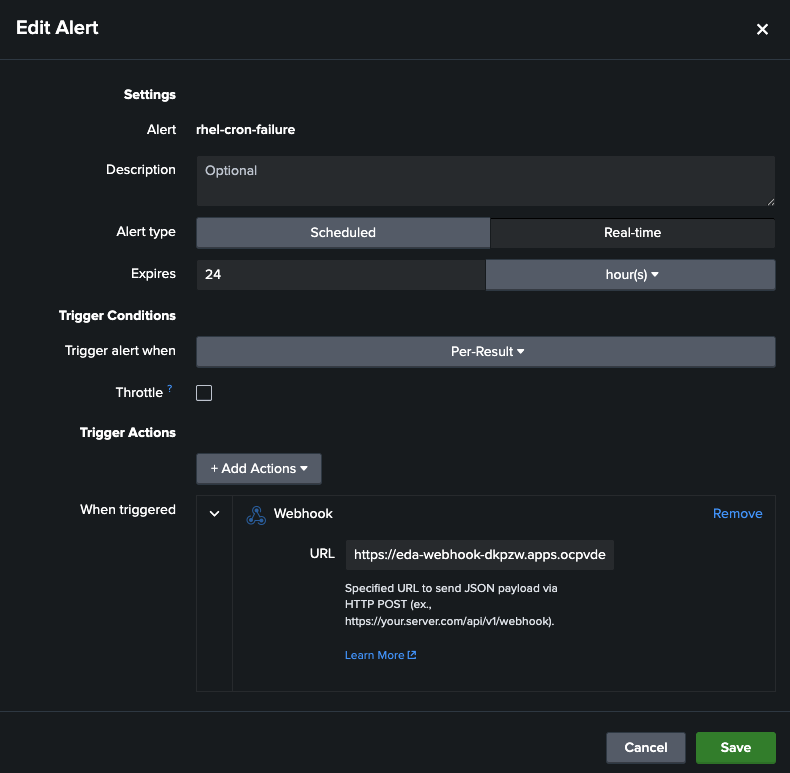

    Edit Alert with Webhook URL

  4. Click Save

The alert title must be exactly rhel-cron-failure. The EDA rulebook matches on this name. If it does not match, the workflow will not trigger.

Accessing Ansible Automation Platform

Component Value

AAP URL

AAP is preloaded in the lab interface. Click to open in a full tab: AAP Web UI

Username

{controller_username}

Password

{controller_password}

  1. Open AAP using the above details or click the AAP tab in your lab interface

  2. Login using the credentials provided

Step 3: Verify EDA and Workflow Are Ready

Before triggering failures, confirm the automation pipeline is in place:

  1. Once logged in to Ansible Automation Platform

  2. Navigate to Automation Decisions → Rulebook Activations

  3. Verify that RHEL Cron AIOps shows Running status

    EDA Rulebook Activations showing RHEL Cron AIOps running

  4. Navigate to Automation Execution → Templates

  5. Verify that Cron-AIOps-Workflow exists

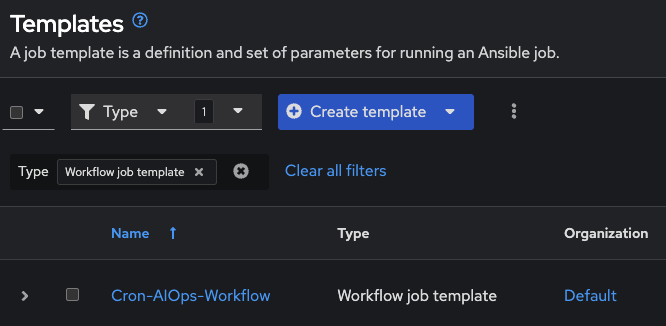

    Cron-AIOps-Workflow template

  6. Click into the workflow and open the Visualizer. You should see three nodes:

    • ai_router: the AI routing agent

    • approval_gate: human review step

    • dispatch_fix: launches the selected fix

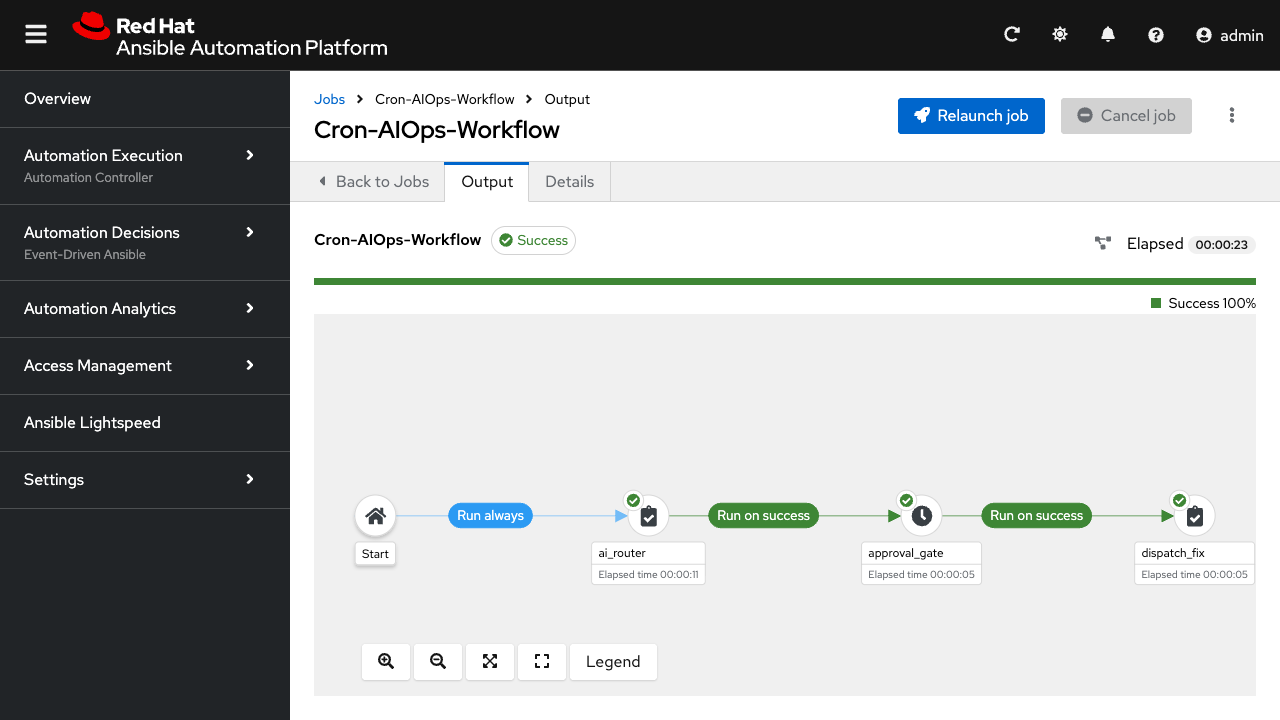

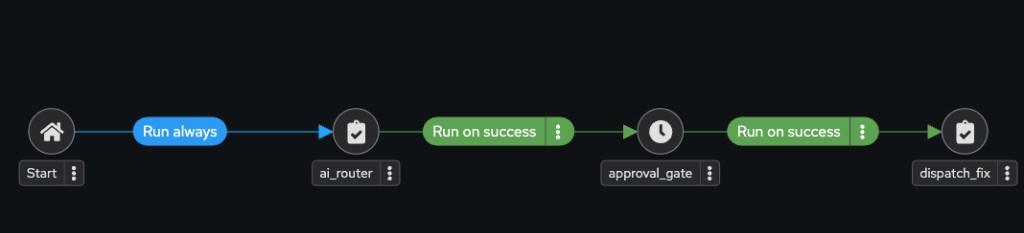

Workflow Visualizer showing ai_router approval_gate and dispatch_fix nodes

Challenge 1: Cron Syntax Error

In this challenge, you will introduce an invalid crontab entry that causes crond to log a syntax error. The AI will analyze the error and select the syntax fix.

Step 4.1: Break cron with bad syntax

  1. Navigate to Automation Execution → Templates

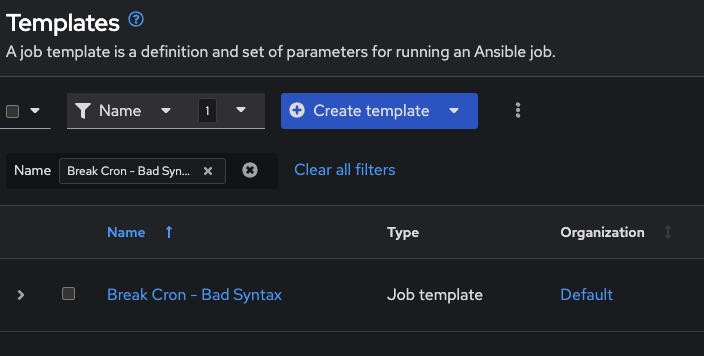

    Break Cron - Bad Syntax template

  2. Find Break Cron - Bad Syntax and click the launch icon

    Launch template icon

  3. Set the Limit to node1 as shown below, then click Next and Finish

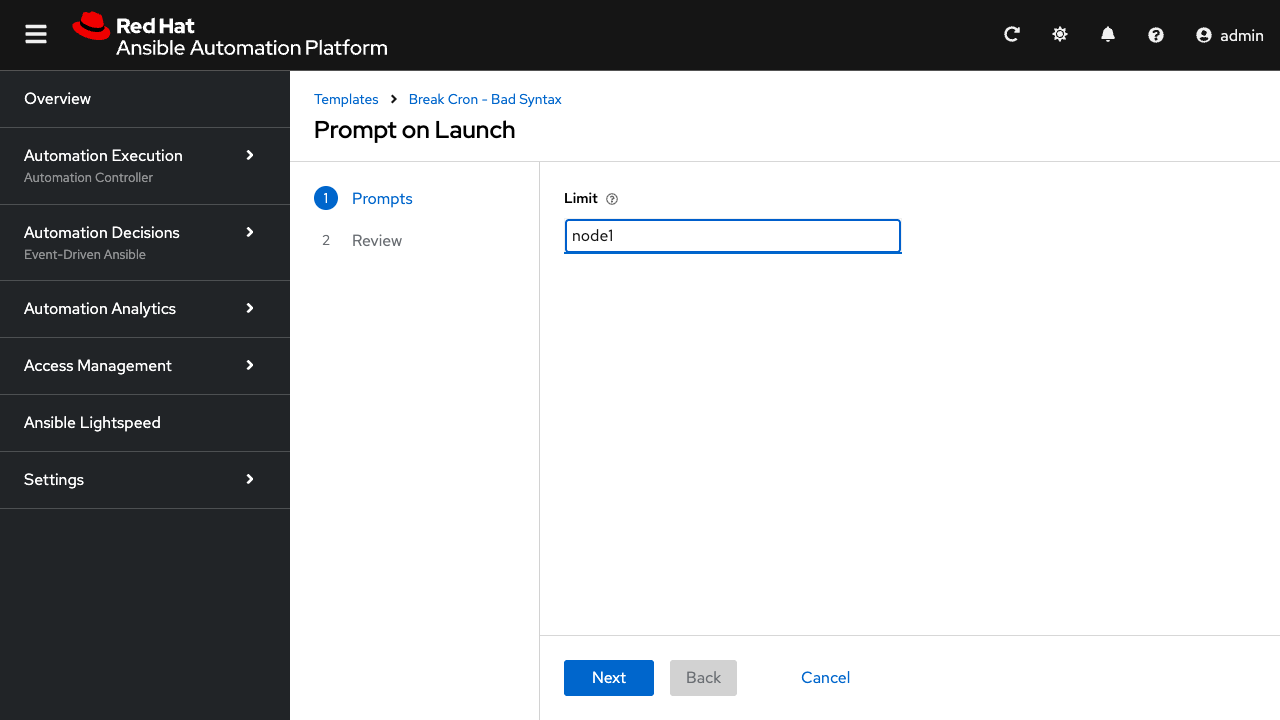

    Set Limit to node1

  4. Wait for the job to complete

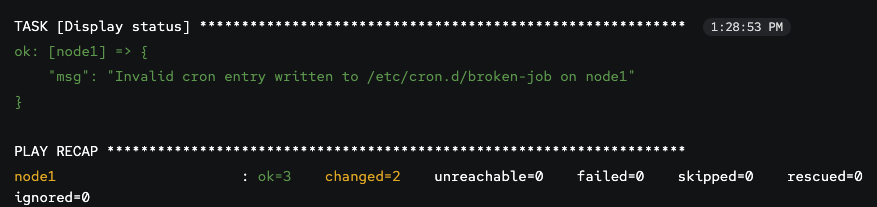

    Break Cron Bad Syntax job output

This writes an invalid crontab file to /etc/cron.d/broken-job on node1. When crond tries to parse it, it logs:

(CRON) bad minute (/etc/cron.d/broken-job)

Step 4.2: Watch the chain

The automated response happens in this order:

  1. rsyslog on node1 forwards the crond error to Splunk on port 1514

  2. Splunk saved search matches bad minute and fires the webhook

  3. EDA receives the webhook and triggers the Cron-AIOps-Workflow

  4. AI Router sends the syslog message to Claude, which analyzes the error and selects Fix Cron - Syntax Error from the job template catalog

  5. Approval Gate pauses the workflow for your review

It may take 30-60 seconds for the full chain to execute. The sequence is: crond logs the error, rsyslog forwards to Splunk, Splunk indexes and fires the alert, the webhook reaches EDA, and the workflow launches.

Step 4.3: Check Mattermost

Accessing Mattermost

Component Value

Mattermost URL

Mattermost

Username

{mattermost_username}

Password

{mattermost_password}

  1. Open Mattermost using the above details

  2. Click on "View in Browser" to open the console

  3. Login using the credentials provided

  4. Click on the team "Automators"

Once logged in, click on the Town Square channel from the left-hand navigation.

Look for the AI incident report. You should see a card with the following details:

Field Value

What Happened

The AI explains that crond encountered an invalid scheduling entry

Root Cause

syntax_error

Confidence

Typically 95%+

Recommended Fix

Remove the invalid crontab file and restart crond

Job Template

Fix Cron - Syntax Error

Action Required

Approve in AAP

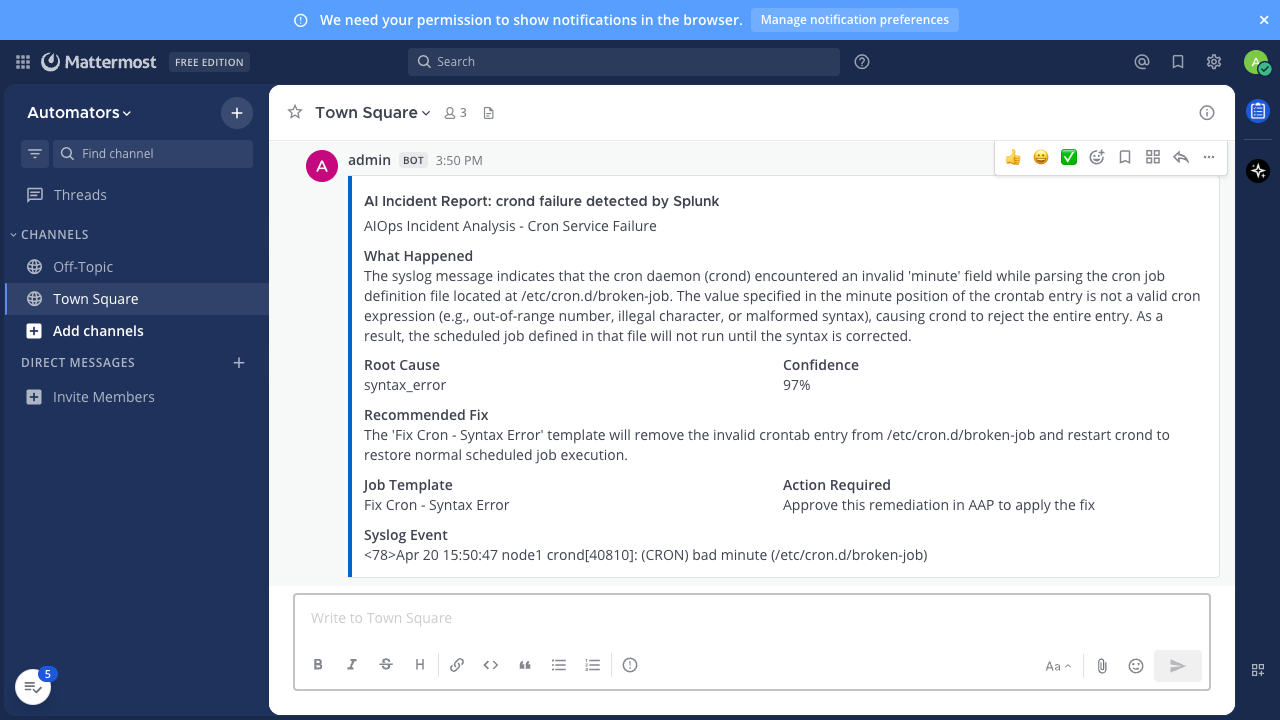

Mattermost AI incident report for syntax error

Stop and consider what just happened. Less than a minute ago, this system had a silent failure — crond was broken and no one knew. Now you have a full incident report: root cause identified, confidence scored, and a recommended fix ready to approve. This is the power of AIOps. Even before the fix is applied, you already have automated ticket enrichment — the kind of context that normally takes an engineer 30 minutes of investigation was delivered in seconds. The gap between "something broke" and "here’s exactly what happened and how to fix it" just collapsed.
Engineers who use AIOps looking at their coworkers

Step 4.4: Understand what the AI selected

Before you approve the fix, take a moment to understand what the AI chose and why that matters.

The AI routing agent analyzed the syslog message and selected the job template Fix Cron - Syntax Error. This is not a random script the AI wrote on the fly. This is a pre-approved, curated job template that your organization has already reviewed, tested, and promoted to production. The AI’s job is to pick the right fix from a catalog of trusted automation — not to improvise.

This is a critical distinction. The AI is not running arbitrary shell commands, firing off untested API calls, or generating code at runtime. It is selecting from a library of vetted playbooks that your team controls. The automation only does what your organization has already approved.

Viewing the source code

If you want to inspect exactly what this fix does:

  1. Navigate to Automation Execution → Templates

  2. Open Fix Cron - Syntax Error and note the Project field

  3. Click into the Project to see the Source Control URL — this is the Git repository containing the playbook source

The playbook itself is straightforward:

- name: Fix cron syntax error
  hosts: all
  become: true

  tasks:
    - name: Remove invalid crontab file
      ansible.builtin.file:
        path: /etc/cron.d/broken-job
        state: absent

    - name: Restart crond
      ansible.builtin.systemd:
        name: crond
        state: restarted
        enabled: true

Source: fix_cron_syntax.yml on GitHub

It removes the invalid crontab file and restarts crond. No surprises, no side effects. This is the kind of automation you can trust to run at 3 AM without waking anyone up.

This is how AIOps should work in production. In the real world, most remediations are not novel — they are well-known fixes applied to well-known problems. Engineers log into machines, make ad-hoc changes, and drift from the golden configuration. The fix is often just a config sync that brings the system back into compliance. Pre-approved automation captures that institutional knowledge in code, so the AI selects from a curated catalog of safe, tested, repeatable fixes rather than improvising solutions that could cause more harm than good.

Step 4.5: Approve the fix

  1. Navigate to Automation Execution → Jobs

    Automation Execution Jobs navigation

  2. Find the Cron-AIOps-Workflow job

  3. The workflow should be paused at the approval_gate node

    Workflow paused at approval_gate

  4. Click Approve to allow the dispatcher to launch the fix

    Approve button

  5. Check the confirmation box and click Approve workflow approvals to execute the fix

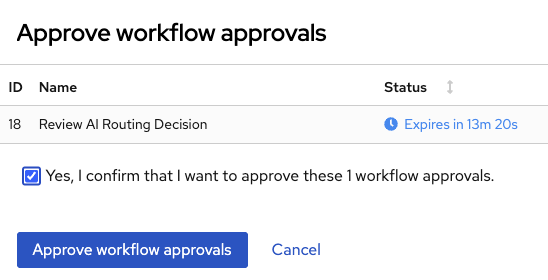

    Approve workflow approvals confirmation

  6. Wait for the workflow to complete. All nodes should show green

    Cron-AIOps-Workflow completed successfully

Step 4.6: Verify the fix

Now that you know what the playbook does, verify it worked:

  1. In AAP Jobs, confirm that Fix Cron - Syntax Error ran successfully on node1

  2. The fix removed /etc/cron.d/broken-job and restarted crond — exactly what you saw in the playbook source

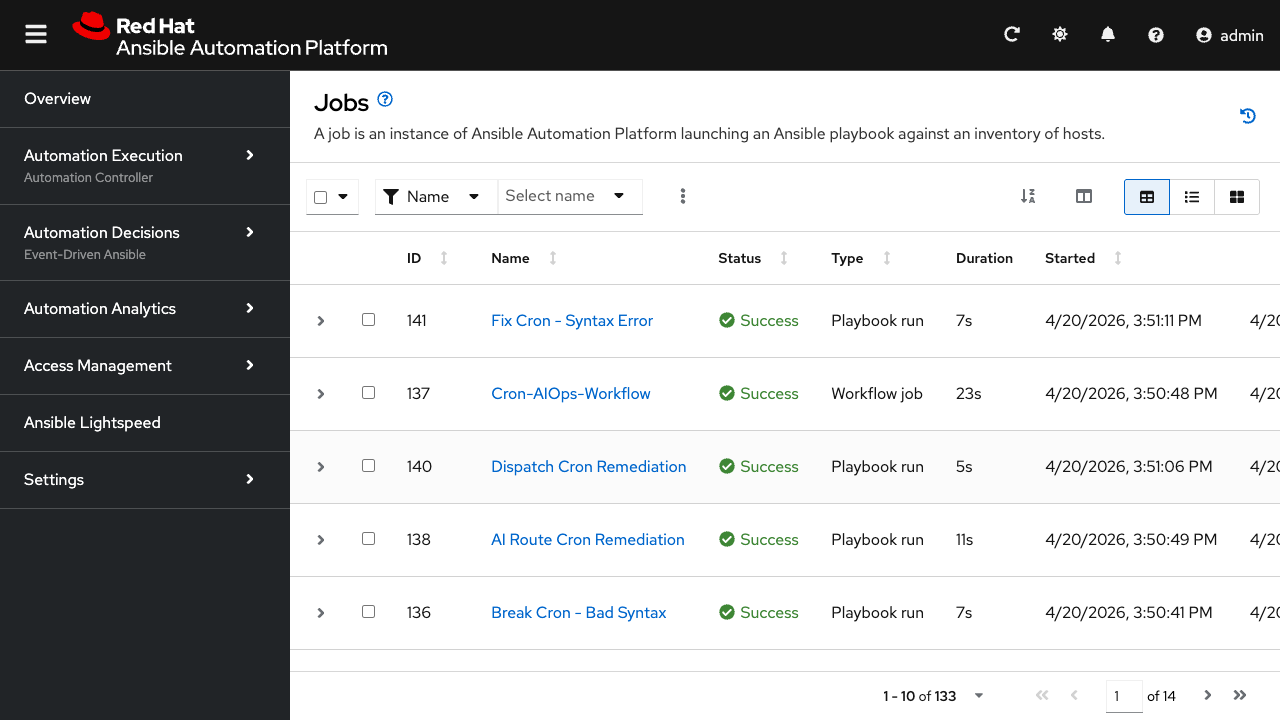

AAP Jobs showing the full remediation chain

To confirm the fix directly on the host, SSH into node1 from the bastion terminal and check the crond service:

ssh node1
sudo systemctl status crond.service

You should see crond in an active (running) state with no errors in the recent log output. The invalid crontab file is gone and crond is back to its normal scheduling cycle.

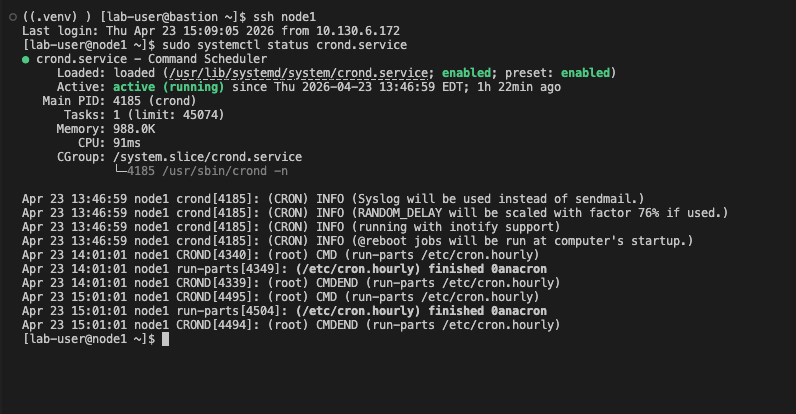

crond service healthy and running on node1

Challenge 2: Cron Invalid User

In this challenge, you will create a crontab entry that references a user that does not exist. This produces a different syslog error, and the AI must route to a different fix.

Step 5.1: Break cron with invalid user

  1. Navigate to Automation Execution → Templates

    Templates navigation

  2. Find Break Cron - Invalid User and click the launch icon

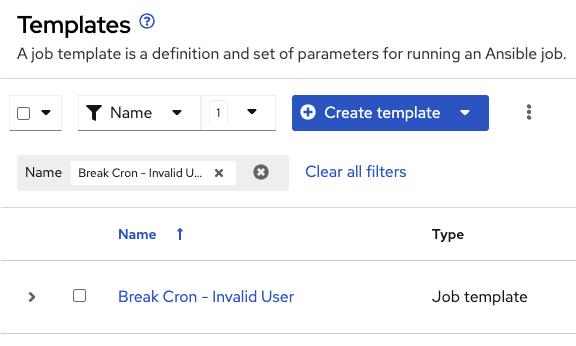

    Break Cron - Invalid User template

  3. Set the Limit to node1 (same as Challenge 1), then click Next and Finish

    Set Limit to node1

  4. Wait for the job to complete

This writes a crontab file to /etc/cron.d/bad-user-job with a nonexistent user. Every minute, crond tries to run the job and logs:

(nonexistent_user) ERROR (getpwnam() failed - user unknown)

Unlike the syntax error which fires immediately, the invalid user error only appears when crond attempts to execute the job, once per minute. You may need to wait up to 60 seconds for the error to appear in Splunk.

Step 5.2: Watch the chain

The same automated pipeline fires, but this time the AI sees a different error:

Cron-AIOps-Workflow running

  1. Splunk matches getpwnam() failed and fires the webhook

  2. AI Router analyzes the error and selects Fix Cron - Invalid User (not the syntax fix)

  3. Approval Gate pauses for your review

    AAP notification bell showing pending approval

Step 5.3: Check Mattermost

Open Mattermost and look for the new incident report. Compare it with the previous one — notice how the AI identified a completely different root cause and selected a different fix:

Field Value

What Happened

crond on node1 attempted to run a scheduled job for nonexistent_user, but getpwnam() failed because no such user exists on the system — a crontab file in /etc/cron.d/ references a username that was never created or was deleted

Root Cause

invalid_user

Confidence

97%

Recommended Fix

Remove the offending crontab file /etc/cron.d/bad-user-job that references the nonexistent user, eliminating the recurring crond errors

Job Template

Fix Cron - Invalid User (different from Challenge 1)

Action Required

Approve this remediation in AAP

This is the value of the AI routing agent: the same workflow handles both failures, but the AI selects a different fix based on what it reads in the syslog message.

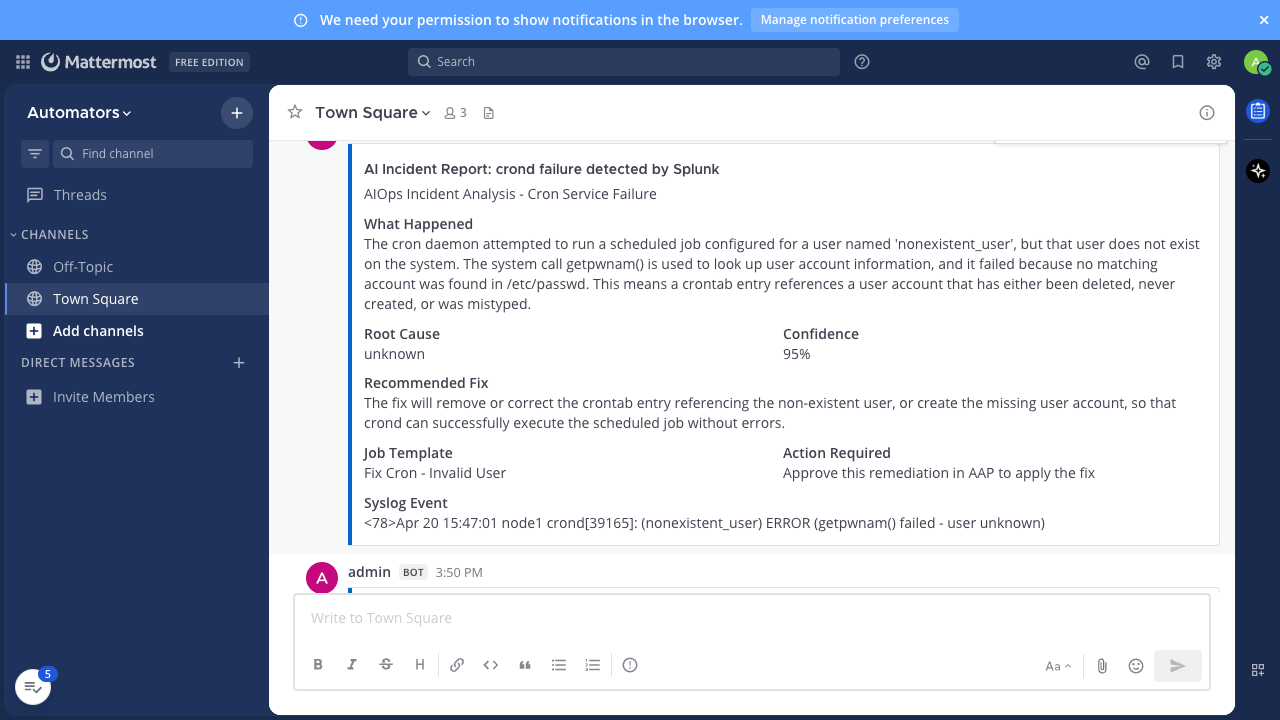

Mattermost AI incident report for invalid user

Step 5.4: (Optional) See the error on the host

Before approving the fix, you can SSH into node1 to see what crond is actually reporting:

ssh node1
sudo systemctl status crond.service

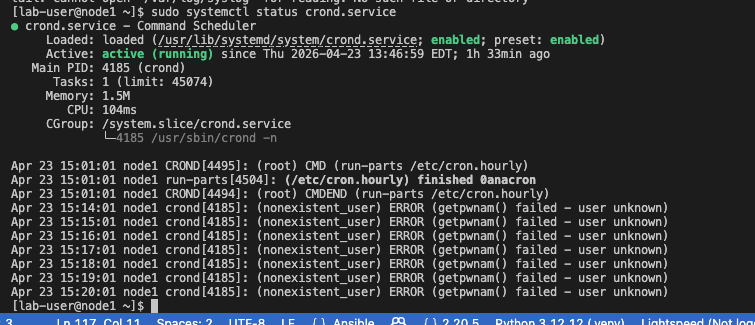

You will see repeated ERROR (getpwnam() failed - user unknown) messages every minute as crond tries and fails to run the job for the nonexistent user. This is the exact error the AI analyzed in the Mattermost report above.

crond showing repeated getpwnam errors

Step 5.5: Understand what the AI selected

Just like Challenge 1, the AI selected a pre-approved, curated job template — this time Fix Cron - Invalid User. The AI did not write a new script or guess at a fix. It analyzed the syslog message, recognized the getpwnam() failed pattern, and selected the correct template from the catalog.

Viewing the source code

The playbook for this fix is even simpler than the syntax error fix:

- name: Fix cron invalid user entry
  hosts: all
  become: true

  tasks:
    - name: Remove crontab with nonexistent user
      ansible.builtin.file:
        path: /etc/cron.d/bad-user-job
        state: absent

Source: fix_cron_permissions.yml on GitHub

It removes the offending crontab file. Once the file is gone, crond stops trying to run the job and the errors disappear. No restart needed — crond automatically picks up changes to /etc/cron.d/.

Two different failures, two different fixes, one workflow. This is the pattern that scales. Your team writes and tests a library of fix playbooks. The AI routing agent matches failures to fixes at runtime. As your catalog grows, the system handles more failure types without anyone writing new workflow logic.

Step 5.6: Approve and verify

  1. Approve the workflow in AAP

  2. Confirm that Fix Cron - Invalid User ran successfully on node1

  3. The fix removed /etc/cron.d/bad-user-job

How the AI Routing Works

The AI routing agent is the key component that makes this workflow intelligent. Here is what happens inside the AI Route Cron Remediation job template:

  1. Receives the Splunk payload: the full webhook payload including the raw syslog message

  2. Queries AAP for available fix templates: fetches all job templates with "cron" in the name via the AAP API

  3. Sends both to Claude: the syslog message and the template catalog go to Claude Sonnet with a prompt asking it to analyze the error and select the correct fix

  4. Parses the AI response: Claude returns a JSON object with the selected template, confidence score, analysis, root cause, and recommendation

  5. Posts to Mattermost: the AI analysis is formatted into a rich incident report

  6. Passes the decision downstream: the selected template name flows through the approval gate to the dispatcher via workflow artifacts

The dispatcher then looks up the selected template by name in AAP and launches it with a limit set to the affected host.

Syslog Error AI Selects Root Cause

(CRON) bad minute (/etc/cron.d/broken-job)

Fix Cron - Syntax Error

syntax_error

(nonexistent_user) ERROR (getpwnam() failed)

Fix Cron - Invalid User

invalid_user

Comparing Approaches

Aspect Section 4 (Human-in-the-loop) Section 5 (AI-routed)

Trigger

Human types a prompt in Claude Code

Splunk detects error automatically

Decision maker

AI proposes, human approves each step

AI analyzes and selects fix, human approves once

Flexibility

Can handle any problem the human describes

Handles known failure patterns with matching fixes

Speed

Interactive, depends on human response time

Seconds from detection to fix recommendation

Best for

Ad-hoc investigation, novel problems

Known failure modes with pre-tested remediation

Most organizations use both approaches. Start with human-in-the-loop (Section 4) while building confidence in AI-driven analysis. Promote well-tested scenarios to AI-routed workflows (this module) once the failure patterns and fixes are validated.

Key Takeaways

  • Mean time to remediation drops from hours to seconds. Across both challenges, the pipeline went from silent failure to root cause analysis to approved fix in under a minute — without an engineer manually logging in, reading logs, or guessing at a solution. That speed compounds across every incident your team would otherwise triage by hand.

  • AI selects from pre-approved automation, not improvised scripts. The AI routing agent chose the right fix from a curated catalog of tested playbooks. Your organization controls what goes into that catalog. This gives you the speed of AI-driven decisions with the safety of human-reviewed, production-hardened automation.

  • One workflow handles an expanding library of failure types. You saw two different cron failures routed to two different fixes without changing any workflow logic. As your team adds more fix templates to the catalog, the system handles more scenarios automatically — scaling your operations without scaling your headcount.

I know AIOps

Complete

You have completed Section 5, Autonomous AIOps with Splunk and RHEL.

Across both challenges, you built an end-to-end self-healing pipeline: Splunk detected the failure, Event-Driven Ansible triggered the response, and an AI routing agent analyzed the error, selected the correct fix, and presented it for approval. You saw how pre-approved, curated automation gives your organization the confidence to let AI-driven decisions operate at machine speed while keeping humans in control of what gets deployed.

Continue to the Summary and Call to Actions to review everything you learned and explore next steps.
