Module 3 Lab 1: Events - Event-Driven Ansible Overview and Active Health Monitoring

This lab demonstrates an agentless, "outside-in" monitoring and remediation architecture using the Event-Driven Ansible (EDA) url_check source plugin to maintain the availability of a Windows IIS web server. By proactively polling the web endpoint rather than relying on internal agents, like Filebeat, the EDA Controller detects service outages in real-time and automatically triggers an Ansible Automation Controller remediation playbook to restore the IIS service. This workflow illustrates the power of self-healing infrastructure, where manual intervention is replaced by automated logic that ensures the application is not only running but actively responding to user requests.

Learning Objectives

After completing this module, you will be able to:

Configure Event-Driven Ansible to communicate with Automation Controller
Create a Rulebook and configure an activation to watch the IIS web server
Configure the Rulebook to react to both up and down status events

Introduction

In this lab, you will implement an agentless monitoring solution using Event-Driven Ansible (EDA). Instead of relying on logs being pushed from the target, you will configure EDA to actively poll the IIS web server that was installed and configured previously.

When the url_check source plugin detects that the website is unreachable, it will automatically trigger a remediation job template in Automation Controller to restart the IIS service.

Prerequisites

Access to Ansible Automation Platform (AAP) and EDA Controller.
An existing Job Template to setup and configure IIS
The Windows IIS server is reachable via the internal URI: http://windows.aap.svc.cluster.local.

1: Create and setup assets for EDA

In order for EDA to detect and react to events within the Windows machine, we will create a playbook and rulebook to that will be used to drive automation activities.

1.1: Create remediation playbook

To make this lab self-contained, we will create a one-off remediation playbook. However, you could just as easily simply call site.yml to perform the full configuration of the IIS server. This targeted playbook will focus only on the IIS service.

Create the following playbook in a file named iis_start.yml within the lab_playbooks directory:

/projects/lab_playbooks/iis_start.yml

---
- name: Ensure IIS Service is Running
  hosts: windows
  gather_facts: false
  tasks:
    - name: Call service task for web server role
      ansible.builtin.include_role:
        name: red_hat_one.super_lab.web_server
        tasks_from: service
...

1.2: Create the EDA Rulebook

The rulebook will use the ansible.eda.url_check source plugin to monitor the health of the web application every 30 seconds.

EDA looks for rulebooks in a specific directory called rulebooks. Create this folder within the /projects/lab_playbooks/ directory
```
mkdir --parents --verbose /projects/lab_playbooks/rulebooks/
```
```
mkdir: created directory '/projects/lab_playbooks/rulebooks/'
```

Create a rulebook named check_website.yml within the newly created rulebook directory:

/projects/lab_playbooks/rulebooks/check_website.yml

---
- name: Monitor IIS via URL Check
  hosts: all
  sources:
    - ansible.eda.url_check:
        urls:
          - http://windows.aap.svc.cluster.local
        delay: 30

  rules:
    - name: Web site is down
      condition: event.url_check.status == "down"
      action:
        run_job_template:
          name: "Start IIS"
          organization: Default

    - name: Web site is up
      condition: event.url_check.status == "up"
      action:
        debug:
          msg: "IIS is healthy."
...

1.3: Push files to git

Ensure your working directory is the lab_playbooks repository:
```
cd /projects/lab_playbooks/
```

Add, commit, and push the two files created previously

git add iis_start.yml rulebooks/check_website.yml
git commit --message "Add rulebook and remediation playbook"
git push origin main

1.4: Synchronize the Lab Playbooks Project

To ensure that Automation Controller detects the newly created playbook, synchronize the Lab Playbooks project.

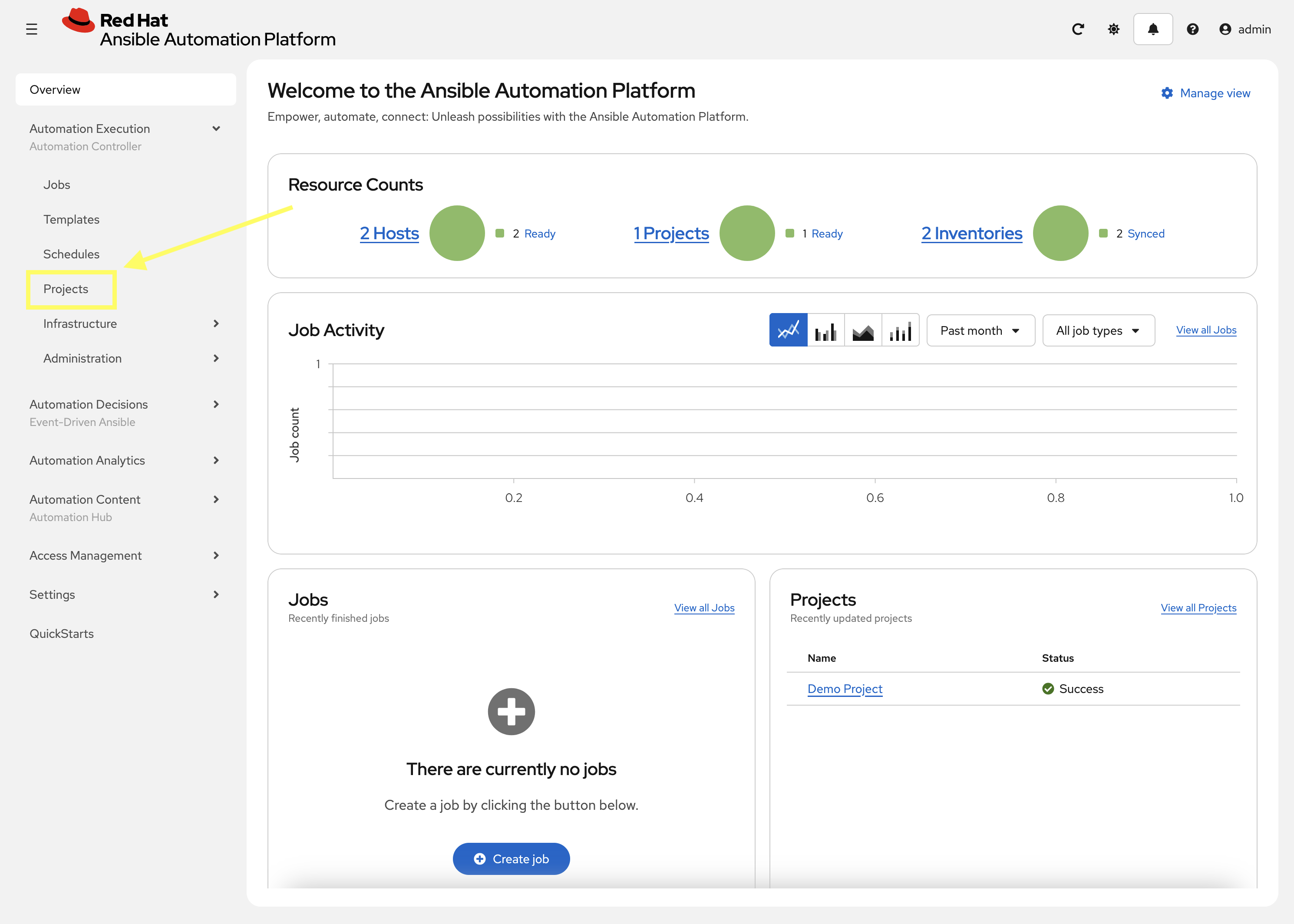

Navigate to Automation Controller web interface go to Automation Execution → Projects

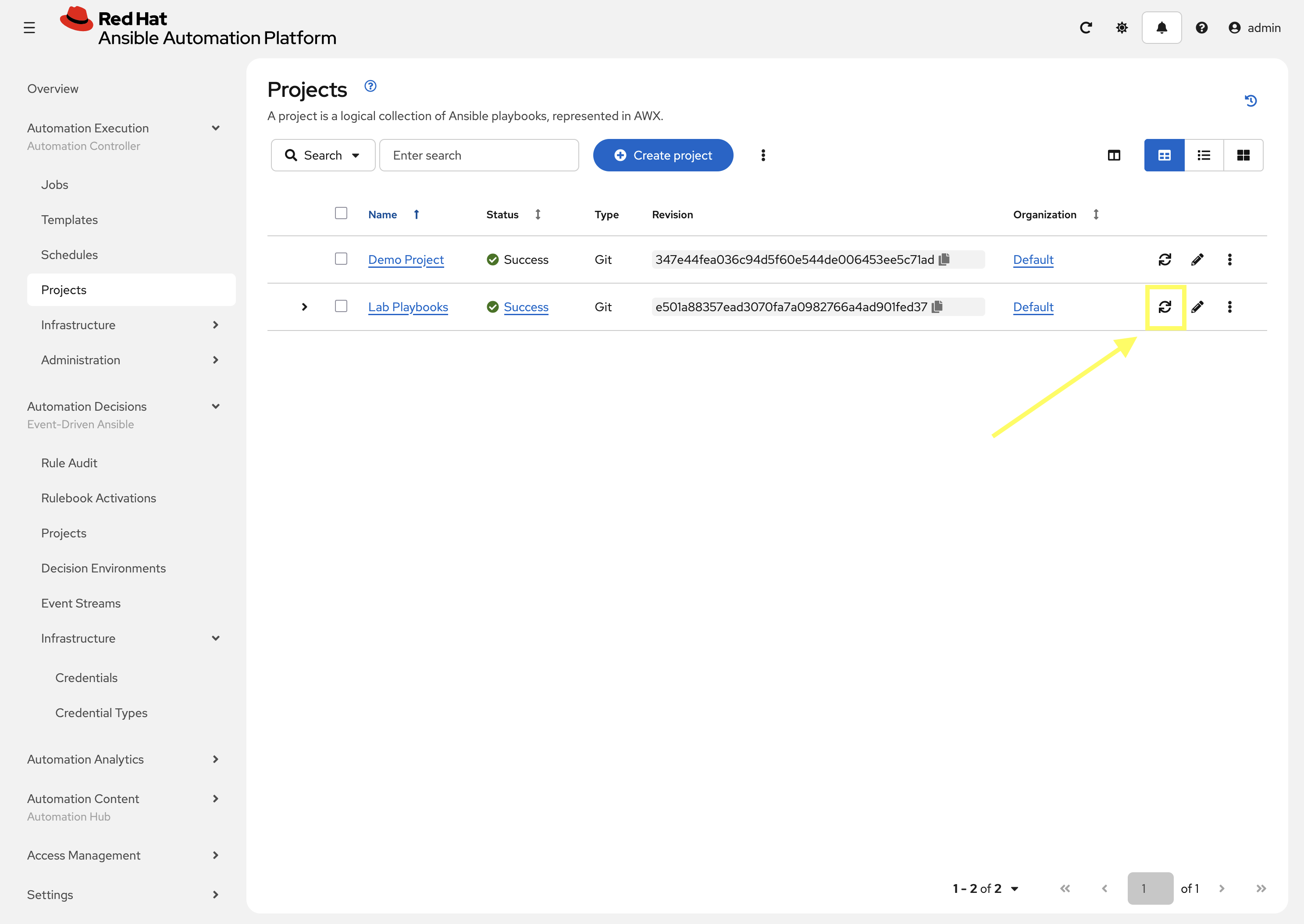

Synchronize the Lab Playbooks project

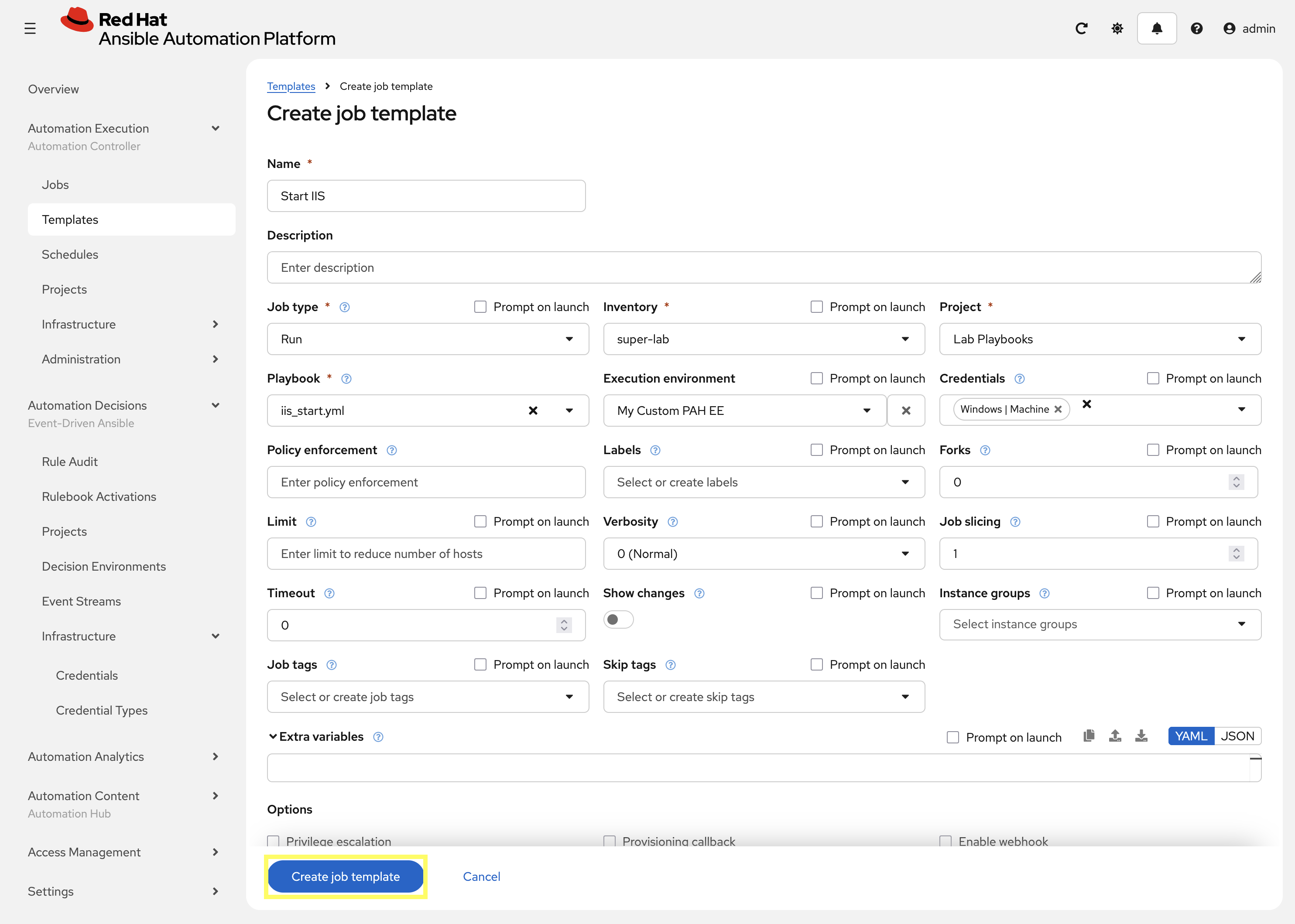

1.5: Create a Job Template to Start IIS

Create a Job Template within Automation Controller for the remediation playbook that is used to start the IIS service.

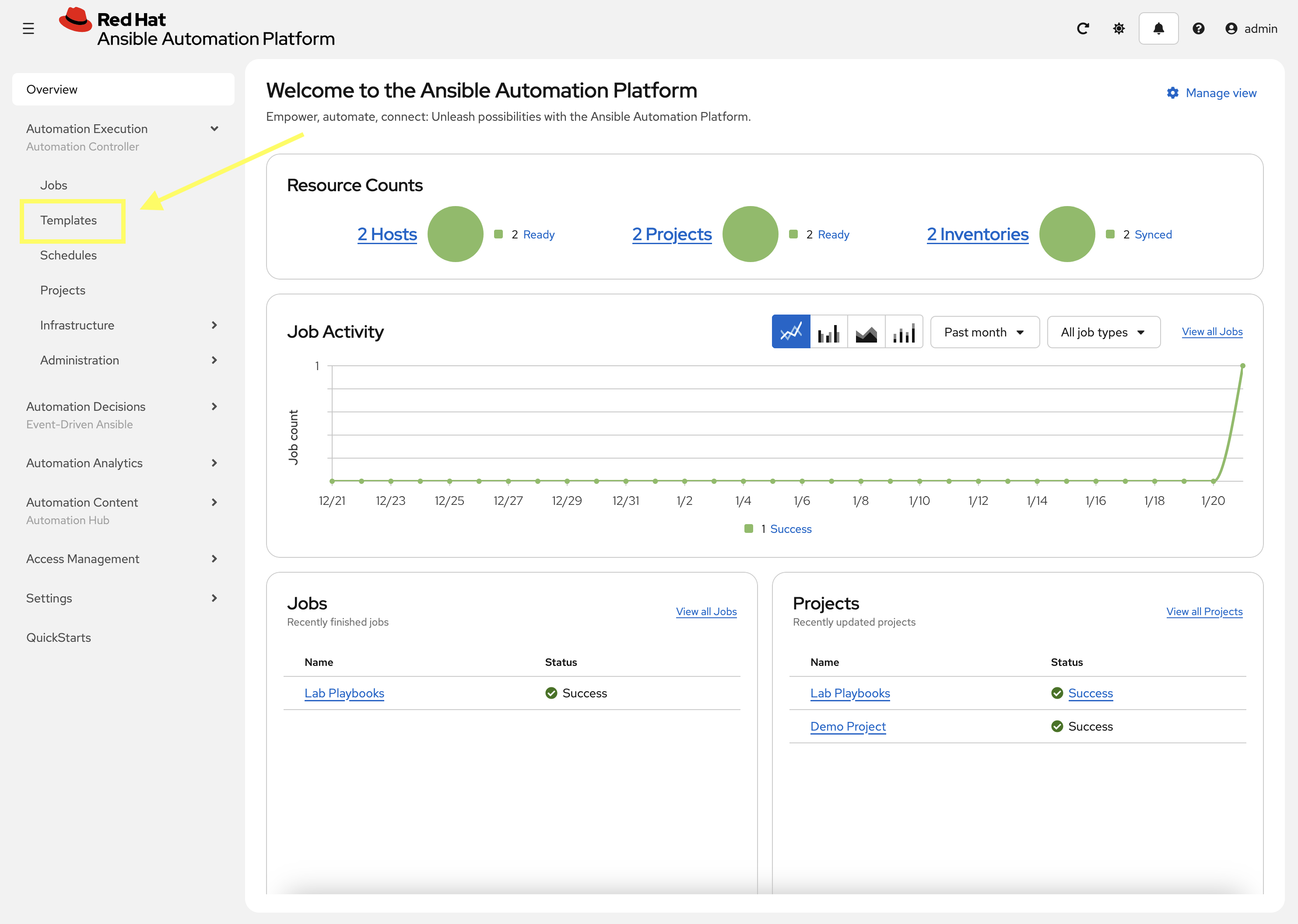

Within the Automation Controller web interface, go to Automation Execution → Templates.
Add a new job template using the newly created and synchronized iis_start.yml:
Enter the following details on he Create Job Template page:
1. Name: Start IIS
2. Organization: Default
3. Inventory: super-lab
4. Project: Lab playbooks
5. Execution Environment: My Custom PAH EE
6. Playbook: iis_start.yml
7. Credential: Windows
Click Create job template.

2: Configure EDA Controller

Now that the remediation playbook is created and available as a job template within Automation Controller, it’s time to configure the remaining components within EDA Controller.

2.1: Setup EDA Credentials

EDA Controller needs access to Automation Controller as well as the project files which require Credentials to be created in order to access the protected resources. Even though these are already configured in Automation Controller, we still have to create them again within EDA.

2.1.1: AAP Credential

This credential specifies the Automation Controller hostname and authentication details for EDA to trigger job templates.

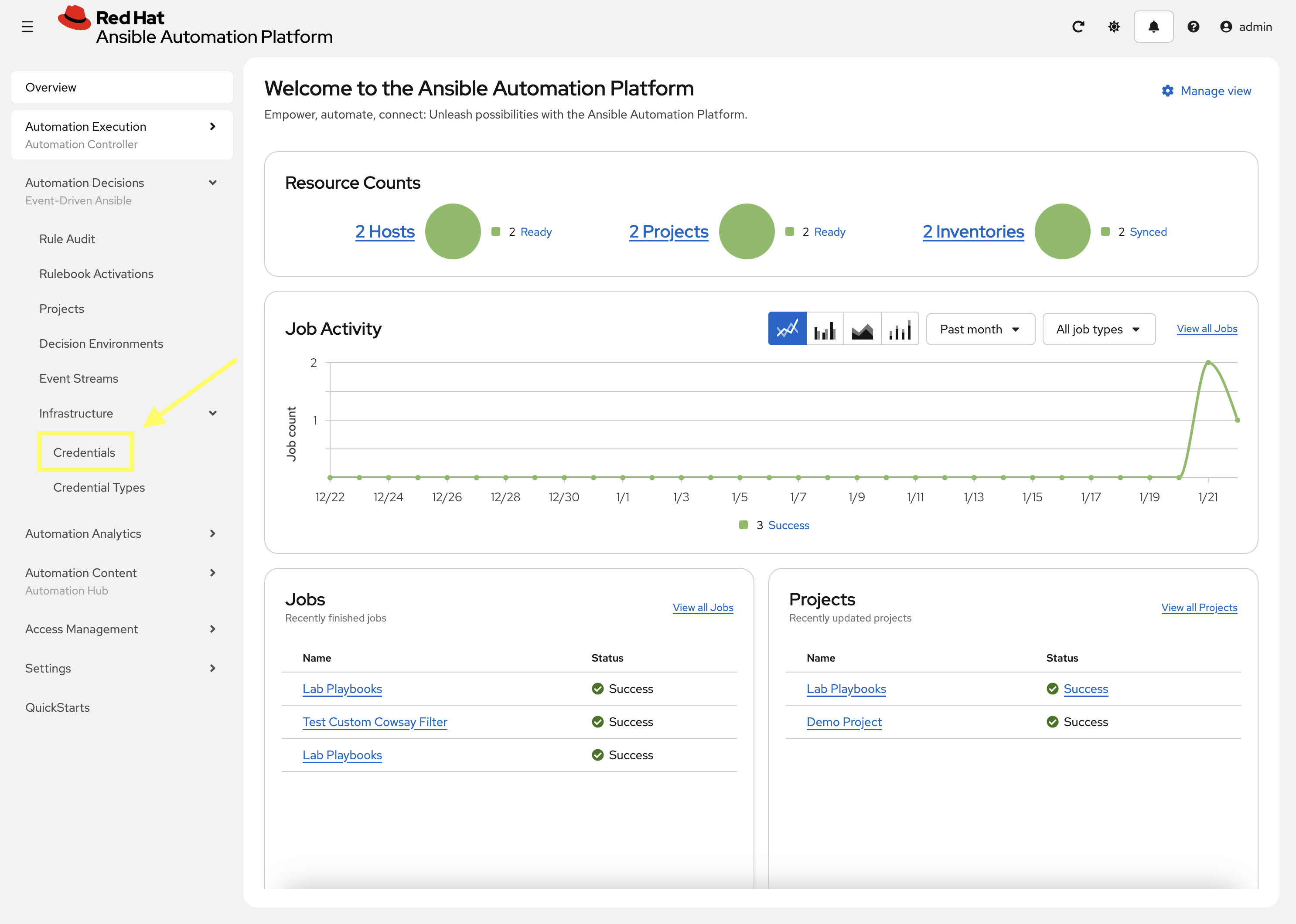

Navigate to Automation Decisions then Infrastructure and finally Credentials

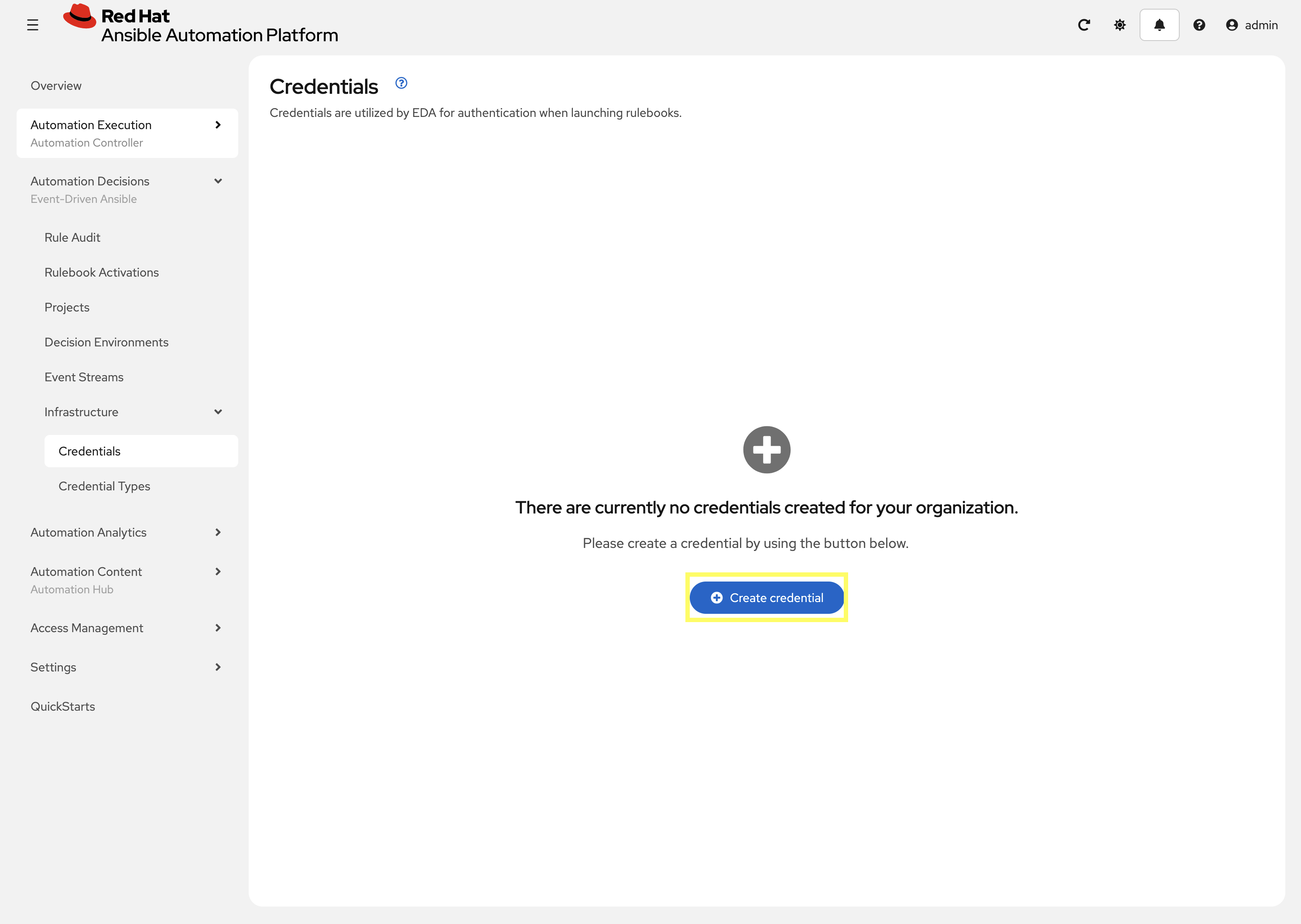

Select Create credential

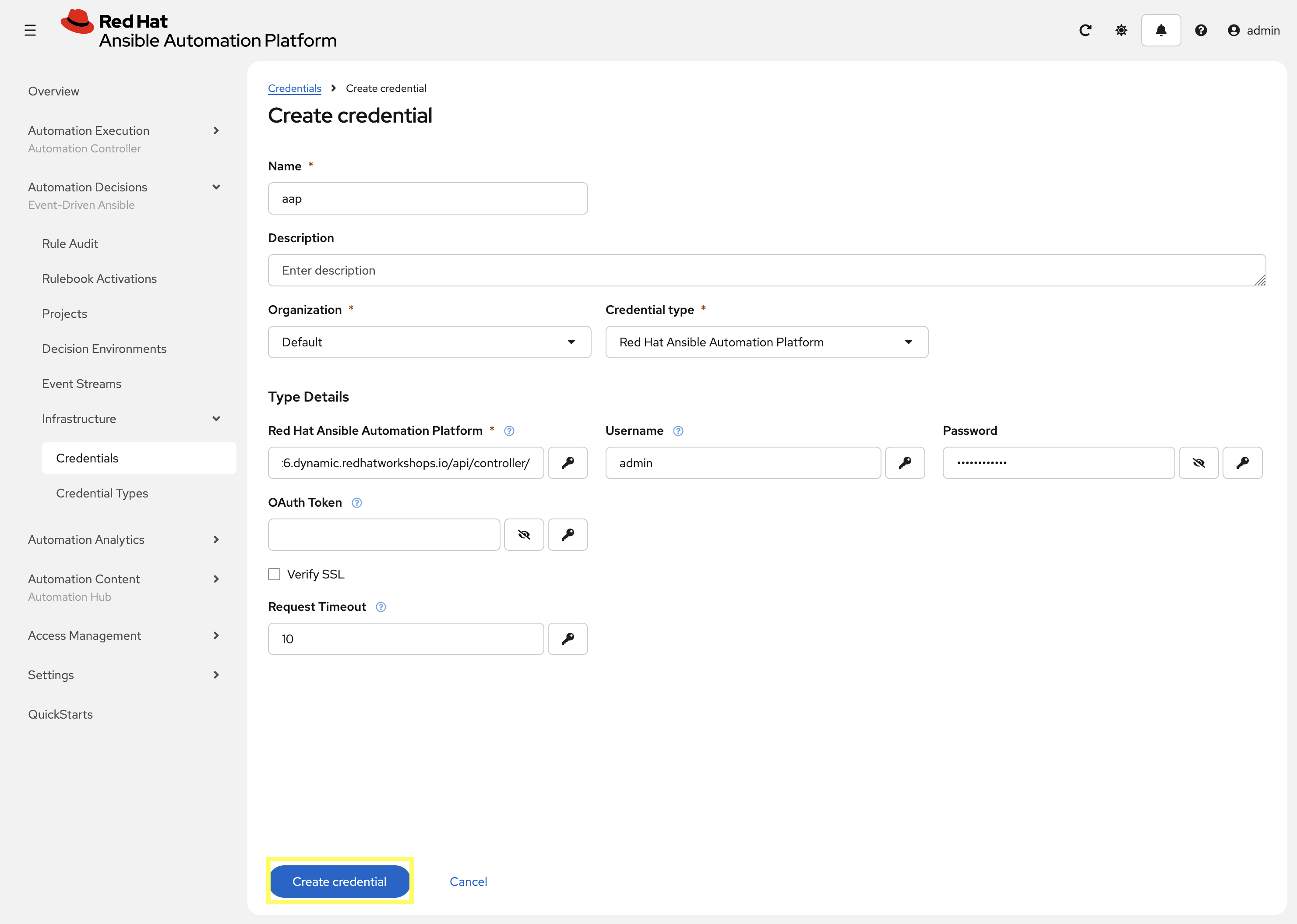

Create a new credential for Automation Controller with the following details:
1. Name: aap
2. Organization: Default
3. Credential type: In the drop-down start to type Red Hat which should search and find Red Hat Ansible Automation Platform
4. Red Hat Ansible Automation Platform: {aap_controller_web_url}/api/controller/
5. Username: {aap_controller_admin_user}
6. Password: {aap_controller_admin_password}
Click Create Credential

2.1.2: Container Registry Credential

Next, create a credential for EDA Controller to access Decision Environments.

Navigate again to Automation Decisions → Infrastructure → Credentials → Create credential

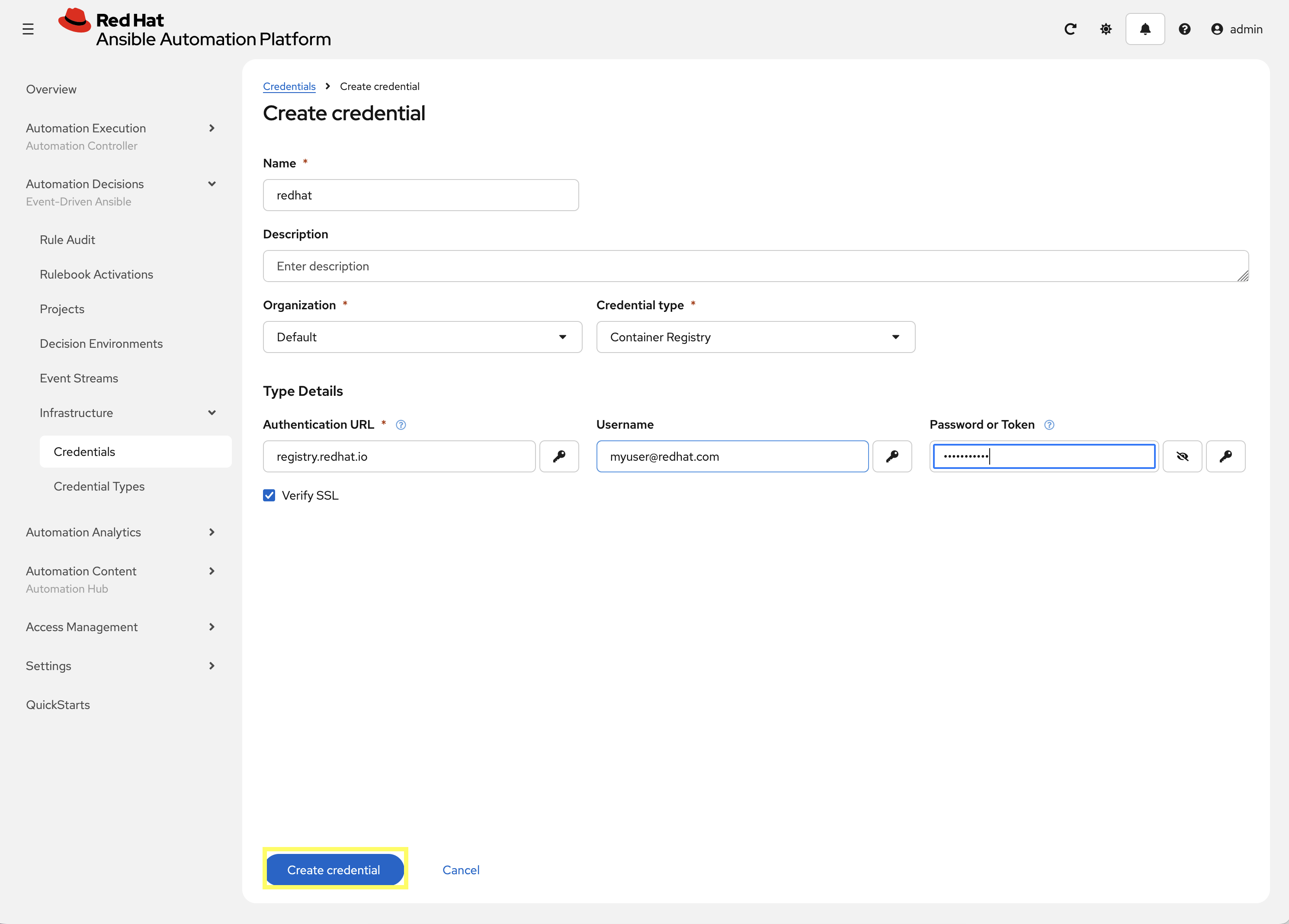

Create a new credential to access Decision Environments with the following details:
1. Name: redhat
2. Organization: Default
3. Credential type: Container Registry
4. Authentication URL: registry.redhat.io
5. Username: YOUR_REDHAT_USERNAME
6. Password: YOUR_REDHAT_PASSWORD
Click Create Credential

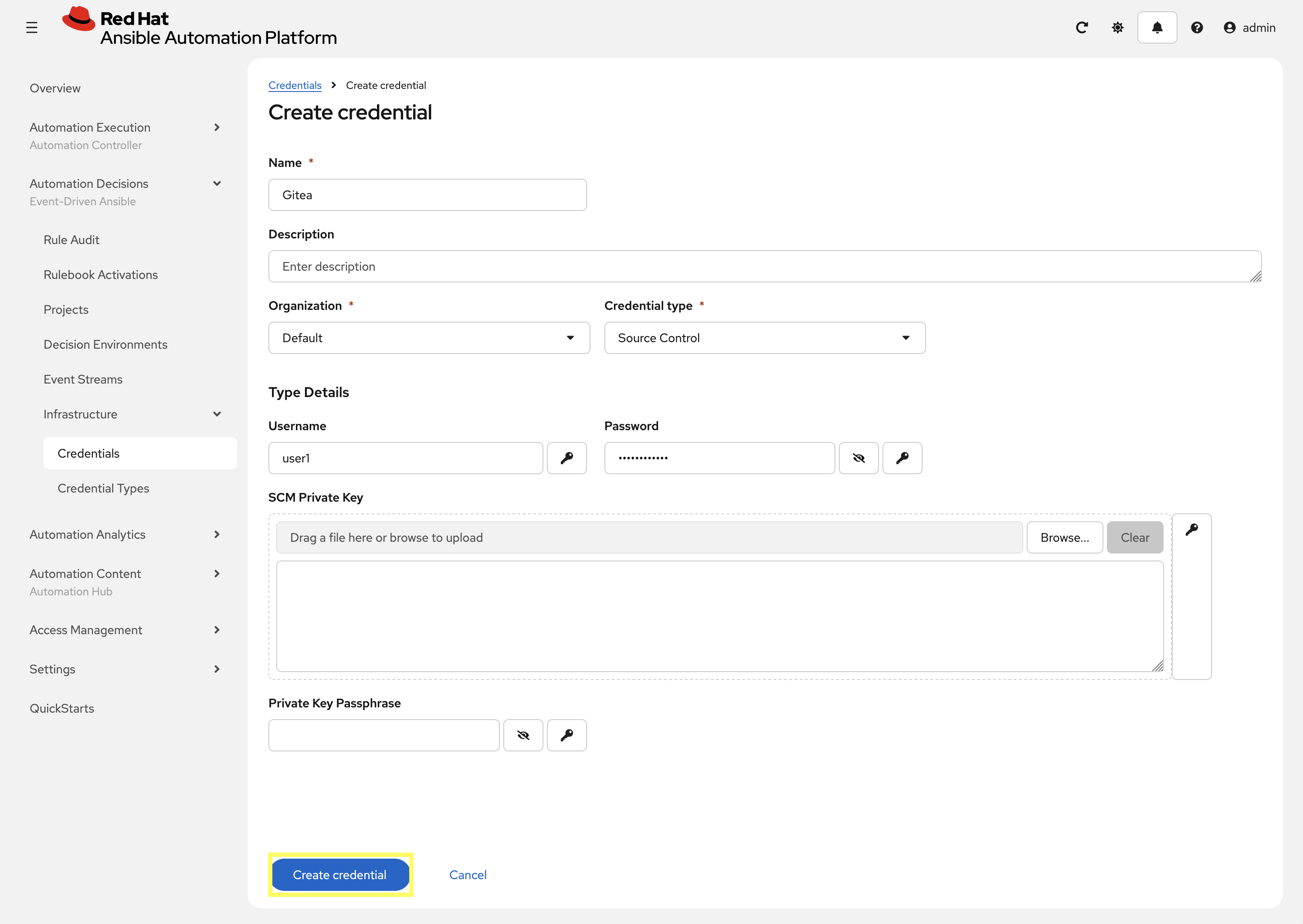

2.1.3: Gitea Credential

Create a credential for EDA Controller to access the rulebooks stored in Gitea:

Navigate to Automation Decisions → Infrastructure → Credentials → Create credential
Create a new credential to access Gitea with the following details:
1. Name: Gitea
2. Organization: Default
3. Credential type: In the drop-down start to type Source which should search and find Source Control
4. Username: {gitea_user}
5. Password: {gitea_password}
Click Create Credential

2.2: Setup EDA Project

Create a project for the lab_playbooks repository which contains the playbook and rulebook:

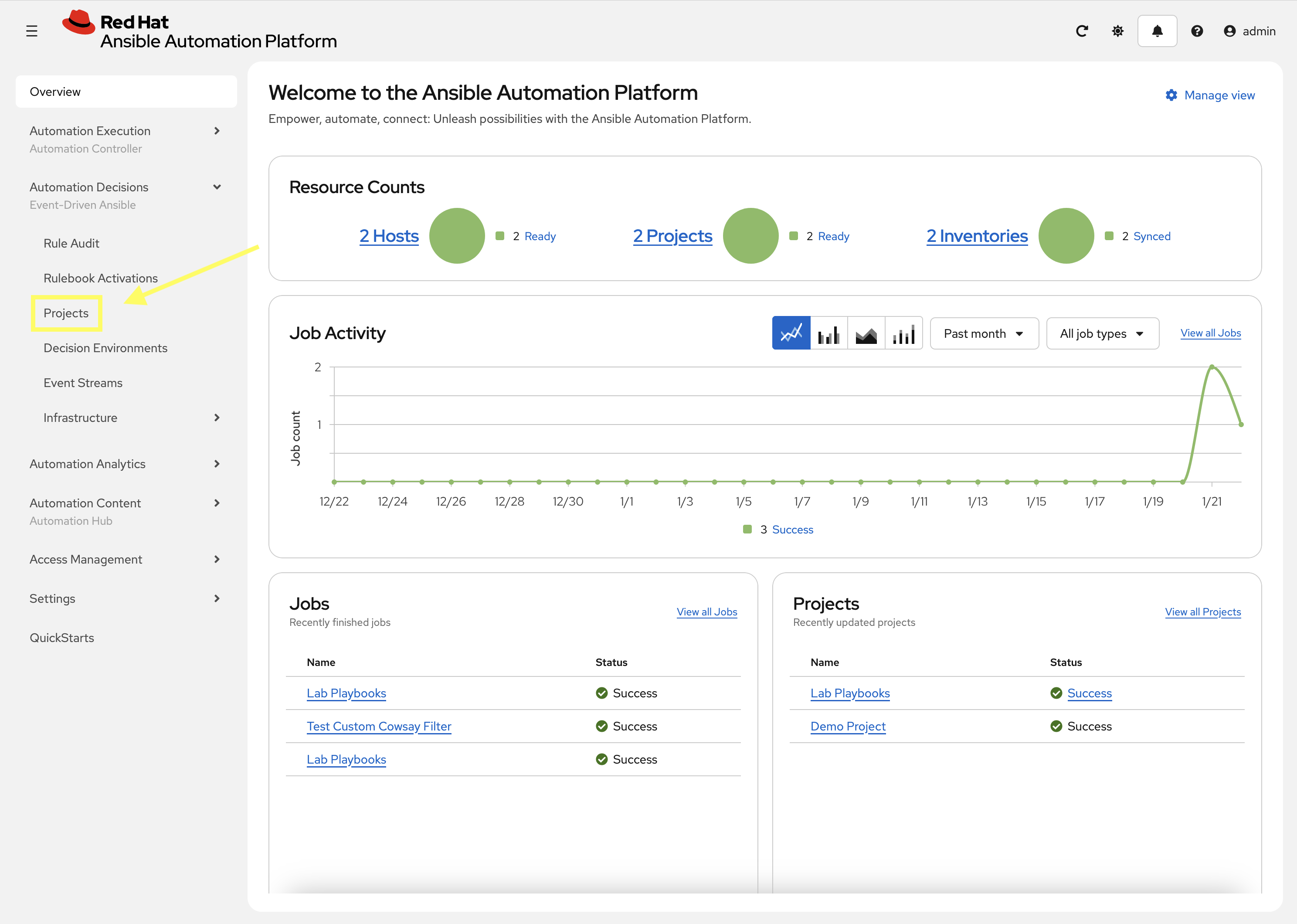

Navigate to Automation Decisions → Projects
Click Create project

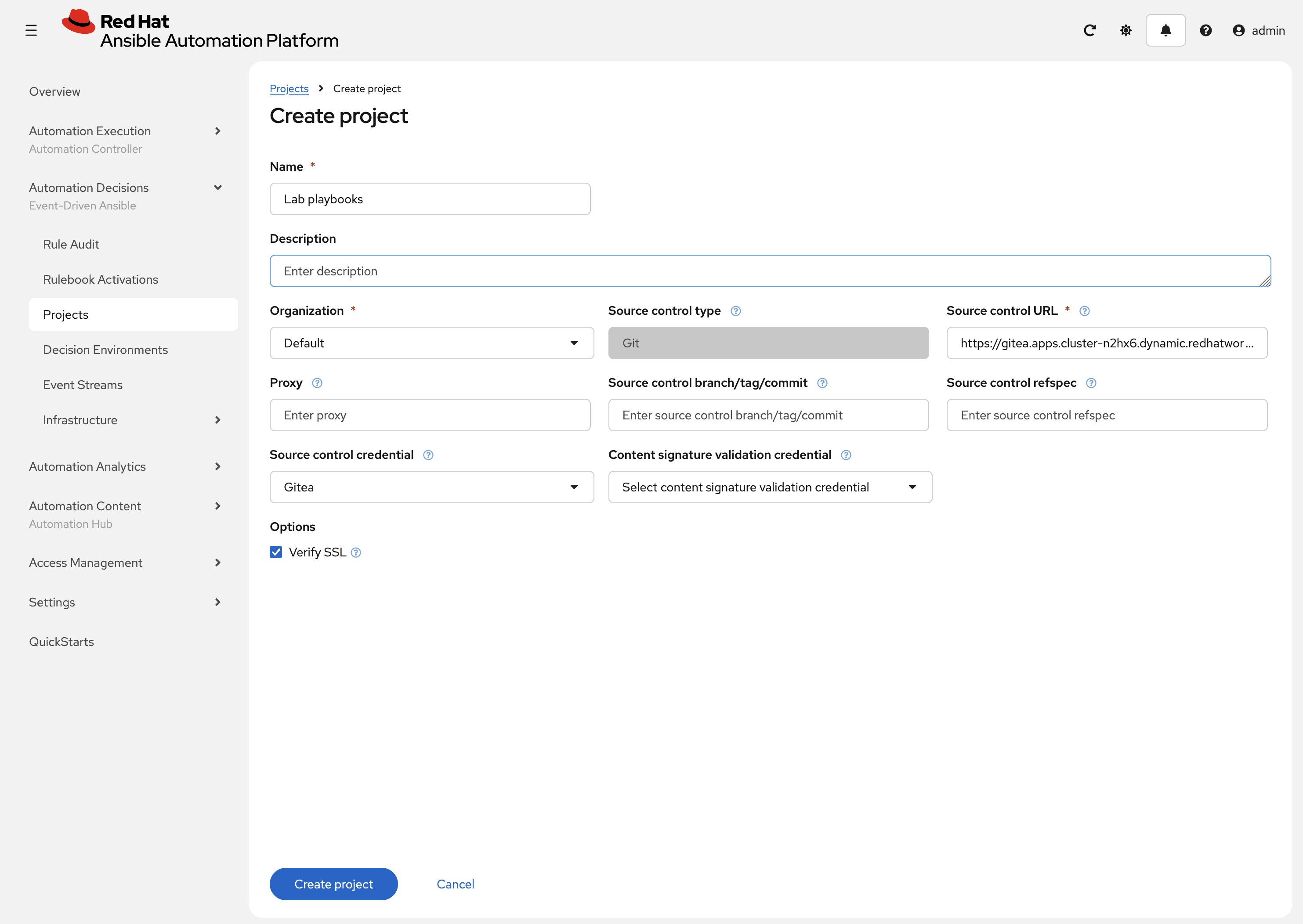

Create a new project with the following details:
1. Name: Lab playbooks
2. Organization: Default
3. Source control URL: {gitea_console_url}/{gitea_user}/lab_playbooks.git
4. Source control credential: Select the previously created Gitea credential
Click Create project

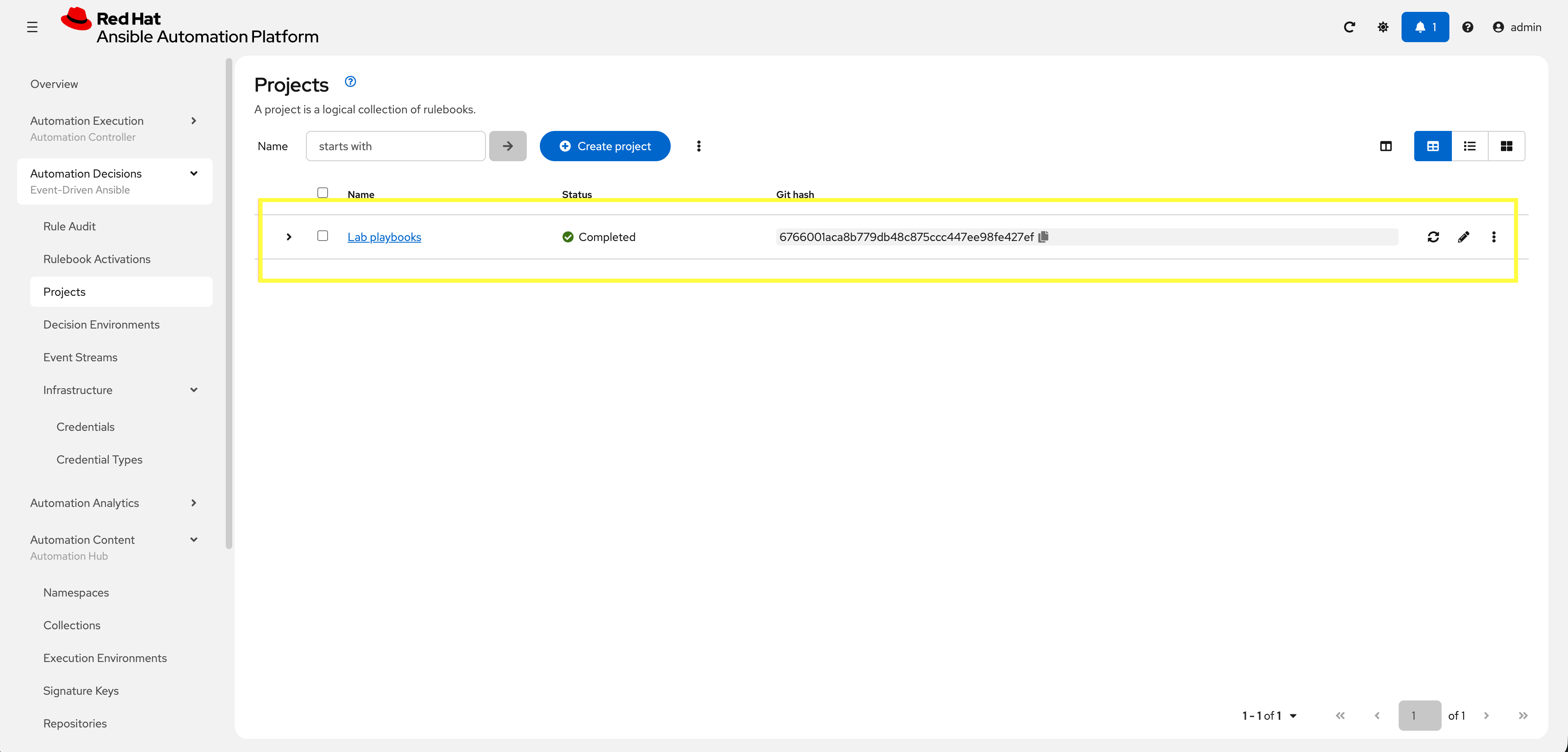

Ensure the project syncs properly

2.3: Setup Decision Environment

A decision environment is conceptually similar to an Execution Environment, but used to run Rulebooks. Configure one now:

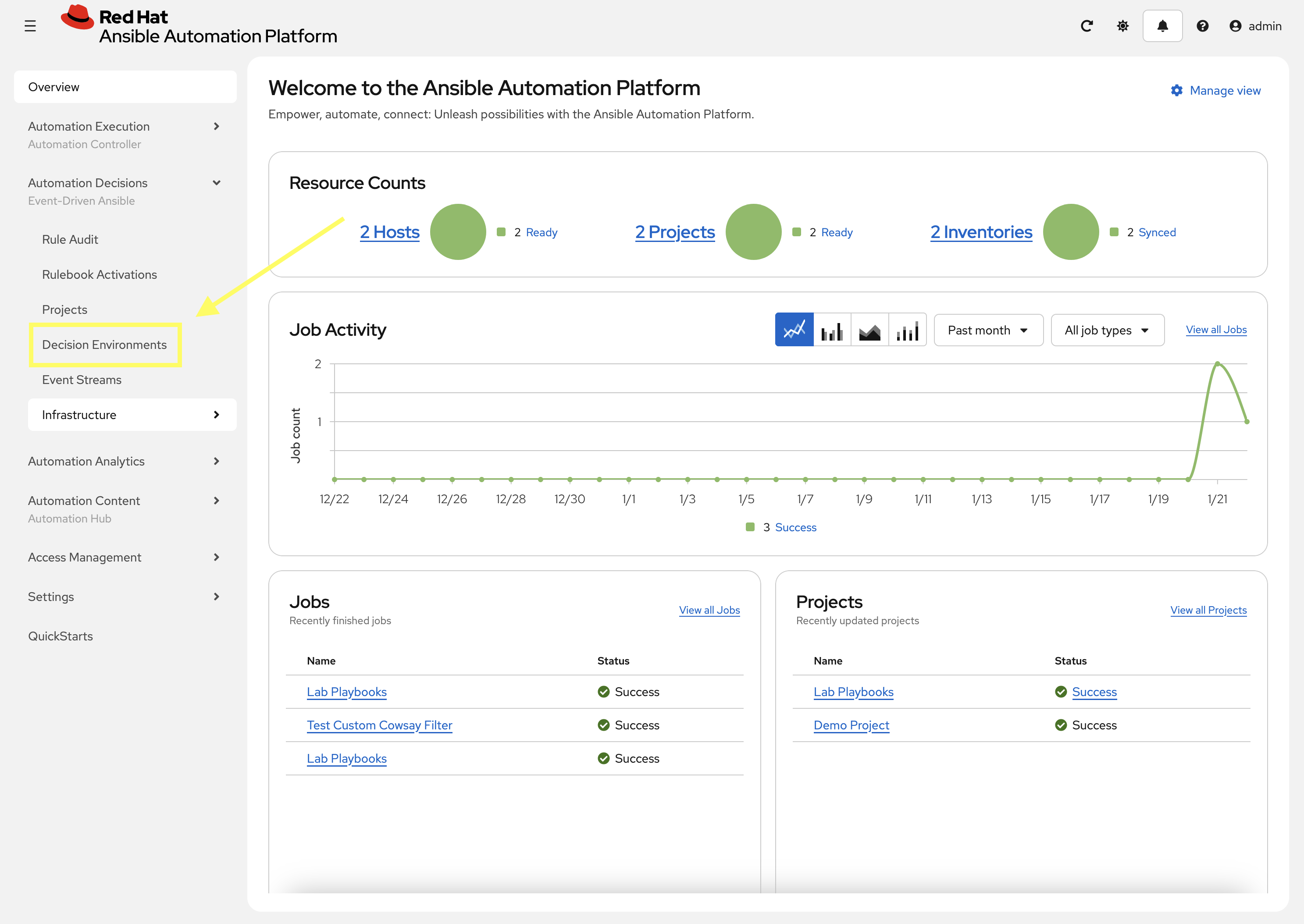

Navigate to Automation Decisions → Decision Environments
Click Create new Decision Environment

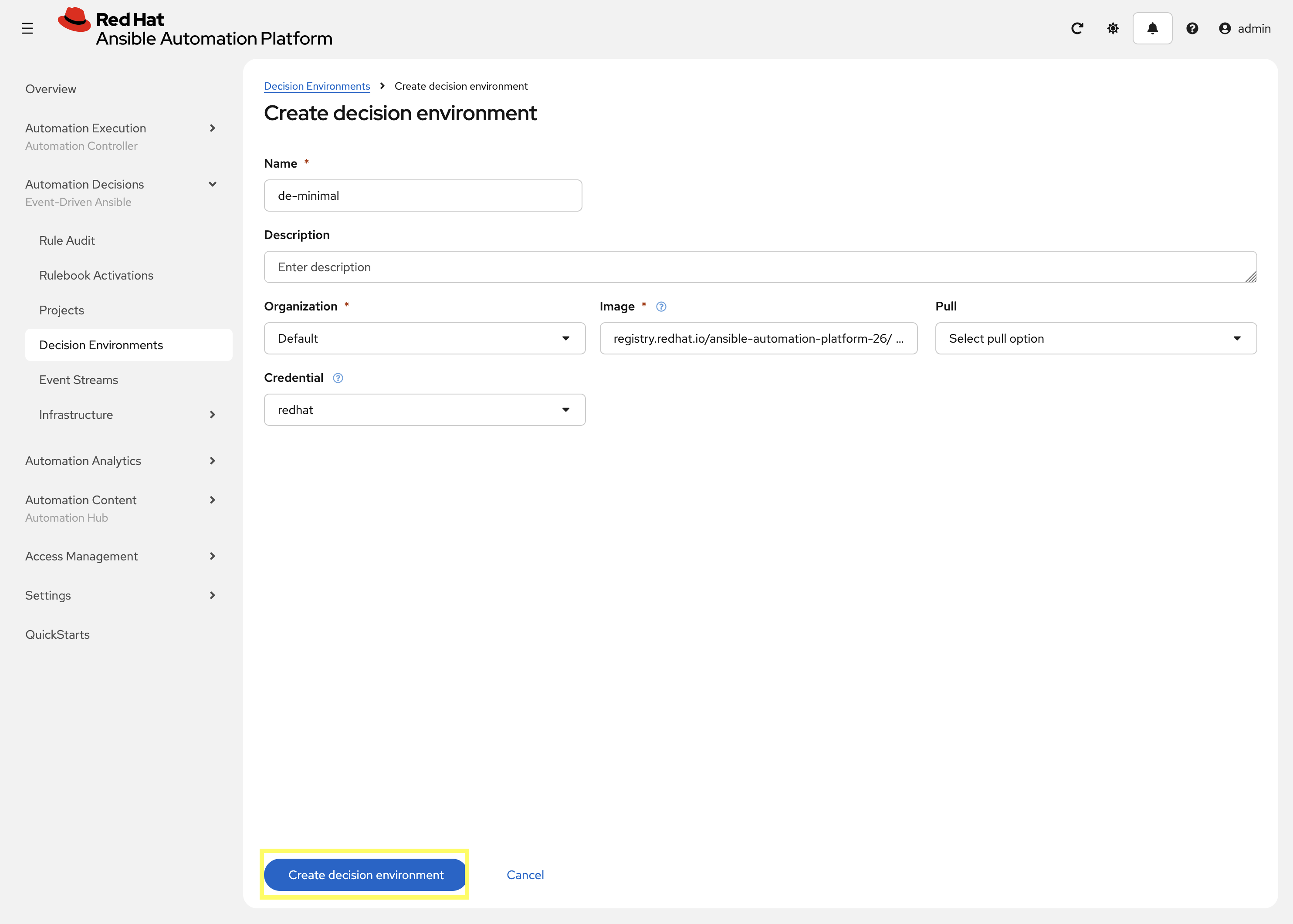

Create a new Decision Environment with the following details:
1. Name: de-minimal
2. Organization: Default
3. Image: registry.redhat.io/ansible-automation-platform-26/de-minimal-rhel9:latest
4. Credential: redhat
Click Create decision environment

2.4: Setup Rulebook Activation

The final step is to configure EDA Controller to execute and monitor according to your Rulebook:

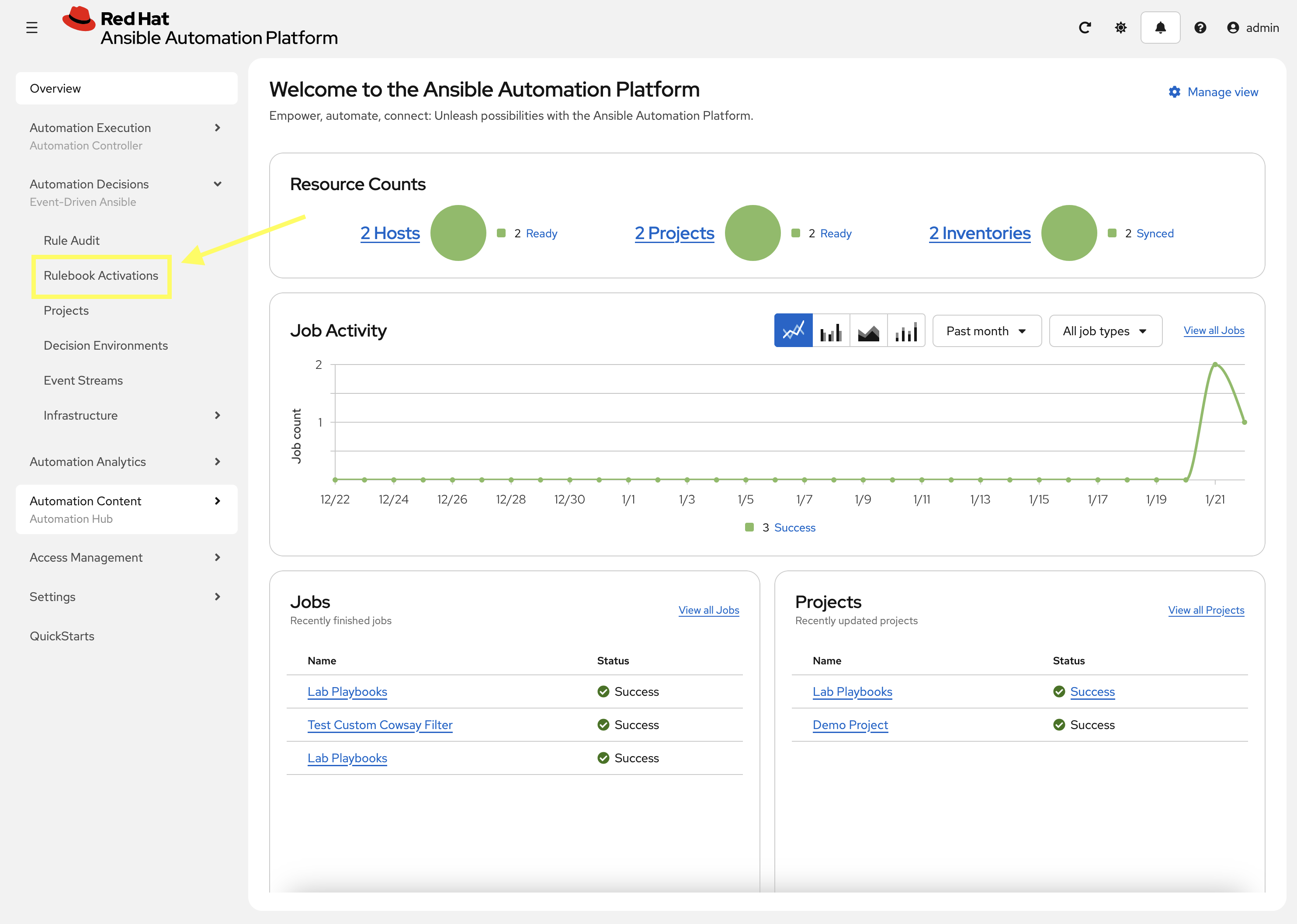

Navigate to Automation Decisions → Rulebook Activations
Click Create Rulebook Activation

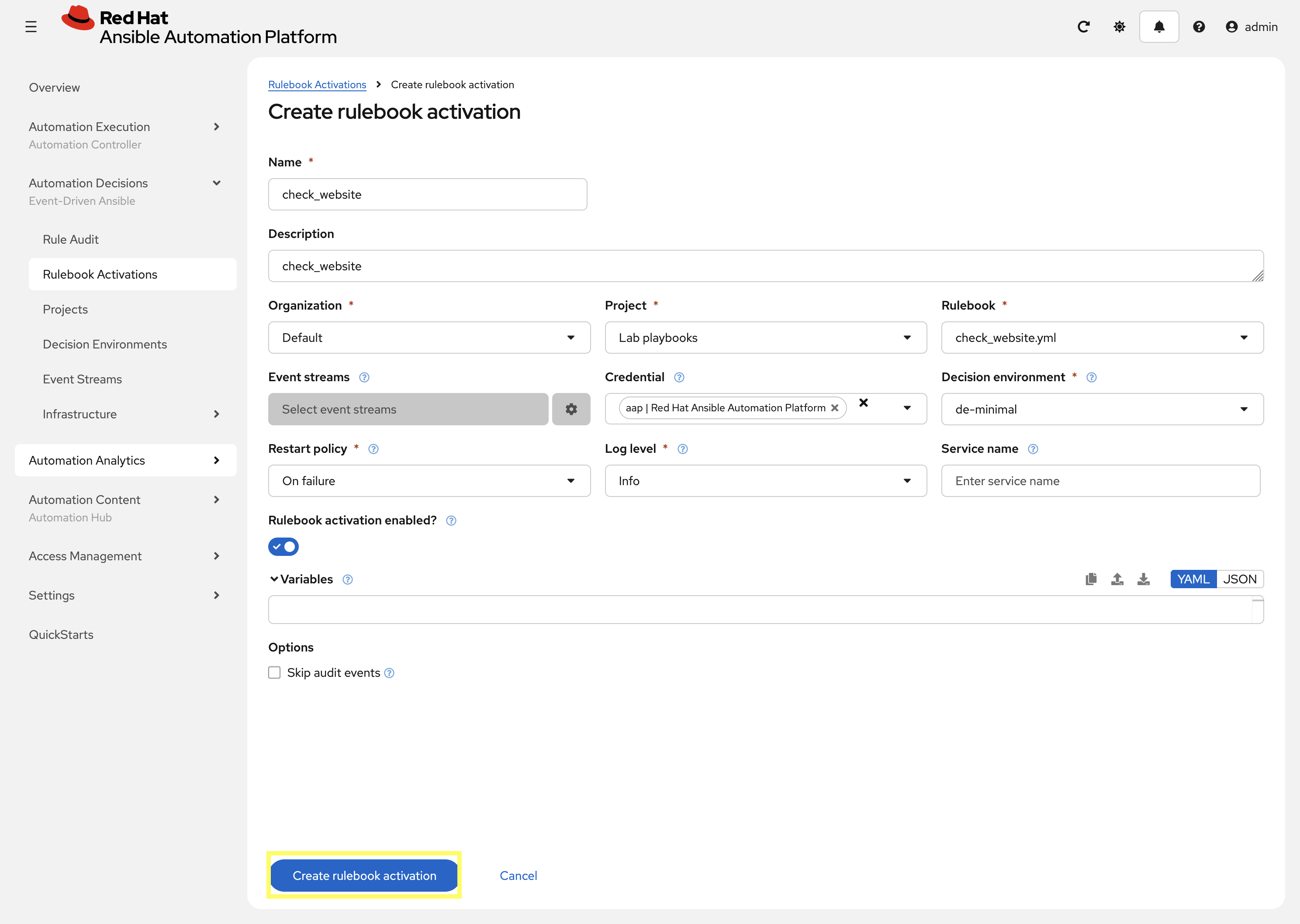

Create a new *Rulebook Activation with the following details:
1. Name: check_website
2. Organization: Default
3. Project: Lab playbooks
4. Credential: aap | Red Hat Ansible Automation Platform
5. Rulebook: In the drop-down select check_website.yml
6. Decision Environment: de-minimal
7. Log level: Info
Click Create rulebook activation and the Rulebook will begin to activate

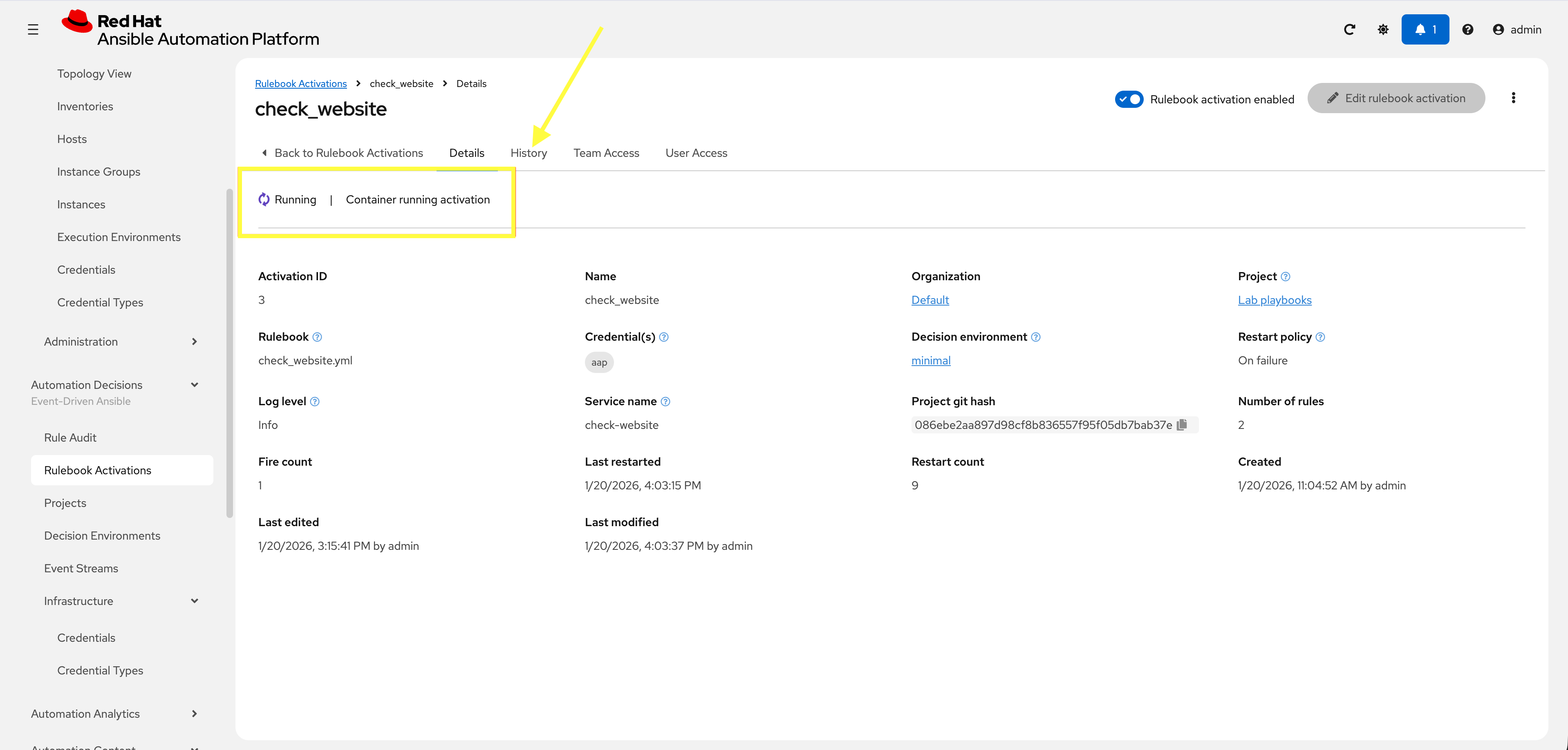

You can now click on check_website to view details

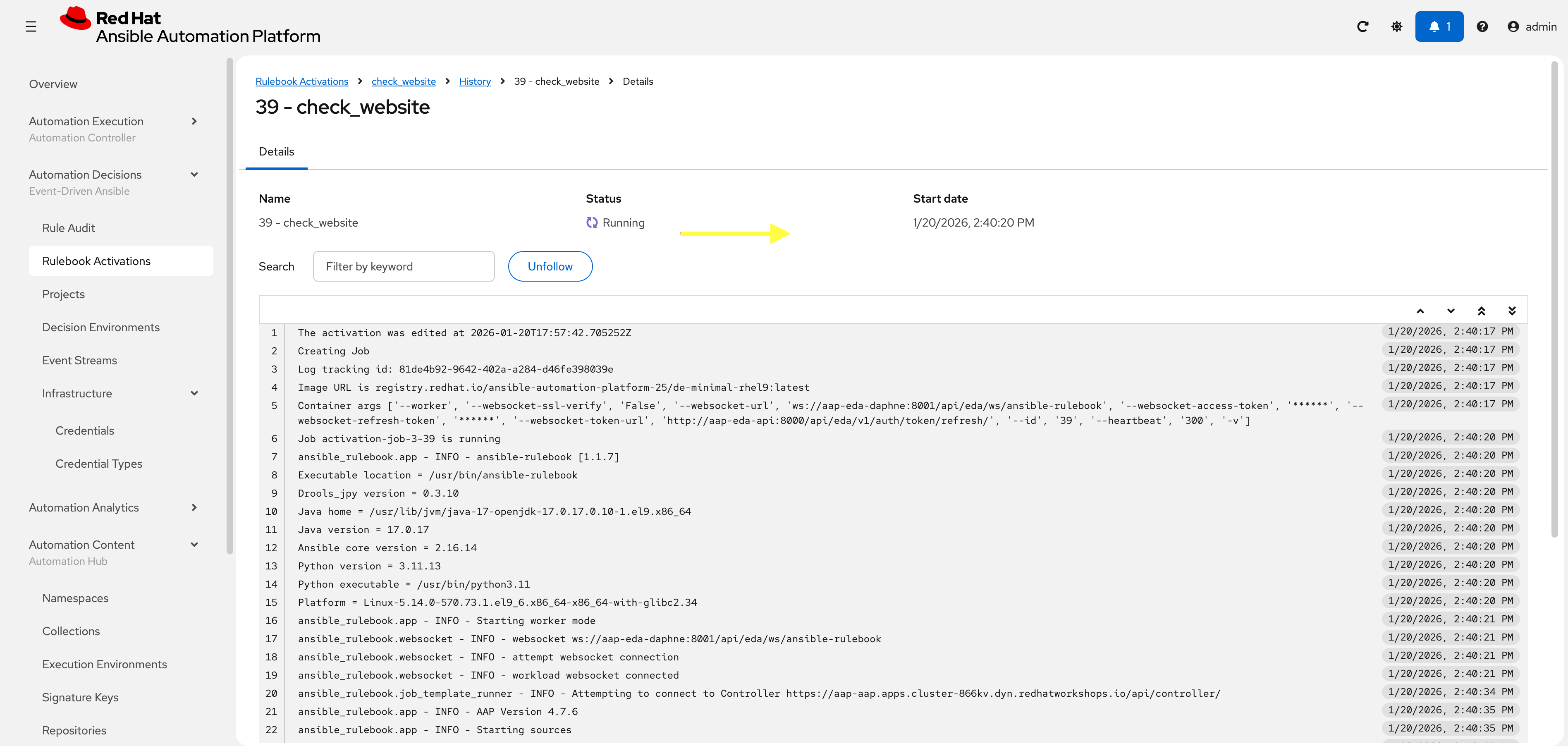

To view more detail, select History to watch activity. Review this tab until it is in Running state

3: Verify Remediation Self-Healing

In this section we will manually stop the IIS service and watch as EDA detects this and starts the service automatically.

3.1: Simulate IIS Failure

Now, we will simulate a failure by stopping the IIS service manually.

In one window, continue to monitor the Rulebook activation. As long as IIS is healthy, you should see this in the History tab:

ansible_rulebook.rule_set_runner - INFO - Waiting for actions on events from Listen for events on a webhook
ansible_rulebook.rule_set_runner - INFO - Waiting for events, ruleset: Listen for events on a webhook
ansible_rulebook.websocket - INFO - feedback websocket connected
[debug] ******************************************
IIS is healthy.
********************************************************************************
[debug] ******************************************
IIS is healthy.
********************************************************************************
[debug] ******************************************
IIS is healthy.
********************************************************************************
...

From your Dev Spaces terminal, run the following command to stop the IIS service:

ansible --module-name ansible.windows.win_service windows \
  --args "name=W3SVC state=stopped" \
  --extra-vars @/projects/env/secrets.yml

ansible [core 2.19.3]
  config file = /projects/lab_playbooks/ansible.cfg
  configured module search path = ['/home/user/.ansible/plugins/modules', '/usr/share/ansible/plugins/modules']
  ansible python module location = /usr/local/lib/python3.11/site-packages/ansible
  ansible collection location = /home/user/.ansible/collections:/usr/share/ansible/collections
  executable location = /usr/local/bin/ansible
  python version = 3.11.13 (main, Aug 21 2025, 00:00:00) [GCC 11.5.0 20240719 (Red Hat 11.5.0-11)] (/usr/bin/python3.11)
  jinja version = 3.1.6
  pyyaml version = 6.0.3 (with libyaml v0.2.5)
Using /projects/lab_playbooks/ansible.cfg as config file
[WARNING]: Found both group and host with same name: windows
Skipping callback 'default', as we already have a stdout callback.
Skipping callback 'oneline', as we already have a stdout callback.
windows | CHANGED => {
    "can_pause_and_continue": false,
    "changed": true,
    "depended_by": [],
    "dependencies": [
        "WAS",
        "HTTP"
    ],
    "description": "Provides Web connectivity and administration through the Internet Information Services Manager",
    "desktop_interact": false,
    "display_name": "World Wide Web Publishing Service",
    "exists": true,
    "name": "W3SVC",
    "path": "C:\\Windows\\system32\\svchost.exe -k iissvcs",
    "start_mode": "auto",
    "state": "stopped",
    "username": "LocalSystem"
}

Verify the website is down with curl:

curl http://windows.aap.svc.cluster.local

curl: (7) Failed to connect to windows.aap.svc.cluster.local port 80: Connection refused

3.2: View Rulebook Activation

Return to EDA Controller on the History tab for check_website:

The URL check runs every 30 seconds. You should quickly see this in the History page:

ansible_rulebook.action.run_job_template - INFO - running job template: Fix IIS Service, organization: Default
ansible_rulebook.action.run_job_template - INFO - job results url: https://aap-aap.apps.cluster-866kv.dyn.redhatworkshops.io/#/jobs/43/details
ansible_rulebook.action.run_job_template - INFO - controller job id: 43
[debug] ******************************************
IIS is healthy.
********************************************************************************
[debug] ******************************************
IIS is healthy.
********************************************************************************
...

3.3: Validate IIS Service

Return to the Dev Spaces terminal and double-check everything is once again running:

Use curl again to verify the webpage can be accessed:

curl http://windows.aap.svc.cluster.local

Welcome to Super Lab IIS Server
Machine ID S-1-5-21-2979851890-3482578088-4054385452
Hostname windows.lab.sandbox-866kv-ocp4-cluster.svc.cluster.local
Deployed on 2026-01-19 at 18:38:43

Confirm the IIS service is running with ansible:

ansible --module-name ansible.windows.win_service windows \
  --args "name=W3SVC" \
  --extra-vars @/projects/env/secrets.yml

ansible [core 2.19.3]
  config file = /projects/lab_playbooks/ansible.cfg
  configured module search path = ['/home/user/.ansible/plugins/modules', '/usr/share/ansible/plugins/modules']
  ansible python module location = /usr/local/lib/python3.11/site-packages/ansible
  ansible collection location = /home/user/.ansible/collections:/usr/share/ansible/collections
  executable location = /usr/local/bin/ansible
  python version = 3.11.13 (main, Aug 21 2025, 00:00:00) [GCC 11.5.0 20240719 (Red Hat 11.5.0-11)] (/usr/bin/python3.11)
  jinja version = 3.1.6
  pyyaml version = 6.0.3 (with libyaml v0.2.5)
Using /projects/lab_playbooks/ansible.cfg as config file
[WARNING]: Found both group and host with same name: windows
Skipping callback 'default', as we already have a stdout callback.
Skipping callback 'oneline', as we already have a stdout callback.
windows | SUCCESS => {
    "can_pause_and_continue": false,
    "changed": false,
    "depended_by": [],
    "dependencies": [
        "WAS",
        "HTTP"
    ],
    "description": "Provides Web connectivity and administration through the Internet Information Services Manager",
    "desktop_interact": false,
    "display_name": "World Wide Web Publishing Service",
    "exists": true,
    "name": "W3SVC",
    "path": "C:\\Windows\\system32\\svchost.exe -k iissvcs",
    "start_mode": "auto",
    "state": "running",
    "username": "LocalSystem"
}

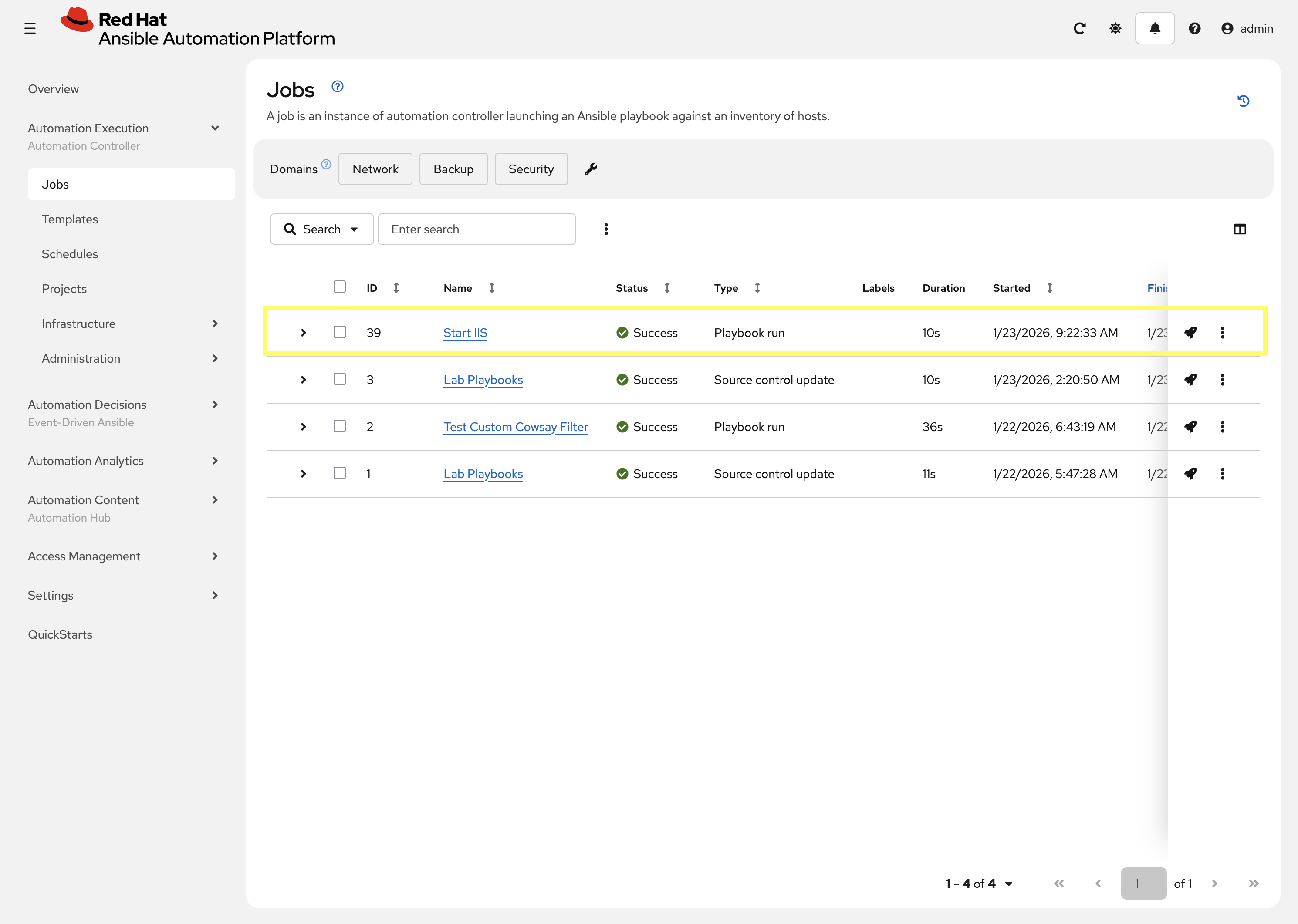

3.4: Verify the Automation Controller Execution

Verify the remediation job was executed within Automation Controller:

Navigate to Automation Controller → Jobs.
Confirm that a new job for Start IIS has been triggered by the eda user.
The job ID should match what was shown in the EDA Controller Rulebook Activation for check_website

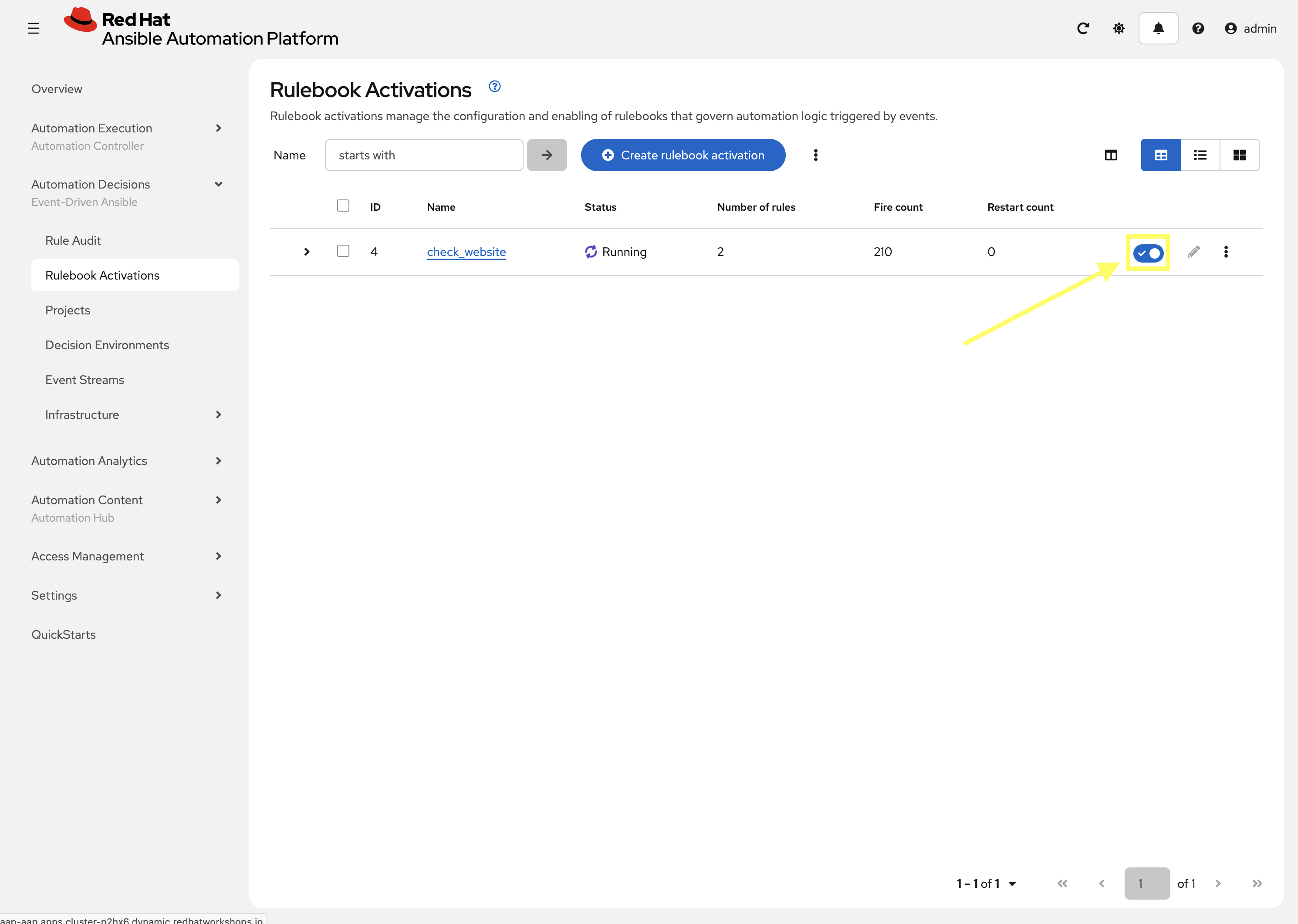

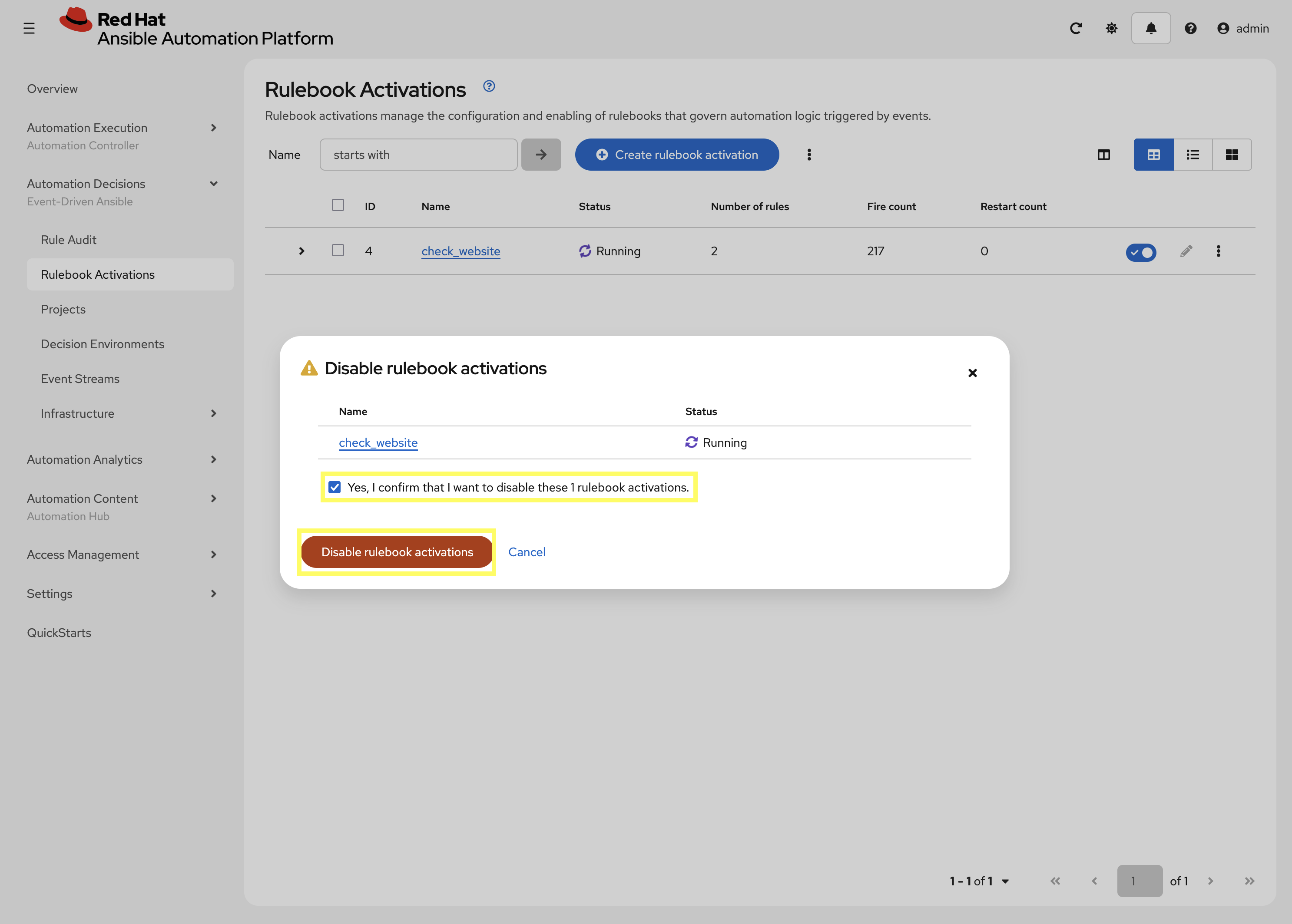

4. Disable check_website Rulebook Activation

Before starting this lab, disable the check_website Rulebook Activation created in this lab so that it does not interfere with next lab.

Navigate to Automation Controller web interface go to Automation Decisions → Rulebook Activations
Deselect the toggle for the check_website Rulebook Activation to disable it
Select the checkbox to confirm disabling and click Disable rulebook activations

Summary

You have successfully implemented an agentless monitoring and remediation workflow. By using the url_check source plugin, you ensured that the application is monitored from the "outside-in," verifying not just that the service is running, but that the web server is actually responding to HTTP requests.

Helpful Links

For additional reference and deeper learning on managing EDA Controller:
