API Walkthrough

Module goals

Understand the basics of creating an API request in RHACS
Work througha few use cases
Come up with a few use cases of your own

Overview of an API request

An API (Application Programming Interface) request is a way for a client (such as a web or mobile application) to communicate with a server to retrieve or send data. The request typically involves sending an HTTP method (GET, POST, PUT, DELETE) to a specified endpoint (URL) along with any necessary headers and body data.

Components of an API Request

Endpoint: The URL where the API is located.
HTTP Method: Specifies the type of operation:
- GET: Retrieve data.
- POST: Send data to the server to create a new resource.
- PUT: Update an existing resource.
- DELETE: Remove a resource.
Headers: Provide metadata such as authentication tokens, content type, etc.
Body: Contains data to be sent to the server, usually in JSON format (for POST and PUT requests).

RHACS API Overview

Red Hat Advanced Cluster Security (RHACS) for Kubernetes provides a robust API that allows users to programmatically interact with the platform. This API enables automation, integration, and customization of various security operations within the Kubernetes environment.

The API documentation can be found inside of the application after deployment.

RHACS Endpoint

The RHACS API endpoint can be found using an 'oc' or 'kubectl' command to the URL of the central service.

For example,

oc -n stackrox get route central -o jsonpath='{.spec.host}'

[lab-user@bastion ~]$ oc -n stackrox get route central -o jsonpath='{.spec.host}'
central-stackrox.apps.cluster-kftnc.sandbox866.opentlc.com

The RHACS API offers various endpoints for different functionalities such as policies, clusters, deployments, and compliance. Common endpoint categories include /v1/policies, /v1/clusters, /v1/deployments, and /v1/compliance. The API typically uses JSON for both requests and responses. Ensure that your API client is capable of handling JSON data.

Best Practices for Token-Based Authentication in RHACS

Token Rotation: Regularly rotate signing keys to enhance security.
Least Privilege: Issue tokens with minimal required permissions to reduce the impact of token compromise.
Monitor and Audit: Continuously monitor and audit API requests for suspicious activities.
Token Revocation: Implement mechanisms to revoke tokens when necessary, such as upon user logout or suspicion of token compromise.

Headers/Authentication

Red Hat Advanced Cluster Security (RHACS) employs token-based authentication to secure its API requests, ensuring only authorized users and systems can interact with its resources.

We will demonstrate this workflow after but the typical RHACS token-based authentication process contains the following

User Authentication: Users authenticate themselves through a login process, typically via the OpenShift login page or using an identity provider (IdP) integrated with OpenShift.
Token Generation: Upon successful authentication, the user is issued a JSON Web Token (JWT) or a similar token type. This token encodes user identity and associated permissions.
Authorization Header: The user, when making API requests to RHACS, the token is included in the HTTP Authorization header using the Bearer schema: Authorization: Bearer <token>.
Token Verification: RHACS backend verifies the token by checking its signature, expiration time, and claims. Then, based on the token’s claims, RHACS determines the API request’s level of access and permissions. Only authorized or expired tokens are accepted.

All API requests are made over HTTPS to ensure data encryption during transmission, preventing token interception and man-in-the-middle attacks.

Common Operations:

GET: Retrieve information (e.g., list of policies, details of a specific deployment).
POST: Create new resources (e.g., create a new policy).
PUT: Update existing resources (e.g., modify an existing policy).
DELETE: Remove resources (e.g., delete a policy).

Interacting with the RHACS API

Procedure

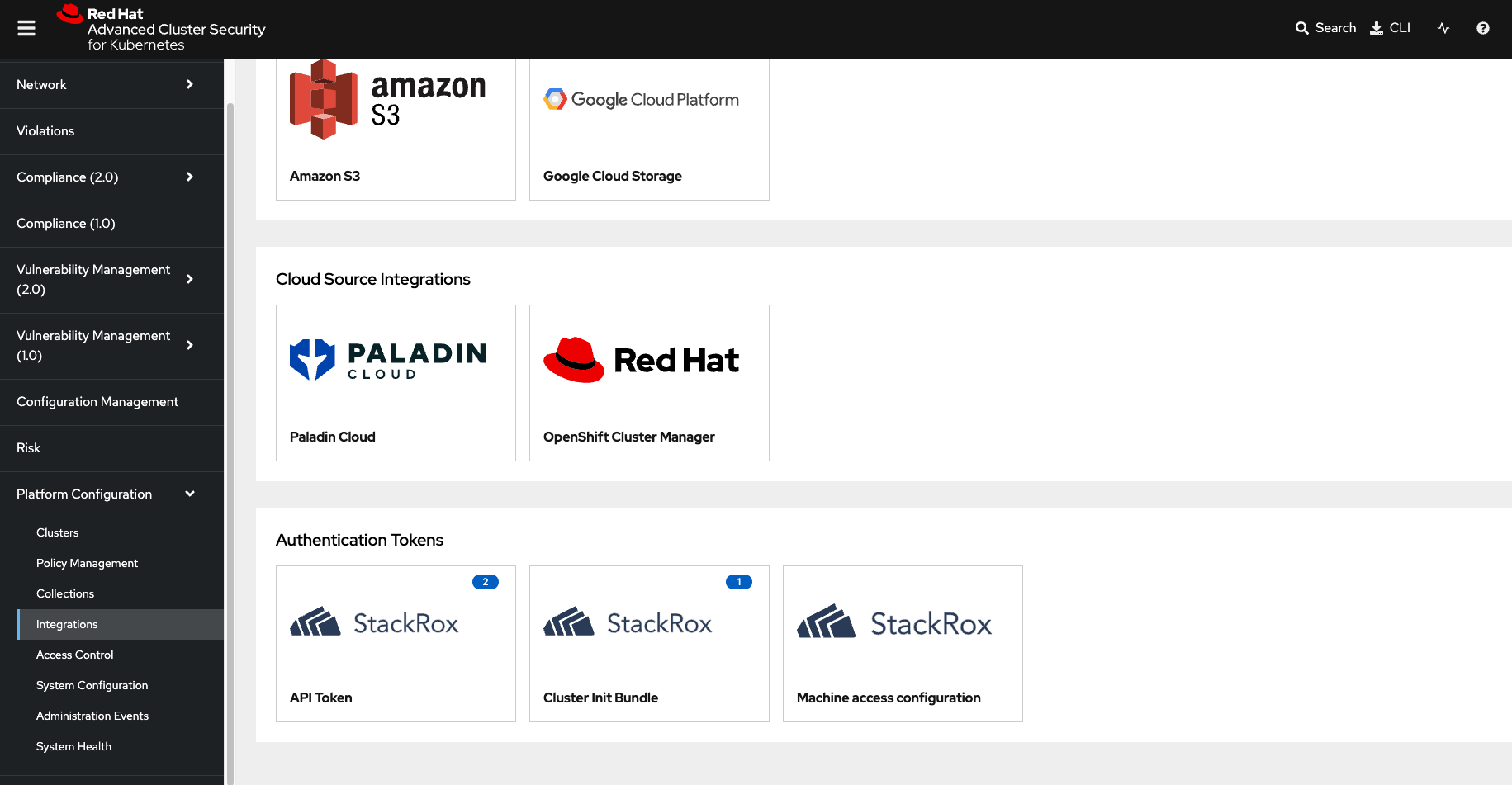

Head back to the RHACS dashboard and on Platform Configuration → Integrations and scroll to the bottom of the page.

Click on *API Token.
Click on Generate token
Give your token a name, select Admin, since we are going to need full access to RHACS Central
Click Generate
Now it’s time to export the API token as a variable for the roxctl CLI.

IMPORTANT:Be sure to put the AP token in the correct location.

export ROX_CENTRAL_ADDRESS="$(oc -n stackrox get route central -o jsonpath='{.spec.host}')"
export ROX_API_TOKEN=

echo $ROX_CENTRAL_ADDRESS
echo $ROX_API_TOKEN

central-stackrox.apps.cluster-kftnc.sandbox866.opentlc.com
<a long API token>

View, create and update policies via API Requests

Use a tool like curl, Postman, or a programming language with HTTP client libraries (e.g., Python’s requests library) to interact with the API. Below are a few examples of what you can do with the API requests and RHACS.

Example using curl where you get a list of policies

curl -k -H "Authorization: Bearer $ROX_API_TOKEN" "https://$ROX_CENTRAL_ADDRESS/v1/policies" | jq

Sample output

...
    {
      "id": "ccd66f67-0b69-4081-9d01-da692f7db3b4",
      "name": "Mount Container Runtime Socket",
      "description": "Alert on deployments with a volume mount on the container runtime socket",
      "severity": "MEDIUM_SEVERITY",
      "disabled": false,
      "lifecycleStages": [
        "DEPLOY"
      ],
      "notifiers": [],
      "lastUpdated": null,
      "eventSource": "NOT_APPLICABLE",
      "isDefault": true
    },
...

Example using curl to get a list of alerts

curl -k -H "Authorization: Bearer $ROX_API_TOKEN" "https://$ROX_CENTRAL_ADDRESS:443/v1/alerts" | jq

Sample output

...
      },
      "state": "ACTIVE",
      "enforcementCount": 0,
      "enforcementAction": "UNSET_ENFORCEMENT",
      "commonEntityInfo": {
        "clusterName": "production",
        "namespace": "external-secrets",
        "clusterId": "06b403e7-95f5-4389-8dce-b46505b0e6b4",
        "namespaceId": "e08d8226-d38d-4985-9ff9-a5fed622b49f",
        "resourceType": "DEPLOYMENT"
      },
      "deployment": {
        "id": "3ba88ba5-46f3-4792-94de-30f735ee0e0a",
        "name": "external-secrets",
        "clusterName": "production",
        "namespace": "external-secrets",
        "clusterId": "06b403e7-95f5-4389-8dce-b46505b0e6b4",
        "inactive": false,
        "namespaceId": "e08d8226-d38d-4985-9ff9-a5fed622b49f"
      }
    }
  ]
}

Let’s cut down on that list of alerts into something more manageable

You can use queries as part of the URL to simplify the request to RHACS. You can also use a tool like 'jq' to filter through the output as you well see in the following step.

curl -k -H "Authorization: Bearer $ROX_API_TOKEN" https://$ROX_CENTRAL_ADDRESS:443/v1/alerts?query="Namespace:vault" | jq

Sample output

{
  "alerts": [
    {
      "id": "698801da-a6c5-43b6-9d74-a9eeda03241e",
      "lifecycleStage": "RUNTIME",
      "time": "2024-07-15T16:09:15.141729903Z",
      "policy": {
        "id": "8ab0f199-4904-4808-9461-3501da1d1b77",
        "name": "Kubernetes Actions: Exec into Pod",
        "severity": "HIGH_SEVERITY",
        "description": "Alerts when Kubernetes API receives request to execute command in container",
        "categories": [
          "Kubernetes Events"
        ],
        "developerInternalFields": null
......
      "deployment": {
        "id": "3cbac7a0-769e-4746-95ed-659d6bff4a28",
        "name": "vault-agent-injector",
        "clusterName": "production",
        "namespace": "vault",
        "clusterId": "06b403e7-95f5-4389-8dce-b46505b0e6b4",
        "inactive": false,
        "namespaceId": "85469adb-1094-4ebe-a415-a526c9c95e98"
      }
    }
  ]
}

As mentioned before, let’s use the previous command without the added query and sort the output using 'jq'. This time let’s find all of the ACTIVE alerts and pull the IDs of those alerts

curl -k -H "Authorization: Bearer $ROX_API_TOKEN" "https://$ROX_CENTRAL_ADDRESS:443/v1/alerts" | jq -r '.alerts[] | select(.state=="ACTIVE") | .id'

10d4046e-08fc-4d55-b9c0-af84bc419a27
e9f4ce99-145c-43c2-8cb4-ac1688794430
abdfa6eb-bf06-4bcc-b988-2c8f95027075
e831ed50-d2c3-482e-b033-e2e67e39c7cb
f9ac92c8-8a53-40b2-92c5-7327af7fba9e
....
62cab1d9-2da4-477b-a758-b3a67528c52f
680dafd2-aaa2-4cd2-820d-558578368335
a6732fdc-f2b2-44e7-9857-a0c9af996d46
b964c0c6-8b52-4928-a8eb-143e322c64f9

That output will allow you to loop through the IDs of the alerts if you’d like to make bulk changes.

Next let’s combine a few namespaces together using the query feature from before.

curl -k -H "Authorization: Bearer $ROX_API_TOKEN" https://$ROX_CENTRAL_ADDRESS/v1/alerts?query="Cluster:production+Namespace:stackrox,kube-system" | jq -r '.'

Combination search query with URL-safe encoding:

curl -k -H "Authorization: Bearer $ROX_API_TOKEN" https://$ROX_CENTRAL_ADDRESS/v1/alerts?query=Severity%3AHIGH_SEVERITY%2BNamespace%3Apayments | jq -r '.'

Search filter for time range:

curl -k -H "Authorization: Bearer $ROX_API_TOKEN" https://$ROX_CENTRAL_ADDRESS/v1/alerts?query==Violation%20Time%3A%3E1d | jq -r '.'

Documentation and Resources

The official RHACS API documentation provides detailed information on all available endpoints, request formats, and responses. This is available within the RHACS console.

A task to complete on your own.

Review the API and come up with your own use case that can help automate your day-to-day workflows.

We’ll discuss after the module is done.

Summary

Great work! On to the last module!
