6.2 Promote the verified digest to production

Table of Contents

Why this control exists
Learning objectives
Exercise
Review
- Inspect the committed prod configuration
- Compare Git intent with live cluster evidence
Carry the result into Track 7
Official documentation
Key takeaways

In this module you prove that production desired state is a commit on a second Git remote, carrying the same signed digest you already admitted on stage.

This is the second module in Track 6, which runs the signed Java application image as the production container and refuses an unsigned digest. The prod remote is student_prod_gitops_repo_url, repository lw-student/gitops-prod-spring-boot-lw-poc. The seed digest is sha256:REPLACE_ME_PROD_DIGEST, replicas is 0, and the prod tree has no TrustPolicy file. Admission on lw-poc-prod already landed from 6.1 Deploy the signed image with stage GitOps. You commit the signed digest. Verify that Application lw-poc-prod uses this production remote.

Why this control exists

Promotion is a deliberate commit to production desired state. Keep the production Application connected to the production GitOps repository so production changes require a separate commit. You verify this separation by inspecting the Application’s source URL in the terminal. After this module, lw-poc-prod sources the prod remote, the ImagePolicy from 6.1 still holds, and the running digest is the one you signed.

oc tag still does not copy .sig tags. You copy the signature onto the prod ImageStream and sign that destination with the 5.3 key, the same sequence as stage. Konflux Release Service maps to this commit. The term map is Appendix: Konflux mapping.

Lightwell Network and Lightwell Clearinghouse do not change the promote remote. The GAV is already inside the digest.

Separate stage and production GitOps repositories carry the same verified digest to their own Argo CD Applications

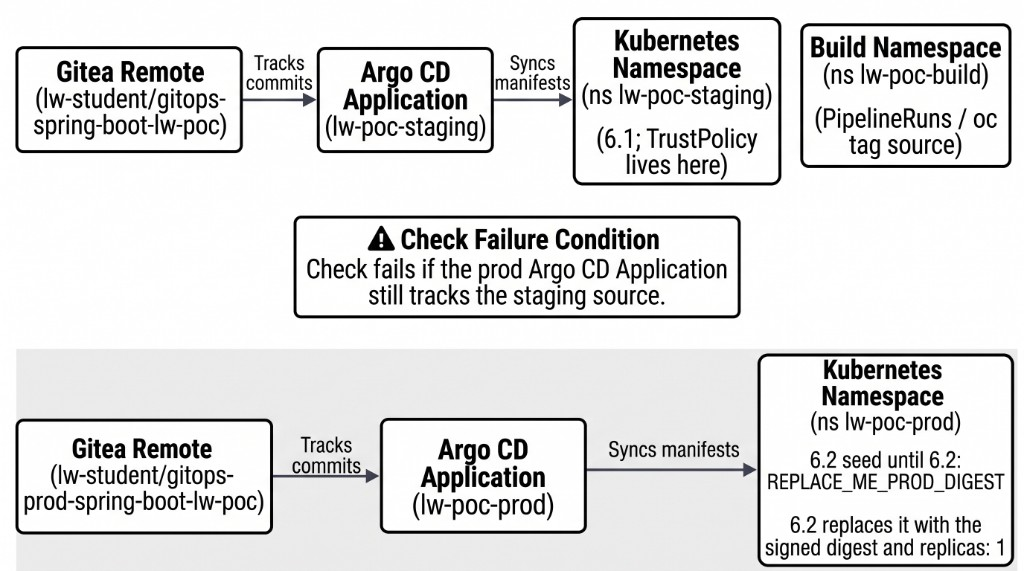

As the figure shows, module 6.1 filled the stage remote. In this module you replace sha256:REPLACE_ME_PROD_DIGEST with the signed digest and set replicas: 1 on lw-student/gitops-prod-spring-boot-lw-poc. Application lw-poc-prod keeps sourcing that remote.

In a customer engagement, promotion is a merge to a prod GitOps repository, or a Release. You push the digest you already signed. Unsigned deny from 6.1 still holds.

Learning objectives

By the end of this module, you will be able to:

Tag the signed image into lw-poc-prod and copy its signature onto that repository
Commit the digest and replicas: 1 on the prod GitOps remote
Show Application lw-poc-prod sourcing gitops-prod-spring-boot-lw-poc, Synced and Healthy
Compare the saved digest, production Git commit, synced revision, and running application evidence

Exercise

Confirm the digest and admission key

Run these commands in the Showroom terminal. You need the final image.txt and verification outputs from Track 5, the existing private key, and the public key published in tssc-admission/lab-cosign-pubkey. Success means the saved digest still matches the build tag and the published public key matches your local key. If the tag moved, return to Track 5 and refresh the signing, policy, and SBOM evidence before continuing. Do not generate a replacement key here.

BUILD_NS="$(oc -n gitea get configmap lab-gitea -o jsonpath='{.data.student_build_namespace}')"
IMAGE="$(cat /home/lab-user/lightwell-signing-evidence/image.txt)"
CURRENT_IMAGE="$(oc -n "$BUILD_NS" get istag spring-boot-lw-poc:latest -o jsonpath='{.image.dockerImageReference}')"
[[ "$IMAGE" == *@sha256:* && "$IMAGE" == "$CURRENT_IMAGE" ]] || { echo "Return to Track 5: verified digest differs from build tag"; exit 1; }
DIGEST="${IMAGE##*@}"
test -f /home/lab-user/lab-trust/cosign.key || { echo "Recover your Track 5 signing key"; exit 1; }
oc -n tssc-admission get configmap lab-cosign-pubkey \
  -o jsonpath='{.data.cosign\.pub}' > /tmp/track6-admission.pub
python3 -c 'import pathlib, sys; sys.exit(pathlib.Path(sys.argv[1]).read_bytes() != pathlib.Path(sys.argv[2]).read_bytes())' /home/lab-user/lab-trust/cosign.pub /tmp/track6-admission.pub \
  || { echo "Admission public key differs from your Track 5 key"; exit 1; }
printf 'Verified digest: %s\n' "$DIGEST"

Confirm staging and production policy are ready

Before copying, confirm stage still runs the saved digest with one Ready replica. Both namespaces need the ImagePolicy from 6.1 and the MachineConfigPools must have finished applying it. If the digest differs, stop and reconcile the evidence before promoting.

STAGE_NS="$(oc -n gitea get configmap lab-gitea -o jsonpath='{.data.student_promote_namespace}')"
PROD_NS="$(oc -n gitea get configmap lab-gitea -o jsonpath='{.data.student_prod_namespace}')"
POLICY="$(oc -n tssc-admission get configmap lab-admission -o jsonpath='{.data.policy_name}')"
oc -n "$STAGE_NS" get deploy spring-boot-lw-poc \
  -o jsonpath='image={.spec.template.spec.containers[0].image}{"\n"}ready={.status.readyReplicas}{"\n"}'
oc -n "$STAGE_NS" get imagepolicy "$POLICY"
oc -n "$PROD_NS" get imagepolicy "$POLICY"
oc get mcp

Copy the verified image and its signatures

student_prod_namespace is lw-poc-prod. student_prod_gitops_repo_url is the remote you will clone. Success of the tag is a digest line from the prod ImageStream tag. That digest is the one you signed. cosign copy and cosign sign --key attach the signature ImagePolicy already trusts.

Tag, copy the signature, and sign the prod repository

BUILD_NS="$(oc -n gitea get configmap lab-gitea -o jsonpath='{.data.student_build_namespace}')"
PROD_NS="$(oc -n gitea get configmap lab-gitea -o jsonpath='{.data.student_prod_namespace}')"
PROD_GITOPS="$(oc -n gitea get configmap lab-gitea -o jsonpath='{.data.student_prod_gitops_repo_url}')"
echo "PROD_NS=${PROD_NS}"
echo "PROD_GITOPS=${PROD_GITOPS}"
oc tag "${BUILD_NS}/spring-boot-lw-poc@${DIGEST}" "${PROD_NS}/spring-boot-lw-poc:latest"
oc -n "${PROD_NS}" get istag spring-boot-lw-poc:latest \
  -o jsonpath='{.image.metadata.name}{"\n"}'
TARGET_DIGEST="$(oc -n "${PROD_NS}" get istag spring-boot-lw-poc:latest \
  -o jsonpath='{.image.metadata.name}')"
test "$TARGET_DIGEST" = "$DIGEST" || { echo "Copied digest differs from verified digest"; exit 1; }
SRC="image-registry.openshift-image-registry.svc:5000/${BUILD_NS}/spring-boot-lw-poc@${DIGEST}"
DST="image-registry.openshift-image-registry.svc:5000/${PROD_NS}/spring-boot-lw-poc@${DIGEST}"
mkdir -p /tmp/lab-home /home/lab-user/lightwell-signing-evidence
HOME=/tmp/lab-home cosign login -u unused -p "$(cat /var/run/secrets/kubernetes.io/serviceaccount/token)" \
  image-registry.openshift-image-registry.svc:5000
HOME=/tmp/lab-home cosign copy --allow-http-registry --allow-insecure-registry "${SRC}" "${DST}"
HOME=/tmp/lab-home COSIGN_PASSWORD="" cosign sign --key /home/lab-user/lab-trust/cosign.key \
  --tlog-upload=false --allow-http-registry --allow-insecure-registry \
  "${DST}"
HOME=/tmp/lab-home cosign verify --key /tmp/track6-admission.pub \
  --insecure-ignore-tlog --allow-http-registry --allow-insecure-registry \
  "${DST}" > /home/lab-user/lightwell-signing-evidence/track6-prod-verification.json
VERIFY_STATUS=$?
cat /home/lab-user/lightwell-signing-evidence/track6-prod-verification.json
test "$VERIFY_STATUS" -eq 0 || { echo "Destination signature verification failed"; exit 1; }

Prepare the prod GitOps clone

Clone student_prod_gitops_repo_url. Use the same Showroom credential helper as module 3.2 and keep the remote URL free of passwords. A fresh clone does not inherit the application repository’s author, so set user.name and user.email the same way as 6.1. Success is a clone at /home/lab-user/lightwell-workspace/gitops-prod whose image.digest is still sha256:REPLACE_ME_PROD_DIGEST and whose replicas is still 0.

Clone the prod remote

PROD_GITOPS="$(oc -n gitea get configmap lab-gitea -o jsonpath='{.data.student_prod_gitops_repo_url}')"
: "${STUDENT_USER:=$(oc -n gitea get configmap lab-gitea -o jsonpath='{.data.student_username}')}"
bash /usr/local/libexec/lab-git-setup.sh
test ! -e /home/lab-user/lightwell-workspace/gitops-prod || { echo "Clone already exists: inspect and reuse it before continuing"; exit 1; }
mkdir -p /home/lab-user/lightwell-workspace
git clone "$PROD_GITOPS" /home/lab-user/lightwell-workspace/gitops-prod
cd /home/lab-user/lightwell-workspace/gitops-prod
git config user.name student
git config user.email student@workshop.local

Commit the production desired state

Open /home/lab-user/lightwell-workspace/gitops-prod/values.yaml. Replace only image.digest with $DIGEST and set replicas: 1. Preserve production-specific settings, including its image repository and namespace. Read PROMOTE.md in this clone; do not replace the production files with stage copies. Success is a diff that selects the same admitted digest while retaining production’s configuration.

git diff --check
git diff -- values.yaml
git add values.yaml
git commit -m "Promote verified digest to production"
git push origin HEAD

Reconcile production and inspect the running image

A push alone may not sync. Hard-refresh Application lw-poc-prod after replicas: 1 is on the prod remote. Success is three facts. .spec.source.repoURL is student_prod_gitops_repo_url, which contains gitops-prod-spring-boot-lw-poc. The Application is Synced and Healthy, and REPLACE_ME_PROD_DIGEST is gone. ImagePolicy from 6.1 is still present, so an unsigned tag is still denied.

The repository name without the -prod- segment, gitops-spring-boot-lw-poc.git, is the stage remote. If the production Application shows that URL, it is following the wrong repository.

PROD_GITOPS="$(oc -n gitea get configmap lab-gitea -o jsonpath='{.data.student_prod_gitops_repo_url}')"
# Same as 6.1: push alone may not sync. Hard-refresh after replicas: 1 is on the prod remote.
oc -n openshift-gitops annotate applications.argoproj.io lw-poc-prod \
  argocd.argoproj.io/refresh=hard --overwrite
oc -n openshift-gitops get applications.argoproj.io lw-poc-prod \
  -o jsonpath='repo={.spec.source.repoURL}{"\n"}sync={.status.sync.status}{"\n"}health={.status.health.status}{"\n"}'
oc -n openshift-gitops get applications.argoproj.io lw-poc-prod \
  -o jsonpath='{.spec.source.repoURL}{"\n"}' | grep -F 'gitops-prod-spring-boot-lw-poc' \
  && echo 'prod remote OK' || echo 'STILL TRACKING STAGE OR WRONG REPO'
echo "expected prefix ${PROD_GITOPS}"
oc -n "$PROD_NS" rollout status deploy/spring-boot-lw-poc --timeout=180s
oc -n "$PROD_NS" get deploy spring-boot-lw-poc \
  -o jsonpath='image={.spec.template.spec.containers[0].image}{"\n"}replicas={.spec.replicas}{"\n"}ready={.status.readyReplicas}{"\n"}'
oc -n "$PROD_NS" get pods -l app=spring-boot-lw-poc \
  -o 'custom-columns=NAME:.metadata.name,READY:.status.containerStatuses[0].ready,IMAGE:.status.containerStatuses[0].imageID'
oc -n openshift-gitops get applications.argoproj.io lw-poc-prod \
  -o jsonpath='revision={.status.sync.revision}{"\n"}'
git rev-parse HEAD
oc -n "$PROD_NS" get imagepolicy "$POLICY"

Match the production Git commit Argo source and revision Deployment digest and Ready pod

The diagram is an evidence checklist, not a console capture. Match your production commit, Application source and revision, desired image digest, and Ready pod before continuing.

Review

Compare the production values.yaml digest with the saved Track 5 reference and the Deployment image. Confirm one Ready replica and inspect the pod image ID. The Application must report Synced and Healthy, its source must be the production remote, and its synced revision must match your pushed commit. A hard refresh is a request: repeat these observations until reconciliation finishes. A Healthy Application alone does not prove digest equality or signature verification.

The production ImagePolicy should still exist. Its presence shows the gate is configured; the explicit unsigned rejection was tested in 6.1. Keep that evidence rather than claiming that this module repeats the negative test.

Inspect the committed prod configuration

Run this review in your /home/lab-user/lightwell-workspace/gitops-prod clone. Fetch the remote branch you pushed during the exercise so you inspect published files, not only local edits. Stop if the fetch fails. FETCH_HEAD identifies the fetched remote commit; compare it with local HEAD and with the Argo CD revision in the next step. If you used an older guide, first follow the origin repair procedure with this repository’s URL from lab-gitea; then git remote -v is safe to inspect.

cd /home/lab-user/lightwell-workspace/gitops-prod
BRANCH="$(git branch --show-current)"
git fetch origin "$BRANCH"
git status --short
git log -1 --format='%H %s' HEAD
git log -1 --format='%H %s' FETCH_HEAD
git show FETCH_HEAD:values.yaml

Success means the working tree is clean, local and remote commit IDs match, and the published values.yaml selects the saved Track 5 digest with replicas: 1. Compare the actual digest, not just the presence of sha256:. The production seed REPLACE_ME_PROD_DIGEST must be gone. Preserve production-specific settings. Explain how this separate production commit records the promotion decision while the stage repository continues to own the TrustPolicy.

Compare Git intent with live cluster evidence

Read the following output alongside the remote commit and the saved image reference. These are terminal observations; there is no validation Job to run or report token to submit.

IMAGE="$(cat /home/lab-user/lightwell-signing-evidence/image.txt)"
printf 'Expected verified image: %s\n' "$IMAGE"
APP="$(oc -n gitea get configmap lab-gitea -o jsonpath='{.data.student_prod_argocd_app}')"
TARGET_NS="$(oc -n gitea get configmap lab-gitea -o jsonpath='{.data.student_prod_namespace}')"
oc -n gitea get configmap lab-gitea \
  -o jsonpath='expected_repo={.data.student_prod_gitops_repo_url}{"\n"}'
POLICY="$(oc -n tssc-admission get configmap lab-admission -o jsonpath='{.data.policy_name}')"
oc -n openshift-gitops get applications.argoproj.io "$APP" \
  -o jsonpath='repo={.spec.source.repoURL}{"\n"}revision={.status.sync.revision}{"\n"}sync={.status.sync.status}{"\n"}health={.status.health.status}{"\n"}'
oc -n "$TARGET_NS" get deploy spring-boot-lw-poc \
  -o jsonpath='image={.spec.template.spec.containers[0].image}{"\n"}replicas={.spec.replicas} ready={.status.readyReplicas}{"\n"}'
oc -n "$TARGET_NS" get pods -l app=spring-boot-lw-poc \
  --sort-by=.metadata.creationTimestamp \
  -o 'custom-columns=NAME:.metadata.name,CREATED:.metadata.creationTimestamp,PHASE:.status.phase,READY:.status.containerStatuses[0].ready,IMAGE:.status.containerStatuses[0].imageID'
oc -n "$TARGET_NS" get imagepolicy "$POLICY" -o yaml

Compare each result before continuing:

The Application’s repository matches the expected repository, its revision matches the fetched remote commit, and its status is Synced and Healthy.
The Deployment image uses the saved digest in the destination repository, and both desired and Ready replica counts are 1.
The application pod is Running with READY=true. Inspect its image ID alongside the Deployment reference.
The Application points to gitops-prod-spring-boot-lw-poc, not the stage repository. Production retains its own commit history and desired state.
Production ImagePolicy from module 6.1 still exists and covers the production repository. The stage Application and TrustPolicy remain in place.
Your saved /home/lab-user/lightwell-signing-evidence/track6-prod-verification.json records successful destination signature verification. Keep the unsigned-rejection evidence from module 6.1; policy existence alone is not a repeat of that test.

If the Application still shows an older revision, wait for reconciliation and inspect it again. If the digest or repository differs, correct the production Git configuration before continuing. Carry the promoted digest and matching SBOM into Track 7 once these observations agree.

Carry the result into Track 7

Save the production commit ID and the promoted image reference with your verification evidence. Track 7 records the SBOM for this image, so use the same digest and its matching SBOM rather than rebuilding during the handoff.

Official documentation

About Red Hat OpenShift GitOps
Konflux mapping (Release Service maps to this prod commit)

Key takeaways

Production promotion is a git commit to gitops-prod-spring-boot-lw-poc.
The digest is the one you signed. ImagePolicy from 6.1 still applies.
Lightwell Network and Clearinghouse travel inside that digest.
The next track records the SBOM for this promoted image.
