Application Management Basics

Module Overview

Duration: 35 minutes
Format: Hands-on
Audience: Platform Engineers, Operations Teams

In this module, you’ll deploy an application, expose it to the outside world, scale it for capacity, see how OpenShift self-heals when things fail, and configure health checks. This is the core ops workflow for managing workloads on OpenShift.

Learning Objectives

By the end of this module, you will be able to:

Deploy an application from a container image
Expose it via a Route with TLS
Scale horizontally and observe the behaviour
Understand OpenShift self-healing (pod recreation)
Configure liveness and readiness probes

Deploy an Application

Create a project and deploy a web server:

oc new-project app-management

Now deploy the WeatherNow application using the OpenShift Console.

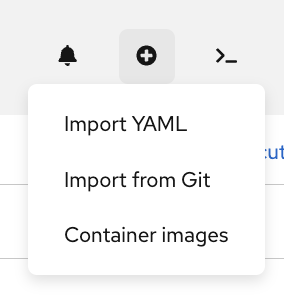

In the top-right corner of the console, click the + (Add) button and select Container images:

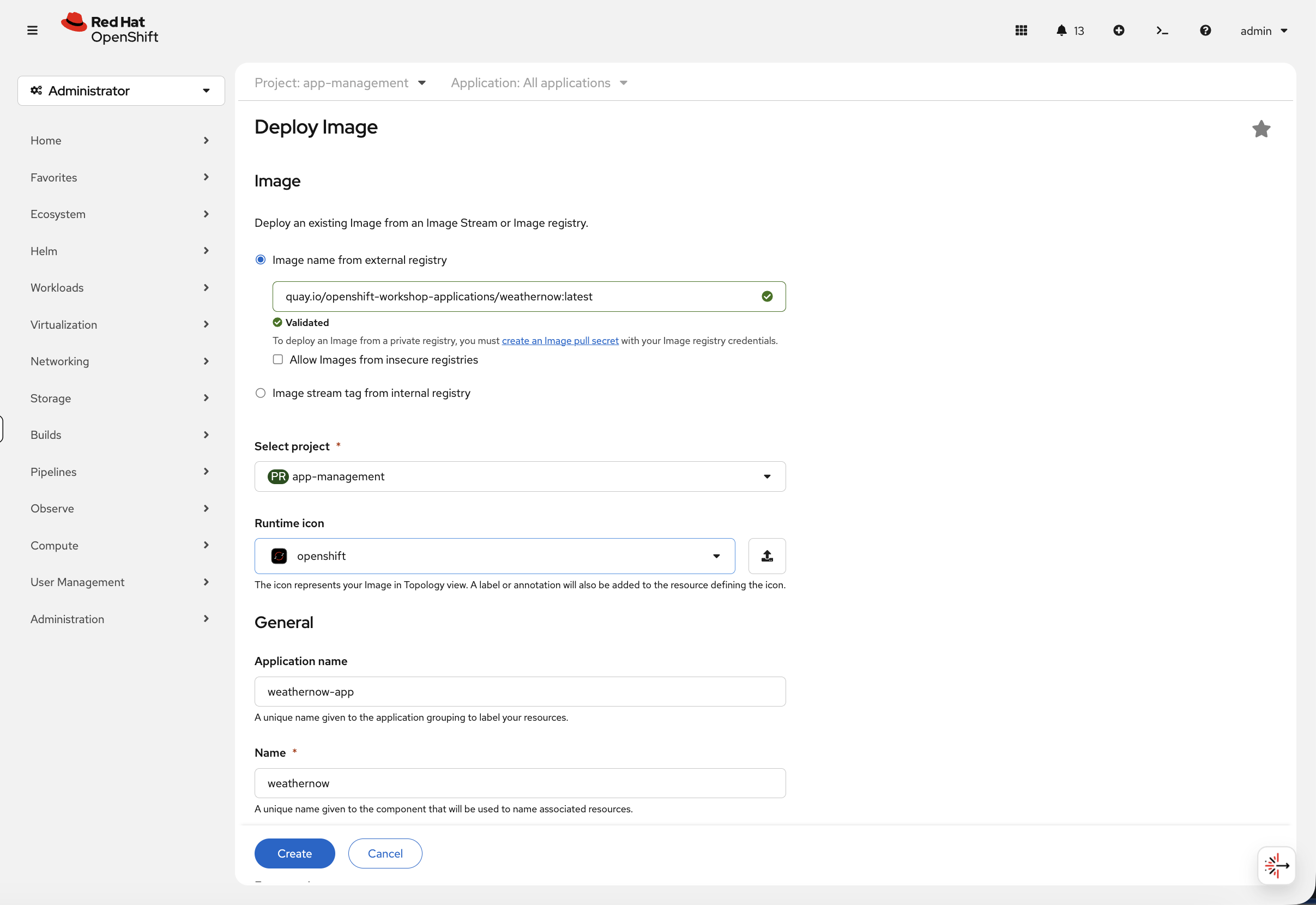

In the Deploy Image form:
- Select Image name from external registry and enter: quay.io/openshift-workshop-applications/weathernow:latest
- Wait for the image to show Validated
- Ensure Select project is set to app-management
- Set the Name to weathernow

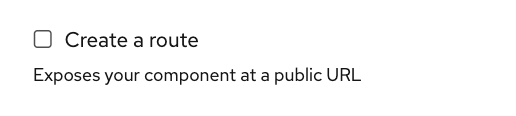

- Scroll down and uncheck the Create a route checkbox. OpenShift can create a route for you automatically, but we want to do it ourselves so you understand how routing works.
- Click Create

This creates two resources:

Deployment — defines what container to run and how many replicas
Service — internal load balancer that routes traffic to the pods

You’ll be taken to the Topology view. Notice the pod is running and the service is created, but under Routes it says "No Routes found for this resource" — the application isn’t accessible from outside the cluster yet.

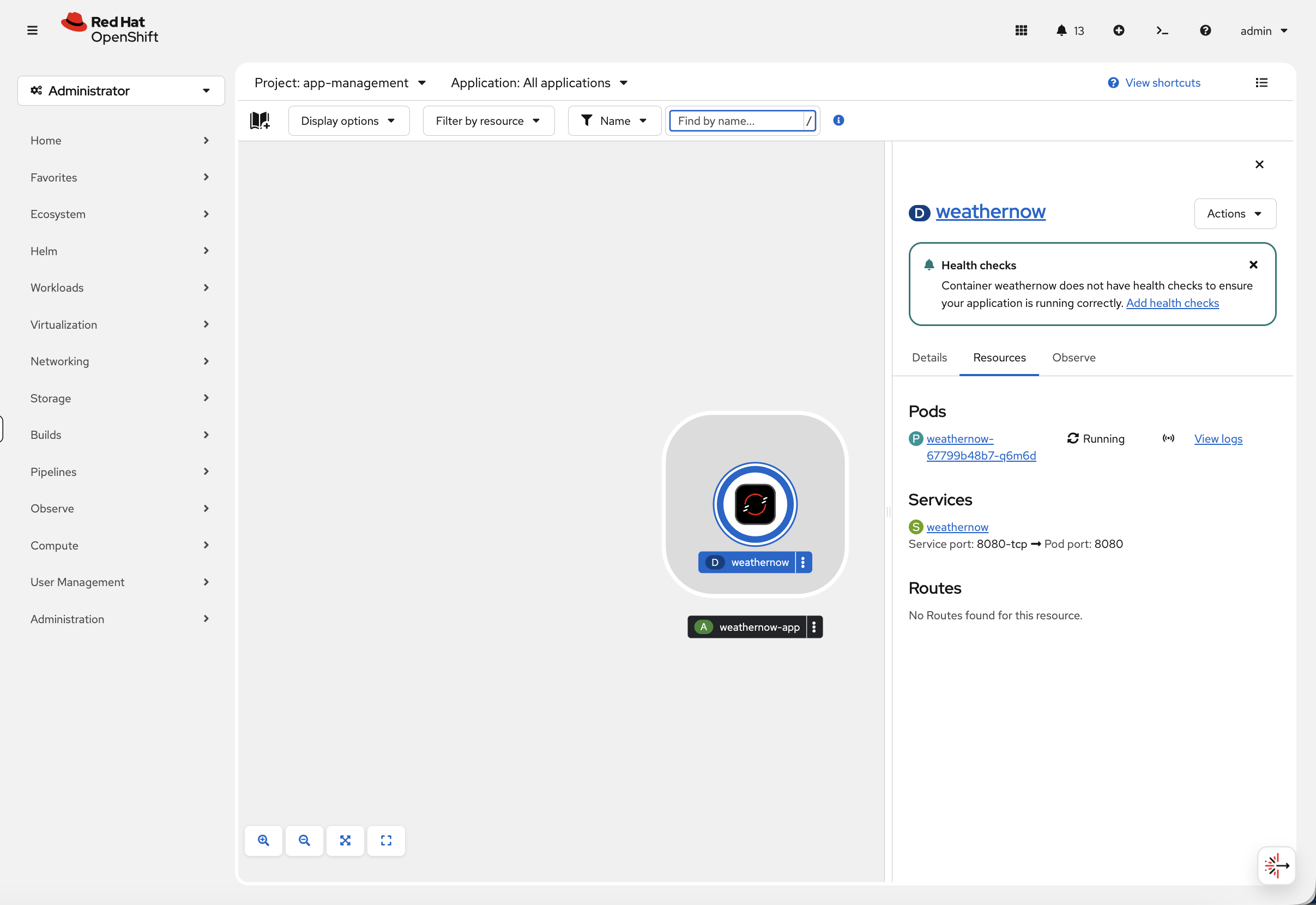

Topology view showing weathernow with no route

Now switch to the terminal to see the same information via CLI:

oc get pods -n app-management

You should see one pod in Running status — the same pod you just saw in the Topology view.

Inspect Your Application

Before moving on, get familiar with the two most important diagnostic commands. These work on any pod in any namespace. The console’s pod detail view (click any pod name) shows the same information across the Details, Events, and Logs tabs — the console log viewer supports real-time streaming, text search, and downloading.

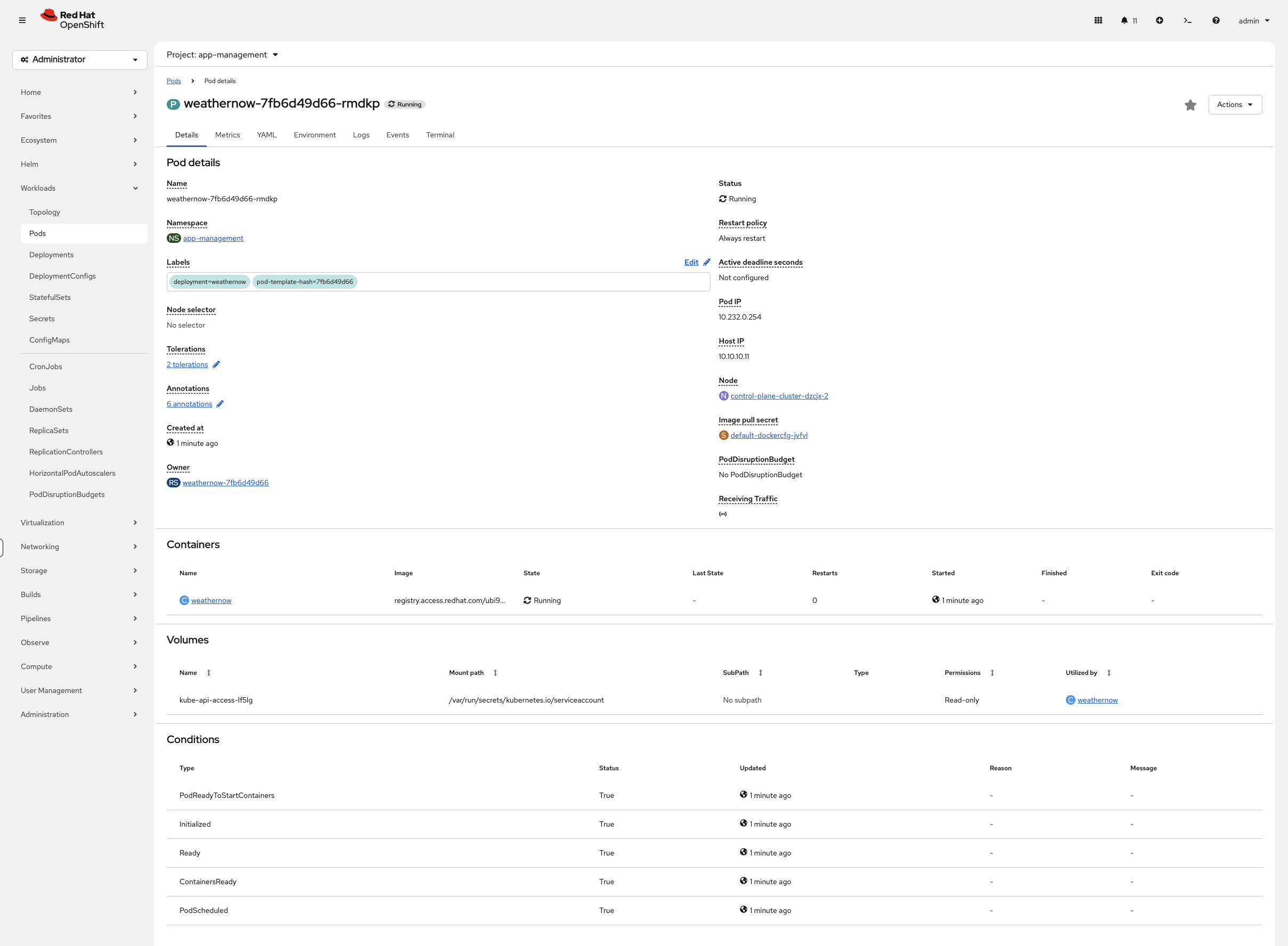

Pod detail page showing Overview with Events and resource usage

Get detailed information about a pod — events, node placement, container status:

oc describe pod $(oc get pods -n app-management -o jsonpath='{.items[0].metadata.name}') -n app-management | tail -15

The Events section at the bottom shows exactly what happened: image pulled, container created, pod scheduled to a specific node.

Check the container’s logs:

oc logs $(oc get pods -n app-management -o jsonpath='{.items[0].metadata.name}') -n app-management | head -5

If the container were crashing, the logs would tell you why. Use --previous to see logs from the last crash.

Check the service:

oc get svc -n app-management

The service has a ClusterIP — this is only reachable from inside the cluster. To expose it externally, we need a Route.

You can also see this in the console at Networking > Services (project: app-management) — click weathernow to see the service details, endpoints, and backing pods.

Create a Route

A Route connects an external URL to your service through the OpenShift router (HAProxy-based ingress controller).

oc create route edge weathernow --service=weathernow

The edge termination means TLS is handled by the router — traffic is encrypted between the user and the router, then plain HTTP to the pod.

Check the route:

oc get route weathernow -n app-management

Now go back to the Topology view in the console. You’ll see the route icon has appeared on the application:

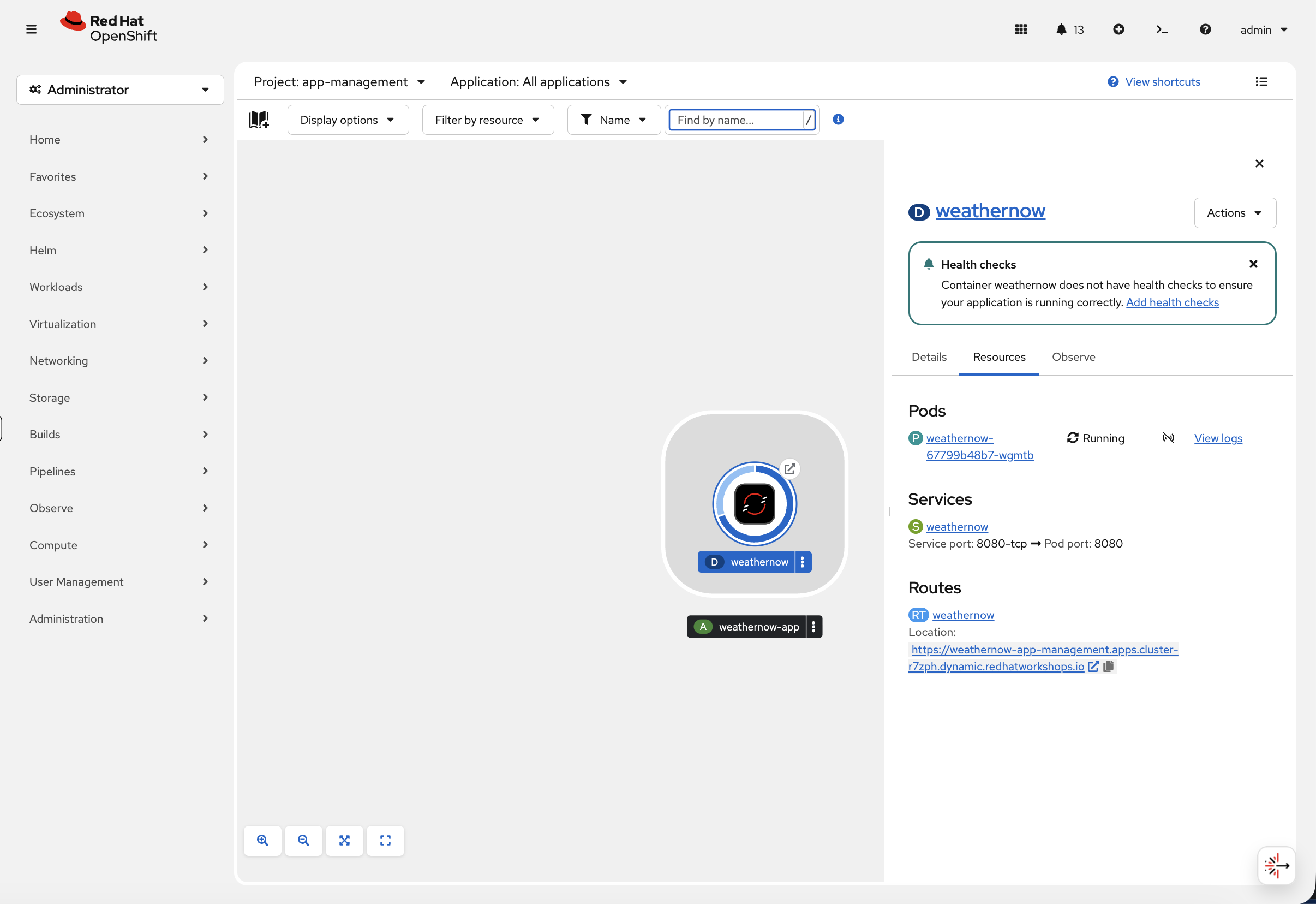

Topology view showing weathernow application with route

Click the route URL to open the WeatherNow app in your browser:

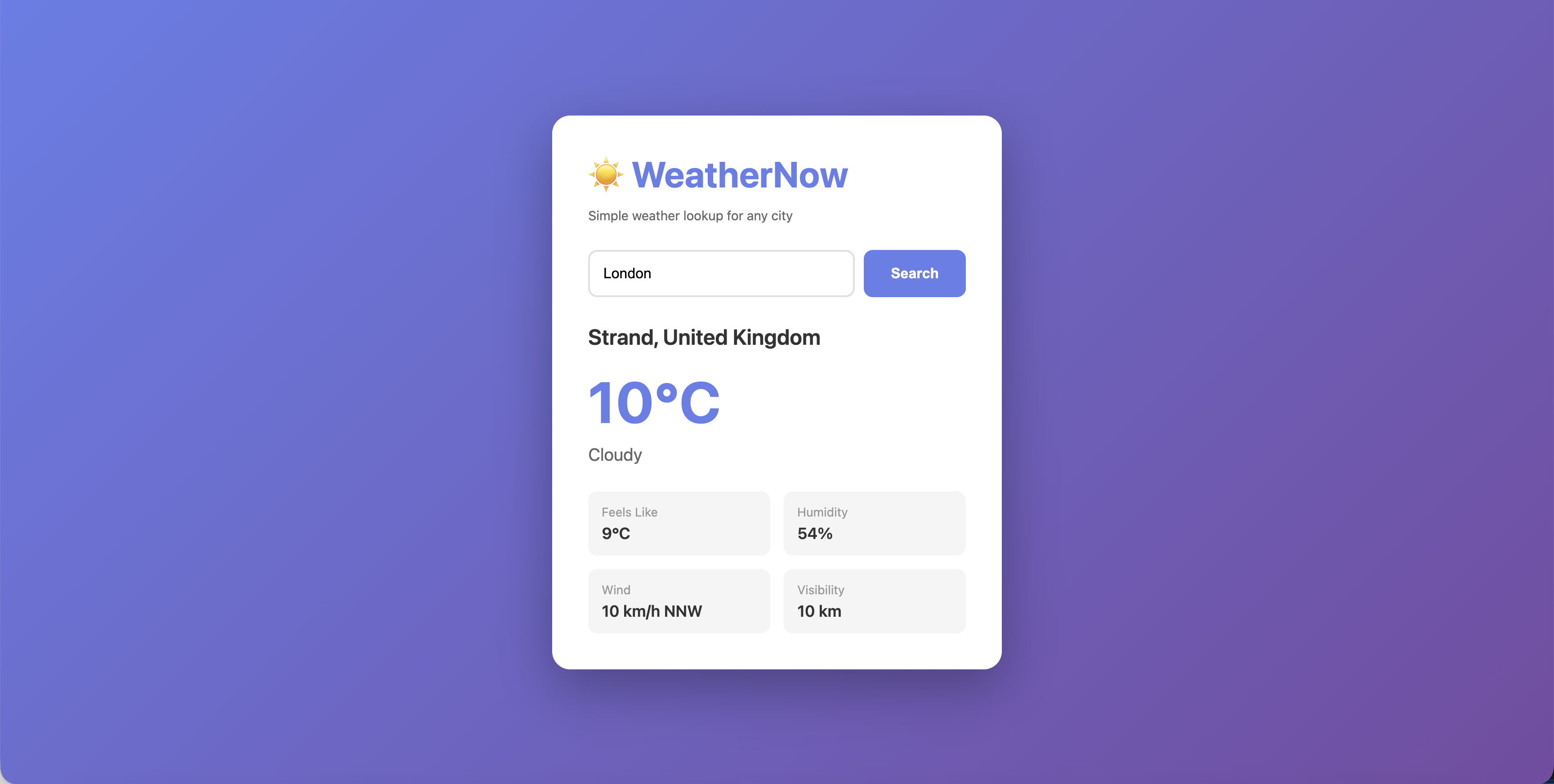

WeatherNow application showing weather data

Your application is now accessible from outside the cluster.

Scale the Application

One pod isn’t enough for production. Scale to 3 replicas:

oc scale deployment weathernow --replicas=3

Now switch to the OCP Console tab: Workloads → Pods (project: app-management). Watch the new pods appear in real-time with status transitions (Pending → ContainerCreating → Running).

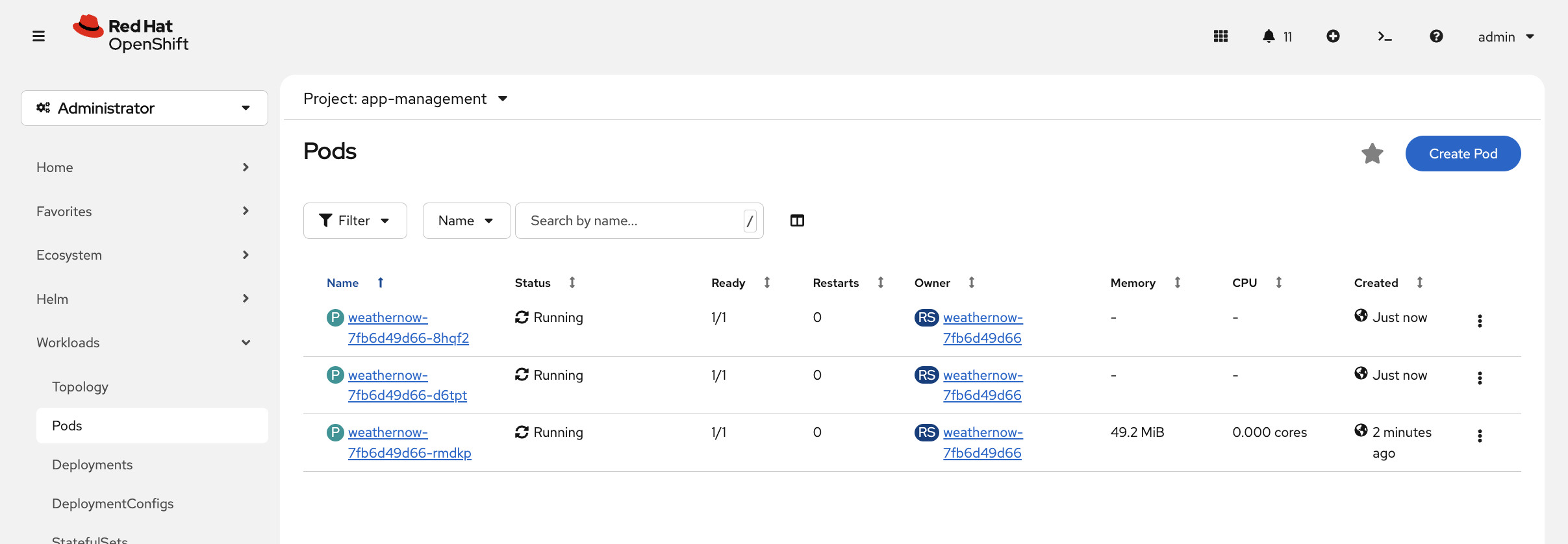

Pod list showing 3 weathernow pods after scaling

You can also verify via CLI:

oc get pods -n app-management

You should see 3 pods, all Running. The service automatically load balances across all of them — no configuration needed. The service uses label selectors to find pods:

oc get endpointslice -l kubernetes.io/service-name=weathernow -n app-management

Each pod’s IP is listed as an endpoint. When a new pod starts, it’s automatically added. When a pod dies, it’s removed.

Self-Healing

When a pod dies, OpenShift automatically replaces it. Let’s see this in action.

Start watching pods, then delete one — you’ll see every status transition in real-time:

oc get pods -n app-management -w &
sleep 2 && oc delete pod $(oc get pods -n app-management -o jsonpath='{.items[0].metadata.name}') -n app-management --wait=false

Watch the output — you’ll see the deleted pod transition to Terminating while a new pod appears as Pending → ContainerCreating → Running. The total stays at 3 replicas throughout.

Press Ctrl+C when you see the replacement pod reach Running.

You can also watch this in the OCP Console at Workloads → Pods (project: app-management). The console shows pod status transitions in real-time with colour-coded indicators.

The Deployment controller detected that the actual state (2 pods) didn’t match the desired state (3 pods) and created a replacement. This happens in seconds, with no manual intervention.

Application Probes

How does OpenShift know if your application is actually healthy? Without probes, a pod shows Running even if the app inside has hung, crashed its listener, or is returning errors to every request. Probes fix that.

Readiness probe — "Can this pod handle traffic?" If it fails, the pod is removed from the service endpoints. No requests get sent to it.
Liveness probe — "Is this pod still alive?" If it fails, OpenShift restarts the container.

Break It On Purpose

Let’s see what happens when probes fail. Add a readiness probe pointing at the wrong port — port 9999, where nothing is listening:

oc patch deployment weathernow -n app-management --type=json -p='[
  {"op":"add","path":"/spec/template/spec/containers/0/readinessProbe","value":{
    "tcpSocket":{"port":9999},
    "initialDelaySeconds":5,
    "periodSeconds":5
  }}
]'

Watch the rollout — it will stall because the new pods never become ready:

oc rollout status deployment/weathernow -n app-management --timeout=30s || true

Check the pods:

oc get pods -n app-management

You should see pods showing 0/1 Running — the container is running, but the readiness probe is failing so OpenShift won’t send traffic to them. In the OCP Console, go to Workloads → Pods (project: app-management):

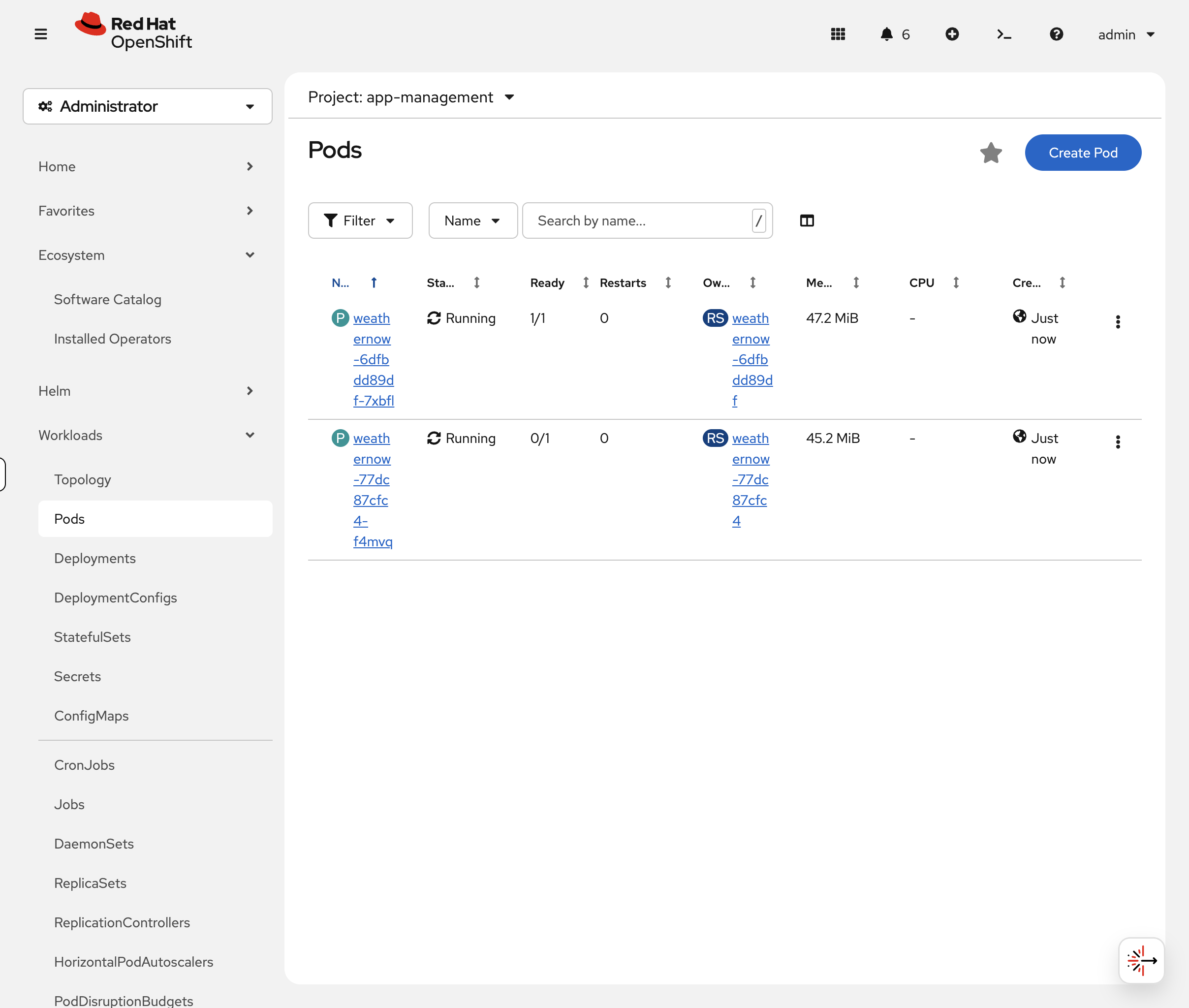

Pod list showing 0/1 Running pod with failed readiness probe

Click the 0/1 pod, then the Events tab. You’ll see repeated Readiness probe failed: dial tcp … connect: connection refused messages:

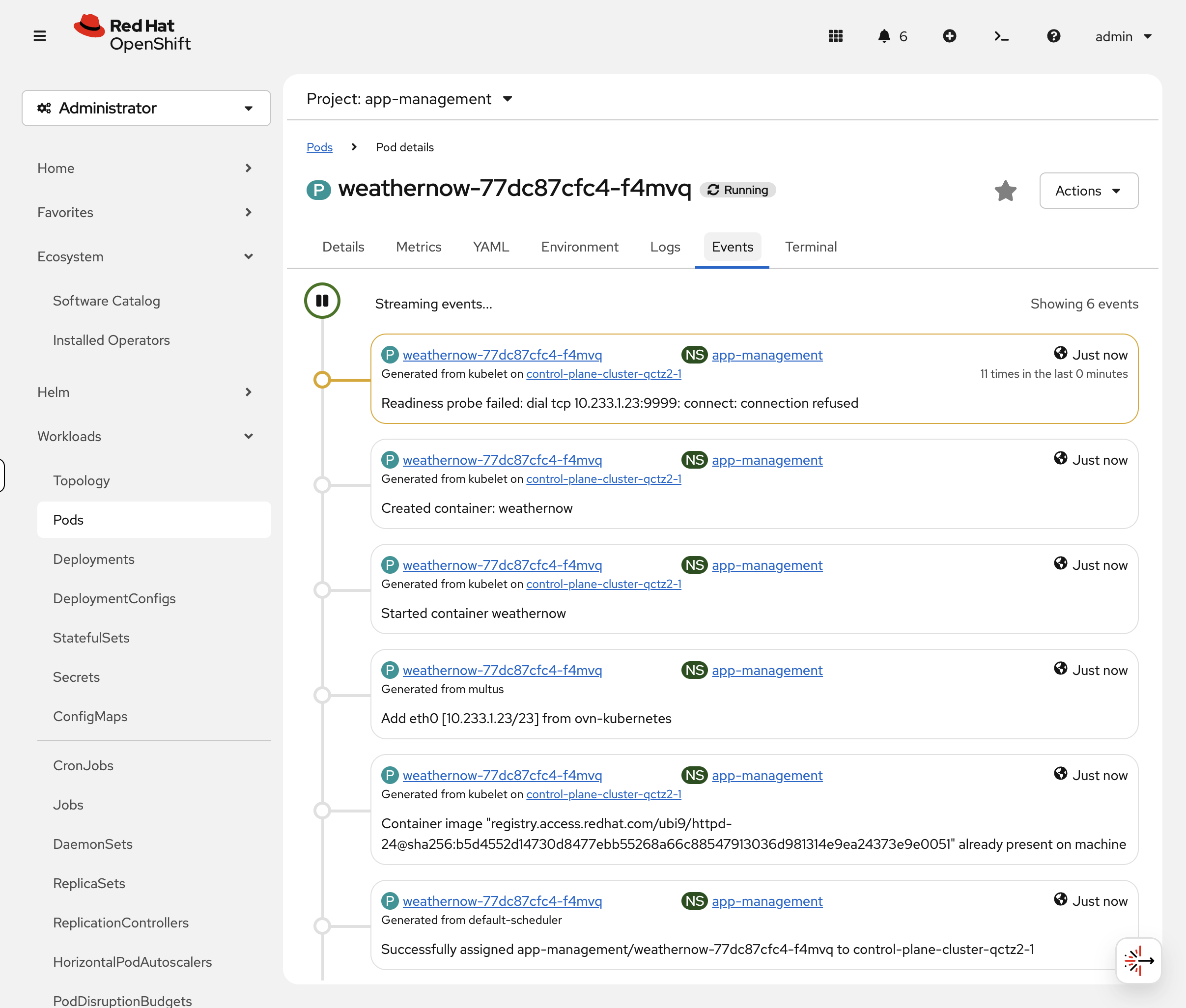

Events tab showing readiness probe failure messages

Check via CLI too:

oc describe pod -l deployment=weathernow -n app-management | grep -A2 "Readiness"

The pod is alive but not ready. No traffic reaches it. This is exactly what happens in production when an app’s health endpoint goes down — OpenShift protects users from broken pods automatically.

Fix the Probe

Now fix it — point the readiness probe at port 8080 where httpd is actually listening, and add a liveness probe too:

oc patch deployment weathernow -n app-management --type=json -p='[
  {"op":"replace","path":"/spec/template/spec/containers/0/readinessProbe","value":{
    "tcpSocket":{"port":8080},
    "initialDelaySeconds":5,
    "periodSeconds":10
  }},
  {"op":"add","path":"/spec/template/spec/containers/0/livenessProbe","value":{
    "tcpSocket":{"port":8080},
    "initialDelaySeconds":15,
    "periodSeconds":20
  }}
]'

Probes support multiple types: httpGet (checks an HTTP endpoint), tcpSocket (checks if a port is listening), and exec (runs a command inside the container). Use whichever matches your app — httpGet to a /healthz endpoint is most common for web services.

oc rollout status deployment/weathernow -n app-management --timeout=60s

oc get pods -n app-management

All pods now show 1/1 Running — probes pass, traffic flows. You just diagnosed and fixed a readiness probe failure, which is one of the most common issues in production OpenShift clusters.

In the OCP Console, navigate to Workloads → Deployments, click the three-dot menu on the weathernow deployment, and select Edit Health Checks:

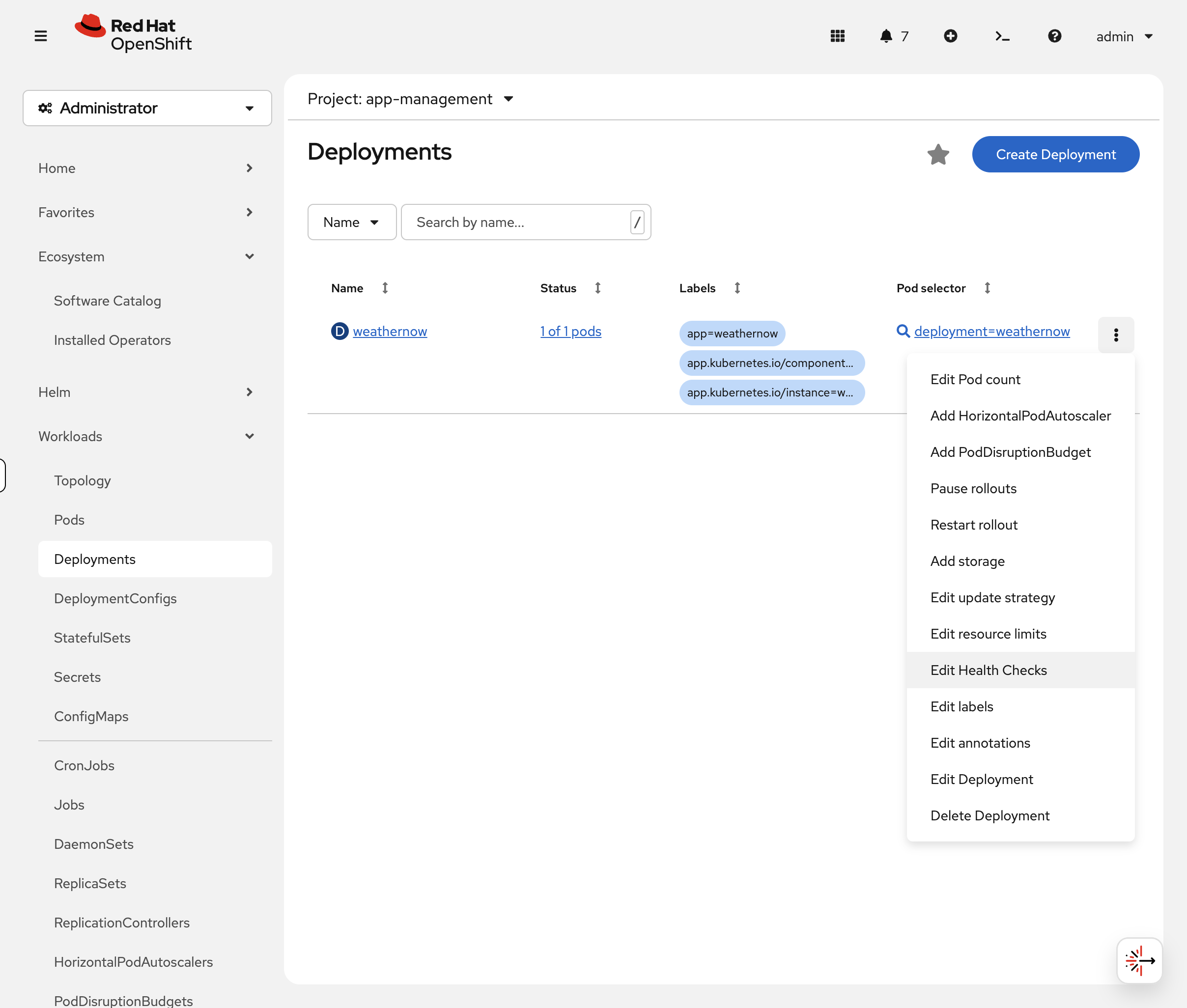

Deployment actions menu showing Edit Health Checks option

The form visually shows the difference between liveness, readiness, and startup probes — and lets you configure them without writing JSON patches:

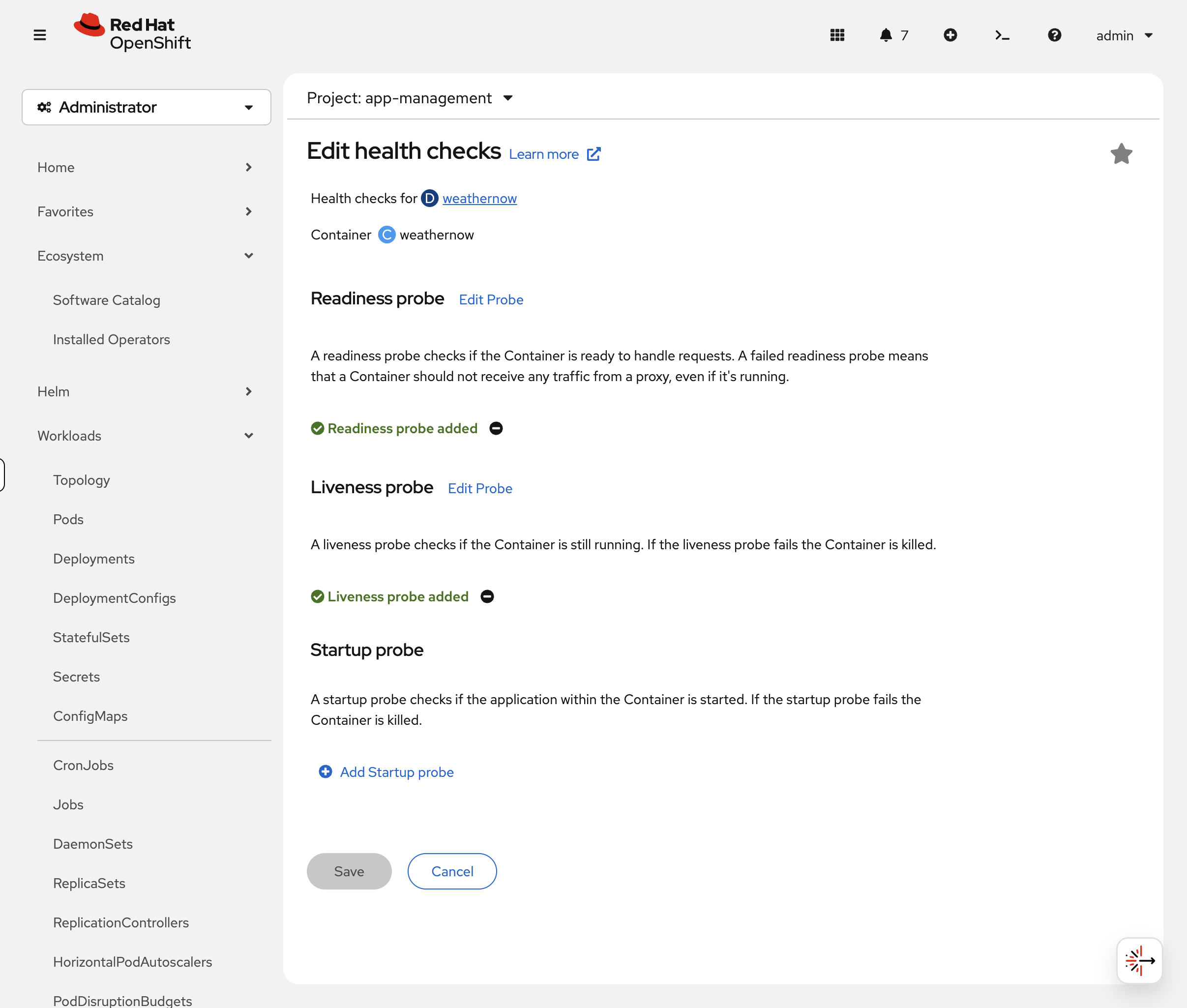

Edit Health Checks form showing configured readiness and liveness probes

Rollback a Bad Deployment

Someone just pushed a bad image update. How do you undo it?

Simulate a bad deploy by changing the image:

oc set image deployment/weathernow weathernow=registry.access.redhat.com/ubi9/nginx-124 -n app-management

Check the rollout history — OpenShift tracks every change:

oc rollout history deployment/weathernow -n app-management

You’ll see multiple revisions. Each time you change the deployment, a new revision is created.

You can also see this visually in the console. Navigate to Workloads → Deployments → weathernow and click the ReplicaSets tab:

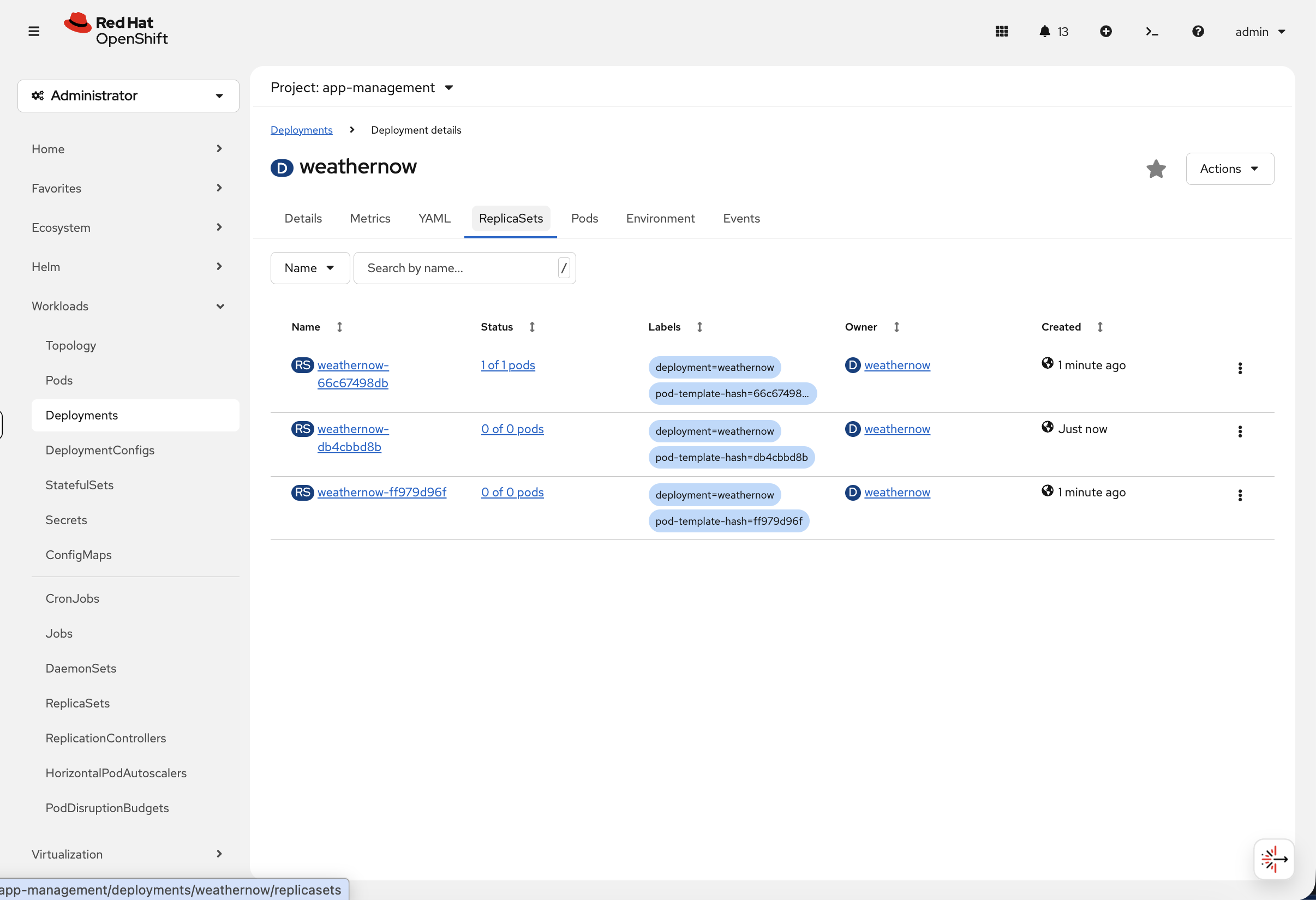

ReplicaSets tab showing deployment revision history with active and scaled-down replicas

Each ReplicaSet represents a revision. The active one shows 1 of 1 pods while previous revisions are scaled to 0 of 0 pods — OpenShift keeps them so it can roll back instantly.

Roll back to the previous working version:

oc rollout undo deployment/weathernow -n app-management

Verify the original image is restored:

oc get deployment weathernow -n app-management -o jsonpath='{.spec.template.spec.containers[0].image}'

oc rollout status deployment/weathernow -n app-management --timeout=60s

The deployment is back to the working version. In production, oc rollout undo is often the fastest way to recover from a bad release — faster than fixing the code and redeploying.

Summary

You completed the core application lifecycle on OpenShift:

Deploy — oc new-app creates deployment + service in one command
Inspect — oc describe pod and oc logs for diagnostics
Expose — oc create route edge adds TLS-terminated external access
Scale — oc scale adjusts replicas, service auto-balances
Self-heal — delete a pod, OpenShift replaces it in seconds
Health checks — probes ensure only healthy pods receive traffic
Rollback — oc rollout undo reverts a bad deployment instantly

Key commands:

oc new-app --name=myapp --image=myimage       # Deploy
oc describe pod <pod-name>                     # Inspect
oc logs <pod-name>                             # Check logs
oc create route edge myapp --service=myapp     # Expose with TLS
oc scale deployment myapp --replicas=N         # Scale
oc rollout undo deployment/myapp               # Rollback
oc rollout status deployment/myapp             # Watch rollout

Cleanup

If the Ingress & Load Balancing module is part of your workshop, skip this cleanup — it reuses the weathernow application in the app-management namespace.

oc delete namespace app-management --ignore-not-found --wait=false
echo "Cleanup running in background — you can continue to the next module"
