Network Security

Module Overview

Duration: 30 minutes
Format: Hands-on network security configuration
Audience: Platform Engineers, Network Administrators, Security Teams

Narrative Context:

Your applications are receiving traffic through the Ingress Controller. Now you need to secure the network layer:

  • Control pod-to-pod communication

  • Restrict outbound traffic to external systems

  • Configure predictable source IPs for external firewalls

  • Understand OpenShift’s software-defined networking

Learning Objectives

By the end of this module, you will be able to:

  • Understand OpenShift’s OVN-Kubernetes software-defined network

  • Implement NetworkPolicy for pod-to-pod security

  • Configure EgressFirewall to control outbound traffic

  • Use EgressIP for predictable source IPs

  • Troubleshoot network connectivity issues

OpenShift Networking Architecture

OpenShift uses OVN-Kubernetes as the default network plugin. OVN-Kubernetes became the default for new installations in OpenShift 4.12 and is the only supported network plugin in OpenShift 4.20.

What OVN-Kubernetes provides:

  • Pod-to-pod networking across nodes

  • Network isolation with NetworkPolicy

  • Egress traffic control (EgressFirewall, EgressIP)

  • IPsec encryption (optional)

  • Hardware offloading support

  • Integration with cloud provider load balancers

View Cluster Network Configuration

oc get network.config cluster -o yaml
You can also view this in the console at Administration > Cluster Settings > Configuration > Network for a formatted view of cluster and service network CIDRs.

Key fields:

  • networkType: OVNKubernetes - Confirms OVN-Kubernetes is active

  • clusterNetwork - IP range for pod networking (varies by cluster)

  • serviceNetwork - IP range for Services (varies by cluster)

Verify Network Operator Health

oc get clusteroperator network

The network operator should show AVAILABLE: True and DEGRADED: False.

oc get pods -n openshift-ovn-kubernetes

You’ll see OVN pods running on the cluster: ovnkube-node (a DaemonSet running on every node) and ovnkube-control-plane (a Deployment managing the OVN control plane).

NetworkPolicy: Pod-to-Pod Security

By default, all pods can communicate with all other pods. NetworkPolicy restricts this.

Create Test Projects

# Create two projects for testing network isolation
oc new-project netpol-frontend
oc new-project netpol-backend

# Deploy apps in each
oc new-app --name=frontend --image=registry.access.redhat.com/ubi9/httpd-24 -n netpol-frontend
oc new-app --name=backend --image=registry.access.redhat.com/ubi9/httpd-24 -n netpol-backend

Wait for pods in both namespaces:

oc get pods -n netpol-frontend
oc get pods -n netpol-backend

Both pods should show Running before continuing.

Test Default Connectivity (Should Work)

Test connectivity from frontend to backend:

BACKEND_IP=$(oc get pod -n netpol-backend -l deployment=backend -o jsonpath='{.items[0].status.podIP}')
oc exec -n netpol-frontend deployment/frontend -- curl -s --connect-timeout 5 http://${BACKEND_IP}:8080

Expected: HTML output from the app - connectivity works by default.

Apply Deny-All NetworkPolicy

cat <<EOF | oc apply -n netpol-backend -f -
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: deny-all
spec:
  podSelector: {}       # empty = applies to ALL pods in this namespace
  policyTypes:
  - Ingress             # we're controlling inbound traffic
  ingress: []           # empty list = no traffic allowed in
EOF

Three lines do all the work: podSelector: {} targets every pod, policyTypes: Ingress says we’re controlling inbound traffic, and the empty ingress: [] list means nothing is allowed through. This is the standard "default deny" pattern — start locked down, then punch specific holes.

Test Connectivity Again (Should Fail)

BACKEND_IP=$(oc get pod -n netpol-backend -l deployment=backend -o jsonpath='{.items[0].status.podIP}')
oc exec -n netpol-frontend deployment/frontend -- curl -s --connect-timeout 5 http://${BACKEND_IP}:8080

Expected: Connection times out (no output after 5 seconds). The NetworkPolicy blocked it.

Allow Traffic from Specific Namespace

Now punch a hole — allow only the frontend namespace to reach the backend, and only on port 8080:

# First, label the frontend namespace so we can reference it
oc label namespace netpol-frontend app-tier=frontend

# Create NetworkPolicy allowing traffic from frontend namespace
cat <<EOF | oc apply -n netpol-backend -f -
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: allow-from-frontend
spec:
  podSelector:
    matchLabels:
      deployment: backend       # only applies to pods with this label
  policyTypes:
  - Ingress
  ingress:
  - from:
    - namespaceSelector:
        matchLabels:
          app-tier: frontend    # only from namespaces with this label
    ports:
    - protocol: TCP
      port: 8080                # only on this port
EOF

This is precise: only pods labelled deployment: backend, only from namespaces labelled app-tier: frontend, only on TCP 8080. Everything else is still denied by the deny-all policy.

Test Connectivity (Should Work Again)

BACKEND_IP=$(oc get pod -n netpol-backend -l deployment=backend -o jsonpath='{.items[0].status.podIP}')
oc exec -n netpol-frontend deployment/frontend -- curl -s --connect-timeout 5 http://${BACKEND_IP}:8080

Expected: HTML output from the app - the allow policy takes effect.

View NetworkPolicies

oc get networkpolicy -n netpol-backend

You should see both deny-all and allow-from-frontend policies.

Now switch to the OCP Console tab and navigate to Networking → NetworkPolicies (project: netpol-backend). Click on deny-all — the console clearly states "All incoming traffic is denied":

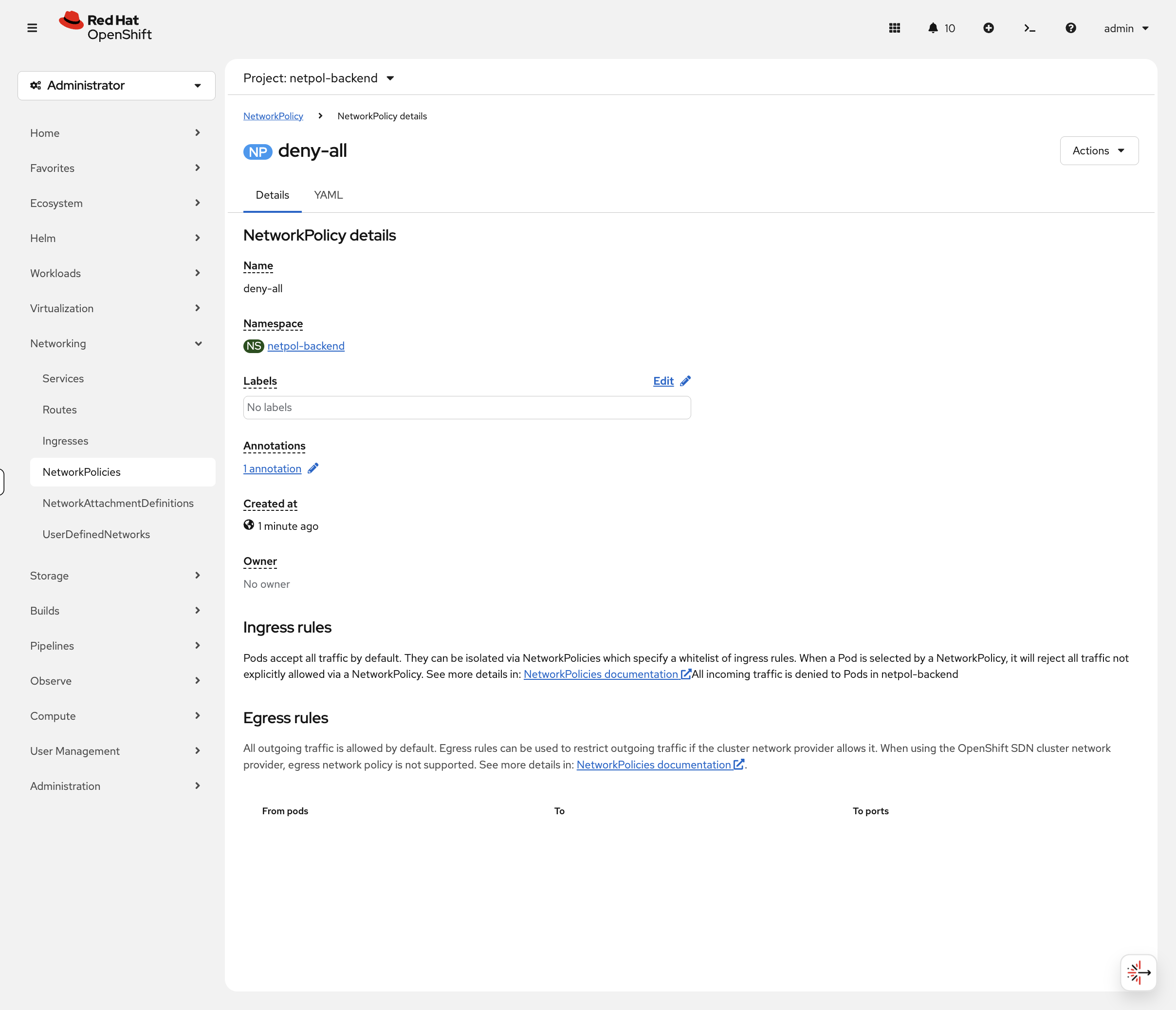

deny-all NetworkPolicy showing all incoming traffic denied

Click back and open allow-from-frontend — the console renders the ingress rule as a readable table showing the pod selector, namespace selector, and allowed port:

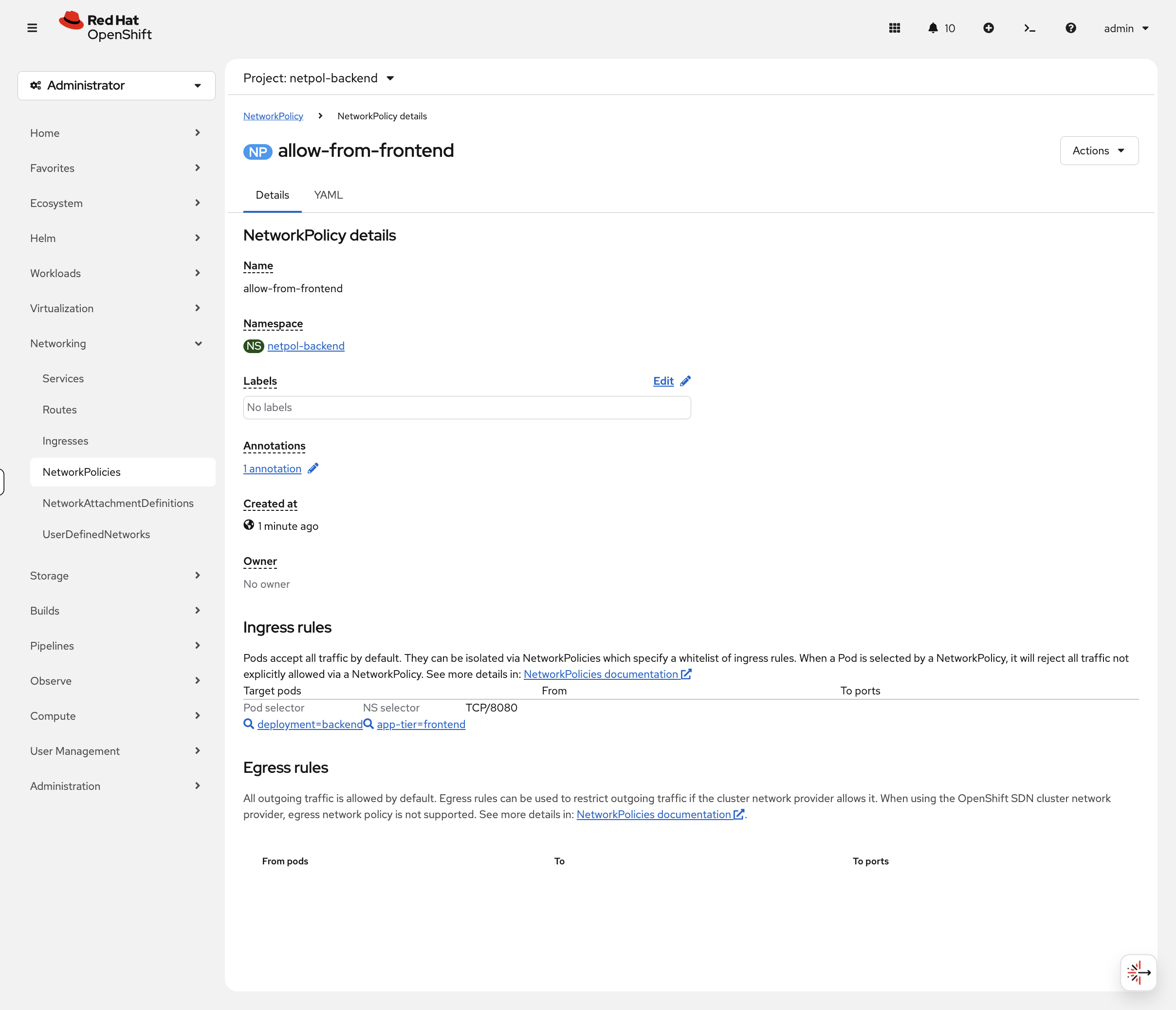

allow-from-frontend NetworkPolicy showing selectors and port rule

Compare this to the YAML you just wrote. In production, when you’re auditing policies across 50 namespaces, this view is dramatically faster than reading raw YAML.

NetworkPolicy Best Practices

Practice Description

Default deny

Start with a deny-all policy, then explicitly allow required traffic

Namespace labels

Use namespace labels for cross-namespace policies

Least privilege

Only allow the specific ports and protocols needed

Document policies

Use annotations to document policy purpose

AdminNetworkPolicy: Cluster-Scoped Policies

Standard NetworkPolicies are namespace-scoped — each team manages their own. AdminNetworkPolicy (ANP) is a cluster-scoped resource that lets platform administrators enforce network policies across all namespaces, with priority over namespace-scoped policies.

View the available ANP API:

oc api-resources | grep policy.networking

Create a cluster-wide policy that blocks external DNS to a specific provider:

cat <<EOF | oc apply -f -
apiVersion: policy.networking.k8s.io/v1alpha1
kind: AdminNetworkPolicy
metadata:
  name: cluster-deny-external-dns
spec:
  priority: 50
  subject:
    namespaces:
      matchLabels:
        kubernetes.io/metadata.name: netpol-backend
  egress:
  - name: deny-external-dns
    action: Deny
    to:
    - networks:
      - 8.8.8.8/32
    ports:
    - portNumber:
        port: 53
        protocol: UDP
EOF

Verify it was created:

oc get adminnetworkpolicy

The PRIORITY field determines evaluation order — lower numbers are evaluated first. This allows platform teams to enforce security baselines that namespace owners cannot override.

Clean up:

oc delete adminnetworkpolicy cluster-deny-external-dns
AdminNetworkPolicy uses policy.networking.k8s.io/v1alpha1. There is also BaselineAdminNetworkPolicy which acts as a fallback — it applies only when no other ANP or NetworkPolicy matches. Together, ANP and BANP give platform teams guardrails while still allowing namespace-level customization.

EgressFirewall: Controlling Outbound Traffic

EgressFirewall controls which external IPs/domains pods can reach. This is an OVN-Kubernetes feature.

Understanding EgressFirewall

EgressFirewall applies per-namespace and evaluates rules in order. Traffic not matching any rule is allowed by default.

View the API:

oc explain egressfirewall.spec

Create an EgressFirewall

Block traffic to a specific CIDR (example: block 1.1.1.0/24):

cat <<EOF | oc apply -n netpol-frontend -f -
apiVersion: k8s.ovn.org/v1
kind: EgressFirewall
metadata:
  name: default
spec:
  egress:
  - type: Deny
    to:
      cidrSelector: 1.1.1.0/24
  - type: Allow
    to:
      cidrSelector: 0.0.0.0/0
EOF

This blocks egress to 1.1.1.0/24 but allows all other traffic.

Test EgressFirewall

# This should fail (blocked)
oc exec -n netpol-frontend deployment/frontend -- curl -s --connect-timeout 3 http://1.1.1.1 || echo "Blocked!"

# This should work (allowed)
oc exec -n netpol-frontend deployment/frontend -- curl -s --connect-timeout 3 -I http://google.com | head -1

View EgressFirewall

oc get egressfirewall -n netpol-frontend -o yaml

DNS-Based EgressFirewall

You can also use DNS names instead of IP addresses (OVN resolves them):

cat <<EOF | oc apply -n netpol-backend -f -
apiVersion: k8s.ovn.org/v1
kind: EgressFirewall
metadata:
  name: default
spec:
  egress:
  - type: Allow
    to:
      dnsName: "www.redhat.com"
  - type: Allow
    to:
      dnsName: "quay.io"
  - type: Deny
    to:
      cidrSelector: 0.0.0.0/0
EOF

This allows only traffic to www.redhat.com and quay.io, blocking everything else.

Wildcard DNS names (e.g., *.redhat.com) are a Technology Preview feature in OpenShift 4.20 and may not be enabled on all clusters. Use specific hostnames for production configurations.

EgressFirewall Use Cases

Use Case Configuration

Block known bad IPs

Deny specific CIDRs, allow all else

Allowlist mode

Allow specific destinations, deny 0.0.0.0/0

Compliance

Restrict egress to approved external services

Data exfiltration prevention

Block unknown external endpoints

EgressFirewall limitations to be aware of in production:

  • Only one EgressFirewall object per namespace (must be named default)

  • Rules do not apply to traffic routed through OpenShift Routes or Ingress

  • Maximum of 8000 rules per EgressFirewall

  • If you use a deny-all rule, pods lose access to the OpenShift API server unless you explicitly allow it

  • NetworkPolicy does not apply to pods using host networking — those pods bypass network policies entirely

  • If you add a deny-all egress NetworkPolicy, you’ll break DNS resolution. Pods need to reach CoreDNS (port 53 UDP/TCP in the openshift-dns namespace). Always allow DNS explicitly when restricting egress.

EgressIP: Predictable Source IPs

EgressIP assigns a fixed source IP for egress traffic from specific pods. Useful when external firewalls need to allowlist your cluster.

Understanding EgressIP

oc explain egressip

EgressIP requires:

  1. Nodes labeled for hosting egress IPs

  2. Available IPs on the node’s network

  3. EgressIP CR referencing namespace/pod selectors

View EgressIP Capability

oc get nodes -o jsonpath='{range .items[*]}{.metadata.name}{"\t"}{.metadata.annotations.k8s\.ovn\.org/node-egress-label}{"\n"}{end}'

Nodes must have the label k8s.ovn.org/egress-assignable="" to be eligible to host EgressIPs.

EgressIP Configuration Example

apiVersion: k8s.ovn.org/v1
kind: EgressIP
metadata:
  name: production-egress
spec:
  egressIPs:
  - 192.168.1.100
  - 192.168.1.101
  namespaceSelector:
    matchLabels:
      environment: production
  podSelector:
    matchLabels:
      egress-required: "true"

Note: EgressIP configuration requires network planning and is typically done during cluster setup. The IPs must be routable on the node network.

When to Use EgressIP

Scenario Benefit

External firewall allowlisting

Predictable source IP for cluster egress

Audit compliance

Track traffic from specific workloads

Multi-tenant isolation

Different egress IPs per tenant

Legacy integration

Connect to systems requiring IP-based authentication

DNS and Service Discovery

OpenShift provides automatic DNS for services.

DNS Format

Services are accessible at:

<service-name>.<namespace>.svc.cluster.local

Test DNS Resolution

Test DNS resolution from any pod:

oc exec -n netpol-frontend deployment/frontend -- nslookup backend.netpol-backend.svc.cluster.local

View Cluster DNS Configuration

oc get dns cluster -o yaml

Shows the cluster’s DNS configuration. The key field is:

  • baseDomain - Cluster’s base DNS domain (e.g., cluster-xxxxx.dynamic.redhatworkshops.io)

On cloud platforms (AWS, Azure, GCP), you’ll also see publicZone and privateZone fields for the cloud DNS zones. On other platforms these may not be present.

View CoreDNS Pods

oc get pods -n openshift-dns

CoreDNS provides DNS resolution for all pods in the cluster.

Cleanup

# Delete network policy test namespaces in the background
oc delete namespace netpol-frontend netpol-backend --ignore-not-found --wait=false
echo "Cleanup running in background — you can continue to the next module"

Summary

What you learned:

  • OpenShift uses OVN-Kubernetes as the default SDN

  • NetworkPolicy controls pod-to-pod communication (default allow, explicit deny)

  • EgressFirewall controls outbound traffic to external destinations

  • EgressIP provides predictable source IPs for egress

  • DNS provides automatic service discovery via <service>.<namespace>.svc.cluster.local

Key operational commands:

# View network configuration
oc get network.config cluster -o yaml

# View network policies
oc get networkpolicy -A

# View egress firewalls
oc get egressfirewall -A

# View egress IPs
oc get egressip -A

# Check DNS configuration
oc get dns cluster -o yaml
